棒棒糖- ImageView无法加载图像应用程序崩溃
棒棒糖- ImageView无法加载图像应用程序崩溃
提问于 2017-11-29 20:24:26
我的应用程序有问题，如果我指定了图像的来源，它就无法启动。Logcat表示仅在第0行加载XML文件时失败。我正试图模仿API22(Android5.1-棒棒糖)，因为我的设备是OnePlus One -注意它们都失败了(手机和模拟器)。但是，如果我试图在API24(Android7.0)上模仿，效果会很好。
如果删除该行，它将启动，但它当然不会显示图像：

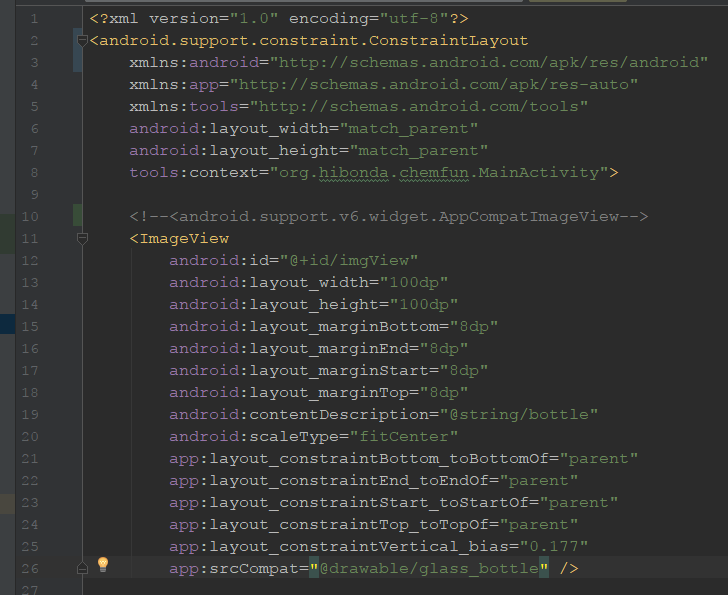

app:srcCompat="@drawable/glass_bottle"任何帮助都是非常感谢的。
编辑1:添加跟踪日志：
11-29 20:12:40.475 5765-5765/? I/art: Not late-enabling -Xcheck:jni (already on)
11-29 20:12:40.493 5765-5773/? E/art: Failed sending reply to debugger: Broken pipe
11-29 20:12:40.493 5765-5773/? I/art: Debugger is no longer active
11-29 20:12:40.544 5765-5765/? I/InstantRun: starting instant run server: is main process
11-29 20:12:40.583 5765-5765/? W/art: Before Android 4.1, method android.graphics.PorterDuffColorFilter android.support.graphics.drawable.VectorDrawableCompat.updateTintFilter(android.graphics.PorterDuffColorFilter, android.content.res.ColorStateList, android.graphics.PorterDuff$Mode) would have incorrectly overridden the package-private method in android.graphics.drawable.Drawable
11-29 20:12:40.672 5765-5765/? W/ResourceType: Failure getting entry for 0x7f060056 (t=5 e=86) (error -75)
11-29 20:12:40.672 5765-5765/? W/ResourceType: Failure getting entry for 0x7f060056 (t=5 e=86) (error -75)
11-29 20:12:40.673 5765-5765/? D/AndroidRuntime: Shutting down VM
11-29 20:12:40.673 5765-5765/? E/AndroidRuntime: FATAL EXCEPTION: main
Process: org.org.chemfun, PID: 5765
java.lang.RuntimeException: Unable to start activity ComponentInfo{org.org.chemfun/org.org.chemfun.MainActivity}: android.view.InflateException: Binary XML file line #0: Error inflating class ImageView
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2325)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2387)
at android.app.ActivityThread.access$800(ActivityThread.java:151)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1303)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:135)
at android.app.ActivityThread.main(ActivityThread.java:5254)
at java.lang.reflect.Method.invoke(Native Method)
at java.lang.reflect.Method.invoke(Method.java:372)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:903)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:698)
Caused by: android.view.InflateException: Binary XML file line #0: Error inflating class ImageView
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:763)
at android.view.LayoutInflater.rInflate(LayoutInflater.java:806)
at android.view.LayoutInflater.inflate(LayoutInflater.java:504)
at android.view.LayoutInflater.inflate(LayoutInflater.java:414)
at android.view.LayoutInflater.inflate(LayoutInflater.java:365)
at android.support.v7.app.AppCompatDelegateImplV9.setContentView(AppCompatDelegateImplV9.java:287)
at android.support.v7.app.AppCompatActivity.setContentView(AppCompatActivity.java:139)
at org.org.chemfun.MainActivity.onCreate(MainActivity.java:29)
at android.app.Activity.performCreate(Activity.java:5990)
at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1106)
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2278)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2387)
at android.app.ActivityThread.access$800(ActivityThread.java:151)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1303)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:135)
at android.app.ActivityThread.main(ActivityThread.java:5254)
at java.lang.reflect.Method.invoke(Native Method)
at java.lang.reflect.Method.invoke(Method.java:372)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:903)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:698)
Caused by: android.content.res.Resources$NotFoundException: Resource ID #0x7f060056
at android.content.res.Resources.getValue(Resources.java:1266)
at android.support.v7.widget.AppCompatDrawableManager.loadDrawableFromDelegates(AppCompatDrawableManager.java:330)
at android.support.v7.widget.AppCompatDrawableManager.getDrawable(AppCompatDrawableManager.java:195)
at android.support.v7.widget.AppCompatDrawableManager.getDrawable(AppCompatDrawableManager.java:188)
at android.support.v7.content.res.AppCompatResources.getDrawable(AppCompatResources.java:100)
at android.support.v7.widget.AppCompatImageHelper.loadFromAttributes(AppCompatImageHelper.java:58)
at android.support.v7.widget.AppCompatImageView.<init>(AppCompatImageView.java:78)
at android.support.v7.widget.AppCompatImageView.<init>(AppCompatImageView.java:68)
at android.support.v7.app.AppCompatViewInflater.createView(AppCompatViewInflater.java:106)
at android.support.v7.app.AppCompatDelegateImplV9.createView(AppCompatDelegateImplV9.java:1024)
at android.support.v7.app.AppCompatDelegateImplV9.onCreateView(AppCompatDelegateImplV9.java:1081)
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:725)
at android.view.LayoutInflater.rInflate(LayoutInflater.java:806)
at android.view.LayoutInflater.inflate(LayoutInflater.java:504)
at android.view.LayoutInflater.inflate(LayoutInflater.java:414)
at android.view.LayoutInflater.inflate(LayoutInflater.java:365)
at android.support.v7.app.AppCompatDelegateImplV9.setContentView(AppCompatDelegateImplV9.java:287)
at android.support.v7.app.AppCompatActivity.setContentView(AppCompatActivity.java:139)
at org.org.chemfun.MainActivity.onCreate(MainActivity.java:29)
at android.app.Activity.performCreate(Activity.java:5990)
at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1106)
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2278)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2387)
at android.app.ActivityThread.access$800(ActivityThread.java:151)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1303)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:135)
at android.app.ActivityThread.main(ActivityThread.java:5254)
at java.lang.reflect.Method.invoke(Native Method)
at java.lang.reflect.Method.invoke(Method.java:372)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:903)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:698) 编辑2:如果我尝试使用ic_launcher作为源代码(默认图标图像来自Android)，它将很好地启动应用程序；我的图像都是PNG，并被放置在可绘制的包中。
回答 1
Stack Overflow用户
回答已采纳
发布于 2017-11-29 22:15:40
原来，我一直在绘图中使用的->复制粘贴PNG图像是不够的(即使所有的引用都是正确的等等)。
解决这一问题的方法是一个接一个地在应用程序上添加-> RightClick，在mipmap包的代码中应用新的->图像资产->应用调整->引用
每一张单张图像都很烦人.我只想用一个该死的PNG形象，真的吗？
