提问于 2018-02-27 17:48:53
第一个问题，很抱歉任何格式化错误.我在使用XSLT1.0过滤一些xml结果时遇到了问题，并且已经折磨了我一个星期的大脑。我在这里看了一下，但找不到任何类似我想做的事情，所以我想问我自己的问题。
我想要的输出是一个有行和列的表；在这里不能使用实际的html (我用下划线代替制表符)，所以下面是一个一般的外观：
压力测试过程日志：
第6步-压力测试#1 __启动时间:09-2018年2月14:21:01 __持续时间: 00:45:00
日期时间_____压力(psi) _______温度(°C) _______温度2 (°C) _______排水压力(psi) _______
09-2018年2月12日:21:01 _______ 4.4 _______ 77.8 _______ 80.1 ______ 0.2
09-2018年2月12日:22:01 _______ 4.3 _______ 77.9 _______ 80.0 ______ 0.2
..。
09-2018年2月12日:55:01 _______ 4.5 _______ 81.7 _______ 88.2 ______ 1.1
第8步-压力测试#2 __启动时间:09-2018年2月15:21:01 __持续时间: 00:15:00
日期时间__压力(psi) __温度(°C) __温度2 (°C) __排水压力(psi) __
09-2018年2月15日:21:01 _______ 6.4 _______ 77.8 _______ 80.1 ______ 0.3
09-2018年2月15日:22:01 _______ 6.3 _______ 77.9 _______ 80.0 ______ 0.1
..。
09-2018年2月15日:35:01 _______ 6.5 _______ 81.7 _______ 88.2 ______ 0.9
xml源如下所示：
<folders NODE_NUMBER="87" RUN_START_DATETIME_LOCAL="2018-02-09 15:21:01.000"
DURATION="15 Mins 00 Secs" START_DATETIME_UTC="2018-02-09 20:21:01.000"
CONTEXT_SOURCE="1" UTC_EXPLICIT="FALSE" RUN_TYPE="folders" NUMBER="Step 13 -
Pressure Test #2" START_DATETIME_LOCAL="2018-02-09 15:21:01.000"
RUN_STOP_DATETIME="09-Feb-2018 15:36:01" IN_PROGRESS="FALSE"
END_DATETIME_LOCAL="2018-02-09 15:36:01.000" RUN_STOP_DATETIME_LOCAL="2018-02-09 15:36:01.000" RUN_NAME="Step 13 - Pressure Test #2" RUN_START_DATETIME="09-Feb-2018 15:21:01" END_DATETIME="09-Feb-2018 15:36:01" START_SORTTIME="20180209152101" TOTALSECONDS_UTC="900.0" DURATION_UTC="DAY=0000;HR=00;MIN=14;SEC=59;MS=1000;" TOTALSECONDS="900" START_DATETIME="09-Feb-2018 15:21:01" RUN_ID="{301C81C5-5266-4DEA-901D-5D9B2C285CC0}" END_DATETIME_UTC="2018-02-09 20:36:01.000" STOP_SORTTIME="20180209153601" NAME="Step Time Range" VISIBLE="1" REQUIRED="1" OUTPUT_TO_REPORT="1" HIERARCHY_PATH="cycle\folders" START_SOURCE="*" END_SOURCE="*">
<ITEM NODE_NUMBER="88" SORT_ORDER="20" UTC="0" DATASOURCE_ID="10" PSTART="" SOURCE_ID="" TAG="PL" VISIBLE="1" DESCRIPTION="" IDPK="2023" EXEC_CONDITION="" DELIMITER="" PRECISION="1" VERSION="1" OCCURRENCE="" ITEMTYPE="DEFAULT" SOURCE="10-LSV1-XI105/AI1/OUT.CV" OUTPUT_TO_REPORT="1" ID="12062" NAME="Drain Press" DATA_SCOPE="0" PLENGTH="" REQUIRED="1" UOM="psig">
<RESULT NODE_NUMBER="89" TYPE="TABLE" NAME="TABLE" AGGREGATE="INTERPOLATIVE" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="28.8" TIME="09-Feb-2018 15:21:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="46.2" TIME="09-Feb-2018 15:22:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="46.2" TIME="09-Feb-2018 15:23:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="46.2" TIME="09-Feb-2018 15:24:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="46.2" TIME="09-Feb-2018 15:25:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="46.2" TIME="09-Feb-2018 15:26:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="46.2" TIME="09-Feb-2018 15:27:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="21.7" TIME="09-Feb-2018 15:28:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="0.2" TIME="09-Feb-2018 15:29:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="0.2" TIME="09-Feb-2018 15:30:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="0.2" TIME="09-Feb-2018 15:31:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="0.2" TIME="09-Feb-2018 15:32:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="0.2" TIME="09-Feb-2018 15:33:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="0.2" TIME="09-Feb-2018 15:34:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
<RESULT_RECORD DATA="0.2" TIME="09-Feb-2018 15:35:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
</RESULT>
<RESULT NODE_NUMBER="90" TYPE="CALC" EVENTVALUE="MINIMUM" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="0.2" RAW_DATA="0.200000" TIME="09-Feb-2018 15:21:01" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
</RESULT>
<RESULT NODE_NUMBER="91" TYPE="CALC" EVENTVALUE="MAXIMUM" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="46.2" RAW_DATA="46.200001" TIME="09-Feb-2018 15:21:01" TAG="10-LSV1-XI105/AI1/OUT.CV"/>
</RESULT>
</ITEM>
<ITEM NODE_NUMBER="92" SORT_ORDER="30" UTC="1" DATASOURCE_ID="10" PSTART="" SOURCE_ID="" TAG="PL" VISIBLE="1" DESCRIPTION="" IDPK="2024" EXEC_CONDITION="" DELIMITER="" PRECISION="1" VERSION="1" OCCURRENCE="" ITEMTYPE="DEFAULT" SOURCE="10-LSV1-XI106/AI1/OUT.CV" OUTPUT_TO_REPORT="1" ID="12065" NAME="Bypass Drain Temp" DATA_SCOPE="0" PLENGTH="" REQUIRED="1" UOM="Deg C">
<RESULT NODE_NUMBER="93" TYPE="TABLE" NAME="TABLE" AGGREGATE="INTERPOLATIVE" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="23.9" TIME="09-Feb-2018 15:21:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:22:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:23:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:24:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:25:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:26:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:27:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:28:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:29:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:30:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:31:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:32:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:33:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:34:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
<RESULT_RECORD DATA="24.1" TIME="09-Feb-2018 15:35:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
</RESULT>
<RESULT NODE_NUMBER="94" TYPE="CALC" EVENTVALUE="MINIMUM" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="23.9" RAW_DATA="23.900000" TIME="09-Feb-2018 15:21:01" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
</RESULT>
<RESULT NODE_NUMBER="95" TYPE="CALC" EVENTVALUE="MAXIMUM" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="24.1" RAW_DATA="24.100000" TIME="09-Feb-2018 15:21:01" TAG="10-LSV1-XI106/AI1/OUT.CV"/>
</RESULT>
</ITEM>
<ITEM NODE_NUMBER="96" SORT_ORDER="40" UTC="1" DATASOURCE_ID="10" PSTART="" SOURCE_ID="" TAG="PL" VISIBLE="1" DESCRIPTION="" IDPK="2025" EXEC_CONDITION="" DELIMITER="" PRECISION="1" VERSION="1" OCCURRENCE="" ITEMTYPE="DEFAULT" SOURCE="10-LSV1-XI107/AI1/OUT.CV" OUTPUT_TO_REPORT="1" ID="12070" NAME="Drain Temp" DATA_SCOPE="0" PLENGTH="" REQUIRED="1" UOM="Deg C">
<RESULT NODE_NUMBER="97" TYPE="TABLE" NAME="TABLE" AGGREGATE="INTERPOLATIVE" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="25.9" TIME="09-Feb-2018 15:21:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:22:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:23:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:24:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:25:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:26:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:27:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:28:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:29:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:30:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:31:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:32:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:33:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:34:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
<RESULT_RECORD DATA="25.5" TIME="09-Feb-2018 15:35:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
</RESULT>
<RESULT NODE_NUMBER="98" TYPE="CALC" EVENTVALUE="MINIMUM" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="25.5" RAW_DATA="25.500000" TIME="09-Feb-2018 15:21:01" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
</RESULT>
<RESULT NODE_NUMBER="99" TYPE="CALC" EVENTVALUE="MAXIMUM" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="25.9" RAW_DATA="25.900000" TIME="09-Feb-2018 15:21:01" TAG="10-LSV1-XI107/AI1/OUT.CV"/>
</RESULT>
</ITEM>
<ITEM NODE_NUMBER="100" SORT_ORDER="50" UTC="1" DATASOURCE_ID="10" PSTART="" SOURCE_ID="" TAG="PL" VISIBLE="1" DESCRIPTION="" IDPK="2026" EXEC_CONDITION="" DELIMITER="" PRECISION="1" VERSION="1" OCCURRENCE="" ITEMTYPE="DEFAULT" SOURCE="10-LSV1-XI104/AI1/OUT.CV" OUTPUT_TO_REPORT="1" ID="12075" NAME="Filter Drain Temp" DATA_SCOPE="0" PLENGTH="" REQUIRED="1" UOM="Deg C">
<RESULT NODE_NUMBER="101" TYPE="TABLE" NAME="TABLE" AGGREGATE="INTERPOLATIVE" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="21.0" TIME="09-Feb-2018 15:21:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:22:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:23:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:24:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:25:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:26:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:27:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:28:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:29:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:30:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:31:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:32:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:33:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:34:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
<RESULT_RECORD DATA="22.3" TIME="09-Feb-2018 15:35:01" QUALITY="200C0 (OPCHDA_INTERPOLATED | OPC_QUALITY_GOOD)" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
</RESULT>
<RESULT NODE_NUMBER="102" TYPE="CALC" EVENTVALUE="MINIMUM" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="21.0" RAW_DATA="21.000000" TIME="09-Feb-2018 15:21:01" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
</RESULT>
<RESULT NODE_NUMBER="103" TYPE="CALC" EVENTVALUE="MAXIMUM" VISIBLE="1" OUTPUT_TO_REPORT="1">
<RESULT_RECORD DATA="22.3" RAW_DATA="22.299999" TIME="09-Feb-2018 15:21:01" TAG="10-LSV1-XI104/AI1/OUT.CV"/>
</RESULT>
</ITEM>
</folders>我的XSL如下：
<div>
<!--ProcessLog-->
<table class="Item" id="Item_ProcessLog">
<tr>
<td COLSPAN="6">
<h2>Process Log for Pressure Tests:</h2>
</td>
</tr>
</table>
<table class="Item" width="100%">
<xsl:for-each select="//folders[@NAME='Step Time Range'][contains(@RUN_NAME,'Pressure Test')]" >
<tr>
<td style="text-align:right" colspan="2">
<b>
<xsl:value-of select="./@RUN_NAME" />
</b>
</td>
<td style="text-align:center" colspan="2">
Start Time: <xsl:value-of select="./@RUN_START_DATETIME" /></td>
<td style="text-align:left" colspan="2">
Duration:
<xsl:variable name="seconds" select="./@TOTALSECONDS_UTC" /><xsl:value-of select="format-number(floor($seconds div 3600), '00')" /><xsl:value-of select="format-number(floor($seconds div 60 mod 60), ':00')" /><xsl:value-of select="format-number($seconds mod 60, ':00')" /></td>
</tr>
<tr>
<th style="text-align:center;">Date Time
</th>
<xsl:for-each select=".//ITEM[@TAG='PL']">
<th style="text-align:center;">
<xsl:value-of select="@NAME" />
<br>
<xsl:value-of select="@UOM" />
</br>
</th>
</xsl:for-each>
</tr>
<xsl:for-each select="(.//ITEM[@TAG='PL'])/RESULT[@TYPE='TABLE']/RESULT_RECORD">
<xsl:variable name="num" select="position()" />
<tr>
<td>
<xsl:value-of select="@TIME" />
</td>
<td>
<xsl:value-of select="@DATA" />
</td>
</tr>
</xsl:for-each>
</xsl:for-each>
</table>
</div>它的“工作”范围是显示每个结果的日期/时间，并且只显示数据的第一列。在我的一生中，我无法获得所有四列数据的输出。我有一个不同的样式表，用于显示所有数据的同一个xsl，而不仅仅是这些多个数据子集。
任何有任何想法或建议的人都将不胜感激！谢谢你抽出时间来看我的问题:)
回答 1
Stack Overflow用户
回答已采纳
发布于 2018-03-03 06:38:42
要按列显示的数据是从<ITEM>元素的不同索引中获取的。Drain Press是从ITEM[1]下的<RESULT_RECORD>元素获取的，Bypass Drain Temp是从ITEM[2]下的<RESULT_RECORD>元素获取的，等等。
muenchian grouping和普通<xsl:for-each>的结合可以得到所需的输出。在<folders>元素上启动一个外部循环，这与共享XSL相同。
<xsl:for-each select="//folders[@NAME='Step Time Range'][contains(@RUN_NAME,'Pressure Test')]">在此循环中，可以生成标题行和列标题。我已经修改了共享代码片段，以使用concat()函数而不是连续的<xsl:value-of>。
<tr>
<td style="text-align:right" colspan="2">
<b>
<xsl:value-of select="@RUN_NAME" />
</b>
</td>
<td style="text-align:center" colspan="2">
<xsl:value-of select="concat('Start Time: ', @RUN_START_DATETIME)" />
</td>
<td style="text-align:left">
<xsl:variable name="totalSeconds" select="@TOTALSECONDS_UTC" />
<xsl:variable name="hours" select="format-number(floor($totalSeconds div 3600), '00')" />
<xsl:variable name="minutes" select="format-number(floor($totalSeconds div 60 mod 60), ':00')" />
<xsl:variable name="seconds" select="format-number($totalSeconds mod 60, ':00')" />
<xsl:value-of select="concat('Duration: ', $hours, $minutes, $seconds)" />
</td>
</tr>
<tr>
<th style="text-align:center;">Date Time</th>
<xsl:for-each select="ITEM[@TAG='PL']">
<th style="text-align:center;">
<xsl:value-of select="@NAME" />
<br>
<xsl:value-of select="@UOM" />
</br>
</th>
</xsl:for-each>
</tr>为了获取和显示单独的按列排列的数据，使用了muenchian grouping。定义了一个键，根据<RESULT_RECORD>属性值将具有@QUALITY属性的@TIME组合在一起。@QUALITY属性筛选器用于排除提取数据所不需要的其他<RESULT_RECORD>元素。
<xsl:key name="groupKey" match="RESULT_RECORD[@QUALITY]" use="@TIME" />嵌套循环在分组元素上运行，用于获取@TIME和@DATA。
<xsl:for-each select="//RESULT_RECORD[@QUALITY][generate-id() = generate-id(key('groupKey', @TIME)[1])]">
<tr>
<td style="text-align:center;">
<xsl:value-of select="@TIME" />
</td>
<xsl:for-each select="key('groupKey', @TIME)">
<td style="text-align:center;">
<xsl:value-of select="@DATA" />
</td>
</xsl:for-each>
</tr>

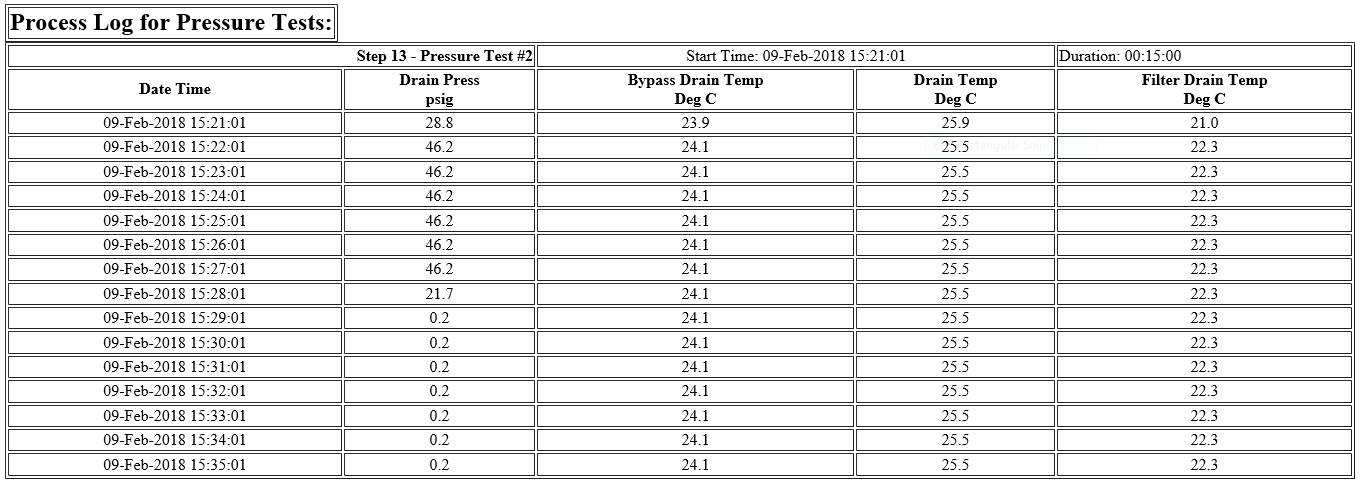

</xsl:for-each>整个XSLT如下所示
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
<xsl:output method="html" />
<xsl:strip-space elements="*" />
<xsl:key name="groupKey" match="RESULT_RECORD[@QUALITY]" use="@TIME" />
<xsl:template match="/">
<div>
<!--ProcessLog -->
<table class="Item" id="Item_ProcessLog" border="1">
<tr>
<td COLSPAN="5">
<h2>Process Log for Pressure Tests:</h2>
</td>
</tr>
</table>
<table class="Item" width="100%" border="1">
<xsl:for-each select="//folders[@NAME='Step Time Range'][contains(@RUN_NAME,'Pressure Test')]">
<tr>
<td style="text-align:right" colspan="2">
<b>
<xsl:value-of select="@RUN_NAME" />
</b>
</td>
<td style="text-align:center" colspan="2">
<xsl:value-of select="concat('Start Time: ', @RUN_START_DATETIME)" />
</td>
<td style="text-align:left">
<xsl:variable name="totalSeconds" select="@TOTALSECONDS_UTC" />
<xsl:variable name="hours" select="format-number(floor($totalSeconds div 3600), '00')" />
<xsl:variable name="minutes" select="format-number(floor($totalSeconds div 60 mod 60), ':00')" />
<xsl:variable name="seconds" select="format-number($totalSeconds mod 60, ':00')" />
<xsl:value-of select="concat('Duration: ', $hours, $minutes, $seconds)" />
</td>
</tr>
<tr>
<th style="text-align:center;">Date Time</th>
<xsl:for-each select="ITEM[@TAG='PL']">
<th style="text-align:center;">
<xsl:value-of select="@NAME" />
<br>
<xsl:value-of select="@UOM" />
</br>
</th>
</xsl:for-each>
</tr>
<xsl:for-each select="//RESULT_RECORD[@QUALITY][generate-id() = generate-id(key('groupKey', @TIME)[1])]">
<tr>
<td style="text-align:center;">
<xsl:value-of select="@TIME" />
</td>
<xsl:for-each select="key('groupKey', @TIME)">
<td style="text-align:center;">
<xsl:value-of select="@DATA" />
</td>
</xsl:for-each>
</tr>
</xsl:for-each>
</xsl:for-each>
</table>
</div>
</xsl:template>
</xsl:stylesheet>输出的图像可以在附件中找到。为了便于理解，我在table中添加了一个table。请随意移除它。
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/49014915
复制相关文章
相似问题
腾讯云开发者
