社区首页 >问答首页 >xml类型的android.content.res.Resources$NotFoundException:文件res/mipmap-xhdpi-v4/ic_copyright_black_24dp.png资源ID #0x7f0d0007

问xml类型的android.content.res.Resources$NotFoundException:文件res/mipmap-xhdpi-v4/ic_copyright_black_24dp.png资源ID #0x7f0d0007
EN

Stack Overflow用户
提问于 2018-04-18 08:42:06
回答 2查看 762关注 0票数 2

嗨，在gitLibaray的帮助下，我在我的安卓应用程序中创建了一个关于我们的页面。

这是我正在使用的库。

该代码工作良好，但问题是，当我试图显示版权标志，它给我错误，我有添加堆栈轨道下面。请检查我的代码并纠正我..。

About.java

代码语言：javascript
运行
复制
     public class About extends Fragment {


    public About() {
        // Required empty public constructor
    }


    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        // Inflate the layout for this fragment
        View view = inflater.inflate(R.layout.fragment_about, container, false);
        String  desc = "CINEMATOGRAPHER AND PHOTOGRAPHER";

        Element versionElement = new Element();
        versionElement.setTitle("Version 1.0");

        View aboutPage = new AboutPage(getActivity())
                .isRTL(false)
                .setDescription(desc)
                .setImage(R.mipmap.jdlogo_circle)
                .addItem(versionElement)
                .addGroup("Connect with us")
                .addEmail("JDstudio.in@gmail.com")
                .addFacebook("facebook.com/JDstudio.in")
                .addYoutube("UC1DbBH3re7wceuz0XdCOJ8Q")
                .addInstagram("_jdstudio")
                .addItem(getCopyRightsElement())
                .create();

        return aboutPage;
    }

    Element getCopyRightsElement() {
        Element copyRightsElement = new Element();
        final String copyrights = String.format(getString(R.string.copy_right), Calendar.getInstance().get(Calendar.YEAR));
        copyRightsElement.setTitle(copyrights);
        copyRightsElement.setIconDrawable(R.mipmap.ic_copyright_black_24dp);
        copyRightsElement.setIconTint(mehdi.sakout.aboutpage.R.color.about_item_icon_color);
        copyRightsElement.setIconNightTint(android.R.color.white);
        copyRightsElement.setGravity(Gravity.CENTER);

        return copyRightsElement;
    }

}

fragment_about.xml

代码语言：javascript
运行
复制
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.example.lenovo.jdstudio.About">

    <!-- TODO: Update blank fragment layout -->
    <TextView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="@string/hello_blank_fragment" />

</FrameLayout>

堆栈跟踪

代码语言：javascript
运行
复制
E/AndroidRuntime: FATAL EXCEPTION: main
                  Process: com.example.lenovo.jdstudio, PID: 7627
                  android.content.res.Resources$NotFoundException: File res/mipmap-xhdpi-v4/ic_copyright_black_24dp.png from xml type xml resource ID #0x7f0d0007
                      at android.content.res.Resources.loadXmlResourceParser(Resources.java:2430)
                      at android.content.res.Resources.loadXmlResourceParser(Resources.java:2385)
                      at android.content.res.Resources.getXml(Resources.java:998)
                      at android.support.graphics.drawable.VectorDrawableCompat.create(VectorDrawableCompat.java:562)
                      at mehdi.sakout.aboutpage.AboutPage.createItem(AboutPage.java:563)
                      at mehdi.sakout.aboutpage.AboutPage.addItem(AboutPage.java:407)
                      at com.example.lenovo.jdstudio.About.onCreateView(About.java:51)
                      at android.support.v4.app.Fragment.performCreateView(Fragment.java:2346)
                      at android.support.v4.app.FragmentManagerImpl.moveToState(FragmentManager.java:1428)
                      at android.support.v4.app.FragmentManagerImpl.moveFragmentToExpectedState(FragmentManager.java:1759)
                      at android.support.v4.app.FragmentManagerImpl.moveToState(FragmentManager.java:1827)
                      at android.support.v4.app.BackStackRecord.executeOps(BackStackRecord.java:797)
                      at android.support.v4.app.FragmentManagerImpl.executeOps(FragmentManager.java:2596)
                      at android.support.v4.app.FragmentManagerImpl.executeOpsTogether(FragmentManager.java:2383)
                      at android.support.v4.app.FragmentManagerImpl.removeRedundantOperationsAndExecute(FragmentManager.java:2338)
                      at android.support.v4.app.FragmentManagerImpl.execPendingActions(FragmentManager.java:2245)
                      at android.support.v4.app.FragmentManagerImpl$1.run(FragmentManager.java:703)
                      at android.os.Handler.handleCallback(Handler.java:808)
                      at android.os.Handler.dispatchMessage(Handler.java:103)
                      at android.os.Looper.loop(Looper.java:193)
                      at android.app.ActivityThread.main(ActivityThread.java:5333)
                      at java.lang.reflect.Method.invokeNative(Native Method)
                      at java.lang.reflect.Method.invoke(Method.java:515)
                      at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:828)
                      at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:644)
                      at dalvik.system.NativeStart.main(Native Method)
                   Caused by: java.io.FileNotFoundException: Corrupt XML binary file
                      at android.content.res.AssetManager.openXmlAssetNative(Native Method)
                      at android.content.res.AssetManager.openXmlBlockAsset(AssetManager.java:501)
                      at android.content.res.Resources.loadXmlResourceParser(Resources.java:2412)
                      at android.content.res.Resources.loadXmlResourceParser(Resources.java:2385)
                      at android.content.res.Resources.getXml(Resources.java:998)
                      at android.support.graphics.drawable.VectorDrawableCompat.create(VectorDrawableCompat.java:562)
                      at mehdi.sakout.aboutpage.AboutPage.createItem(AboutPage.java:563)
                      at mehdi.sakout.aboutpage.AboutPage.addItem(AboutPage.java:407)
                      at com.example.lenovo.jdstudio.About.onCreateView(About.java:51)
                      at android.support.v4.app.Fragment.performCreateView(Fragment.java:2346)
                      at android.support.v4.app.FragmentManagerImpl.moveToState(FragmentManager.java:1428)
                      at android.support.v4.app.FragmentManagerImpl.moveFragmentToExpectedState(FragmentManager.java:1759)
                      at android.support.v4.app.FragmentManagerImpl.moveToState(FragmentManager.java:1827)
                      at android.support.v4.app.BackStackRecord.executeOps(BackStackRecord.java:797)
                      at android.support.v4.app.FragmentManagerImpl.executeOps(FragmentManager.java:2596)
                      at android.support.v4.app.FragmentManagerImpl.executeOpsTogether(FragmentManager.java:2383)
                      at android.support.v4.app.FragmentManagerImpl.removeRedundantOperationsAndExecute(FragmentManager.java:2338)
                      at android.support.v4.app.FragmentManagerImpl.execPendingActions(FragmentManager.java:2245)
                      at android.support.v4.app.FragmentManagerImpl$1.run(FragmentManager.java:703)
                      at android.os.Handler.handleCallback(Handler.java:808)
                      at android.os.Handler.dispatchMessage(Handler.java:103)
                      at android.os.Looper.loop(Looper.java:193)
                      at android.app.ActivityThread.main(ActivityThread.java:5333)
                      at java.lang.reflect.Method.invokeNative(Native Method)
                      at java.lang.reflect.Method.invoke(Method.java:515)
                      at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:828)
                      at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:644)
                      at dalvik.system.NativeStart.main(Native Method)

​

提前谢谢。

android
android-fragments
android-resources
file-not-found
EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2018-04-20 08:22:41

在unicode中使用string.xml中的版权符号如下:-

代码语言：javascript
运行
复制
<string name= "copy_right">&#169; your_String </string>

然后在你的代码中提到:-

代码语言：javascript
运行
复制
            Element getCopyRightsElement() {
            Element copyRightsElement = new Element();
            final String copyrights = String.format(getString(R.string.copy_right), Calendar.getInstance().get(Calendar.YEAR));
            copyRightsElement.setTitle(copyrights);
            copyRightsElement.setIconTint(mehdi.sakout.aboutpage.R.color.about_item_icon_color);
            copyRightsElement.setGravity(Gravity.CENTER);

            return copyRightsElement;
        }
票数 1
EN

Stack Overflow用户

发布于 2018-04-18 08:49:27

代码语言：javascript
运行
复制
android.content.res.Resources$NotFoundException: File res/mipmap-xhdpi-v4/ic_copyright_black_24dp.png from xml type xml resource ID #0x7f0d0007

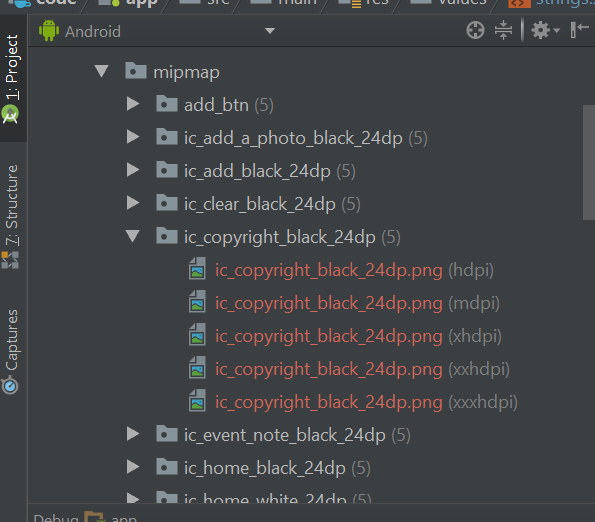

上面的错误消息清楚地指出，在res/mipmap文件夹中找不到ic_copyright_black_24dp.png映像，检查该文件夹是否存在该文件。

票数 1
