是否有Windows事件来确定蓝牙设备是否成对
EN

Stack Overflow用户
提问于 2018-10-24 11:59:05
回答 1查看 2.1K关注 0票数 4

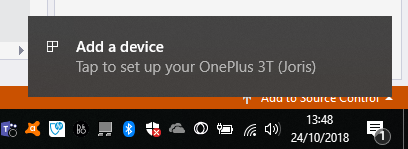

我正在构建一个应用程序,允许我与蓝牙设备配对。现在,我正试图在C#中找到一个事件,该事件允许我检测设备何时被添加或准备添加(参见img: Windows 10弹出窗口)。

有人知道我在找哪一个吗?

EN

回答 1

Stack Overflow用户

发布于 2019-04-03 06:49:09

我有点晚了,但是这里有一些关于我使用普通的原始API (在C++中)使用WM_DEVICECHANGE消息所做的事情的片段。

  • 您需要拦截WM_DEVICECHANGE消息(很明显)
  • 您首先需要“注册”正确的GUID:
  • GUID_BTHPORT_DEVICE_INTERFACE {0850302A-B344-4fda-9BE9-90576B8D46F0}拦截有关无线电本身的事件
  • GUID_BTH_DEVICE_INTERFACE {00F40965-E89D-4487-9890-87C3ABB211F4}拦截任何蓝牙设备和/或
  • GUID_BLUETOOTHLE_DEVICE_INTERFACE {781aee18-7733-4ce4-add0-91f41c67b592}来拦截有关BLE设备的事件。

(如果您需要SetupAPIxx/CM_xx例程,这些是“Interface GUID”)

我使用以下代码来“注册”它们:

代码语言:javascript
运行
复制
HDEVNOTIFY UDeviceInfoHandler::RegisterDeviceNotification(  HWND    hwnd,
                                                            GUID    InterfaceClassGuid,
                                                            DWORD   flags)
{
    DEV_BROADCAST_DEVICEINTERFACE DevFilter;
    ::ZeroMemory(&DevFilter, sizeof(DEV_BROADCAST_DEVICEINTERFACE) );
    DevFilter.dbcc_size = sizeof( DEV_BROADCAST_DEVICEINTERFACE );
    DevFilter.dbcc_devicetype = DBT_DEVTYP_DEVICEINTERFACE;
    DevFilter.dbcc_classguid = InterfaceClassGuid;
    return ::RegisterDeviceNotification(hwnd,       //events recipient
                                        &DevFilter, //type of device
                                        flags);     //type of recipient handle
}

bool UDeviceInfoHandler::UnregisterDeviceNotification(HDEVNOTIFY hdevnotify)
{
    return TRUE==::UnregisterDeviceNotification(hdevnotify);
}

在这一点上,你可以

  • 看到“收音机”出现/消失(即在设置中使用“激活蓝牙”校验弓)
  • 查看BT2.x虚拟COM端口的出现/消失
  • 查看BLE设备的出现/消失,条件是它们已经“配对”(简而言之,添加到注册表中)

通过处理

  • DBT_DEVICEARRIVAL|DBT_DEVTYP_DEVICEINTERFACE和
  • DBT_DEVICEREMOVECOMPLETE|DBT_DEVTYP_DEVICEINTERFACE

WM_DEVICECHANGE处理程序中的消息。

如果您需要访问与收音机/设备相关的DBT_CUSTOMEVENT消息,那么首先需要为WM_DEVICECHANGE“注册”一些“事件”,但是要“注册”收音机的“句柄”。可以注册下列事件的GUID

  • GUID_BLUETOOTH_RADIO_IN_RANGE
  • GUID_BLUETOOTH_RADIO_OUT_OF_RANGE
  • GUID_BLUETOOTH_L2CAP_EVENT
  • GUID_BLUETOOTH_HCI_EVENT
  • GUID_BLUETOOTH_HCI_VENDOR_EVENT

使用类似的东西

代码语言:javascript
运行
复制
void UBthDeviceInfoHandler::RegisterBthNotifications(HWND hwnd,const UGuidItems& guids)
{
    BLUETOOTH_FIND_RADIO_PARAMS radio_params;
    radio_params.dwSize = sizeof(BLUETOOTH_FIND_RADIO_PARAMS);

    HANDLE hRadio;
    HBLUETOOTH_RADIO_FIND hFind = BluetoothFindFirstRadio(&radio_params, &hRadio);
    if (hFind != INVALID_HANDLE_VALUE)
    {
        do
        {
            //for every events Guid you need
            HDEVNOTIFY hdevnotify=
                RegisterHandleNotification( hwnd,
                                            hRadio,
                                            Guid,
                                            DEVICE_NOTIFY_WINDOW_HANDLE);
            if (hdevnotify!=NULL){
                  //insert code here
            }
            else{
                  //error handling
            }
            //end for
        } while (BluetoothFindNextRadio(hFind, &hRadio));

        BluetoothFindRadioClose(hFind);
    }
}

此时,您将能够通过处理DBT_CUSTOMEVENT|DBT_DEVTYP_HANDLE处理程序的WM_DEVICECHANGE移植来接收这些事件,如下所示

代码语言:javascript
运行
复制
    [...]
    #if (WINVER >= 0x040A)
            case DBT_CUSTOMEVENT:
            //@see https://msdn.microsoft.com/en-us/library/aa363217(v=vs.85).aspx
                if (lParam!=0){
                    PDEV_BROADCAST_HDR phdr = reinterpret_cast<PDEV_BROADCAST_HDR> (lParam);
                    switch (phdr->dbch_devicetype){
                        case DBT_DEVTYP_HANDLE:
                            {
            //@see https://learn.microsoft.com/en-us/windows/desktop/bluetooth/bluetooth-and-wm-devicechange-messages

                                //typedef struct _DEV_BROADCAST_HANDLE {
                                //  DWORD       dbch_size;
                                //  DWORD       dbch_devicetype;
                                //  DWORD       dbch_reserved;
                                //  HANDLE      dbch_handle;     // file handle used in call to RegisterDeviceNotification
                                //  HDEVNOTIFY  dbch_hdevnotify; // returned from RegisterDeviceNotification
                                //  //
                                //  // The following 3 fields are only valid if wParam is DBT_CUSTOMEVENT.
                                //  //
                                //  GUID        dbch_eventguid;
                                //  LONG        dbch_nameoffset; // offset (bytes) of variable-length string buffer (-1 if none)
                                //  BYTE        dbch_data[1];    // variable-sized buffer, potentially containing binary and/or text data
                                //} DEV_BROADCAST_HANDLE, *PDEV_BROADCAST_HANDLE;

                                PDEV_BROADCAST_HANDLE phndl=reinterpret_cast<PDEV_BROADCAST_HANDLE>(phdr);
                                CustomHandleEvent(*phndl);

                            }
                            break;


                  default:
                        break;
                }
            }//endif lParam!=0
            break;
    #endif // WINVER >= 0x040A

|dbch_eventguid|字段是GUID_BLUETOOTH_RADIO_IN_RANGE等事件之一。

嗯,这只是我到目前为止所发现的东西的概述。但是,任何增强/建议/添加都非常受欢迎。我目前正在与几个无文档的CUSTOM_EVENTS进行斗争,它的GUID是

代码语言:javascript
运行
复制
//When the Bluetooth radio handle is opened, call the RegisterDeviceNotification function and
//register for notifications on the handle using DBT_DEVTYP_HANDLE as the devicetype.
//When registered, the following GUIDs are sent,
//and the DEV_BROADCAST_HANDLE::dbch_data member is the associated buffer.

//this unknow event happens while looking for nearby devices in Settings.
DEFINE_GUID(GUID_UNKNOWN_EVENT_GUID1,0x1BBD4010, 0x498C, 0x4E85, 0x85, 0x1B, 0xEA, 0xA0, 0x57, 0x15, 0xC3, 0x7A);

//
DEFINE_GUID(GUID_UNKNOWN_EVENT_GUID2,0xD4EB6503, 0xC001, 0x441A, 0xAE, 0x42, 0xEE, 0x0D, 0xC9, 0x6C, 0x18, 0x85);

//happening when opening Settings|Bluetooth panel
DEFINE_GUID(GUID_UNKNOWN_EVENT_GUID3,0x7A7637FF, 0x531C, 0x4205, 0x97, 0x80, 0x3F, 0x33, 0x5F, 0x65, 0xAD, 0xDD);
//nameoffset=-1 datalen=8

//Settings|Devices -> Bluetooth activation/deactivation
DEFINE_GUID(GUID_UNKNOWN_EVENT_GUID4,0xB74983CD, 0xC2D9, 0x4E38, 0xB8, 0x0E, 0x54, 0x72, 0xFC, 0x10, 0x8B, 0x4B);
//nameoffset=-1 datalen=8

希望这能有所帮助!

票数 3
