元分析流程图
元分析流程图
提问于 2018-12-04 17:37:05

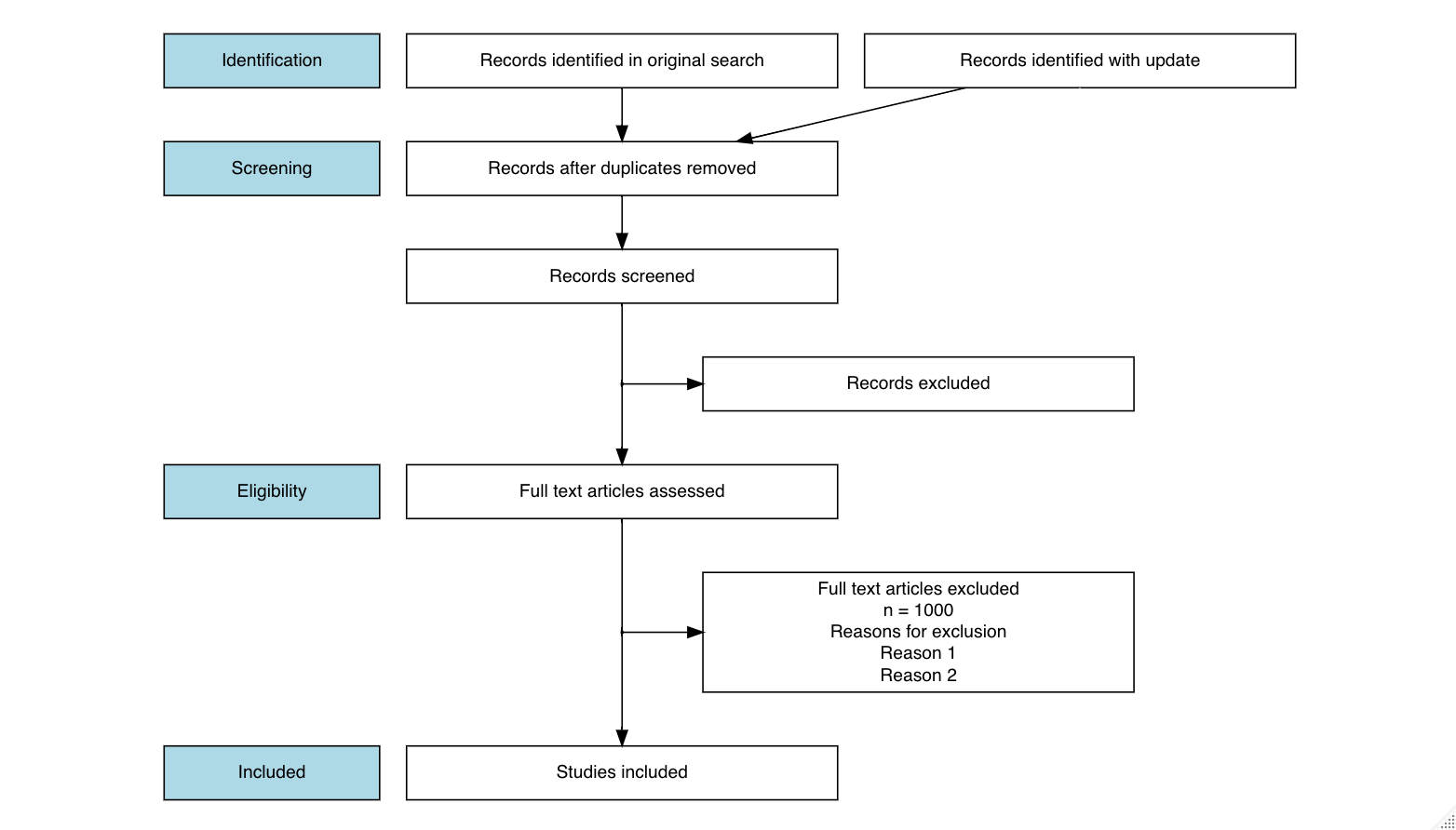

是否可以使用任何R工具将图中的元分析型流程图复制成图中的流程图？
我的尝试是使用mermaid
diagram = "
graph LR
subgraph Screening
b1-->b2
end
subgraph Eligibility
c1-->c2
end
subgraph Included
d1-->d2
end
subgraph Identification
a1-->a2
end
"

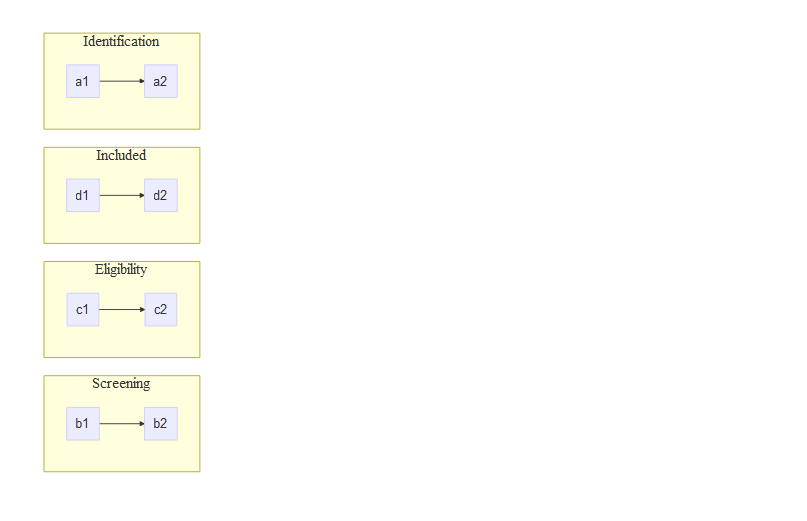

mermaid(diagram)产生了：
但是我找不到一种连接节点的方法，通过子图连接节点。
还有更适合这种工作的工具吗？我正在考虑从我的Rmarkdown文档中可以使用的任何包。
回答 1
Stack Overflow用户
回答已采纳
发布于 2018-12-04 18:25:28
我发现DiagrammeR包最容易做到这一点。一般的想法是：
library(glue)
library(DiagrammeR)
excluded <- glue('Full text articles excluded
n = 1000
Reasons for exclusion
Reason 1
Reason 2')
grViz("
digraph cohort_flow_chart
{
node [fontname = Helvetica, fontsize = 12, shape = box, width = 4]
a[label = 'Records identified in original search']
b[label = 'Records identified with update']
c[label = 'Records after duplicates removed']
d[label = 'Records screened']
e[label = 'Records excluded']
f[label = 'Full text articles assessed']
g[label = 'Studies included']
h[label = '@@1']
{ rank = same; a b}
{ rank = same; d, e}
{ rank = same; f, h}
a -> c;
b -> c;
c -> d;
d -> e [ minlen = 3 ];
d -> f;
f -> h [ minlen = 3 ];
f -> g;
}
[1]: excluded

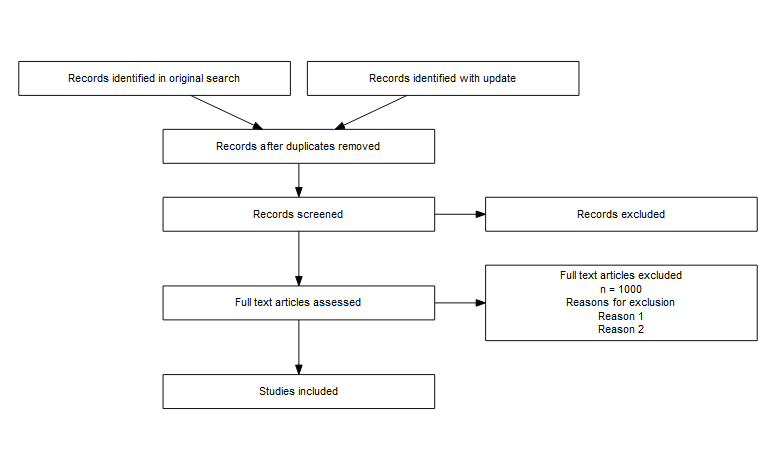

")看起来像：
带有标签和空节点的图像
grViz("
digraph cohort_flow_chart
{
node [fontname = Helvetica, fontsize = 12, shape = box, width = 4]
i[label = 'Identification', fillcolor = LightBlue,
style = filled, width = 2]
j[label = 'Screening',fillcolor = LightBlue, style = filled, width = 2]
k[label = 'Eligibility', fillcolor = LightBlue, style = filled,
width = 2]
l[label = 'Included', fillcolor = LightBlue, style = filled, width = 2]
a[label = 'Records identified in original search']
b[label = 'Records identified with update']
c[label = 'Records after duplicates removed']
d[label = 'Records screened']
e[label = 'Records excluded']
f[label = 'Full text articles assessed']
g[label = 'Studies included']
h[label = '@@1']
blank_1[label = '', width = 0.01, height = 0.01]
blank_2[label = '', width = 0.01, height = 0.01]
blank_4[label = '', width = 4, color = White]
{ rank = same; a b i}
{ rank = same; blank_4 c j}
{ rank = same; f k}
{ rank = same; g l}
{ rank = same; blank_1 e}
{ rank = same; blank_2 h}
a -> c;
b -> c;
b -> blank_4 [ dir = none, color = White];
c -> d;
d -> blank_1 [ dir = none ];
blank_1 -> e [ minlen = 3 ];
blank_1 -> f;
f -> blank_2 [ dir = none ];
blank_2 -> h [ minlen = 3 ];
blank_2 -> g;
}
[1]: excluded
")
