vivado X_INTERFACE_INFO没有出现在块设计指南中
vivado X_INTERFACE_INFO没有出现在块设计指南中
提问于 2019-06-07 14:29:54
在我的VHDL中，我有一个APB从机的toplevel接口和一个AXI主端口，然后我将这些接口标记为Xilinx接口，以便vivado知道如何在Vivado的块设计器GUI中将它们组合在一起。下面是代码：
library ieee;
use ieee.std_logic_1164.all;
entity rtl_top is
port(
-- Clocks
axi_aclk :in std_logic;
axi_arst_n :in std_logic;
-- Peripheral Servant Port: from ZYNQ Master Port
-- (Connect to ZYNQ M_AXI_GPO -> axi-interconnect -> axi-apb-bridge)
s_apb_gp0_paddr :in std_logic_vector(31 downto 0);
s_apb_gp0_psel :in std_logic;
s_apb_gp0_penable :in std_logic;
s_apb_gp0_pwrite :in std_logic;
s_apb_gp0_pwdata :in std_logic_vector(31 downto 0);
s_apb_gp0_pready :out std_logic;
s_apb_gp0_prdata :out std_logic_vector(31 downto 0);
s_apb_gp0_pslverr :out std_logic;
--Peripheral DMA port: to ZYNQ Servant Port S_AXI_GP0
-- (actually, don't connect it, its just a placeholder)
m_axi_gp0_araddr :out std_logic_vector(31 downto 0);
m_axi_gp0_arburst :out std_logic_vector(1 downto 0);
m_axi_gp0_arcache :out std_logic_vector(3 downto 0);
m_axi_gp0_arid :out std_logic_vector(5 downto 0);
m_axi_gp0_arlen :out std_logic_vector(3 downto 0);
m_axi_gp0_arlock :out std_logic_vector(1 downto 0);
m_axi_gp0_arprot :out std_logic_vector(2 downto 0);
m_axi_gp0_arqos :out std_logic_vector(3 downto 0);
m_axi_gp0_arready :in std_logic;
m_axi_gp0_arsize :out std_logic_vector(2 downto 0);
m_axi_gp0_arvalid :out std_logic;
m_axi_gp0_awaddr :out std_logic_vector(31 downto 0);
m_axi_gp0_awburst :out std_logic_vector(1 downto 0);
m_axi_gp0_awid :out std_logic_vector(5 downto 0);
m_axi_gp0_awprot :out std_logic_vector(2 downto 0);
m_axi_gp0_awqos :out std_logic_vector(3 downto 0);
m_axi_gp0_awready :in std_logic;
m_axi_gp0_awvalid :out std_logic;
m_axi_gp0_bid :in std_logic_vector(5 downto 0);
m_axi_gp0_bready :out std_logic;
m_axi_gp0_bresp :in std_logic_vector(1 downto 0);
m_axi_gp0_bvalid :in std_logic;
m_axi_gp0_rdata :in std_logic_vector(31 downto 0);
m_axi_gp0_rid :in std_logic_vector(5 downto 0);
m_axi_gp0_rlast :in std_logic;
m_axi_gp0_rready :out std_logic;
m_axi_gp0_rresp :in std_logic_vector(1 downto 0);
m_axi_gp0_rvalid :in std_logic;
m_axi_gp0_wdata :out std_logic_vector(31 downto 0);
m_axi_gp0_wid :out std_logic_vector(5 downto 0);
m_axi_gp0_wlast :out std_logic;
m_axi_gp0_wready :in std_logic;
m_axi_gp0_wstrb :out std_logic_vector(3 downto 0);
m_axi_gp0_wvalid :out std_logic
);
ATTRIBUTE X_INTERFACE_INFO :STRING;
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_paddr :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PADDR";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_psel :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PSEL";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_penable :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PENABLE";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_pwrite :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PWRITE";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_pwdata :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PWDATA";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_pready :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PREADY";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_prdata :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PRDATA";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_pslverr :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PSLVERR";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_araddr :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARADDR";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arburst :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARBURST";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arcache :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARCACHE";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARID";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arlen :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARLEN";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arlock :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARLOCK";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arprot :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARPROT";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arqos :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARQOS";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arready :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARREADY";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arsize :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARSIZE";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_arvalid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 ARVALID";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_awaddr :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 AWADDR";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_awburst :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 AWBURST";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_awid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 AWID";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_awprot :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 AWPROT";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_awqos :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 AWQOS";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_awready :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 AWREADY";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_awvalid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 AWVALID";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_bid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 BID";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_bready :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 BREADY";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_bresp :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 BRESP";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_bvalid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 BVALID";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_rdata :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 RDATA";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_rid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 RID";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_rlast :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 RLAST";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_rready :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 RREADY";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_rresp :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 RRESP";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_rvalid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 RVALID";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_wdata :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 WDATA";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_wid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 WID";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_wlast :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 WLAST";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_wready :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 WREADY";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_wstrb :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 WSTRB";
ATTRIBUTE X_INTERFACE_INFO of m_axi_gp0_wvalid :SIGNAL is "xilinx.com:interface:aximm:1.0 M_AXI_GP0 WVALID";
end entity;
architecture rtl of rtl_top is
begin
--ZYNQ API Slave Port Placeholder
s_apb_gp0_pready <= '0';
s_apb_gp0_prdata <= (others => '0');
s_apb_gp0_pslverr <= '0';
--ZYNQ Axi MASTER Port Placeholder
m_axi_gp0_araddr <= (others => '0');
m_axi_gp0_arburst <= (others => '0');
m_axi_gp0_arcache <= (others => '0');
m_axi_gp0_arid <= (others => '0');
m_axi_gp0_arlen <= (others => '0');
m_axi_gp0_arlock <= (others => '0');
m_axi_gp0_arprot <= (others => '0');
m_axi_gp0_arqos <= (others => '0');
m_axi_gp0_arsize <= (others => '0');
m_axi_gp0_awaddr <= (others => '0');
m_axi_gp0_awburst <= (others => '0');
m_axi_gp0_awid <= (others => '0');
m_axi_gp0_awprot <= (others => '0');
m_axi_gp0_awqos <= (others => '0');
m_axi_gp0_wdata <= (others => '0');
m_axi_gp0_wid <= (others => '0');
m_axi_gp0_wstrb <= (others => '0');
m_axi_gp0_arvalid <= '0';
m_axi_gp0_awvalid <= '0';
m_axi_gp0_bready <= '0';
m_axi_gp0_rready <= '0';
m_axi_gp0_wlast <= '0';
m_axi_gp0_wvalid <= '0';

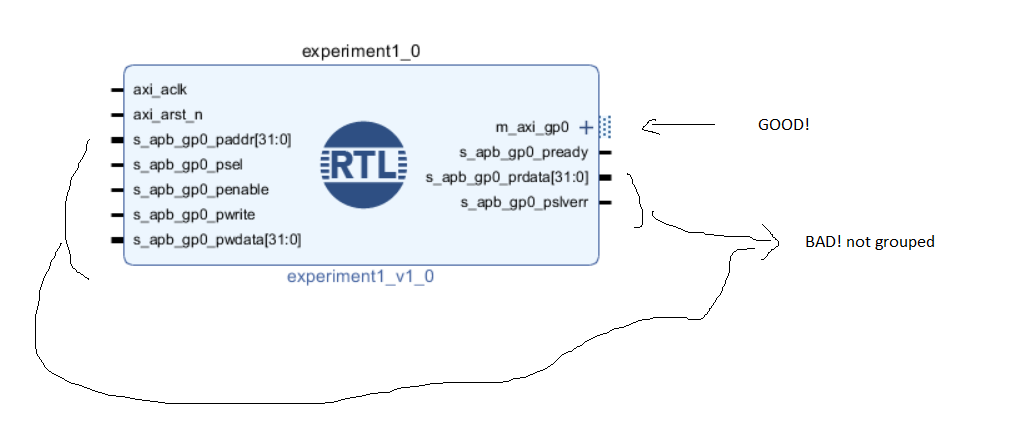

end architecture;我的问题是:为什么当我将vivado添加到块设计GUI中时，vivado只识别它之一？见图：
回答 1
Stack Overflow用户
发布于 2019-06-07 16:10:19
当尝试放置RTL模块时，您应该在Vivado中得到大量警告：
警告: IP_Flow 19-529端口地图'PADDR'：名为'rtl_top‘的端口不存在。 警告: IP_Flow 19-571总线接口'S_APB_GP0'：端口映射的物理端口"rtl_top“不存在 警告: IP_Flow 19-1965总线接口'S_APB_GP0'：缺少到总线抽象"xilinx.com:interface:apb_rtl:1.0“的所需逻辑端口"PSEL”的端口映射。

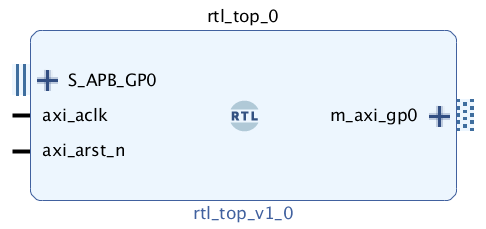

将属性规范移到architecture部分(将属性声明留在entity声明中)会产生更好的结果：
通过以下途径获得：
library ieee;
use ieee.std_logic_1164.all;
entity rtl_top is
port(
-- Clocks
axi_aclk :in std_logic;
axi_arst_n :in std_logic;
-- Peripheral Servant Port: from ZYNQ Master Port
-- (Connect to ZYNQ M_AXI_GPO -> axi-interconnect -> axi-apb-bridge)
s_apb_gp0_paddr :in std_logic_vector(31 downto 0);
s_apb_gp0_psel :in std_logic;
s_apb_gp0_penable :in std_logic;
s_apb_gp0_pwrite :in std_logic;
s_apb_gp0_pwdata :in std_logic_vector(31 downto 0);
s_apb_gp0_pready :out std_logic;
s_apb_gp0_prdata :out std_logic_vector(31 downto 0);
s_apb_gp0_pslverr :out std_logic;
--Peripheral DMA port: to ZYNQ Servant Port S_AXI_GP0
-- (actually, don't connect it, its just a placeholder)
m_axi_gp0_araddr :out std_logic_vector(31 downto 0);
m_axi_gp0_arburst :out std_logic_vector(1 downto 0);
m_axi_gp0_arcache :out std_logic_vector(3 downto 0);
m_axi_gp0_arid :out std_logic_vector(5 downto 0);
m_axi_gp0_arlen :out std_logic_vector(3 downto 0);
m_axi_gp0_arlock :out std_logic_vector(1 downto 0);
m_axi_gp0_arprot :out std_logic_vector(2 downto 0);
m_axi_gp0_arqos :out std_logic_vector(3 downto 0);
m_axi_gp0_arready :in std_logic;
m_axi_gp0_arsize :out std_logic_vector(2 downto 0);
m_axi_gp0_arvalid :out std_logic;
m_axi_gp0_awaddr :out std_logic_vector(31 downto 0);
m_axi_gp0_awburst :out std_logic_vector(1 downto 0);
m_axi_gp0_awid :out std_logic_vector(5 downto 0);
m_axi_gp0_awprot :out std_logic_vector(2 downto 0);
m_axi_gp0_awqos :out std_logic_vector(3 downto 0);
m_axi_gp0_awready :in std_logic;
m_axi_gp0_awvalid :out std_logic;
m_axi_gp0_bid :in std_logic_vector(5 downto 0);
m_axi_gp0_bready :out std_logic;
m_axi_gp0_bresp :in std_logic_vector(1 downto 0);
m_axi_gp0_bvalid :in std_logic;
m_axi_gp0_rdata :in std_logic_vector(31 downto 0);
m_axi_gp0_rid :in std_logic_vector(5 downto 0);
m_axi_gp0_rlast :in std_logic;
m_axi_gp0_rready :out std_logic;
m_axi_gp0_rresp :in std_logic_vector(1 downto 0);
m_axi_gp0_rvalid :in std_logic;
m_axi_gp0_wdata :out std_logic_vector(31 downto 0);
m_axi_gp0_wid :out std_logic_vector(5 downto 0);
m_axi_gp0_wlast :out std_logic;
m_axi_gp0_wready :in std_logic;
m_axi_gp0_wstrb :out std_logic_vector(3 downto 0);
m_axi_gp0_wvalid :out std_logic
);
ATTRIBUTE X_INTERFACE_INFO :STRING;
end entity;
architecture rtl of rtl_top is
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_paddr :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PADDR";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_psel :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PSEL";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_penable :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PENABLE";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_pwrite :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PWRITE";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_pwdata :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PWDATA";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_pready :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PREADY";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_prdata :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PRDATA";
ATTRIBUTE X_INTERFACE_INFO of s_apb_gp0_pslverr :SIGNAL is "xilinx.com:interface:apb:1.0 S_APB_GP0 PSLVERR";
begin
--ZYNQ API Slave Port Placeholder
s_apb_gp0_pready <= '0';
s_apb_gp0_prdata <= (others => '0');
s_apb_gp0_pslverr <= '0';
--ZYNQ Axi MASTER Port Placeholder
m_axi_gp0_araddr <= (others => '0');
m_axi_gp0_arburst <= (others => '0');
m_axi_gp0_arcache <= (others => '0');
m_axi_gp0_arid <= (others => '0');
m_axi_gp0_arlen <= (others => '0');
m_axi_gp0_arlock <= (others => '0');
m_axi_gp0_arprot <= (others => '0');
m_axi_gp0_arqos <= (others => '0');
m_axi_gp0_arsize <= (others => '0');
m_axi_gp0_awaddr <= (others => '0');
m_axi_gp0_awburst <= (others => '0');
m_axi_gp0_awid <= (others => '0');
m_axi_gp0_awprot <= (others => '0');
m_axi_gp0_awqos <= (others => '0');
m_axi_gp0_wdata <= (others => '0');
m_axi_gp0_wid <= (others => '0');
m_axi_gp0_wstrb <= (others => '0');
m_axi_gp0_arvalid <= '0';
m_axi_gp0_awvalid <= '0';
m_axi_gp0_bready <= '0';
m_axi_gp0_rready <= '0';
m_axi_gp0_wlast <= '0';
m_axi_gp0_wvalid <= '0';
end architecture;没错，我甚至不需要包含AXI接口的接口信息来获得一个漂亮的端口。(我仍然会保留它，只是好奇Vivado如何处理AXI的接口信息。)我猜Vivado只通过名字来识别AXI接口，因为Xilinx现在非常喜欢AXI。
令我困惑的是，在architecture部分保留属性规范似乎违反了Answer to your last attribute Question规范，这一点在Answer to your last attribute Question中已经指出了。虽然user1155120是对的，但看起来Vivado坚持错误的行为。
