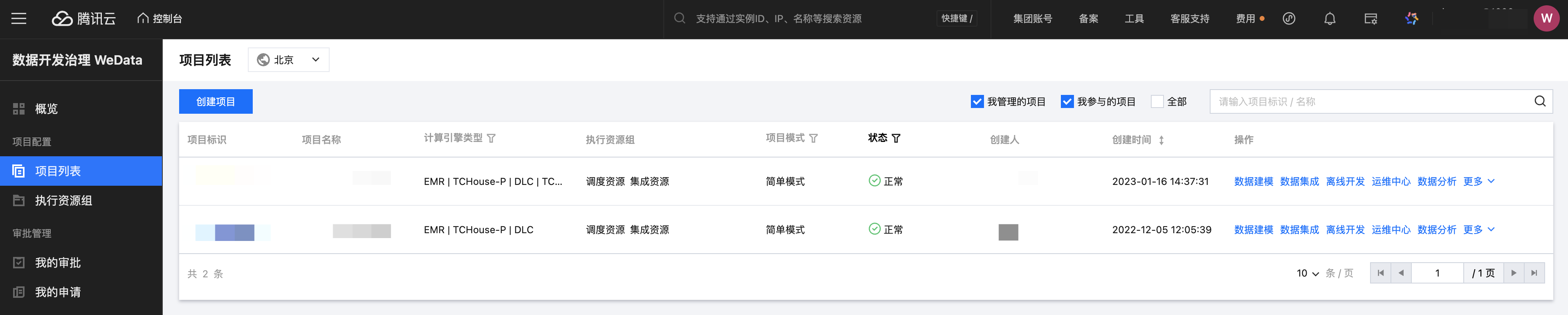

Click on Project List in the left directory tree of the console to view the project list and perform operations such as project creation. The project list provides basic information of all projects under the account, including region, project identifier/name, creator, creation time, bound compute engine type, execution resource group, and module operation entry under the project.
Enter each feature module

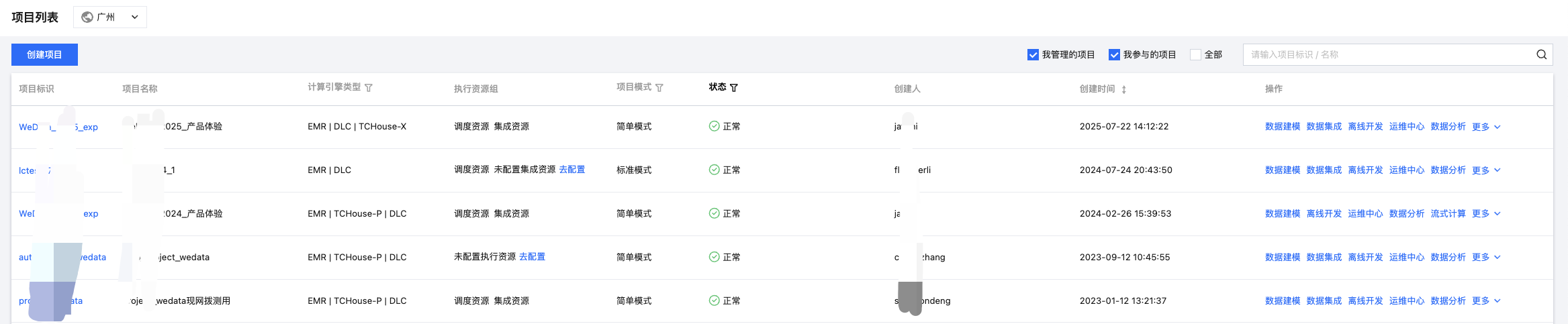

In the project list, select a project, and click Data Development, Operations Center, Data Operations, Data Quality, Project Management, Data Security, DataInLong, and Data Planning after the corresponding project to enter the respective page for operation.
Note
Only members added to the project can enter the feature module. Non-project members do not have permission to enter the corresponding project's feature module, which will be grayed out.
Create a project
WeData supports users to create projects in the console. The steps are as follows:
1. Select the region of your work. WeData currently supports creating projects under the Beijing region only.

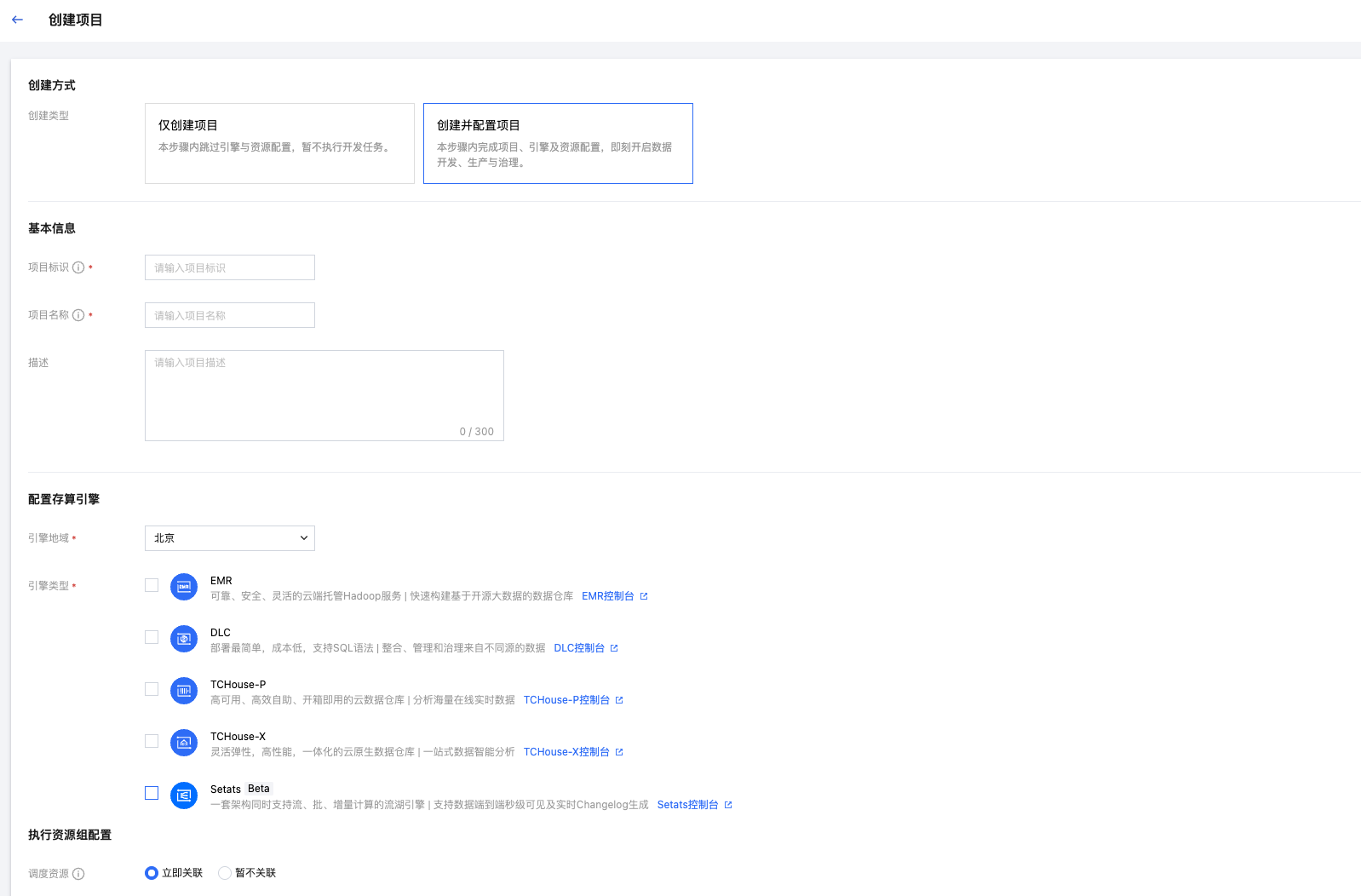

2. Click Create Project, and configure the project in the pop-up window on the right according to your needs.
Classification
Parameter
Description
Creation Method
Creation Type
You can choose between "Create and Configure Project" and "Create Project Only" as the two project creation methods.
Basic information
Project Identifier
Project English ID, unique within the region. Starts with a letter and can contain letters, digits, and underscores, not exceeding 20 characters.
Project name
Project Chinese Display Name, unique within the region. Starts with a letter or Chinese character and can contain letters, Chinese characters, digits, and underscores.
Description
Provide a brief description of the created workspace.
Select Engine Type
Elastic MapReduce
After activation, you can use EMR in WeData to develop big data processing tasks. For details, refer to Go to EMR Console.
DLC
After activation, you can use Tencent Cloud DLC in WeData. For details, see Go to DLC Console.
Cloud Data Warehouse TCHouse-P
After activation, you can use Cloud Data Warehouse TCHouse-P in WeData. For details, see Go to TCHouse-P Console.
Configure Computational Storage Engine
Region
Select the region where the compute engine instance is located. Different types of compute engine instances in WeData must be in the same region.
EMR Cluster
Select an available EMR cluster in the selected region for the current tenant. WeData only supports EMR with the Hive component. If no clusters are available, you can proceed to purchase an instance.
DLC
Computing Resources
Select one from the available TCHouse-P computing resources of the current tenant in the selected region.
secretId
Please go to the Tencent Cloud Certificate Authority M CAM console API Key Management Interface to copy the SecretId and SecretKey into the current input box.
If there are restrictions on the permission control range, you canapply for a sub-account and fill in the corresponding SecretId and SecretKey.
secretKey
Testing connectivity
Log in to Tencent Cloud test password to see if resources can be connected.
Engine Metadata Collection
Once enabled, it will automatically create a collection task. After configuring the execution resource group, the collection task will gather and analyze metadata from the engine. You can go to the Data Operation Module to view and modify the task.
TCHouse-P Cluster
Version
You can choose either the TCHouse-P1.0 or TCHouse-P2.0 version.
Cluster Name
The name of the purchased TCHouse-P cluster in the selected region under this account.
username & password
Account password used to connect to TCHouse-P cluster.
Testing connectivity
Test the password to see if it can connect to the cluster. If successful, you can create a project (if the connectivity test fails, it may be because WeData is blocked by the network firewall where the cluster is located. Please refer to add TCHouse-P cluster allowlist).

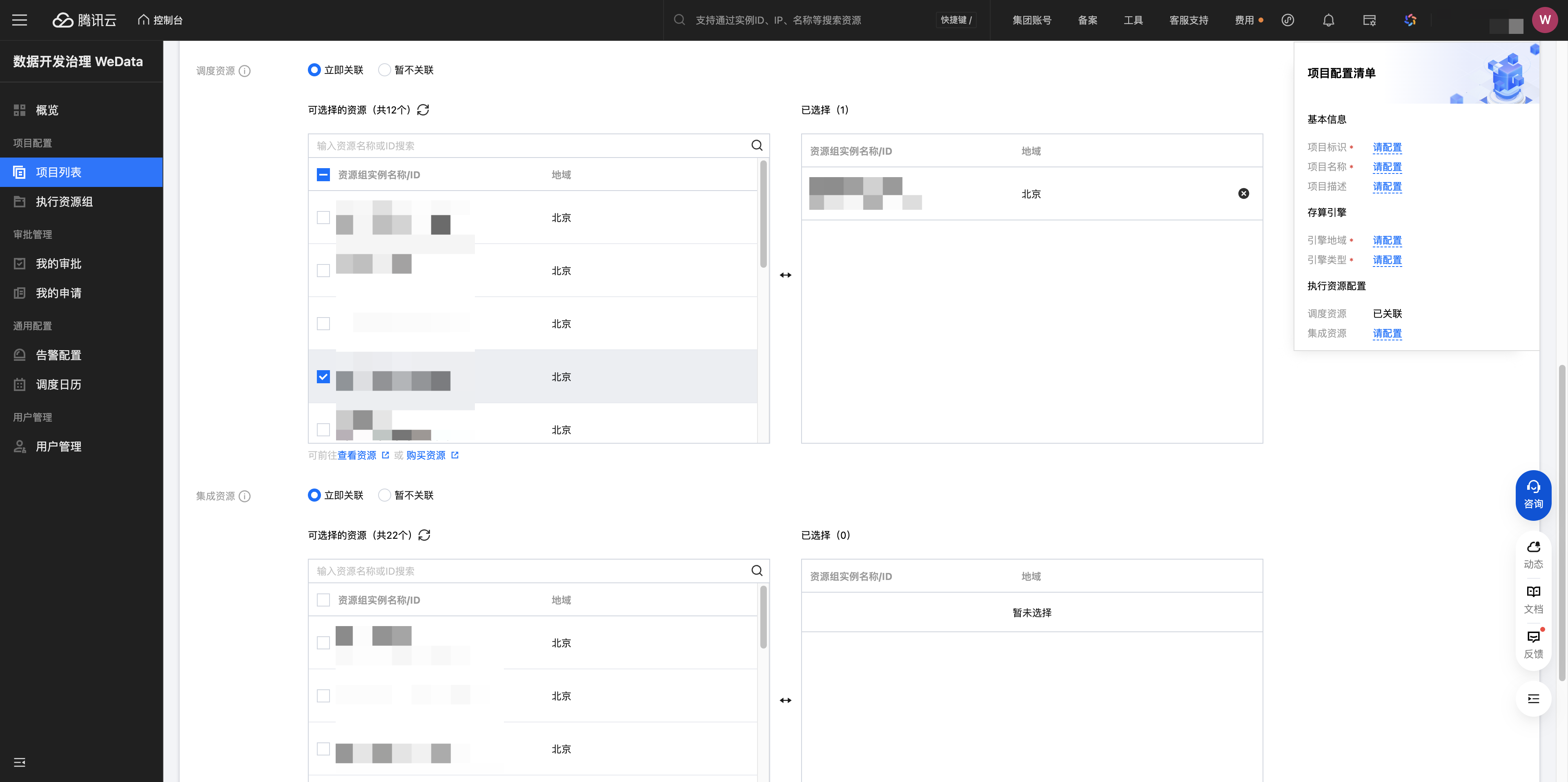

Execute resource configuration
Scheduling resource
Scheduling resource
Scheduling resources are primarily used for scheduling data development tasks (including SQL tasks, shell tasks, etc.) at regular intervals.
Associated resource
Scheduling resources must be located in the same region as EMR. Once associated, the project exclusively uses the associated resources. This list only shows scheduling resources not associated with other projects. You can go to view resources or purchase resources.
Integration resource
Integration resource
The integration resource group mainly runs DataInLong tasks.
Associated resource
After association, the project exclusively owns the associated resources. This list only shows integration resources that have not been associated with other projects. You can go to view resources.
3. After configuration, click OK to generate the project.
Note
The different types of engines bound under the project will affect the corresponding available task types in the Data Development module.
WeData currently supports three types of computing engines: EMR (EMR), Tencent Cloud Data Warehouse TCHouse-P (TCHouse-P), and DLC (Data Lake Compute, DLC).
