消息队列 MQTT 版配置 SQL 过滤

说明：
当前功能灰度中，如控制台提示当前集群暂未开启该功能, 请提交工单联系我们处理。
背景
MQTT 标准规范定义了 Topic Filter 的概念，让订阅者可以根据 MQTT Topic Name 层级结构选择需要订阅的消息。层级结构 和 Wildcard 表达式，提供了比较灵活的消息过滤表达能力。但在一些场景中，例如灰度发布，A/B测试, 系统升级等场景，Topic Filter 无法满足更灵活的需求。
实现原理
MQTT 5.0 引入了 Subscribe User Property，MQTT 产品扩展支持了 Subscribe User Property 的过滤语义。
﻿

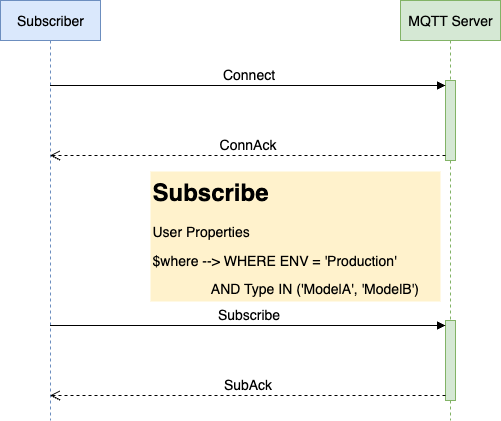

当用户 Subscribe User Property 包含 key 为 "$where"，Value 为 WHERE子句时，MQTT Server 在推送消息时, 会根据 WHERE 子句对消息进行过滤，仅投递符合过滤条件的消息到订阅者。
使用限制
1. Subscribe User Properties 中只能有一个过滤语句；当有多个 $where --> WHERE-CLAUSE 属性时，仅第一个生效；
2. 消息用户属性中，按照协议允许多个同名的 Key-Value对，同名 Key 的多个键值对情况下，仅最后一个参与过滤表达式计算；
3. 如果过滤表达式包含某个字段在消息属性中未出现, 则该字段的值为 NULL；
4. WHERE 子句支持的操作符包括: AND、OR、NOT、=、!=、>、>=、<、<=、IN、IS NULL、LIKE、CASE WHEN...THEN...ELSE...END；
5. WHERE 子句支持的函数包括: UPPER, LOWER, LENGTH, ABS, COALESCE;
6. 字符串字面量仅支持单引号, 例如 where type = 'string-literal'。
示例
package com.tencent.tdmq.mqtt.quickstart.paho.v5.async;
﻿
import java.nio.ByteBuffer;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.TimeUnit;
import org.eclipse.paho.mqttv5.client.IMqttToken;
import org.eclipse.paho.mqttv5.client.MqttAsyncClient;
import org.eclipse.paho.mqttv5.client.MqttCallback;
import org.eclipse.paho.mqttv5.client.MqttConnectionOptions;
import org.eclipse.paho.mqttv5.client.MqttDisconnectResponse;
import org.eclipse.paho.mqttv5.client.persist.MemoryPersistence;
import org.eclipse.paho.mqttv5.common.MqttException;
import org.eclipse.paho.mqttv5.common.MqttMessage;
import org.eclipse.paho.mqttv5.common.MqttSubscription;
import org.eclipse.paho.mqttv5.common.packet.MqttProperties;
import org.eclipse.paho.mqttv5.common.packet.UserProperty;
﻿
public class BasicQuickStart {
    public static void main(String[] args) throws MqttException, InterruptedException {
        String serverUri = "tcp://mqtt-xxx.mqtt.tdmqcloud.com:1883";
        String clientId = "deviceBasic";
﻿
        String topic = "home/room/1";
        String[] topicFilters = new String[] {"home/#"};
        int[] qos = new int[] {1};
﻿
        MqttAsyncClient client = new MqttAsyncClient(serverUri, clientId, new MemoryPersistence());
        MqttConnectionOptions options = new MqttConnectionOptions();
        options.setUserName("YOUR-USERNAME");
        options.setPassword("YOUR-PASSWORD".getBytes(StandardCharsets.UTF_8));
        options.setCleanStart(true);
        options.setSessionExpiryInterval(TimeUnit.DAYS.toSeconds(1));
﻿
        client.setCallback(new MqttCallback() {
            @Override
            public void disconnected(MqttDisconnectResponse response) {
                System.out.println("Disconnected: " + response.getReasonString());
            }
﻿
            @Override
            public void mqttErrorOccurred(MqttException e) {
                e.printStackTrace();
            }
﻿
            @Override
            public void messageArrived(String s, MqttMessage message) throws Exception {
                byte[] payload = message.getPayload();
                String content;
                if (4 == payload.length) {
                    ByteBuffer buf = ByteBuffer.wrap(payload);
                    content = String.valueOf(buf.getInt());
                } else {
                    content = new String(payload, StandardCharsets.UTF_8);
                }
                System.out.printf("Message arrived, topic=%s, QoS=%d content=[%s], properties=%s%n",
                    topic, message.getQos(), content, message.getProperties());
            }
﻿
            @Override
            public void deliveryComplete(IMqttToken token) {
﻿
            }
﻿
            @Override
            public void connectComplete(boolean reconnect, String serverURI) {
                System.out.println(reconnect ? "Reconnected" : "Connected" + " to " + serverURI);
            }
﻿
            @Override
            public void authPacketArrived(int i, MqttProperties properties) {
            }
        });
        client.connect(options).waitForCompletion();
        try {
            // Subscribe
            MqttSubscription[] subscriptions = new MqttSubscription[topicFilters.length];
            for (int i = 0; i < topicFilters.length; i++) {
                subscriptions[i] = new MqttSubscription(topicFilters[i], qos[i]);
            }
            MqttProperties subscribeProperties = new MqttProperties();
            List<UserProperty> userProperties = new ArrayList<>();
            UserProperty userProperty = new UserProperty("$where", "where $QoS = 1 AND k1 = 'v1'");
            userProperties.add(userProperty);
            subscribeProperties.setUserProperties(userProperties);
            client.subscribe(subscriptions, null, null, subscribeProperties).waitForCompletion();
        } catch (MqttException e) {
            e.printStackTrace();
        }
﻿
﻿
        int total = 128;
        for (int i = 0; i < total; i++) {
            byte[] payload = new byte[4];
            ByteBuffer buffer = ByteBuffer.wrap(payload);
            buffer.putInt(i);
            MqttMessage message = new MqttMessage(payload);
            message.setQos(1);
            MqttProperties properties = new MqttProperties();
            properties.setContentType("application/json");
            properties.setResponseTopic("response/topic");
            message.setProperties(properties);
            System.out.printf("Prepare to publish message %d%n", i);
            // P2P topic format: {first-topic}/p2p/{target-client-id}
            client.publish(topic, message);
            System.out.printf("Published message %d%n", i);
            TimeUnit.MILLISECONDS.sleep(100);
        }
        TimeUnit.MINUTES.sleep(3);
        client.disconnect();
    }
}
﻿
