.NET

最近更新时间：2025-11-27 16:21:22

我的收藏

本页目录：

功能概述

MQTTnet 是一个高性能的 .NET MQTT 客户端库，支持 MQTT 协议 3.1.1 和 5.0 版本。该库完全使用 C# 编写，提供了功能齐全的 MQTT 客户端和服务器实现。

主要特性

支持 .NET Framework 4.5.2+ 和 .NET Core/NET 5+
同时支持同步和异步操作
完整支持 MQTT v3.1.1 和 v5.0 协议
支持 TCP、WebSocket 和 TLS/SSL 加密连接
支持共享订阅、保留消息、遗嘱消息等高级特性

云资源准备

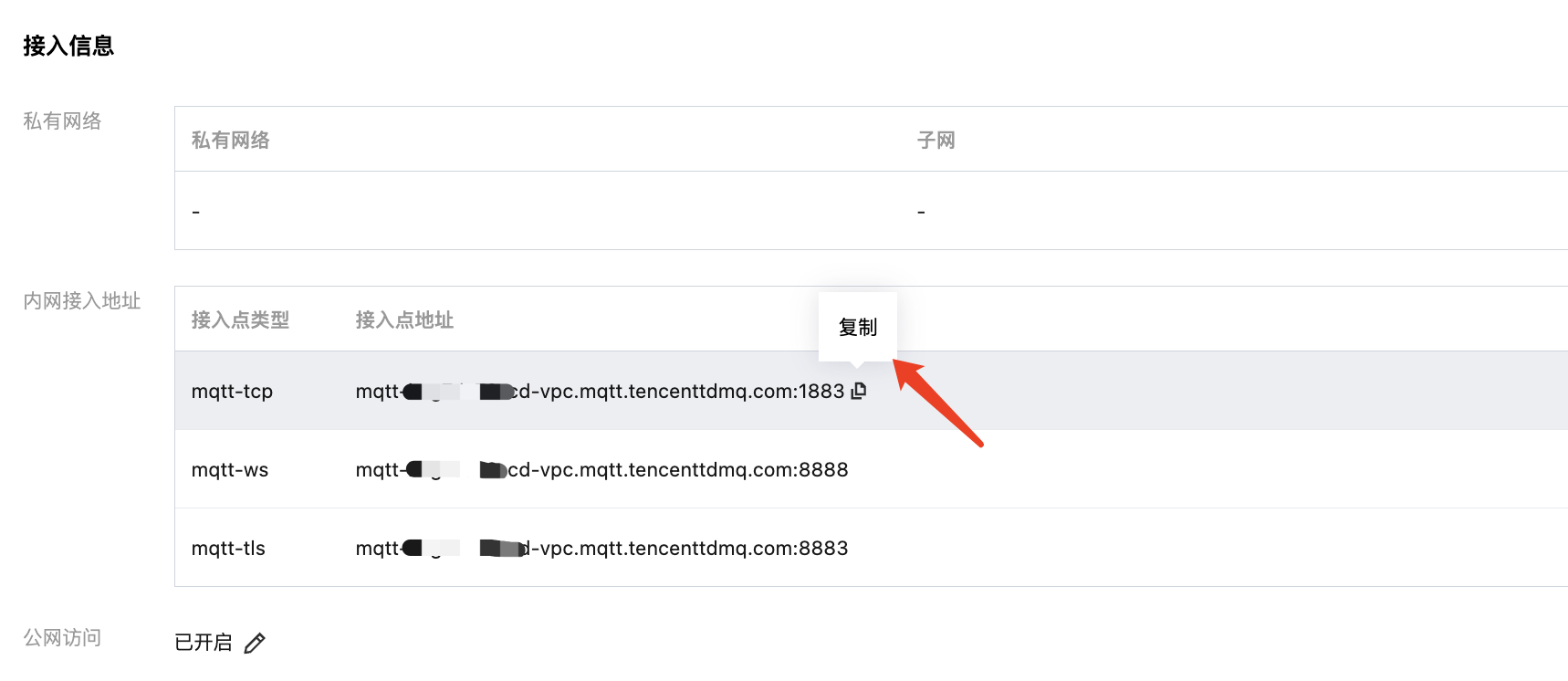

请您先参见相关文档完成云资源准备，获取以下信息：
MQTT Broker 地址
端口号（通常为 1883 或 8883）
用户名和密码（如需要认证）
TLS/SSL 证书（如使用加密连接）

环境准备

系统要求

.NET 6.0 或更高版本（推荐）
.NET Framework 4.5.2+ 或 .NET Core 2.0+

安装 MQTTnet SDK

方法一：使用 NuGet 包管理器
dotnet add package MQTTnet
方法二：通过 Visual Studio
1.1 右键单击项目 > "管理 NuGet 程序包"
1.2 搜索 "MQTTnet"
1.3 安装最新稳定版本
方法三：编辑 .csproj 文件

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>net6.0</TargetFramework>
  </PropertyGroup>

  <ItemGroup>
    <PackageReference Include="MQTTnet" Version="4.3.7.1207" />
  </ItemGroup>
</Project>

示例代码

MQTT5
MQTT5 TLS
MQTT3.1.1
MQTT3.1.1 TLS
using System;
using System.Text;
using System.Threading.Tasks;
using MQTTnet;
using MQTTnet.Client;
using MQTTnet.Protocol;
using MQTTnet.Formatter;

class MQTT5_TCP_Sample
{
    static async Task Main(string[] args)
    {
        // ============ 连接配置 ============
        String serverUri = "tcp://mqtt-xxx.mqtt.tencenttdmq.com:1883";
        String clientId = "QuickStart";
        String username = "YOUR_USERNAME";
        String password = "YOUR_PASSWORD";
        String pubTopic = "home/test";
        String[] topicFilters = new String[] { pubTopic, "home/#", "home/+" };
        int[] qos = new int[] { 1, 1, 1 };

        // 解析URI
        var uri = new Uri(serverUri);

        // 创建客户端
        var factory = new MqttFactory();
        var client = factory.CreateMqttClient();

        // 配置连接选项
        var options = new MqttClientOptionsBuilder()
            .WithTcpServer(uri.Host, uri.Port)
            .WithCredentials(username, password)
            .WithClientId(clientId)
            .WithProtocolVersion(MqttProtocolVersion.V500)
            .WithCleanStart(true)
            .Build();

        // 消息接收处理
        client.ApplicationMessageReceivedAsync += e =>
        {
            Console.WriteLine($"收到消息: {e.ApplicationMessage.Topic} -> {Encoding.UTF8.GetString(e.ApplicationMessage.PayloadSegment)}");
            return Task.CompletedTask;
        };

        try
        {
            // 1. 连接
            await client.ConnectAsync(options);
            Console.WriteLine("已连接");

            // 2. 订阅
            for (int i = 0; i < topicFilters.Length; i++)
            {
                await client.SubscribeAsync(new MqttClientSubscribeOptionsBuilder()
                    .WithTopicFilter(f => f.WithTopic(topicFilters[i]).WithQualityOfServiceLevel((MqttQualityOfServiceLevel)qos[i]))
                    .Build());
            }
            Console.WriteLine("已订阅");

            // 3. 发布
            for (int i = 1; i <= 16; i++)
            {
                await client.PublishAsync(new MqttApplicationMessageBuilder()
                    .WithTopic(pubTopic)
                    .WithPayload($"消息 #{i}")
                    .WithQualityOfServiceLevel(MqttQualityOfServiceLevel.AtLeastOnce)
                    .Build());

                await Task.Delay(500);
            }
            Console.WriteLine("发布完成");

            // 4. 等待接收
            await Task.Delay(2000);

            // 5. 断开连接
            await client.DisconnectAsync();
            Console.WriteLine("已断开");
        }
        catch (Exception ex)
        {
            Console.WriteLine($"错误: {ex.Message}");
        }
    }
}

using System;
using System.Text;
using System.Threading.Tasks;
using System.Security.Authentication;
using System.Security.Cryptography.X509Certificates;
using System.Net.Security;
using MQTTnet;
using MQTTnet.Client;
using MQTTnet.Protocol;
using MQTTnet.Formatter;

class MQTT5_TLS_Sample
{
    static async Task Main(string[] args)
    {

        // ============ 连接配置 ============
        String serverUri = "ssl://mqtt-xxx.mqtt.tencenttdmq.com:8883";
        String clientId = "QuickStart";
        String username = "YOUR_USERNAME";
        String password = "YOUR_PASSWORD";
        String pubTopic = "home/test";
        String[] topicFilters = new String[] { pubTopic, "home/#", "home/+" };
        int[] qos = new int[] { 1, 1, 1 };

        // CA证书路径(可选,用于验证服务器证书)
        String caCertPath = null; // 例如: "/path/to/ca.crt"

        // 解析URI
        var uri = new Uri(serverUri);

        // 创建客户端
        var factory = new MqttFactory();
        var client = factory.CreateMqttClient();

        // 配置连接选项(包含TLS)
        var options = new MqttClientOptionsBuilder()
            .WithTcpServer(uri.Host, uri.Port)
            .WithCredentials(username, password)
            .WithClientId(clientId)
            .WithProtocolVersion(MqttProtocolVersion.V500)
            .WithCleanStart(true)
            .WithTlsOptions(tls =>
            {
                tls.UseTls();
                tls.WithSslProtocols(SslProtocols.Tls12 | SslProtocols.Tls13);

                // 如果提供了CA证书,加载它
                if (!string.IsNullOrEmpty(caCertPath))
                {
                    var caCert = new X509Certificate2(caCertPath);
                    tls.WithClientCertificates(new[] { caCert });
                }

                // 证书验证回调
                tls.WithCertificateValidationHandler(context =>
                {
                    var certificate = context.Certificate as X509Certificate2;

                    // 测试环境: 接受所有证书
                    // return true;

                    // 生产环境: 严格证书验证
                    return ValidateServerCertificate(certificate, context.Chain, context.SslPolicyErrors);
                });
            })
            .Build();

        // 消息接收处理
        client.ApplicationMessageReceivedAsync += e =>
        {
            Console.WriteLine($"收到消息: {e.ApplicationMessage.Topic} -> {Encoding.UTF8.GetString(e.ApplicationMessage.PayloadSegment)}");
            return Task.CompletedTask;
        };

        try
        {
            // 1. 连接
            await client.ConnectAsync(options);
            Console.WriteLine("已连接(TLS加密)");

            // 2. 订阅
            for (int i = 0; i < topicFilters.Length; i++)
            {
                await client.SubscribeAsync(new MqttClientSubscribeOptionsBuilder()
                    .WithTopicFilter(f => f.WithTopic(topicFilters[i]).WithQualityOfServiceLevel((MqttQualityOfServiceLevel)qos[i]))
                    .Build());
            }
            Console.WriteLine("已订阅");

            // 3. 发布
            for (int i = 1; i <= 16; i++)
            {
                await client.PublishAsync(new MqttApplicationMessageBuilder()
                    .WithTopic(pubTopic)
                    .WithPayload($"消息 #{i}")
                    .WithQualityOfServiceLevel(MqttQualityOfServiceLevel.AtLeastOnce)
                    .Build());

                await Task.Delay(500);
            }
            Console.WriteLine("发布完成");

            // 4. 等待接收
            await Task.Delay(2000);

            // 5. 断开连接
            await client.DisconnectAsync();
            Console.WriteLine("已断开");
        }
        catch (Exception ex)
        {
            Console.WriteLine($"错误: {ex.Message}");
        }
    }

    /// <summary>
    /// 验证服务器证书
    /// </summary>
    static bool ValidateServerCertificate(X509Certificate2 certificate, X509Chain chain, SslPolicyErrors sslPolicyErrors)
    {
        // 如果没有错误,直接通过
        if (sslPolicyErrors == SslPolicyErrors.None)
        {
            return true;
        }

        // 如果证书为空,拒绝
        if (certificate == null)
        {
            Console.WriteLine("证书验证失败: 证书为空");
            return false;
        }

        // 1. 检查证书有效期
        DateTime now = DateTime.Now;
        if (now < certificate.NotBefore || now > certificate.NotAfter)
        {
            Console.WriteLine($"证书验证失败: 证书已过期或尚未生效 (有效期: {certificate.NotBefore} - {certificate.NotAfter})");
            return false;
        }

        // 2. 检查证书链
        if (chain != null && chain.ChainStatus.Length > 0)
        {
            foreach (var status in chain.ChainStatus)
            {
                // 忽略离线吊销检查错误(可选)
                if (status.Status == X509ChainStatusFlags.RevocationStatusUnknown ||
                    status.Status == X509ChainStatusFlags.OfflineRevocation)
                {
                    continue;
                }

                if (status.Status != X509ChainStatusFlags.NoError)
                {
                    Console.WriteLine($"证书验证失败: {status.StatusInformation}");
                    return false;
                }
            }
        }

        // 3. 检查证书主题名称(可选,根据实际需求)
        // string expectedSubject = "CN=*.mqtt.tencenttdmq.com";
        // if (!certificate.Subject.Contains(expectedSubject))
        // {
        //     Console.WriteLine($"证书验证失败: 主题不匹配 (期望: {expectedSubject}, 实际: {certificate.Subject})");
        //     return false;
        // }

        Console.WriteLine("证书验证通过");
        return true;
    }
}



using System;
using System.Text;
using System.Threading.Tasks;
using MQTTnet;
using MQTTnet.Client;
using MQTTnet.Protocol;
using MQTTnet.Formatter;

class MQTT311_TCP_Sample
{
    static async Task Main(string[] args)
    {
        // ============ 连接配置 ============
        String serverUri = "tcp://mqtt-xxx.mqtt.tencenttdmq.com:1883";
        String clientId = "QuickStart";
        String username = "YOUR_USERNAME";
        String password = "YOUR_PASSWORD";
        String pubTopic = "home/test";
        String[] topicFilters = new String[] { pubTopic, "home/#", "home/+" };
        int[] qos = new int[] { 1, 1, 1 };

        // 解析URI
        var uri = new Uri(serverUri);

        // 创建客户端
        var factory = new MqttFactory();
        var client = factory.CreateMqttClient();

        // 配置连接选项
        var options = new MqttClientOptionsBuilder()
            .WithTcpServer(uri.Host, uri.Port)
            .WithCredentials(username, password)
            .WithClientId(clientId)
            .WithProtocolVersion(MqttProtocolVersion.V311)
            .WithCleanSession(true)
            .Build();

        // 消息接收处理
        client.ApplicationMessageReceivedAsync += e =>
        {
            Console.WriteLine($"收到消息: {e.ApplicationMessage.Topic} -> {Encoding.UTF8.GetString(e.ApplicationMessage.PayloadSegment)}");
            return Task.CompletedTask;
        };

        try
        {
            // 1. 连接
            await client.ConnectAsync(options);
            Console.WriteLine("已连接");

            // 2. 订阅
            for (int i = 0; i < topicFilters.Length; i++)
            {
                await client.SubscribeAsync(new MqttClientSubscribeOptionsBuilder()
                    .WithTopicFilter(f => f.WithTopic(topicFilters[i]).WithQualityOfServiceLevel((MqttQualityOfServiceLevel)qos[i]))
                    .Build());
            }
            Console.WriteLine("已订阅");

            // 3. 发布
            for (int i = 1; i <= 16; i++)
            {
                await client.PublishAsync(new MqttApplicationMessageBuilder()
                    .WithTopic(pubTopic)
                    .WithPayload($"消息 #{i}")
                    .WithQualityOfServiceLevel(MqttQualityOfServiceLevel.AtLeastOnce)
                    .Build());

                await Task.Delay(500);
            }
            Console.WriteLine("发布完成");

            // 4. 等待接收
            await Task.Delay(2000);

            // 5. 断开连接
            await client.DisconnectAsync();
            Console.WriteLine("已断开");
        }
        catch (Exception ex)
        {
            Console.WriteLine($"错误: {ex.Message}");
        }
    }
}


using System;
using System.Text;
using System.Threading.Tasks;
using System.Security.Authentication;
using System.Security.Cryptography.X509Certificates;
using System.Net.Security;
using MQTTnet;
using MQTTnet.Client;
using MQTTnet.Protocol;
using MQTTnet.Formatter;

class MQTT311_TLS_Sample
{
    static async Task Main(string[] args)
    {

        // ============ 连接配置 ============
        String serverUri = "ssl://mqtt-xxx.mqtt.tencenttdmq.com:8883";
        String clientId = "QuickStart";
        String username = "YOUR_USERNAME";
        String password = "YOUR_PASSWORD";
        String pubTopic = "home/test";
        String[] topicFilters = new String[] { pubTopic, "home/#", "home/+" };
        int[] qos = new int[] { 1, 1, 1 };

        // CA证书路径(可选,用于验证服务器证书)
        String caCertPath = null; // 例如: "/path/to/ca.crt"

        // 解析URI
        var uri = new Uri(serverUri);

        // 创建客户端
        var factory = new MqttFactory();
        var client = factory.CreateMqttClient();

        // 配置连接选项(包含TLS)
        var options = new MqttClientOptionsBuilder()
            .WithTcpServer(uri.Host, uri.Port)
            .WithCredentials(username, password)
            .WithClientId(clientId)
            .WithProtocolVersion(MqttProtocolVersion.V311)
            .WithCleanSession(true)
            .WithTlsOptions(tls =>
            {
                tls.UseTls();
                tls.WithSslProtocols(SslProtocols.Tls12 | SslProtocols.Tls13);

                // 如果提供了CA证书,加载它
                if (!string.IsNullOrEmpty(caCertPath))
                {
                    var caCert = new X509Certificate2(caCertPath);
                    tls.WithClientCertificates(new[] { caCert });
                }

                // 证书验证回调
                tls.WithCertificateValidationHandler(context =>
                {
                    var certificate = context.Certificate as X509Certificate2;

                    // 测试环境: 接受所有证书
                    // return true;

                    // 生产环境: 严格证书验证
                    return ValidateServerCertificate(certificate, context.Chain, context.SslPolicyErrors);
                });
            })
            .Build();

        // 消息接收处理
        client.ApplicationMessageReceivedAsync += e =>
        {
            Console.WriteLine($"收到消息: {e.ApplicationMessage.Topic} -> {Encoding.UTF8.GetString(e.ApplicationMessage.PayloadSegment)}");
            return Task.CompletedTask;
        };

        try
        {
            // 1. 连接
            await client.ConnectAsync(options);
            Console.WriteLine("已连接(TLS加密)");

            // 2. 订阅
            for (int i = 0; i < topicFilters.Length; i++)
            {
                await client.SubscribeAsync(new MqttClientSubscribeOptionsBuilder()
                    .WithTopicFilter(f => f.WithTopic(topicFilters[i]).WithQualityOfServiceLevel((MqttQualityOfServiceLevel)qos[i]))
                    .Build());
            }
            Console.WriteLine("已订阅");

            // 3. 发布
            for (int i = 1; i <= 16; i++)
            {
                await client.PublishAsync(new MqttApplicationMessageBuilder()
                    .WithTopic(pubTopic)
                    .WithPayload($"消息 #{i}")
                    .WithQualityOfServiceLevel(MqttQualityOfServiceLevel.AtLeastOnce)
                    .Build());

                await Task.Delay(500);
            }
            Console.WriteLine("发布完成");

            // 4. 等待接收
            await Task.Delay(2000);

            // 5. 断开连接
            await client.DisconnectAsync();
            Console.WriteLine("已断开");
        }
        catch (Exception ex)
        {
            Console.WriteLine($"错误: {ex.Message}");
        }
    }

    /// <summary>
    /// 验证服务器证书
    /// </summary>
    static bool ValidateServerCertificate(X509Certificate2 certificate, X509Chain chain, SslPolicyErrors sslPolicyErrors)
    {
        // 如果没有错误,直接通过
        if (sslPolicyErrors == SslPolicyErrors.None)
        {
            return true;
        }

        // 如果证书为空,拒绝
        if (certificate == null)
        {
            Console.WriteLine("证书验证失败: 证书为空");
            return false;
        }

        // 1. 检查证书有效期
        DateTime now = DateTime.Now;
        if (now < certificate.NotBefore || now > certificate.NotAfter)
        {
            Console.WriteLine($"证书验证失败: 证书已过期或尚未生效 (有效期: {certificate.NotBefore} - {certificate.NotAfter})");
            return false;
        }

        // 2. 检查证书链
        if (chain != null && chain.ChainStatus.Length > 0)
        {
            foreach (var status in chain.ChainStatus)
            {
                // 忽略离线吊销检查错误(可选)
                if (status.Status == X509ChainStatusFlags.RevocationStatusUnknown ||
                    status.Status == X509ChainStatusFlags.OfflineRevocation)
                {
                    continue;
                }

                if (status.Status != X509ChainStatusFlags.NoError)
                {
                    Console.WriteLine($"证书验证失败: {status.StatusInformation}");
                    return false;
                }
            }
        }

        // 3. 检查证书主题名称(可选,根据实际需求)
        // string expectedSubject = "CN=*.mqtt.tencenttdmq.com";
        // if (!certificate.Subject.Contains(expectedSubject))
        // {
        //     Console.WriteLine($"证书验证失败: 主题不匹配 (期望: {expectedSubject}, 实际: {certificate.Subject})");
        //     return false;
        // }

        Console.WriteLine("证书验证通过");
        return true;
    }
}




参数说明

参数
说明
ADDRESS
broker 连接地址，在控制台目标集群基本信息 > 接入信息模块中复制。位置如下图所示。格式：mqtt-xxx-gz.mqtt.qcloud.tencenttdmq.com:1883。

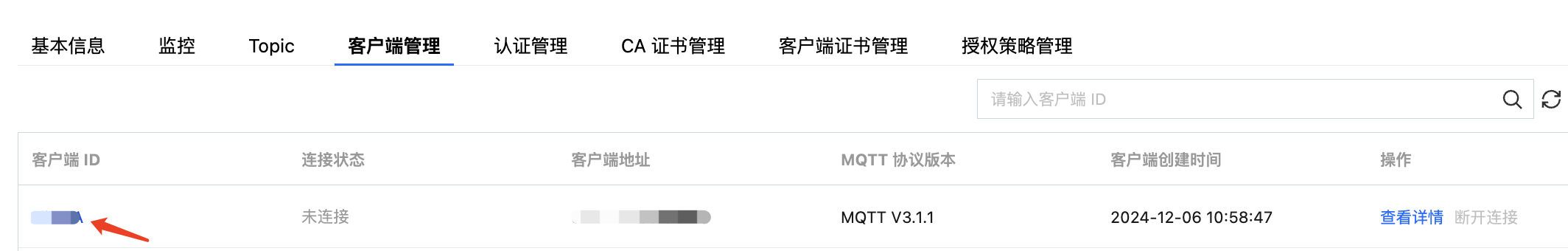

CLIENTID
客户端 ID，在控制台集群详情页客户端管理页面获取。

USERNAME
用户名，在控制台认证管理页面获取；
PASSWORD
密码，在控制台认证管理页面获取；
中国站
目录
