HTTPDNS 加解密实践

最近更新时间：2023-09-28 15:35:41

我的收藏

本页目录：

操作场景

使用 DES、AES 加密算法可以对请求参数进行加密，并对其响应数据解密，防止明文请求在传输过程中被恶意篡改。本文将指导您如何使用 DES、AES 加密算法。
说明
使用 HTTPS 请求方式查询，传输的数据会因为 TLS 通道而被加密保护，因此不需要主动对传入的数据额外加密。

前提条件

掌握 Java、JavaScript、Go 或者 C++ 语言。

操作步骤

Java 版本

AES 加密

首先，创建org/example目录，并在org/example目录下，创建文件HTTPDNSAESHelper.java，执行javac ./org/example/HTTPDNSAESHelper.java命令，得到HTTPDNSAESHelper$1.class、HTTPDNSAESHelper.class文件。



执行java org.example.HTTPDNSAESHelper命令。
依次输入 HTTPDNS 的 id、查询的域名、16位的 AES 加解密的密钥。



HTTPDNSAESHelper.java代码
package org.example;

import javax.crypto.Cipher;
import javax.crypto.spec.IvParameterSpec;
import javax.crypto.spec.SecretKeySpec;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.UnsupportedEncodingException;
import java.net.HttpURLConnection;
import java.net.MalformedURLException;
import java.net.URL;
import java.util.HashMap;
import java.util.Map;
import java.util.Random;
import java.util.Scanner;

public class HTTPDNSAESHelper {

    private static final int IVSize = 16;
    private static final int KeySize = 16;
    private static final String AlgorithmName = "AES";
    // 下面代码中有对应的pkcs7算法实现
    private static final String AlgorithmCombinationName = "AES/CBC/NoPadding";
    private static final String Base16Table = "0123456789ABCDEF";
    private static final Map<Character, Byte> ReversedBase16Table = new HashMap<Character, Byte>() {
        {
            put('0', (byte) 0);
            put('1', (byte) 1);
            put('2', (byte) 2);
            put('3', (byte) 3);
            put('4', (byte) 4);
            put('5', (byte) 5);
            put('6', (byte) 6);
            put('7', (byte) 7);
            put('8', (byte) 8);
            put('9', (byte) 9);
            put('A', (byte) 10);
            put('B', (byte) 11);
            put('C', (byte) 12);
            put('D', (byte) 13);
            put('E', (byte) 14);
            put('F', (byte) 15);
            put('a', (byte) 10);
            put('b', (byte) 11);
            put('c', (byte) 12);
            put('d', (byte) 13);
            put('e', (byte) 14);
            put('f', (byte) 15);
        }
    };

    public static void main(String[] args) {
        Scanner scanner = new Scanner(System.in);

        System.out.println("请输入你的id:");
        String id = scanner.nextLine();
        System.out.println("请输入你要查询的域名:");
        String data = scanner.nextLine();
        System.out.println("请输入你的key:");
        // 16个字节的key
        String key = scanner.nextLine();

        if (key.length() != 16) {
            throw new IllegalArgumentException("key的长度必须为16字节");
        }

        HTTPDNSAESHelper aesHelper = new HTTPDNSAESHelper();

        System.out.println("测试域名加密和解密是否正确: ");
        String encrypt = aesHelper.encrypt(data, key);
        System.out.println("加密后的域名: " + encrypt);

        String decrypt = aesHelper.decrypt(encrypt, key);
        System.out.println("解密后: " + decrypt);

        try {
            String line;
            StringBuilder response = new StringBuilder();
            URL url = new URL("http://119.29.29.98/d?dn=" + encrypt + "&id=" + id + "&alg=aes");
            HttpURLConnection conn = (HttpURLConnection) url.openConnection();
            conn.setDoOutput(true);
            conn.setRequestMethod("GET");

            int responseCode = conn.getResponseCode();
            if (responseCode != HttpURLConnection.HTTP_OK) {
                throw new RuntimeException("请求HTTP DNS接口失败, 响应码: " + responseCode);
            }

            try (BufferedReader reader = new BufferedReader(new InputStreamReader(conn.getInputStream()))) {
                while ((line = reader.readLine()) != null) {
                    response.append(line);
                }

                System.out.println("响应结果: " + response);
                System.out.println("解密后: " + aesHelper.decrypt(response.toString(), key));
            }
        } catch (MalformedURLException e) {
            throw new RuntimeException("请求HTTP DNS接口失败", e);
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
    }

    /**
     * base16编码
     *
     * @param data 字节数组
     * @return base16编码后的字符串
     */
    public static String hexEncode(byte[] data) {
        if (data == null || data.length == 0) {
            return "";
        }

        StringBuilder result = new StringBuilder(data.length * 2);
        for (byte datum : data) {
            int high = (datum >> 4) & 0xf;
            int low = datum & 0xf;
            result.append(Base16Table.charAt(high));
            result.append(Base16Table.charAt(low));
        }

        return result.toString();
    }

    /**
     * base16解码
     *
     * @param data base16编码后的字符串
     * @return 字节数组
     */
    public static byte[] hexDecode(String data) {
        if (data == null || data.length() == 0) return null;

        if (data.length() % 2 != 0) {
            throw new RuntimeException("invalid hex encoded string");
        }

        byte[] result = new byte[data.length() / 2];
        for (int i = 0, j = 0; i < result.length; i++, j += 2) {
            byte high = ReversedBase16Table.get(data.charAt(j));
            byte low = ReversedBase16Table.get(data.charAt(j + 1));
            result[i] = (byte) ((high << 4) | (low & 0xf));
        }

        return result;
    }

    public static byte[] getUTF8Bytes(String str) {
        try {
            return str.getBytes("UTF-8");
        } catch (UnsupportedEncodingException e) {
            throw new RuntimeException("invalid data", e);
        }
    }

    public static boolean isBlank(String str) {
        return str == null || str.length() == 0;
    }

    /**
     * 加密
     *
     * @param data 数据
     * @param key  16个字节长度的key
     * @return 加密后的数据
     */
    public String encrypt(String data, String key) {
        if (key == null || key.length() != KeySize) {
            throw new IllegalArgumentException("key length must be 16");
        } else if (isBlank(data)) {
            throw new IllegalArgumentException("data is blank");
        }

        // 使用pkcs7Padding算法填充, 参考rfc5652
        byte[] rawData = pkcs7Padding(getUTF8Bytes(data), IVSize);
        byte[] ivBytes = generateRandomIVBytes();
        byte[] keyBytes = getUTF8Bytes(key);

        SecretKeySpec aesKey = new SecretKeySpec(keyBytes, AlgorithmName);

        IvParameterSpec iv = new IvParameterSpec(ivBytes);

        try {
            // AES, CBC模式加密
            Cipher cipher = Cipher.getInstance(AlgorithmCombinationName);
            cipher.init(Cipher.ENCRYPT_MODE, aesKey, iv);
            byte[] encryptedBytes = cipher.doFinal(rawData);
            // hex编码
            return hexEncode(concatBytes(ivBytes, encryptedBytes));
        } catch (Exception e) {
            throw new RuntimeException("failed to encrypt data", e);
        }
    }

    /**
     * 解密
     *
     * @param data 数据
     * @param key  16个字节长度的key
     * @return 解密后的数据
     */
    public String decrypt(String data, String key) {
        if (key == null || key.length() != KeySize) {
            throw new IllegalArgumentException("key length must be 16");
        } else if (isBlank(data)) {
            throw new IllegalArgumentException("data is blank");
        }

        // hex解码
        byte[] decodedBytes = hexDecode(data);

        if (decodedBytes == null || decodedBytes.length < IVSize) {
            throw new IllegalArgumentException("invalid encryptedData, missing iv");
        }

        byte[] keyBytes = getUTF8Bytes(key);
        byte[] encryptedBytes = extractEncryptedData(decodedBytes);

        SecretKeySpec aesKey = new SecretKeySpec(keyBytes, AlgorithmName);
        IvParameterSpec iv = extractIV(decodedBytes);

        try {
            // AES, CBC模式解密
            Cipher cipher = Cipher.getInstance(AlgorithmCombinationName);
            cipher.init(Cipher.DECRYPT_MODE, aesKey, iv);
            byte[] decryptedBytes = cipher.doFinal(encryptedBytes);
            // 去掉pkcs7Padding填充的字节
            return new String(unPkcs7Padding(decryptedBytes, IVSize));
        } catch (Exception e) {
            throw new RuntimeException("failed to decrypt data", e);
        }
    }

    private byte[] concatBytes(byte[] first, byte[] second) {
        if (first == null || first.length == 0) {
            return second;
        }

        if (second == null || second.length == 0) {
            return first;
        }

        byte[] target = new byte[first.length + second.length];
        System.arraycopy(first, 0, target, 0, first.length);
        System.arraycopy(second, 0, target, first.length, second.length);
        return target;
    }

    /**
     * 从响应数据中提取iv参数
     *
     * @param data 响应数据
     * @return iv参数
     */
    private IvParameterSpec extractIV(byte[] data) {
        if (data.length < IVSize) {
            throw new IllegalArgumentException("missing iv part");
        }

        byte[] ivBytes = new byte[IVSize];
        System.arraycopy(data, 0, ivBytes, 0, ivBytes.length);
        return new IvParameterSpec(ivBytes);
    }

    /**
     * 从响应数据中提取加密数据
     *
     * @param data 响应数据
     * @return 加密数据
     */
    private byte[] extractEncryptedData(byte[] data) {
        if (data.length - IVSize <= 0) {
            throw new IllegalArgumentException("missing encrypted data part");
        }

        byte[] encryptedBytes = new byte[data.length - IVSize];
        System.arraycopy(data, IVSize, encryptedBytes, 0, encryptedBytes.length);
        return encryptedBytes;
    }

    /**
     * 生成随机的16字节的IV
     *
     * @return 随机的16字节的IV
     */
    private byte[] generateRandomIVBytes() {
        byte[] iv = new byte[16];
        Random random = new Random();
        random.nextBytes(iv);
        return iv;
    }

    private byte[] pkcs7Padding(byte[] data, int blockSize) {
        int paddingBytesAmount = blockSize - (data.length % blockSize);
        byte[] paddingResult = new byte[data.length + paddingBytesAmount];
        System.arraycopy(data, 0, paddingResult, 0, data.length);
        for (int i = 0; i < paddingBytesAmount; i++) {
            paddingResult[data.length + i] = (byte) paddingBytesAmount;
        }
        return paddingResult;
    }

    private byte[] unPkcs7Padding(byte[] data, int blockSize) {
        if (data == null || data.length == 0 || data.length % blockSize != 0) {
            throw new RuntimeException("data isn't aligned to blockSize");
        }

        int paddingBytesAmount = data[data.length - 1];
        for (int i = 0; i < paddingBytesAmount; i++) {
            if (data[data.length - i - 1] != paddingBytesAmount) {
                throw new RuntimeException("padding had malformed entries");
            }
        }

        byte[] result = new byte[data.length - paddingBytesAmount];
        System.arraycopy(data, 0, result, 0, result.length);
        return result;
    }
}


DES 加密

首先，创建org/example目录，并在org/example目录下，创建文件HTTPDNSDESHelper.java，执行javac ./org/example/HTTPDNSDESHelper.java命令，得到HTTPDNSDESHelper$1.class和HTTPDNSDESHelper.class文件。



执行java org.example.HTTPDNSDESHelper命令。
依次输入 HTTPDNS 的 id、查询的域名、8位的 DES 加解密的密钥。



HTTPDNSDESHelper.java代码
package org.example;

import javax.crypto.Cipher;
import javax.crypto.spec.SecretKeySpec;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.net.HttpURLConnection;
import java.net.MalformedURLException;
import java.net.URL;
import java.nio.charset.StandardCharsets;
import java.util.HashMap;
import java.util.Map;
import java.util.Scanner;

public class HTTPDNSDESHelper {

    private static final int KeySize = 8;
    private static final String AlgorithmName = "DES";
    private static final String AlgorithmCombinationName = "DES/ECB/PKCS5Padding";
    private static final String Base16Table = "0123456789ABCDEF";
    private static final Map<Character, Byte> ReversedBase16Table = new HashMap<Character, Byte>() {
        {
            put('0', (byte) 0);
            put('1', (byte) 1);
            put('2', (byte) 2);
            put('3', (byte) 3);
            put('4', (byte) 4);
            put('5', (byte) 5);
            put('6', (byte) 6);
            put('7', (byte) 7);
            put('8', (byte) 8);
            put('9', (byte) 9);
            put('A', (byte) 10);
            put('B', (byte) 11);
            put('C', (byte) 12);
            put('D', (byte) 13);
            put('E', (byte) 14);
            put('F', (byte) 15);
            put('a', (byte) 10);
            put('b', (byte) 11);
            put('c', (byte) 12);
            put('d', (byte) 13);
            put('e', (byte) 14);
            put('f', (byte) 15);
        }
    };

    public static void main(String[] args) {
        Scanner scanner = new Scanner(System.in);

        System.out.println("请输入你的id:");
        String id = scanner.nextLine();
        System.out.println("请输入你要查询的域名:");
        String data = scanner.nextLine();
        System.out.println("请输入你的key:");
        // 8个字节的key
        String key = scanner.nextLine();

        if (key.length() != 8) {
            throw new IllegalArgumentException("key的长度必须为8字节");
        }

        HTTPDNSDESHelper desHelper = new HTTPDNSDESHelper();

        System.out.println("测试域名加密和解密是否正确: ");
        String encrypt = desHelper.encrypt(data, key);
        System.out.println("加密后的域名: " + encrypt);

        String decrypt = desHelper.decrypt(encrypt, key);
        System.out.println("解密后: " + decrypt);

        try {
            String line;
            StringBuilder response = new StringBuilder();
            URL url = new URL("http://119.29.29.98/d?dn=" + encrypt + "&id=" + id + "&alg=des");
            HttpURLConnection conn = (HttpURLConnection) url.openConnection();
            conn.setDoOutput(true);
            conn.setRequestMethod("GET");

            int responseCode = conn.getResponseCode();
            if (responseCode != HttpURLConnection.HTTP_OK) {
                throw new RuntimeException("请求HTTP DNS接口失败, 响应码: " + responseCode);
            }

            try (BufferedReader reader = new BufferedReader(new InputStreamReader(conn.getInputStream()))) {
                while ((line = reader.readLine()) != null) {
                    response.append(line);
                }

                System.out.println("响应结果: " + response);
                System.out.println("解密后: " + desHelper.decrypt(response.toString(), key));
            }
        } catch (MalformedURLException e) {
            throw new RuntimeException("请求HTTP DNS接口失败", e);
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
    }

    /**
     * base16编码
     *
     * @param data 字节数组
     * @return base16编码后的字符串
     */
    public static String hexEncode(byte[] data) {
        if (data == null || data.length == 0) {
            return "";
        }

        StringBuilder result = new StringBuilder(data.length * 2);
        for (byte datum : data) {
            int high = (datum >> 4) & 0xf;
            int low = datum & 0xf;
            result.append(Base16Table.charAt(high));
            result.append(Base16Table.charAt(low));
        }

        return result.toString();
    }

    /**
     * base16解码
     *
     * @param data base16编码后的字符串
     * @return 字节数组
     */
    public static byte[] hexDecode(String data) {
        if (data == null || data.length() == 0) return null;

        if (data.length() % 2 != 0) {
            throw new RuntimeException("invalid hex encoded string");
        }

        byte[] result = new byte[data.length() / 2];
        for (int i = 0, j = 0; i < result.length; i++, j += 2) {
            byte high = ReversedBase16Table.get(data.charAt(j));
            byte low = ReversedBase16Table.get(data.charAt(j + 1));
            result[i] = (byte) ((high << 4) | (low & 0xf));
        }

        return result;
    }

    public static byte[] getUTF8Bytes(String str) {
        return str.getBytes(StandardCharsets.UTF_8);
    }

    public static boolean isBlank(String str) {
        return str == null || str.length() == 0;
    }

    public String encrypt(String data, String key) {
        if (key == null || key.length() != KeySize) {
            throw new IllegalArgumentException("key length must be 8");
        } else if (isBlank(data)) {
            throw new IllegalArgumentException("data is blank");
        }

        byte[] rawBytes = getUTF8Bytes(data);
        byte[] keyBytes = getUTF8Bytes(key);

        SecretKeySpec desKey = new SecretKeySpec(keyBytes, AlgorithmName);

        try {
            Cipher cipher = Cipher.getInstance(AlgorithmCombinationName);
            cipher.init(Cipher.ENCRYPT_MODE, desKey);
            byte[] encryptedData = cipher.doFinal(rawBytes);
            return hexEncode(encryptedData);
        } catch (Exception e) {
            throw new RuntimeException("failed to encrypt", e);
        }
    }

    public String decrypt(String data, String key) {
        if (key == null || key.length() != KeySize) {
            throw new IllegalArgumentException("key length must be 8");
        } else if (isBlank(data)) {
            throw new IllegalArgumentException("data is blank");
        }

        byte[] encryptedBytes = hexDecode(data);
        byte[] keyBytes = getUTF8Bytes(key);

        SecretKeySpec desKey = new SecretKeySpec(keyBytes, AlgorithmName);

        try {
            Cipher cipher = Cipher.getInstance(AlgorithmCombinationName);
            cipher.init(Cipher.DECRYPT_MODE, desKey);
            byte[] decryptedData = cipher.doFinal(encryptedBytes);
            return new String(decryptedData);
        } catch (Exception e) {
            throw new RuntimeException("failed to decrypt", e);
        }
    }
}

Go 版本

创建一个目录test，进入test目录，创建main.go文件，把以下代码复制到main.go文件中，然后运行go run main.go命令。
分别会进行 AES 加解密和 DES 加解密，在此过程中需要分别输入 HTTPDNS 的 id、请求域名、16位的 AES 加解密密钥、HTTPDNS 的 id、请求域名、8位的 DES 加解密密钥。
package main

import (
    "bytes"
    "crypto/aes"
    "crypto/cipher"
    "crypto/des"
    "encoding/hex"
    "errors"
    "fmt"
    "io"
    "math/rand"
    "net/http"
)

var (
    ErrInvalidBlockSize   = errors.New("invalid block size")
    ErrInvalidPKCSData    = errors.New("invalid PKCS data")
    ErrInvalidPKCSPadding = errors.New("invalid padding on input")
)

// AesDecrypt aes解密
// 步骤:
// 1. 先把加密文本base16(hex)解码
// 2. 从解码后的数据前16位提取出IV, 其他部分作为待解密数据
// 3. 根据IV和key解密数据
// 4. 把解密后的数据尝试去除填充数据(pkcs7)
func AesDecrypt(encryptedData, key string) (string, error) {
    cipherText, err := hex.DecodeString(encryptedData)
    if err != nil {
      return "", err
    }

    if len(cipherText) < aes.BlockSize {
      return "", errors.New("missing iv")
    }

    // 前16字节为IV
    iv := cipherText[:aes.BlockSize]
    cipherText = cipherText[aes.BlockSize:]

    c, err := aes.NewCipher([]byte(key))
    if err != nil {
      return "", err
    }

    mode := cipher.NewCBCDecrypter(c, iv)

    mode.CryptBlocks(cipherText, cipherText)

    unPaddingData, err := pkcs7UnPad(cipherText, aes.BlockSize)
    if err != nil {
      return "", err
    }

    return string(unPaddingData), nil
}

// AesEncrypt aes加密
// 步骤:
// 1. 生成16位的随机IV
// 2. 对加密数据尝试进行填充(pkcs7)
// 3. 使用key和IV加密填充后的数据
// 4. 拼接IV和加密后的数据
// 5. 把字节数组通过base16(hex)编码为字符串
func AesEncrypt(data, key string) (string, error) {
    iv := randomIV(aes.BlockSize)
    c, err := aes.NewCipher([]byte(key))
    if err != nil {
      return "", err
    }

    mode := cipher.NewCBCEncrypter(c, iv)

    cipherText, err := pkcs7([]byte(data), aes.BlockSize)
    if err != nil {
      return "", err
    }

    mode.CryptBlocks(cipherText, cipherText)

    // 前16字节为IV
    cipherText = append(iv, cipherText...)

    return hex.EncodeToString(cipherText), nil
}

func randomIV(blockSize int) []byte {
    iv := make([]byte, blockSize)
    for i := 0; i < blockSize; i++ {
      iv[i] = byte(rand.Int())
    }
    return iv
}

func DesEncrypt(data, key string) (string, error) {
    c, err := des.NewCipher([]byte(key))
    if err != nil {
      return "", err
    }

    cipherText, err := pkcs5([]byte(data), des.BlockSize)
    if err != nil {
      return "", err
    }

    dst := make([]byte, len(cipherText))
    for i := 0; i < len(cipherText); i += des.BlockSize {
      c.Encrypt(dst[i:i+des.BlockSize], cipherText[i:i+des.BlockSize])
    }

    return hex.EncodeToString(dst), nil
}

func DesDecrypt(encryptedData, key string) (string, error) {
    cipherText, err := hex.DecodeString(encryptedData)
    if err != nil {
      return "", err
    }

    if len(cipherText)%des.BlockSize != 0 {
      return "", errors.New("invalid encryptedData")
    }

    c, err := des.NewCipher([]byte(key))
    if err != nil {
      return "", err
    }

    dst := make([]byte, len(cipherText))
    for i := 0; i < len(cipherText); i += des.BlockSize {
      c.Decrypt(dst[i:i+des.BlockSize], cipherText[i:i+des.BlockSize])
    }

    unPaddingData, err := pkcs5UnPad(dst, des.BlockSize)
    if err != nil {
      return "", err
    }

    return string(unPaddingData), nil
}

func pkcs7(data []byte, blockSize int) ([]byte, error) {
    if blockSize <= 0 {
      return nil, ErrInvalidBlockSize
    }
    if len(data) == 0 {
      return nil, ErrInvalidPKCSData
    }
    n := blockSize - (len(data) % blockSize)
    pd := make([]byte, len(data)+n)
    copy(pd, data)
    copy(pd[len(data):], bytes.Repeat([]byte{byte(n)}, n))
    return pd, nil
}

func pkcs7UnPad(data []byte, blockSize int) ([]byte, error) {
    if blockSize <= 0 {
      return nil, ErrInvalidBlockSize
    }
    if len(data) == 0 {
      return nil, ErrInvalidPKCSData
    }
    if len(data)%blockSize != 0 {
      return nil, ErrInvalidPKCSPadding
    }
    c := data[len(data)-1]
    n := int(c)
    if n == 0 || n > len(data) {
      return nil, ErrInvalidPKCSPadding
    }
    for i := 0; i < n; i++ {
      if data[len(data)-i-1] != c {
        return nil, ErrInvalidPKCSPadding
      }
    }
    return data[:len(data)-n], nil
}

func pkcs5(data []byte, blockSize int) ([]byte, error) {
    if blockSize <= 0 {
      return nil, ErrInvalidBlockSize
    }
    if len(data) == 0 {
      return nil, ErrInvalidPKCSData
    }
    pd := blockSize - (len(data) % blockSize)
    return append(data, bytes.Repeat([]byte{byte(pd)}, pd)...), nil
}

func pkcs5UnPad(data []byte, blockSize int) ([]byte, error) {
    if blockSize <= 0 {
      return nil, ErrInvalidBlockSize
    }
    if len(data) == 0 {
      return nil, ErrInvalidPKCSData
    }
    if len(data)%blockSize != 0 {
      return nil, ErrInvalidPKCSPadding
    }

    c := data[len(data)-1]
    n := int(c)
    if n == 0 || n > len(data) {
      return nil, ErrInvalidPKCSPadding
    }
    for i := 0; i < n; i++ {
      if data[len(data)-i-1] != c {
        return nil, ErrInvalidPKCSPadding
      }
    }
    return data[:len(data)-n], nil
}

func executeHTTPDNSRequest(id, dn, alg string) (string, error) {
    resp, err := http.Get(fmt.Sprintf("http://119.29.29.98/d?dn=%s&id=%s&alg=%s", dn, id, alg))
    if err != nil {
      return "", err
    }

    if resp.StatusCode != http.StatusOK {
      return "", errors.New(fmt.Sprintf("请求HTTP DNS接口失败, 状态码: %d", resp.StatusCode))
    }

    defer resp.Body.Close()
    data, err := io.ReadAll(resp.Body)
    if err != nil {
      return "", err
    }

    return string(data), nil
}

func scan(tip string, dest *string) {
    fmt.Println(tip)
    _, err := fmt.Scanln(dest)
    if err != nil {
      panic(err)
    }
}

func aesEncryptAndDecryptTest() {
    fmt.Println("AES加解密测试:")

    var id, key, domain string
    scan("请输入你的id:", &id)
    scan("请输入你要请求的域名:", &domain)
    scan("请输入你16字节的key:", &key)

    encryptedData, err := AesEncrypt(domain, key)
    if err != nil {
      panic(err)
    }
    fmt.Println("加密后的域名:", encryptedData)
    decryptedData, err := AesDecrypt(encryptedData, key)
    if err != nil {
      panic(err)
    }
    fmt.Println("解密后的域名:", decryptedData)

    data, err := executeHTTPDNSRequest(id, encryptedData, "aes")
    if err != nil {
      panic(err)
    }

    decryptedIPAddress, err := AesDecrypt(data, key)
    if err != nil {
      panic(err)
    }

    fmt.Println("解密后的IP地址:", decryptedIPAddress)
}

func desEncryptAndDecryptTest() {
    fmt.Println("DES加解密测试:")

    var id, key, domain string
    scan("请输入你的id:", &id)
    scan("请输入你要请求的域名:", &domain)
    scan("请输入你8字节的key:", &key)

    encryptedData, err := DesEncrypt(domain, key)
    if err != nil {
      panic(err)
    }
    fmt.Println("加密后的域名:", encryptedData)
    decryptedData, err := DesDecrypt(encryptedData, key)
    if err != nil {
      panic(err)
    }
    fmt.Println("解密后的域名:", decryptedData)

    data, err := executeHTTPDNSRequest(id, encryptedData, "des")
    if err != nil {
      panic(err)
    }

    decryptedIPAddress, err := DesDecrypt(data, key)
    if err != nil {
      panic(err)
    }

      fmt.Println("解密后的IP地址:", decryptedIPAddress)
}

func main() {
      aesEncryptAndDecryptTest()
      desEncryptAndDecryptTest()
}

C++ 版本

安装 make、g++、以及 libcurl 和 libcrypto 库。
在 Centos 系统上执行以下命令：
yum install -y libcurl-devel openssl openssl-dev make gcc gcc-c++

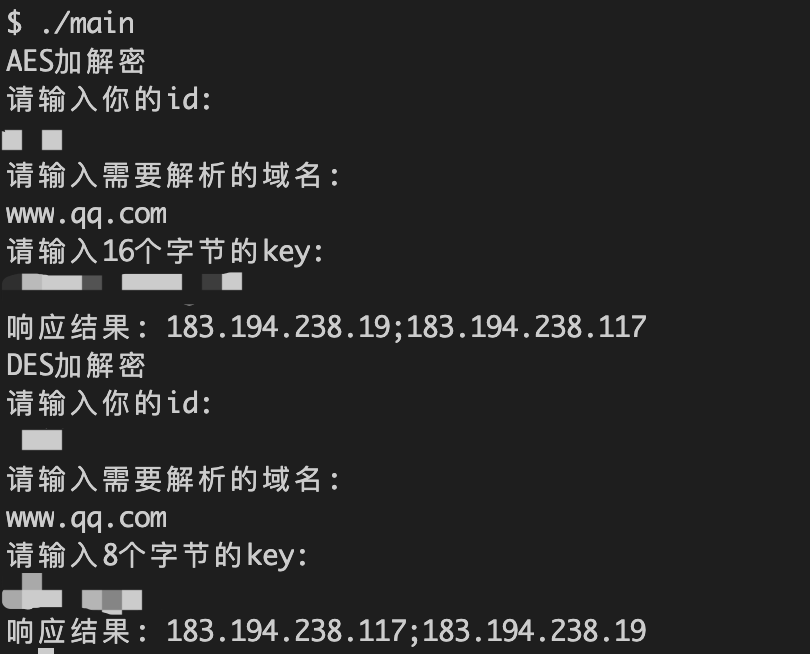

创建test目录，进入test目录，复制以下文件到test目录，执行make，然后执行main可执行文件，根据提示输入获取响应 HTTPDNS 响应结果。
Makefile
all:
    g++ -Wall -Werror -g -o main -lcrypto -lcurl main.cpp des.cpp aes.cpp hex.cpp

clean:
    - rm -rf ./main
main.cpp
#include "aes.h"
#include "des.h"
#include <iostream>
#include <curl/curl.h>

size_t http_dns_response_callback(char *ptr, size_t size, size_t nmemb, void *userdata)
{
    size_t real_size = size * nmemb;
    std::string *response = (std::string *)userdata;

    response->append(ptr, real_size);
    return real_size;
}

void send_http_dns_request(const std::string &encrypted_domain, const std::string &id,
                           const std::string &alg, std::string &response)
{
    std::string url;
    CURL *easy_handle;
    CURLcode res;

    easy_handle = curl_easy_init();

    if (!easy_handle)
        throw std::runtime_error("curl_easy_init() failed");

    url.append("http://119.29.29.98/d?dn=")
        .append(encrypted_domain)
        .append("&id=")
        .append(id)
        .append("&alg=")
        .append(alg);

    res = curl_easy_setopt(easy_handle, CURLOPT_URL, url.c_str());
    if (res != CURLE_OK)
    {
        curl_easy_cleanup(easy_handle);
        throw std::runtime_error("failed to set url option");
    }

    res = curl_easy_setopt(easy_handle, CURLOPT_WRITEFUNCTION, http_dns_response_callback);
    if (res != CURLE_OK)
    {
        curl_easy_cleanup(easy_handle);
        throw std::runtime_error("failed to set writedata option");
    }

    res = curl_easy_setopt(easy_handle, CURLOPT_WRITEDATA, &response);
    if (res != CURLE_OK)
    {
        curl_easy_cleanup(easy_handle);
        throw std::runtime_error("failed to set writedata option");
    }

    res = curl_easy_perform(easy_handle);
    if (res != CURLE_OK)
    {
        curl_easy_cleanup(easy_handle);
        throw std::runtime_error(std::string("curl_easy_perform() failed: ").append(curl_easy_strerror(res)));
    }

    curl_global_cleanup();
}

void get_user_input(const std::string &tip, std::string &id, std::string &domain,
                    std::string &key, const size_t key_length)
{
    std::cout << tip << std::endl;
    std::cout << "请输入你的id:" << std::endl;
    std::cin >> id;
    std::cout << "请输入需要解析的域名:" << std::endl;
    std::cin >> domain;
    std::cout << "请输入" << key_length << "个字节的key:" << std::endl;
    std::cin >> key;

    if (id.size() == 0)
        throw std::runtime_error("请输入有效的id");

    if (domain.size() == 0)
        throw std::runtime_error("请输入有效的域名");

    if (key.size() != key_length)
        throw std::runtime_error(std::string("key长度必须为").append(std::to_string(key_length)).append("个字节"));
}

void aes_test()
{
    std::string id, domain, key, response;

    get_user_input("AES加解密", id, domain, key, 16);

    std::string &&encrypted_data = aes_encrypt(domain, key);

    send_http_dns_request(encrypted_data, id, "aes", response);

    std::string &&decrypted_data = aes_decrypt(response, key);
    std::cout << "响应结果: " << decrypted_data << std::endl;
}

void des_test()
{
    std::string id, domain, key, response;

    get_user_input("DES加解密", id, domain, key, 8);

    std::string &&encrypted_data = des_encrypt(domain, key);

    send_http_dns_request(encrypted_data, id, "des", response);

    std::string &&decrypted_data = des_decrypt(response, key);
    std::cout << "响应结果: " << decrypted_data << std::endl;
}

int main()
{
    aes_test();
    des_test();
}
aes.cpp
#include "aes.h"
#include "hex.h"
#include <openssl/evp.h>
#include <openssl/aes.h>
#include <time.h>
#include <stdlib.h>
#include <stdexcept>

typedef unsigned char uchar;

const size_t IV_SIZE = 16;
const size_t KEY_SIZE = 16;
const size_t BLOCK_SIZE = 16;

static std::string generate_iv()
{
    size_t i;
    std::string iv;

    srand(time(NULL));

    for (i = 0; i < IV_SIZE; i++)
        iv.push_back(rand() % 256);

    return iv;
}

std::string aes_encrypt(const std::string &data, const std::string &key)
{
    if (data.size() == 0)
        throw std::runtime_error("data is empty");
    else if (key.size() != KEY_SIZE)
        throw std::runtime_error("key length must be 16");

    EVP_CIPHER_CTX *ctx = EVP_CIPHER_CTX_new();
    std::string &&iv = generate_iv();

    if (1 != EVP_EncryptInit_ex(ctx, EVP_aes_128_cbc(), nullptr, (uchar *)key.c_str(), (uchar *)iv.c_str()))
    {
        EVP_CIPHER_CTX_free(ctx);
        throw std::runtime_error("EVP_EncryptInit_ex() failed");
    }

    EVP_CIPHER_CTX_set_key_length(ctx, KEY_SIZE);

    uchar *output = new uchar[data.size() + 2 * BLOCK_SIZE];
    int output_len = 0;

    if (1 != EVP_EncryptUpdate(ctx, output, &output_len, (uchar *)data.c_str(), data.size()))
    {
        EVP_CIPHER_CTX_free(ctx);
        delete[] output;
        throw std::runtime_error("EVP_EncryptUpdate() failed");
    }

    uchar *pad_buf = output + output_len;
    int pad_len;

    if (1 != EVP_EncryptFinal_ex(ctx, pad_buf, &pad_len))
    {
        EVP_CIPHER_CTX_free(ctx);
        delete[] output;
        throw std::runtime_error("EVP_EncryptFinal_ex() failed");
    }

    std::string result;

    result.append(iv);
    result.append((char *)output, output_len + pad_len);

    EVP_CIPHER_CTX_free(ctx);
    delete[] output;

    return encode(result);
}

std::string aes_decrypt(const std::string &data, const std::string &key)
{
    if (data.size() == 0)
        throw std::runtime_error("data is empty");
    else if (key.size() != KEY_SIZE)
        throw std::runtime_error("key length must be 16");

    std::string &&decoded_data = decode(data);

    if (decoded_data.size() <= IV_SIZE)
        throw std::runtime_error("invalid data");

    std::string &&iv = decoded_data.substr(0, IV_SIZE);
    std::string &&encrypted_data = decoded_data.substr(IV_SIZE);

    EVP_CIPHER_CTX *ctx = EVP_CIPHER_CTX_new();

    if (1 != EVP_DecryptInit_ex(ctx, EVP_aes_128_cbc(), NULL, (uchar *)key.c_str(), (uchar *)iv.c_str()))
    {
        EVP_CIPHER_CTX_free(ctx);
        throw std::runtime_error("EVP_DecryptInit_ex() failed");
    }

    EVP_CIPHER_CTX_set_key_length(ctx, KEY_SIZE);

    uchar *output = new uchar[data.size() + 2 * BLOCK_SIZE];
    int output_len = 0;

    if (1 != EVP_DecryptUpdate(ctx, output, &output_len, (uchar *)encrypted_data.c_str(), encrypted_data.size()))
    {
        EVP_CIPHER_CTX_free(ctx);
        delete[] output;
        throw std::runtime_error("EVP_DecryptUpdate() failed");
    }

    int pad_len = 0;
    if (1 != EVP_DecryptFinal_ex(ctx, output + output_len, &pad_len))
    {
        EVP_CIPHER_CTX_free(ctx);
        delete[] output;
        throw std::runtime_error("EVP_DecryptFinal_ex() failed");
    }

    output_len += pad_len;
    output[output_len] = 0;

    std::string result = (char *)output;

    EVP_CIPHER_CTX_free(ctx);
    delete[] output;

    return result;
}
aes.h
#ifndef AES_H
#define AES_H

#include <string>

std::string aes_encrypt(const std::string &data, const std::string &key);
std::string aes_decrypt(const std::string &data, const std::string &key);

#endif
des.cpp
#include "des.h"
#include "hex.h"
#include <openssl/evp.h>
#include <openssl/des.h>
#include <stdexcept>

typedef unsigned char uchar;

const size_t BLOCK_SIZE = 16;
const size_t KEY_SIZE = 8;

std::string des_encrypt(const std::string &data, const std::string &key)
{
    if (data.size() == 0)
        throw std::runtime_error("data is empty");
    else if (key.size() != KEY_SIZE)
        throw std::runtime_error("key length must be 8");

    EVP_CIPHER_CTX *ctx = EVP_CIPHER_CTX_new();

    if (1 != EVP_EncryptInit_ex(ctx, EVP_des_ecb(), NULL, (uchar *)key.c_str(), NULL))
    {
        EVP_CIPHER_CTX_free(ctx);
        throw std::runtime_error("EVP_EncryptInit_ex() failed");
    }

    EVP_CIPHER_CTX_set_key_length(ctx, KEY_SIZE);

    uchar *output = new uchar[data.size() + BLOCK_SIZE * 2];
    int output_len = 0;

    if (1 != EVP_EncryptUpdate(ctx, output, &output_len, (uchar *)data.c_str(), data.size()))
    {
        EVP_CIPHER_CTX_free(ctx);
        delete[] output;
        throw std::runtime_error("EVP_EncryptUpdate() failed");
    }

    int pad_len = 0;
    if (1 != EVP_EncryptFinal_ex(ctx, output + output_len, &pad_len))
    {
        EVP_CIPHER_CTX_free(ctx);
        delete[] output;
        throw std::runtime_error("EVP_EncryptFinal_ex() failed");
    }

    output[output_len + pad_len] = 0;
    std::string result = (char *)output;

    EVP_CIPHER_CTX_free(ctx);
    delete[] output;

    return encode(result);
}

std::string des_decrypt(const std::string &data, const std::string &key)
{
    if (data.size() == 0)
        throw std::runtime_error("data is empty");
    else if (key.size() != KEY_SIZE)
        throw std::runtime_error("key length must be 8");

    std::string &&decoded_data = decode(data);

    EVP_CIPHER_CTX *ctx = EVP_CIPHER_CTX_new();

    if (1 != EVP_DecryptInit_ex(ctx, EVP_des_ecb(), NULL, (uchar *)key.c_str(), NULL))
    {
        EVP_CIPHER_CTX_free(ctx);
        throw std::runtime_error("EVP_DecryptInit_ex() failed");
    }

    EVP_CIPHER_CTX_set_key_length(ctx, KEY_SIZE);

    uchar *output = new uchar[data.size() + 2 * BLOCK_SIZE];
    int output_len = 0;

    if (1 != EVP_DecryptUpdate(ctx, output, &output_len, (uchar *)decoded_data.c_str(), decoded_data.size()))
    {
        EVP_CIPHER_CTX_free(ctx);
        delete[] output;
        throw std::runtime_error("EVP_DecryptUpdate() failed");
    }

    int pad_len = 0;
    if (1 != EVP_DecryptFinal_ex(ctx, output + output_len, &pad_len))
    {
        EVP_CIPHER_CTX_free(ctx);
        delete[] output;
        throw std::runtime_error("EVP_DecryptFinal_ex() failed");
    }

    output_len += pad_len;
    output[output_len] = 0;

    std::string result = (char *)output;

    EVP_CIPHER_CTX_free(ctx);
    delete[] output;

    return result;
}
des.h
#ifndef DES_H
#define DES_H

#include <string>

std::string des_encrypt(const std::string &data, const std::string &key);
std::string des_decrypt(const std::string &data, const std::string &key);

#endif
hex.h
#ifndef HEX_H
#define HEX_H

#include <string>

std::string encode(const std::string &data);
std::string decode(const std::string &data);

#endif
hex.cpp
#include "hex.h"
#include <stdexcept>
#include <iostream>
#include <map>

static const char HEX_STRING[] = "0123456789ABCDEF";
static std::map<char, int> HEX_TABLE = {
    {'0', 0},
    {'1', 1},
    {'2', 2},
    {'3', 3},
    {'4', 4},
    {'5', 5},
    {'6', 6},
    {'7', 7},
    {'8', 8},
    {'9', 9},
    {'a', 10},
    {'b', 11},
    {'c', 12},
    {'d', 13},
    {'e', 14},
    {'f', 15},
    {'A', 10},
    {'B', 11},
    {'C', 12},
    {'D', 13},
    {'E', 14},
    {'F', 15},
};

std::string encode(const std::string &data)
{
    size_t i;
    int high, low;
    std::string res;

    for (i = 0; i < data.size(); i++)
    {
        high = (data[i] >> 4) & 0xf;
        low = data[i] & 0xf;
        res.push_back(HEX_STRING[high]);
        res.push_back(HEX_STRING[low]);
    }

    return res;
}

std::string decode(const std::string &data)
{
    size_t i;
    std::string res;

    if (data.size() == 0)
        return res;
    else if (data.size() % 2 != 0)
        throw std::runtime_error("invalid data length");

    for (i = 0; i < data.size(); i += 2)
    {
        if (HEX_TABLE.find(data[i]) == HEX_TABLE.end() || HEX_TABLE.find(data[i + 1]) == HEX_TABLE.end())
            throw std::runtime_error("invalid character");
        res.push_back((HEX_TABLE[data[i]] << 4) | HEX_TABLE[data[i + 1]]);
    }

    return res;
}

JavaScript版本

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>DES和AES加解密实践</title>
</head>
<body>
    <h1>DES和AES加解密实践</h1>
</body>
<!-- 注意: 需要引入crypto-js库 -->
<script src="path-to/bower_components/crypto-js/crypto-js.js"></script>
<script>
    class AESHelper {
        constructor(key) {
            if (typeof (key) !== "string" || key.length < 16) {
                throw "[AES] failed to construct AESHelper, invalid key";
            }
            this.key = CryptoJS.enc.Utf8.parse(key);
        }

        Encrypt(data) {
            if (typeof (data) !== "string" || data.length === 0) {
                throw "[AES] failed to encrypt, invalid data";
            }
            const iv = CryptoJS.lib.WordArray.random(16);
            const encryptedContent = CryptoJS.AES.encrypt(data, this.key, {
                iv: iv,
                mode: CryptoJS.mode.CBC,
                padding: CryptoJS.pad.Pkcs7
            });
            return iv.toString(CryptoJS.enc.Hex) + encryptedContent.ciphertext.toString(CryptoJS.enc.Hex);
        }

        Decrypt(data) {
            if (typeof (data) !== "string" || data.length <= 32) {
                throw "[AES] failed to decrypt, invalid data";
            }

            // 前32个字符是16个字节的iv值通过hex编码的
            const iv = CryptoJS.enc.Hex.parse(data.substr(0, 32));
            data = data.substr(32, data.length - 32);

            const decryptionParam = CryptoJS.lib.CipherParams.create({
                ciphertext: CryptoJS.enc.Hex.parse(data)
            });

            const decryptedContent = CryptoJS.AES.decrypt(decryptionParam, this.key, {
                iv: iv,
                mode: CryptoJS.mode.CBC,
                padding: CryptoJS.pad.Pkcs7
            });
            return decryptedContent.toString(CryptoJS.enc.Utf8);
        }
    }

    class DESHelper {
        constructor(key) {
            if (typeof (key) !== "string" || key.length < 8) {
                throw "[DES] failed to construct DESHelper, invalid key";
            }
            this.key = CryptoJS.enc.Utf8.parse(key);
        }

        Encrypt(data) {
            if (typeof (data) !== "string" || data.length === 0) {
                throw "[DES] failed to encrypt, invalid data";
            }
            const encryptedContent = CryptoJS.DES.encrypt(data, this.key, {
                mode: CryptoJS.mode.ECB,
                padding: CryptoJS.pad.Pkcs7
            });
            return encryptedContent.ciphertext.toString(CryptoJS.enc.Hex);
        }

        Decrypt(data) {
            if (typeof (data) !== "string" || data.length == 0) {
                throw "[DES] failed to decrypt, invalid data";
            }

            const decryptionParam = CryptoJS.lib.CipherParams.create({
                ciphertext: CryptoJS.enc.Hex.parse(data)
            });

            const decryptedContent = CryptoJS.DES.decrypt(decryptionParam, this.key, {
                mode: CryptoJS.mode.ECB,
                padding: CryptoJS.pad.Pkcs7
            });
            return decryptedContent.toString(CryptoJS.enc.Utf8);
        }
    }

    {
        // 输入对应的aes key和域名
        const aesHelper = new AESHelper("your aes key");
        const encryptedData = aesHelper.Encrypt("your domain");
        console.log('AES加密后的数据', encryptedData);
        const decryptedData = aesHelper.Decrypt(encryptedData);
        console.log('AES解密后的数据', decryptedData);
    }

    {
        // 输入对应的des key和域名
        const desHelper = new DESHelper("your des key");
        const encryptedData = desHelper.Encrypt("your domain");
        console.log('DES加密后的数据', encryptedData);
        const decryptedData = desHelper.Decrypt(encryptedData);
        console.log('DES解密后的数据', decryptedData);
    }
</script>
</html>

中国站
文档反馈
文档活动
message-icon联系我们
目录
