工良出品 | 长文讲解 MCP 和案例实战

[McpServerToolType]
public class EchoTool
{
    [McpServerTool, Description("Echoes the message back to the client.")]
    public static string Echo(string message) => $"hello {message}";
}

using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using Microsoft.Extensions.Logging;
using TransportStdioServer;

var builder = Host.CreateApplicationBuilder(args);

builder.Services.AddMcpServer()
    .WithStdioServerTransport()
    .WithTools<EchoTool>();

builder.Logging.AddConsole(options =>
{
    options.LogToStandardErrorThreshold = LogLevel.Trace;
});


await builder.Build().RunAsync();

using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Hosting;
using ModelContextProtocol.Client;
using ModelContextProtocol.Protocol.Transport;

var builder = Host.CreateApplicationBuilder(args);

builder.Configuration
    .AddEnvironmentVariables()
    .AddUserSecrets<Program>();

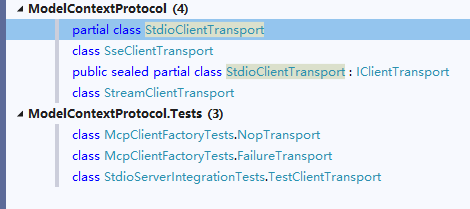

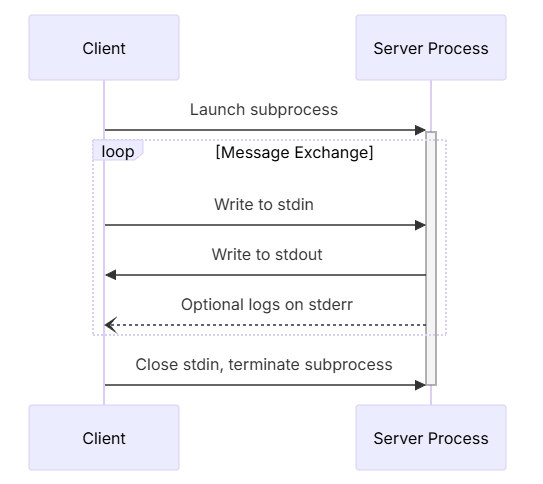

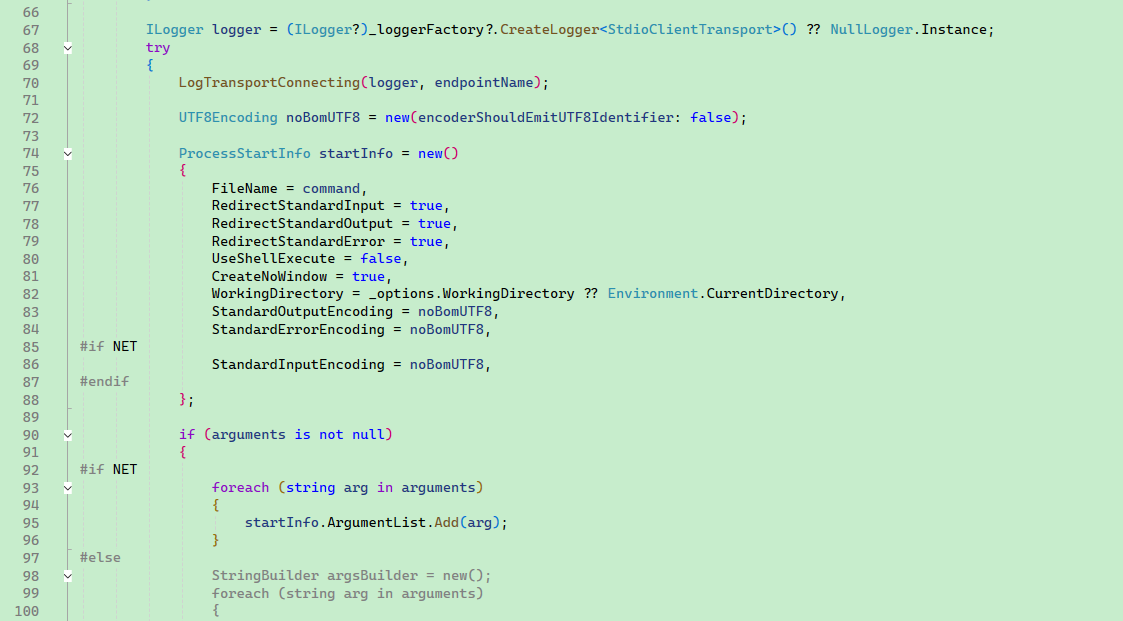

var clientTransport = new StdioClientTransport(new()
{
    Name = "Demo Server",
    // 要使用绝对路径，这里笔者省略了

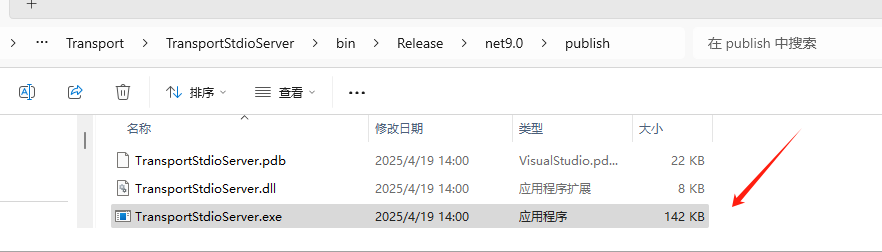

    Command = "E:/../../TransportStdioServer.exe"
});

await using var mcpClient = await McpClientFactory.CreateAsync(clientTransport);

var tools = await mcpClient.ListToolsAsync();
foreach (var tool in tools)
{
    Console.WriteLine($"Connected to server with tools: {tool.Name}");
}

cmd.exe/c E:/../TransportStdioServer.exe

[McpServerToolType]
public sealed class EchoTool
{
    [McpServerTool, Description("Echoes the input back to the client.")]
    public static string Echo(string message)
    {
        return "hello " + message;
    }
}

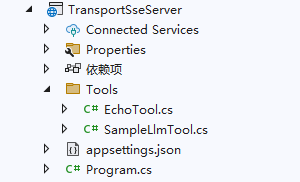

using TransportSseServer.Tools;

var builder = WebApplication.CreateBuilder(args);
builder.Services.AddMcpServer()
    .WithHttpTransport()
    .WithTools<EchoTool>()
    .WithTools<SampleLlmTool>();

var app = builder.Build();

app.MapMcp();

app.Run("http://0.0.0.0:5000");

using Microsoft.Extensions.Logging;
using Microsoft.Extensions.Logging.Abstractions;
using ModelContextProtocol.Client;
using ModelContextProtocol.Protocol.Transport;

var defaultOptions = new McpClientOptions
{
    ClientInfo = new() { Name = "IntegrationTestClient", Version = "1.0.0" }
};

var defaultConfig = new SseClientTransportOptions
{
    Endpoint = new Uri($"http://localhost:5000/sse"),
    Name = "Everything",
};

// Create client and run tests
await using var client = await McpClientFactory.CreateAsync(
    new SseClientTransport(defaultConfig),
    defaultOptions,
    loggerFactory: NullLoggerFactory.Instance);

var tools = await client.ListToolsAsync();

foreach (var tool in tools)
{
    Console.WriteLine($"Connected to server with tools: {tool.Name}");
}

var echoTool = tools.First(x => x.Name == "Echo");
var result = await client.CallToolAsync("Echo", new Dictionary<string, object?>
{
    { "message","痴者工良"}
});

foreach (var item in result.Content)
{
    Console.WriteLine($"type: {item.Type},text: {item.Text}");
}

[McpServerToolType]
public sealed class EchoTool
{
    [McpServerTool, Description("Echoes the input back to the client.")]
    public static string Echo(string message)
    {
        return "hello " + message;
    }
}

// 直接指定 Tool 类
builder.Services
    .AddMcpServer()
    .WithHttpTransport()
    .WithTools<EchoTool>()
    .WithTools<SampleLlmTool>();

// 扫描程序集
builder.Services
    .AddMcpServer()
    .WithHttpTransport()
    .WithStdioServerTransport()
    .WithToolsFromAssembly();

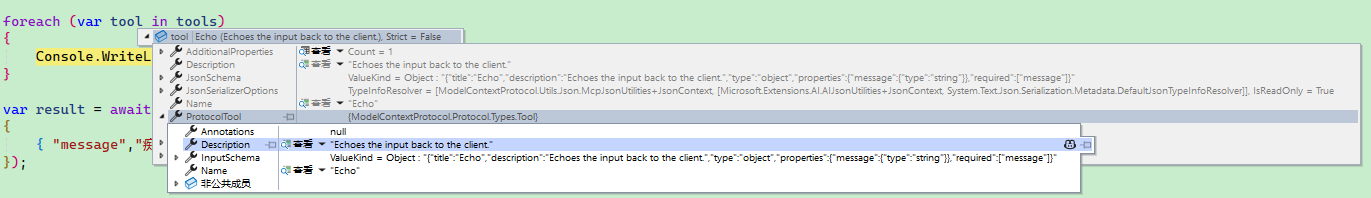

Annotations: null
Description: "Echoes the input back to the client."
Name: "Echo"
InputSchema: "{"title":"Echo","description":"Echoes the input back to the client.","type":"object","properties":{"message":{"type":"string"}},"required":["message"]}"

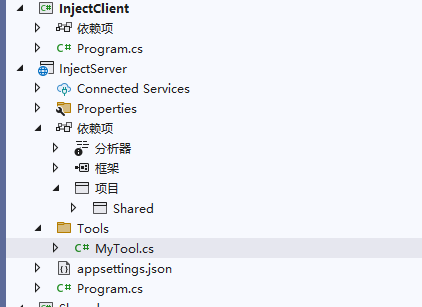

public class MyService
{
    public string Echo(string message)
    {
        return "hello " + message;
    }
}

builder.Services.AddScoped<MyService>();

[McpServerToolType]
public sealed class MyTool
{
    [McpServerTool, Description("Echoes the input back to the client.")]
    public static string Echo(MyService myService, string message)
    {
        return myService.Echo(message);
    }
}

// Get available functions.
IList<McpClientTool> tools = await client.ListToolsAsync();

// Call the chat client using the tools.
IChatClient chatClient = ...;
var response = await chatClient.GetResponseAsync(
    "your prompt here",
    new() { Tools = [.. tools] },

maps_direction_bicycling
maps_direction_driving
maps_direction_transit_integrated
maps_direction_walking
maps_distance
maps_geo
maps_regeocode
maps_ip_location
maps_around_search
maps_search_detail
maps_text_search
maps_weather

https://mcp.amap.com/sse?key={在高德官网上申请的key}

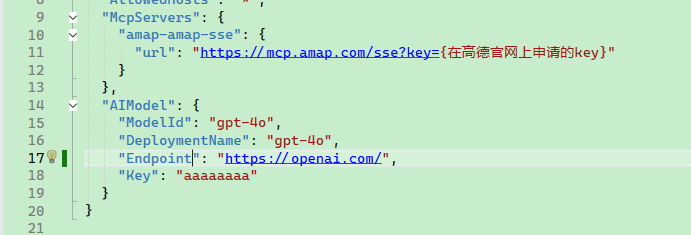

  "McpServers": {
    "amap-amap-sse": {
      "url": "https://mcp.amap.com/sse?key={在高德官网上申请的key}"
    }
  },
  "AIModel": {
    "ModelId": "gpt-4o",
    "DeploymentName": "gpt-4o",
    "Endpoint": "https://openai.com/",
    "Key": "aaaaaaaa"
  }

var configuration = new ConfigurationBuilder()
    .AddJsonFile("appsettings.json")
    .AddJsonFile("appsettings.Development.json")
    .Build();

using ILoggerFactory factory = LoggerFactory.Create(builder => builder.AddConsole());

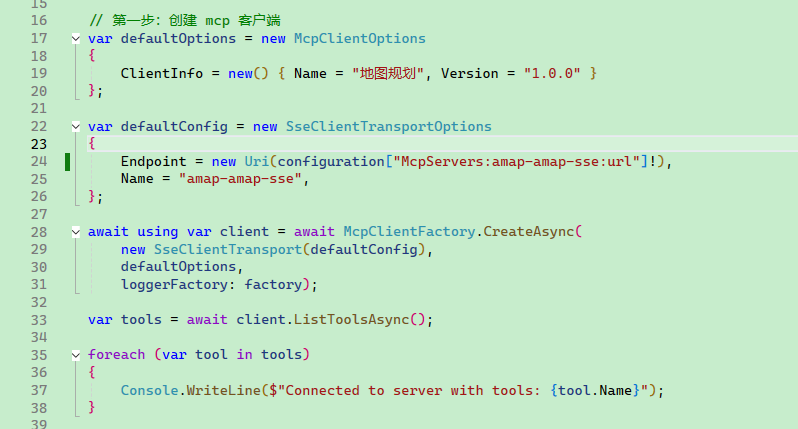

var defaultOptions = new McpClientOptions
{
    ClientInfo = new() { Name = "地图规划", Version = "1.0.0" }
};

var defaultConfig = new SseClientTransportOptions
{
    Endpoint = new Uri(configuration["McpServers:amap-amap-sse:url"]!),
    Name = "amap-amap-sse",
};

await using var client = await McpClientFactory.CreateAsync(
    new SseClientTransport(defaultConfig),
    defaultOptions,
    loggerFactory: factory);

var tools = await client.ListToolsAsync();

foreach (var tool in tools)
{
    Console.WriteLine($"Connected to server with tools: {tool.Name}");
}

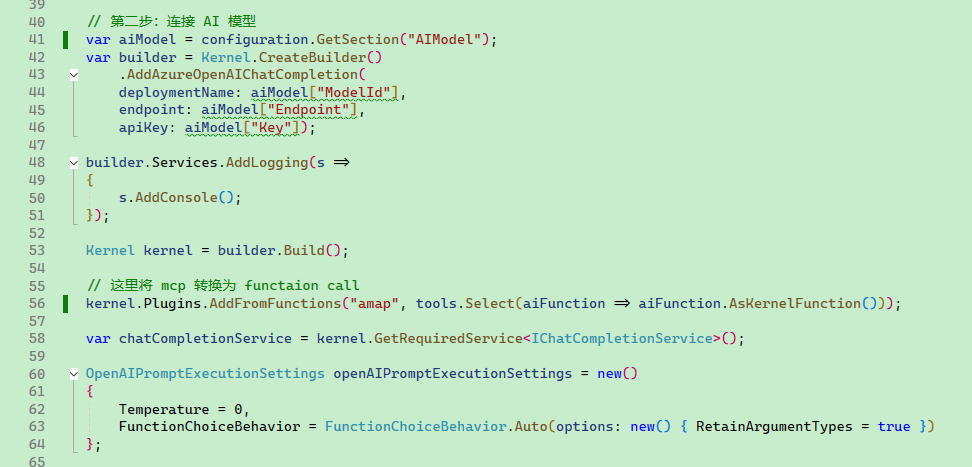

var aiModel = configuration.GetSection("AIModel");
var builder = Kernel.CreateBuilder()
    .AddAzureOpenAIChatCompletion(
    deploymentName: aiModel["ModelId"],
    endpoint: aiModel["Endpoint"],
    apiKey: aiModel["Key"]);

builder.Services.AddLogging(s =>
{
    s.AddConsole();
});

Kernel kernel = builder.Build();

// 这里将 mcp 转换为 functaion call

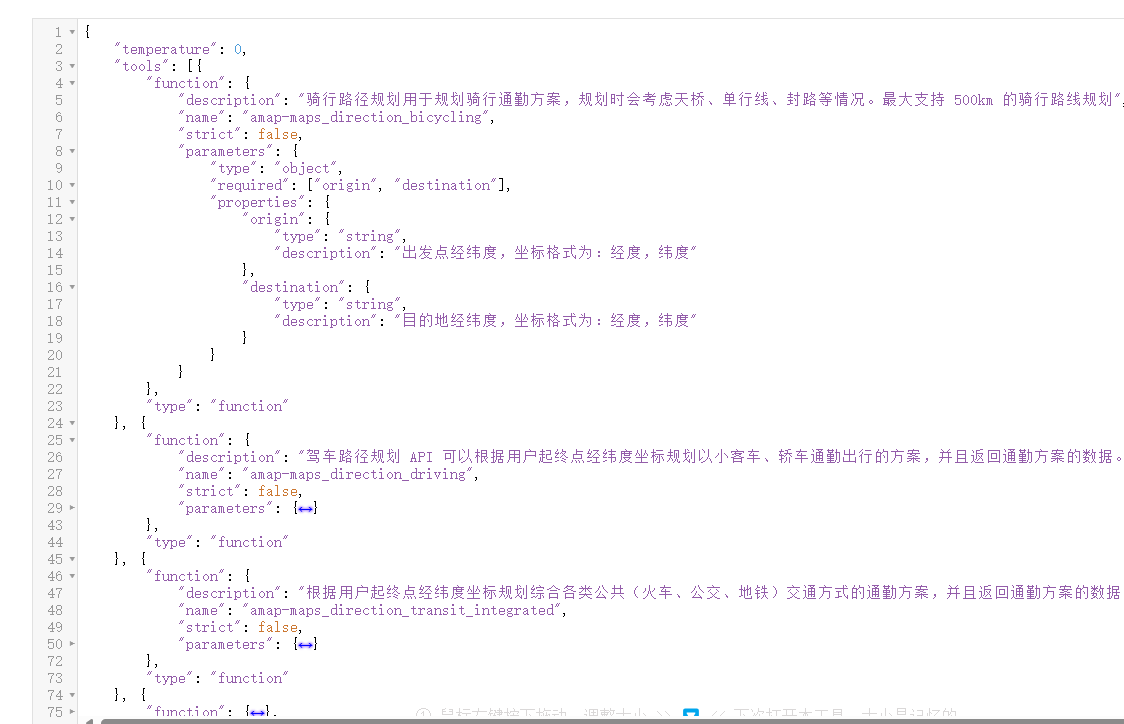

kernel.Plugins.AddFromFunctions("amap", tools.Select(aiFunction => aiFunction.AsKernelFunction()));

var chatCompletionService = kernel.GetRequiredService<IChatCompletionService>();

OpenAIPromptExecutionSettings openAIPromptExecutionSettings = new()
{
    Temperature = 0,
    FunctionChoiceBehavior = FunctionChoiceBehavior.Auto(options: new() { RetainArgumentTypes = true })
};

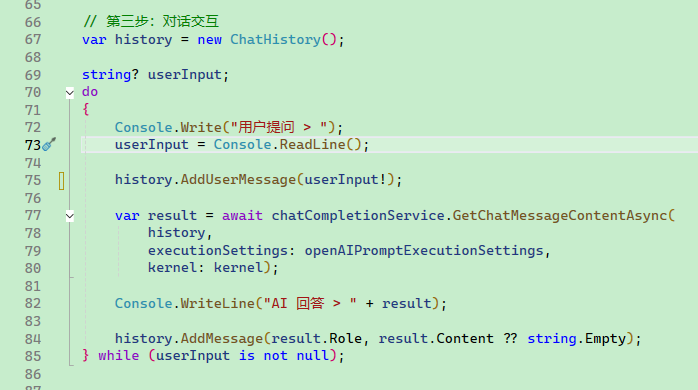

var history = new ChatHistory();

string? userInput;
do
{
    Console.Write("用户提问 > ");
    userInput = Console.ReadLine();

    history.AddUserMessage(userInput!);

    var result = await chatCompletionService.GetChatMessageContentAsync(
        history,
        executionSettings: openAIPromptExecutionSettings,
        kernel: kernel);

    Console.WriteLine("AI 回答 > " + result);

    history.AddMessage(result.Role, result.Content ?? string.Empty);
} while (userInput is not null);

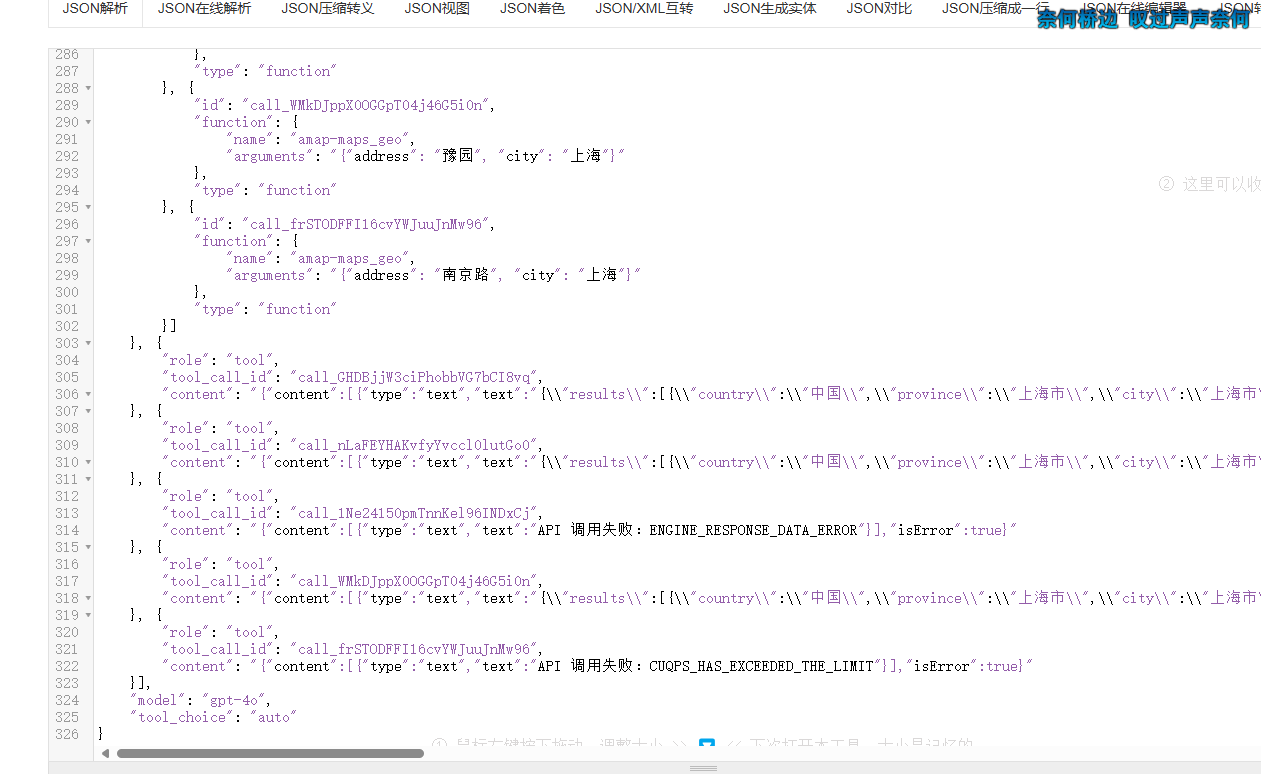

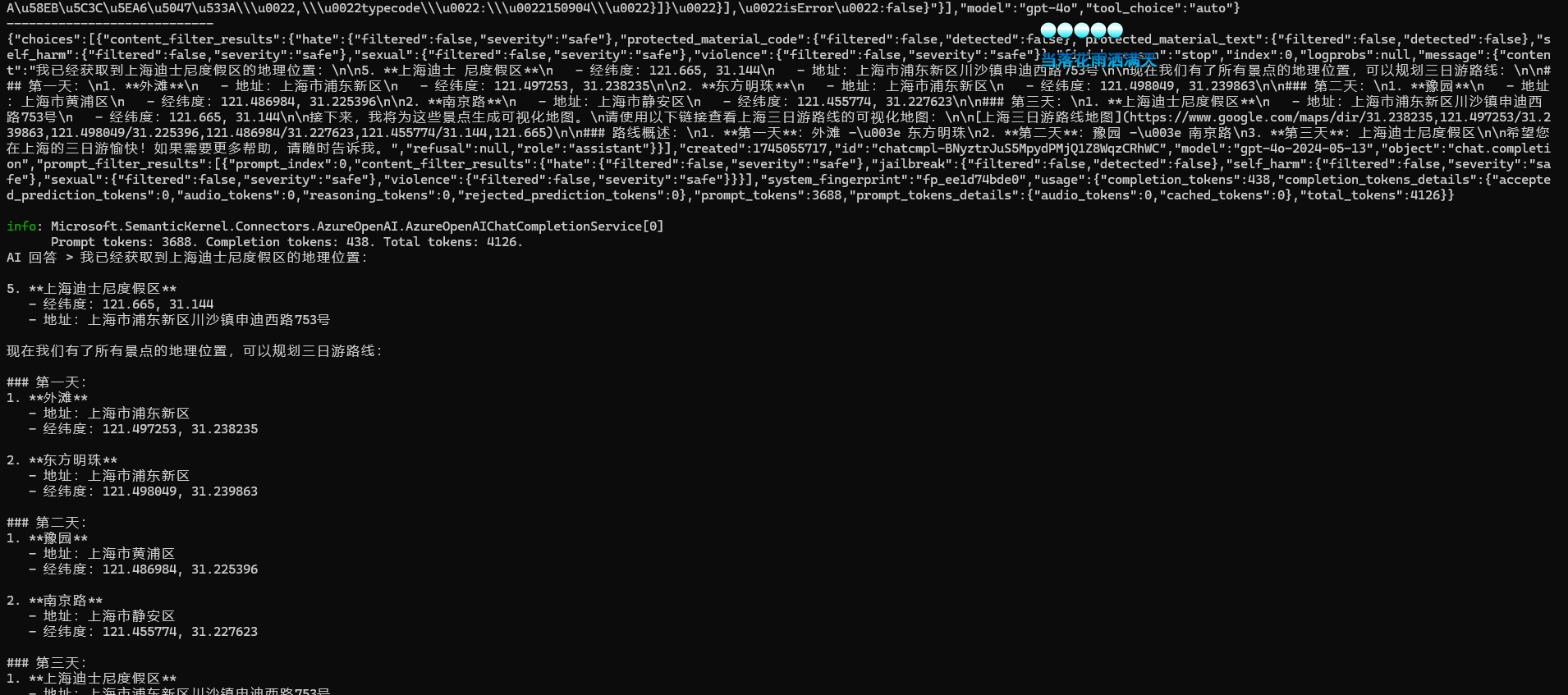

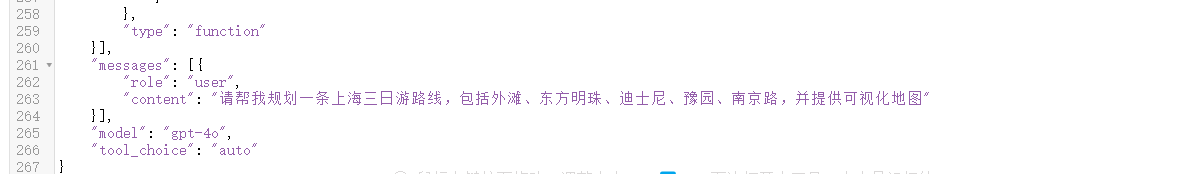

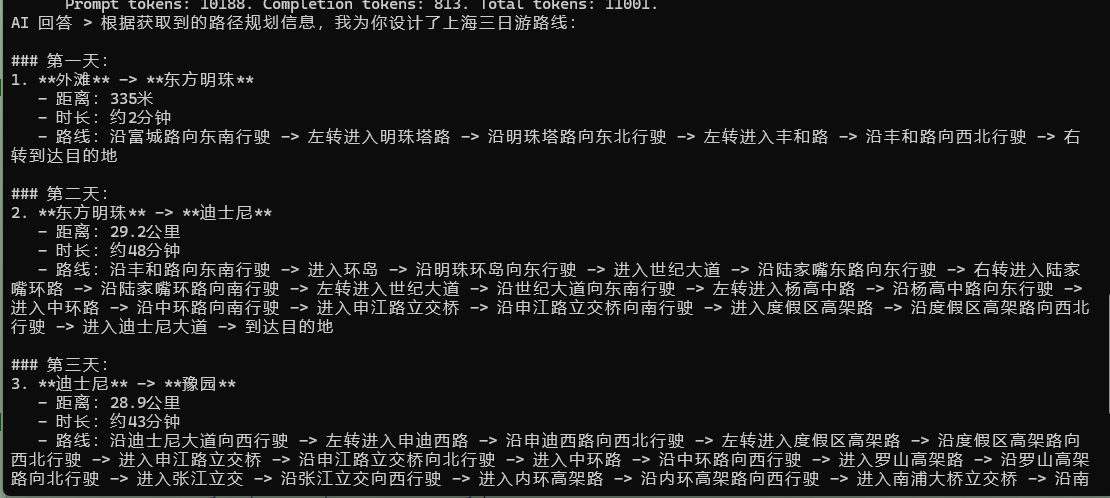

请帮我规划一条上海三日游路线，包括外滩、东方明珠、迪士尼、豫园、南京路，并提供可视化地图

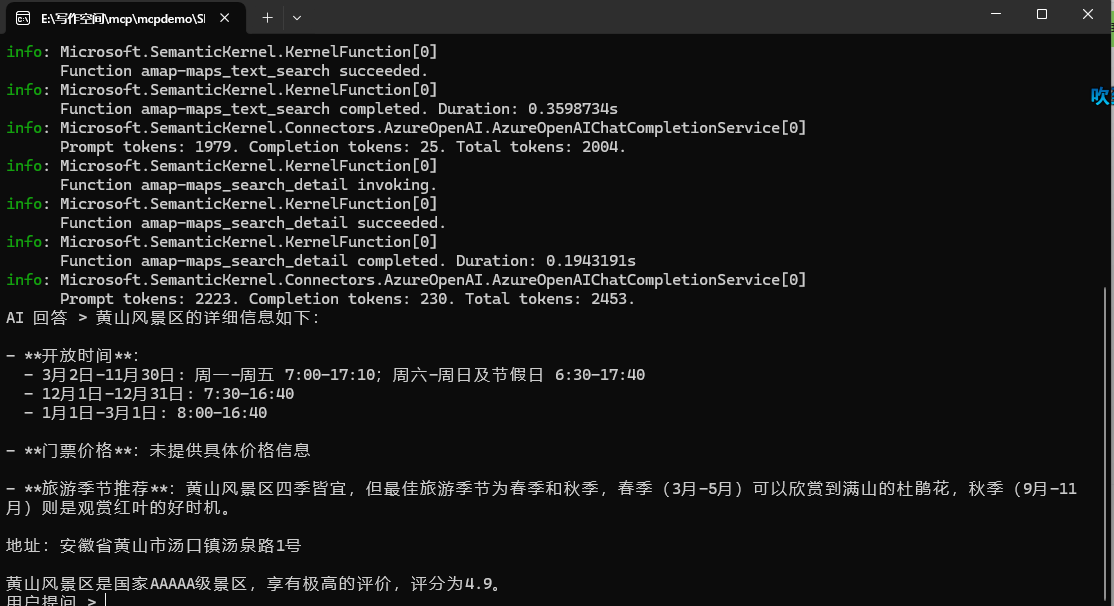

请查询黄山风景区的开放时间、门票价格和旅游季节推荐

kernel.Plugins
.AddFromFunctions("amap", tools.Select(aiFunction => aiFunction.AsKernelFunction()))

[protocol]://[host]/[path]

"test://static/resource/{README.txt}"

builder.Services.AddMcpServer()
        .WithListResourceTemplatesHandler(async (ctx, ct) =>
        {
            return new ListResourceTemplatesResult
            {
                ResourceTemplates =
                [
                    new ResourceTemplate { Name = "Static Resource", Description = "A static resource with a numeric ID", UriTemplate = "test://static/resource/{id}" }
                ]
            };
        });

builder.Services.AddMcpServer()
		.WithListResourcesHandler(async (ctx, ct) =>
        {
            await Task.CompletedTask;
            var readmeResource = new Resource
            {
                Uri = "test://static/resource/README.txt",
                Name = "Resource README.txt",
                MimeType = "application/octet-stream",
                Description = Convert.ToBase64String(Encoding.UTF8.GetBytes("这是一个必读文件"))
            };

            return new ListResourcesResult
            {
                Resources = new List<Resource>
                {
                    readmeResource
                }
            };
        })

var defaultOptions = new McpClientOptions
{
    ClientInfo = new() { Name = "ResourceClient", Version = "1.0.0" }
};

var defaultConfig = new SseClientTransportOptions
{
    Endpoint = new Uri($"http://localhost:5000/sse"),
    Name = "Everything",
};

// Create client and run tests
await using var client = await McpClientFactory.CreateAsync(
    new SseClientTransport(defaultConfig),
    defaultOptions,
    loggerFactory: NullLoggerFactory.Instance);

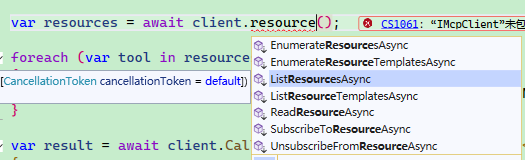

var resourceTemplates = await client.ListResourceTemplatesAsync();
var resources = await client.ListResourcesAsync();

foreach (var template in resourceTemplates)
{
    Console.WriteLine($"Connected to server with resource templates: {template.Name}");
}

foreach (var resource in resources)
{
    Console.WriteLine($"Connected to server with resources: {resource.Name}");
}

var readmeResource = await client.ReadResourceAsync(resources.First().Uri);

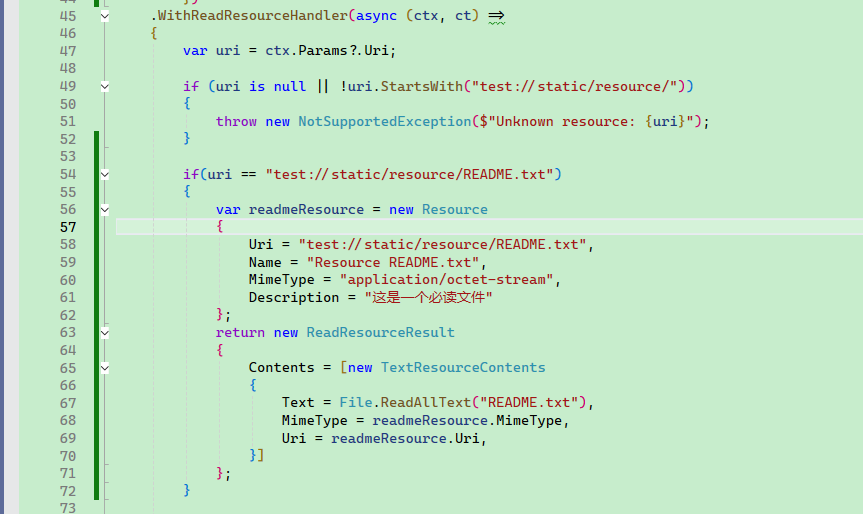

    .WithReadResourceHandler(async (ctx, ct) =>
    {
        var uri = ctx.Params?.Uri;

        if (uri is null || !uri.StartsWith("test://static/resource/"))
        {
            throw new NotSupportedException($"Unknown resource: {uri}");
        }

        if(uri == "test://static/resource/README.txt")
        {
            var readmeResource = new Resource
            {
                Uri = "test://static/resource/README.txt",
                Name = "Resource README.txt",
                MimeType = "application/octet-stream",
                Description = "这是一个必读文件"
            };
            return new ReadResourceResult
            {
                Contents = [new TextResourceContents
                {
                    Text = File.ReadAllText("README.txt"),
                    MimeType = readmeResource.MimeType,
                    Uri = readmeResource.Uri,
                }]
            };
        }
    })

    .WithReadResourceHandler(async (ctx, ct) =>
    {
        var uri = ctx.Params?.Uri;

        if (uri is null || !uri.StartsWith("test://static/resource/"))
        {
            throw new NotSupportedException($"Unknown resource: {uri}");
        }

        int index = int.Parse(uri["test://static/resource/".Length..]) - 1;

        if (index < 0 || index >= ResourceGenerator.Resources.Count)
        {
            throw new NotSupportedException($"Unknown resource: {uri}");
        }

        var resource = ResourceGenerator.Resources[index];
        return new ReadResourceResult
        {
            Contents = [new TextResourceContents
                {
                    Text = resource.Description!,
                    MimeType = resource.MimeType,
                    Uri = resource.Uri,
                }]
        };
    })

var readmeResource = await client.ReadResourceAsync(resources.First().Uri);
var textContent = readmeResource.Contents.First() as TextResourceContents;
Console.WriteLine(textContent.Text));

    .WithSubscribeToResourcesHandler(async (ctx, ct) =>
    {
        var uri = ctx.Params?.Uri;

        if (uri is not null)
        {
            subscriptions.Add(uri);
        }

        return new EmptyResult();
    })
    .WithUnsubscribeFromResourcesHandler(async (ctx, ct) =>
    {
        var uri = ctx.Params?.Uri;
        if (uri is not null)
        {
            subscriptions.Remove(uri);
        }
        return new EmptyResult();
    });

        await _mcpServer.SendNotificationAsync("notifications/resource/updated",
            new
            {
                Uri = "test://static/resource/README.txt",
            });

        return "已通知";

client.RegisterNotificationHandler("notifications/resource/updated", async (message, ctx) =>
{
    await Task.CompletedTask;

    // 回调
});
await client.SubscribeToResourceAsync("test://static/resource/README.txt");

[McpServerPromptType]
public static class MyPrompts
{
    [McpServerPrompt, Description("Creates a prompt to summarize the provided message.")]
    public static ChatMessage Summarize([Description("The content to summarize")] string content) =>
        new(ChatRole.User, $"Please summarize this content into a single sentence: {content}");
}

[McpServerPromptType]
public class SimplePromptType
{
    [McpServerPrompt(Name = "simple_prompt"), Description("A prompt without arguments")]
    public static string SimplePrompt() => "This is a simple prompt without arguments";
}

[McpServerPromptType]
public class ComplexPromptType
{
    [McpServerPrompt(Name = "complex_prompt"), Description("A prompt with arguments")]
    public static IEnumerable<ChatMessage> ComplexPrompt(
        [Description("Temperature setting")] int temperature,
        [Description("Output style")] string? style = null)
    {
        return [
            new ChatMessage(ChatRole.User,$"This is a complex prompt with arguments: temperature={temperature}, style={style}"),
            new ChatMessage(ChatRole.Assistant, "I understand. You've provided a complex prompt with temperature and style arguments. How would you like me to proceed?"),
            new ChatMessage(ChatRole.User, [new DataContent(Convert.ToBase64String(File.ReadAllBytes("img.png")))])
        ];
    }
}

var prompts = await client.ListPromptsAsync();
foreach (var item in prompts)
{
    Console.WriteLine($"prompt name :{item.Name}");
}

var result = await prompts.First(x => x.Name == "test").GetAsync(new Dictionary<string, object?>() { ["message"] = "hello" });
IList<ChatMessage> chatMessages = result.ToChatMessages();

await ctx.Server.RequestSamplingAsync([
	new ChatMessage(ChatRole.System, "You are a helpful test server"),
	new ChatMessage(ChatRole.User, $"Resource {uri}, context: A new subscription was started"),
],
