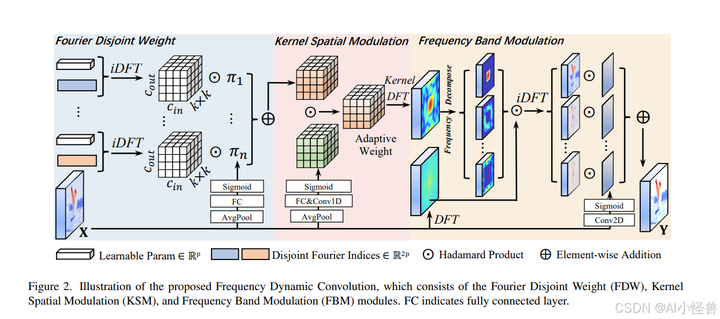

YOLO11优化：卷积创新结合频域 | 一种名为频率动态卷积（FDConv）的创新方法，CVPR2025

import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.autograd


import numpy as np
import matplotlib.pyplot as plt
from numpy.linalg import matrix_rank
from torch.utils.checkpoint import checkpoint


def autopad(k, p=None, d=1):  # kernel, padding, dilation
    """Pad to 'same' shape outputs."""
    if d > 1:
        k = d * (k - 1) + 1 if isinstance(k, int) else [d * (x - 1) + 1 for x in k]  # actual kernel-size
    if p is None:
        p = k // 2 if isinstance(k, int) else [x // 2 for x in k]  # auto-pad
    return p


class StarReLU(nn.Module):
    """
    StarReLU: s * relu(x) ** 2 + b
    """

    def __init__(self, scale_value=1.0, bias_value=0.0,
                 scale_learnable=True, bias_learnable=True,
                 mode=None, inplace=False):
        super().__init__()
        self.inplace = inplace
        self.relu = nn.ReLU(inplace=inplace)
        self.scale = nn.Parameter(scale_value * torch.ones(1),
                                  requires_grad=scale_learnable)
        self.bias = nn.Parameter(bias_value * torch.ones(1),
                                 requires_grad=bias_learnable)

    def forward(self, x):
        return self.scale * self.relu(x) ** 2 + self.bias


class KernelSpatialModulation_Global(nn.Module):
    def __init__(self, in_planes, out_planes, kernel_size, groups=1, reduction=0.0625, kernel_num=4, min_channel=16,
                 temp=1.0, kernel_temp=None, kernel_att_init='dyconv_as_extra', att_multi=2.0,
                 ksm_only_kernel_att=False, att_grid=1, stride=1, spatial_freq_decompose=False,
                 act_type='sigmoid'):
        super(KernelSpatialModulation_Global, self).__init__()
        attention_channel = max(int(in_planes * reduction), min_channel)
        self.act_type = act_type
        self.kernel_size = kernel_size
        self.kernel_num = kernel_num

        self.temperature = temp
        self.kernel_temp = kernel_temp

        self.ksm_only_kernel_att = ksm_only_kernel_att

        # self.temperature = nn.Parameter(torch.FloatTensor([temp]), requires_grad=True)
        self.kernel_att_init = kernel_att_init
        self.att_multi = att_multi
        # self.kn = nn.Parameter(torch.FloatTensor([kernel_num]), requires_grad=True)

        self.avgpool = nn.AdaptiveAvgPool2d(1)
        self.att_grid = att_grid
        self.fc = nn.Conv2d(in_planes, attention_channel, 1, bias=False)
        # self.bn = nn.Identity()
        self.bn = nn.BatchNorm2d(attention_channel)
        # self.relu = nn.ReLU(inplace=True)
        self.relu = StarReLU()
        # self.dropout = nn.Dropout2d(p=0.1)
        # self.sp_att = SpatialGate(stride=stride, out_channels=1)

        # self.attup = AttUpsampler(inplane=in_planes, flow_make_k=1)

        self.spatial_freq_decompose = spatial_freq_decompose
        # self.channel_compress = ChannelPool()
        # self.channel_spatial = BasicConv(
        #     # 2, 1, 7, stride=1, padding=(7 - 1) // 2, relu=False
        #     2, 1, kernel_size, stride=1, padding=(kernel_size - 1) // 2, relu=False
        # )
        # self.filter_spatial = BasicConv(
        #     # 2, 1, 7, stride=stride, padding=(7 - 1) // 2, relu=False
        #     2, 1, kernel_size, stride=stride, padding=(kernel_size - 1) // 2, relu=False
        # )
        if ksm_only_kernel_att:
            self.func_channel = self.skip
        else:
            if spatial_freq_decompose:
                self.channel_fc = nn.Conv2d(attention_channel, in_planes * 2 if self.kernel_size > 1 else in_planes, 1,
                                            bias=True)
            else:
                self.channel_fc = nn.Conv2d(attention_channel, in_planes, 1, bias=True)
            # self.channel_fc_bias = nn.Parameter(torch.zeros(1, in_planes, 1, 1), requires_grad=True)
            self.func_channel = self.get_channel_attention

        if (in_planes == groups and in_planes == out_planes) or self.ksm_only_kernel_att:  # depth-wise convolution
            self.func_filter = self.skip
        else:
            if spatial_freq_decompose:
                self.filter_fc = nn.Conv2d(attention_channel, out_planes * 2, 1, stride=stride, bias=True)
            else:
                self.filter_fc = nn.Conv2d(attention_channel, out_planes, 1, stride=stride, bias=True)
            # self.filter_fc_bias = nn.Parameter(torch.zeros(1, in_planes, 1, 1), requires_grad=True)
            self.func_filter = self.get_filter_attention

        if kernel_size == 1 or self.ksm_only_kernel_att:  # point-wise convolution
            self.func_spatial = self.skip
        else:
            self.spatial_fc = nn.Conv2d(attention_channel, kernel_size * kernel_size, 1, bias=True)
            self.func_spatial = self.get_spatial_attention

        if kernel_num == 1:
            self.func_kernel = self.skip
        else:
            # self.kernel_fc = nn.Conv2d(attention_channel, kernel_num * kernel_size * kernel_size, 1, bias=True)
            self.kernel_fc = nn.Conv2d(attention_channel, kernel_num, 1, bias=True)
            self.func_kernel = self.get_kernel_attention

        self._initialize_weights()

    def _initialize_weights(self):
        for m in self.modules():
            if isinstance(m, nn.Conv2d):
                nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu')
                if m.bias is not None:
                    nn.init.constant_(m.bias, 0)
            if isinstance(m, nn.BatchNorm2d):
                nn.init.constant_(m.weight, 1)
                nn.init.constant_(m.bias, 0)

        if hasattr(self, 'channel_spatial'):
            nn.init.normal_(self.channel_spatial.conv.weight, std=1e-6)
        if hasattr(self, 'filter_spatial'):
            nn.init.normal_(self.filter_spatial.conv.weight, std=1e-6)

        if hasattr(self, 'spatial_fc') and isinstance(self.spatial_fc, nn.Conv2d):
            # nn.init.constant_(self.spatial_fc.weight, 0)
            nn.init.normal_(self.spatial_fc.weight, std=1e-6)
            # self.spatial_fc.weight *= 1e-6
            if self.kernel_att_init == 'dyconv_as_extra':
                pass
            else:
                # nn.init.constant_(self.spatial_fc.weight, 0)
                # nn.init.constant_(self.spatial_fc.bias, 0)
                pass

        if hasattr(self, 'func_filter') and isinstance(self.func_filter, nn.Conv2d):
            # nn.init.constant_(self.func_filter.weight, 0)
            nn.init.normal_(self.func_filter.weight, std=1e-6)
            # self.func_filter.weight *= 1e-6
            if self.kernel_att_init == 'dyconv_as_extra':
                pass
            else:
                # nn.init.constant_(self.func_filter.weight, 0)
                # nn.init.constant_(self.func_filter.bias, 0)
                pass

        if hasattr(self, 'kernel_fc') and isinstance(self.kernel_fc, nn.Conv2d):
            # nn.init.constant_(self.kernel_fc.weight, 0)
            nn.init.normal_(self.kernel_fc.weight, std=1e-6)
            if self.kernel_att_init == 'dyconv_as_extra':
                pass
                # nn.init.constant_(self.kernel_fc.weight, 0)
                # nn.init.constant_(self.kernel_fc.bias, -10)
                # nn.init.constant_(self.kernel_fc.weight[0], 6)
                # nn.init.constant_(self.kernel_fc.weight[1:], -6)
            else:
                # nn.init.constant_(self.kernel_fc.weight, 0)
                # nn.init.constant_(self.kernel_fc.bias, 0)
                # nn.init.constant_(self.kernel_fc.bias, -10)
                # nn.init.constant_(self.kernel_fc.bias[0], 10)
                pass

        if hasattr(self, 'channel_fc') and isinstance(self.channel_fc, nn.Conv2d):
            # nn.init.constant_(self.channel_fc.weight, 0)
            nn.init.normal_(self.channel_fc.weight, std=1e-6)
            # nn.init.constant_(self.channel_fc.bias[1], 6)
            # nn.init.constant_(self.channel_fc.bias, 0)
            if self.kernel_att_init == 'dyconv_as_extra':
                pass
            else:
                # nn.init.constant_(self.channel_fc.weight, 0)
                # nn.init.constant_(self.channel_fc.bias, 0)
                pass

    def update_temperature(self, temperature):
        self.temperature = temperature

    @staticmethod
    def skip(_):
        return 1.0

    def get_channel_attention(self, x):
        if self.act_type == 'sigmoid':
            channel_attention = torch.sigmoid(self.channel_fc(x).view(x.size(0), 1, 1, -1, x.size(-2), x.size(
                -1)) / self.temperature) * self.att_multi  # b, kn, cout, cin, k, k
        elif self.act_type == 'tanh':
            channel_attention = 1 + torch.tanh_(self.channel_fc(x).view(x.size(0), 1, 1, -1, x.size(-2), x.size(
                -1)) / self.temperature)  # b, kn, cout, cin, k, k
        else:
            raise NotImplementedError
        # channel_attention = torch.sigmoid(self.channel_fc(x).view(x.size(0), -1, x.size(-2), x.size(-1)) / self.temperature) * self.att_multi # b, kn, cout, cin, k, k
        # channel_attention = torch.sigmoid(self.channel_fc(x) / self.temperature) * self.att_multi # b, kn, cout, cin, k, k
        # channel_attention = self.channel_fc(x) # b, kn, cout, cin, k, k
        # channel_attention = torch.tanh_(self.channel_fc(x) / self.temperature) + 1 # b, kn, cout, cin, k, k
        return channel_attention

    def get_filter_attention(self, x):
        if self.act_type == 'sigmoid':
            filter_attention = torch.sigmoid(self.filter_fc(x).view(x.size(0), 1, -1, 1, x.size(-2), x.size(
                -1)) / self.temperature) * self.att_multi  # b, kn, cout, cin, k, k
        elif self.act_type == 'tanh':
            filter_attention = 1 + torch.tanh_(self.filter_fc(x).view(x.size(0), 1, -1, 1, x.size(-2), x.size(
                -1)) / self.temperature)  # b, kn, cout, cin, k, k
        else:
            raise NotImplementedError
        # filter_attention = torch.sigmoid(self.filter_fc(x).view(x.size(0), -1, x.size(-2), x.size(-1)) / self.temperature) * self.att_multi # b, kn, cout, cin, k, k
        # filter_attention = self.filter_fc(x) # b, kn, cout, cin, k, k
        # filter_attention = torch.tanh_(self.filter_fc(x) / self.temperature) + 1 # b, kn, cout, cin, k, k
        return filter_attention

    def get_spatial_attention(self, x):
        spatial_attention = self.spatial_fc(x).view(x.size(0), 1, 1, 1, self.kernel_size, self.kernel_size)
        if self.act_type == 'sigmoid':
            spatial_attention = torch.sigmoid(spatial_attention / self.temperature) * self.att_multi
        elif self.act_type == 'tanh':
            spatial_attention = 1 + torch.tanh_(spatial_attention / self.temperature)
        else:
            raise NotImplementedError
        return spatial_attention

    def get_kernel_attention(self, x):
        # kernel_attention = self.kernel_fc(x).view(x.size(0), -1, 1, 1, self.kernel_size, self.kernel_size)
        kernel_attention = self.kernel_fc(x).view(x.size(0), -1, 1, 1, 1, 1)
        if self.act_type == 'softmax':
            kernel_attention = F.softmax(kernel_attention / self.kernel_temp, dim=1)
        elif self.act_type == 'sigmoid':
            kernel_attention = torch.sigmoid(kernel_attention / self.kernel_temp) * 2 / kernel_attention.size(1)
        elif self.act_type == 'tanh':
            kernel_attention = (1 + torch.tanh(kernel_attention / self.kernel_temp)) / kernel_attention.size(1)
        else:
            raise NotImplementedError

        # kernel_attention = kernel_attention / self.temperature
        # kernel_attention = kernel_attention / kernel_attention.abs().sum(dim=1, keepdims=True)
        return kernel_attention

    def forward(self, x, use_checkpoint=False):
        if use_checkpoint:
            return checkpoint(self._forward, x)
        else:
            return self._forward(x)

    def _forward(self, x):
        # comp_x = self.channel_compress(x)
        # csg = self.channel_spatial(comp_x).sigmoid_() * self.att_multi
        # csg = 1
        # fsg = self.filter_spatial(comp_x).sigmoid_() * self.att_multi
        # fsg = 1
        # x_h = x.mean(dim=-1, keepdims=True)
        # x_w = x.mean(dim=-2, keepdims=True)
        # x_h = self.relu(self.bn(self.fc(x_h)))
        # x_w = self.relu(self.bn(self.fc(x_w)))
        # avg_x = (self.avgpool(x_h) + self.avgpool(x_w)) * 0.5
        # avg_x = self.avgpool(self.relu(self.bn(self.fc(x))))
        avg_x = self.relu(self.bn(self.fc(x)))
        return self.func_channel(avg_x), self.func_filter(avg_x), self.func_spatial(avg_x), self.func_kernel(avg_x)
        # return self.attup.flow_warp(self.func_channel(x), grid), self.attup.flow_warp(self.func_filter(x), grid), self.func_spatial(avg_x), self.func_kernel(avg_x), sp_gate
        # return (self.func_channel(x_h) * self.func_channel(x_w)).sqrt(), (self.func_filter(x_h) * self.func_filter(x_w)).sqrt(), self.func_spatial(avg_x), self.func_kernel(avg_x)
        # return (self.func_channel(x_h) * self.func_channel(x_w)), (self.func_filter(x_h) * self.func_filter(x_w)), self.func_spatial(avg_x), self.func_kernel(avg_x)
        # return ((self.func_channel(x_h) + self.func_channel(x_w)) * csg).sigmoid_() * self.att_multi, ((self.func_filter(x_h) + self.func_filter(x_w)) * fsg).sigmoid_() * self.att_multi, self.func_spatial(avg_x), self.func_kernel(avg_x)
        # return (self.func_channel(x_h) * self.func_channel(x_w) * csg), (self.func_filter(x_h) * self.func_filter(x_w) * fsg), self.func_spatial(avg_x), self.func_kernel(avg_x)
        # return (self.dropout(self.func_channel(x_h) * self.func_channel(x_w))), (self.dropout(self.func_filter(x_h) * self.func_filter(x_w))), self.func_spatial(avg_x), self.func_kernel(avg_x)
        # k_att = F.relu(self.func_kernel(x) - 0.8 * self.func_kernel(x_inverse))
        # k_att = k_att / (k_att.sum(dim=1, keepdim=True) + 1e-8)
        # return self.func_channel(x), self.func_filter(x), self.func_spatial(x), k_att


class KernelSpatialModulation_Local(nn.Module):
    """Constructs a ECA module.

    Args:
        channel: Number of channels of the input feature map
        k_size: Adaptive selection of kernel size
    """

    def __init__(self, channel=None, kernel_num=1, out_n=1, k_size=3, use_global=False):
        super(KernelSpatialModulation_Local, self).__init__()
        self.kn = kernel_num
        self.out_n = out_n
        self.channel = channel
        if channel is not None: k_size = round((math.log2(channel) / 2) + 0.5) // 2 * 2 + 1
        # self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.conv = nn.Conv1d(1, kernel_num * out_n, kernel_size=k_size, padding=(k_size - 1) // 2, bias=False)
        nn.init.constant_(self.conv.weight, 1e-6)
        self.use_global = use_global
        if self.use_global:
            self.complex_weight = nn.Parameter(torch.randn(1, self.channel // 2 + 1, 2, dtype=torch.float32) * 1e-6)
            # self.norm = nn.GroupNorm(num_groups=32, num_channels=channel)
        self.norm = nn.LayerNorm(self.channel)
        # self.norm_std = nn.LayerNorm(self.channel)
        # trunc_normal_(self.complex_weight, std=.02)
        # self.sigmoid = nn.Sigmoid()
        # nn.init.constant(self.conv.weight.data) # nn.init.normal_(self.conv.weight, std=1e-6)
        # nn.init.zeros_(self.conv.weight)

    def forward(self, x, x_std=None):
        # feature descriptor on the global spatial information
        # y = self.avg_pool(x)
        # b,c,1, -> b,1,c, -> b, kn * out_n, c
        # x = torch.cat([x, x_std], dim=-2)
        x = x.squeeze(-1).transpose(-1, -2)  # b,1,c,
        b, _, c = x.shape
        if self.use_global:
            x_rfft = torch.fft.rfft(x.float(), dim=-1)  # b, 1 or 2, c // 2 +1
            # print(x_rfft.shape)
            x_real = x_rfft.real * self.complex_weight[..., 0][None]
            x_imag = x_rfft.imag * self.complex_weight[..., 1][None]
            x = x + torch.fft.irfft(torch.view_as_complex(torch.stack([x_real, x_imag], dim=-1)),
                                    dim=-1)  # b, 1, c // 2 +1
        x = self.norm(x)
        # x = torch.stack([self.norm(x[:, 0]), self.norm_std(x[:, 1])], dim=1)
        # b,1,c, -> b, kn * out_n, c
        att_logit = self.conv(x)
        # print(att_logit.shape)
        # print(att.shape)
        # Multi-scale information fusion
        # att = self.sigmoid(att) * 2
        att_logit = att_logit.reshape(x.size(0), self.kn, self.out_n, c)  # b, kn, k1*k2, cin
        att_logit = att_logit.permute(0, 1, 3, 2)  # b, kn, cin, k1*k2
        # print(att_logit.shape)
        return att_logit


class FrequencyBandModulation(nn.Module):
    def __init__(self,
                 in_channels,
                 k_list=[2, 4, 8],
                 lowfreq_att=False,
                 fs_feat='feat',
                 act='sigmoid',
                 spatial='conv',
                 spatial_group=1,
                 spatial_kernel=3,
                 init='zero',
                 **kwargs,
                 ):
        super().__init__()
        # k_list.sort()
        # print()
        self.k_list = k_list
        # self.freq_list = freq_list
        self.lp_list = nn.ModuleList()
        self.freq_weight_conv_list = nn.ModuleList()
        self.fs_feat = fs_feat
        self.in_channels = in_channels
        # self.residual = residual
        if spatial_group > 64: spatial_group = in_channels
        self.spatial_group = spatial_group
        self.lowfreq_att = lowfreq_att
        if spatial == 'conv':
            self.freq_weight_conv_list = nn.ModuleList()
            _n = len(k_list)
            if lowfreq_att:  _n += 1
            for i in range(_n):
                freq_weight_conv = nn.Conv2d(in_channels=in_channels,
                                             out_channels=self.spatial_group,
                                             stride=1,
                                             kernel_size=spatial_kernel,
                                             groups=self.spatial_group,
                                             padding=spatial_kernel // 2,
                                             bias=True)
                if init == 'zero':
                    nn.init.normal_(freq_weight_conv.weight, std=1e-6)
                    freq_weight_conv.bias.data.zero_()
                else:
                    # raise NotImplementedError
                    pass
                self.freq_weight_conv_list.append(freq_weight_conv)
        else:
            raise NotImplementedError
        self.act = act

    def sp_act(self, freq_weight):
        if self.act == 'sigmoid':
            freq_weight = freq_weight.sigmoid() * 2
        elif self.act == 'tanh':
            freq_weight = 1 + freq_weight.tanh()
        elif self.act == 'softmax':
            freq_weight = freq_weight.softmax(dim=1) * freq_weight.shape[1]
        else:
            raise NotImplementedError
        return freq_weight

    def forward(self, x, att_feat=None):
        """
        att_feat:feat for gen att
        """
        if att_feat is None: att_feat = x
        x_list = []
        x_dtype = x.dtype
        x = x.to(torch.float32)
        pre_x = x.clone()
        b, _, h, w = x.shape
        h, w = int(h), int(w)
        # x_fft = torch.fft.fftshift(torch.fft.fft2(x, norm='ortho'))
        x_fft = torch.fft.rfft2(x, norm='ortho')

        for idx, freq in enumerate(self.k_list):
            mask = torch.zeros_like(x_fft[:, 0:1, :, :], device=x.device)
            _, freq_indices = get_fft2freq(d1=x.size(-2), d2=x.size(-1), use_rfft=True)
            # mask[:,:,round(h/2 - h/(2 * freq)):round(h/2 + h/(2 * freq)), round(w/2 - w/(2 * freq)):round(w/2 + w/(2 * freq))] = 1.0
            # print(freq_indices.shape)
            freq_indices = freq_indices.max(dim=-1, keepdims=False)[0]
            # print(freq_indices)
            mask[:, :, freq_indices < 0.5 / freq] = 1.0
            # print(mask.sum())
            # low_part = torch.fft.ifft2(torch.fft.ifftshift(x_fft * mask), norm='ortho').real
            low_part = torch.fft.irfft2(x_fft * mask, s=(h, w), dim=(-2, -1), norm='ortho')
            try:
                low_part = low_part.real
            except:
                pass
            high_part = pre_x - low_part
            pre_x = low_part
            freq_weight = self.freq_weight_conv_list[idx](att_feat)
            freq_weight = self.sp_act(freq_weight)
            # tmp = freq_weight[:, :, idx:idx+1] * high_part.reshape(b, self.spatial_group, -1, h, w)
            tmp = freq_weight.reshape(b, self.spatial_group, -1, h, w) * high_part.reshape(b, self.spatial_group, -1, h,
                                                                                           w)
            x_list.append(tmp.reshape(b, -1, h, w))
        if self.lowfreq_att:
            freq_weight = self.freq_weight_conv_list[len(x_list)](att_feat)
            freq_weight = self.sp_act(freq_weight)
            # tmp = freq_weight[:, :, len(x_list):len(x_list)+1] * pre_x.reshape(b, self.spatial_group, -1, h, w)
            tmp = freq_weight.reshape(b, self.spatial_group, -1, h, w) * pre_x.reshape(b, self.spatial_group, -1, h, w)
            x_list.append(tmp.reshape(b, -1, h, w))
        else:
            x_list.append(pre_x)
        x = sum(x_list)
        return x.to(x_dtype)


def get_fft2freq(d1, d2, use_rfft=False):
    # Frequency components for rows and columns
    freq_h = torch.fft.fftfreq(d1)  # Frequency for the rows (d1)
    if use_rfft:
        freq_w = torch.fft.rfftfreq(d2)  # Frequency for the columns (d2)
    else:
        freq_w = torch.fft.fftfreq(d2)

    # Meshgrid to create a 2D grid of frequency coordinates
    freq_hw = torch.stack(torch.meshgrid(freq_h, freq_w), dim=-1)
    # print(freq_hw)
    # print(freq_hw.shape)
    # Calculate the distance from the origin (0, 0) in the frequency space
    dist = torch.norm(freq_hw, dim=-1)
    # print(dist.shape)
    # Sort the distances and get the indices
    sorted_dist, indices = torch.sort(dist.view(-1))  # Flatten the distance tensor for sorting
    # print(sorted_dist.shape)

    # Get the corresponding coordinates for the sorted distances
    if use_rfft:
        d2 = d2 // 2 + 1
        # print(d2)
    sorted_coords = torch.stack([indices // d2, indices % d2], dim=-1)  # Convert flat indices to 2D coords
    # print(sorted_coords.shape)
    # # Print sorted distances and corresponding coordinates
    # for i in range(sorted_dist.shape[0]):
    #     print(f"Distance: {sorted_dist[i]:.4f}, Coordinates: ({sorted_coords[i, 0]}, {sorted_coords[i, 1]})")

    if False:
        # Plot the distance matrix as a grayscale image
        plt.imshow(dist.cpu().numpy(), cmap='gray', origin='lower')
        plt.colorbar()
        plt.title('Frequency Domain Distance')
        plt.show()
    return sorted_coords.permute(1, 0), freq_hw


# @CONV_LAYERS.register_module() # for mmdet, mmseg

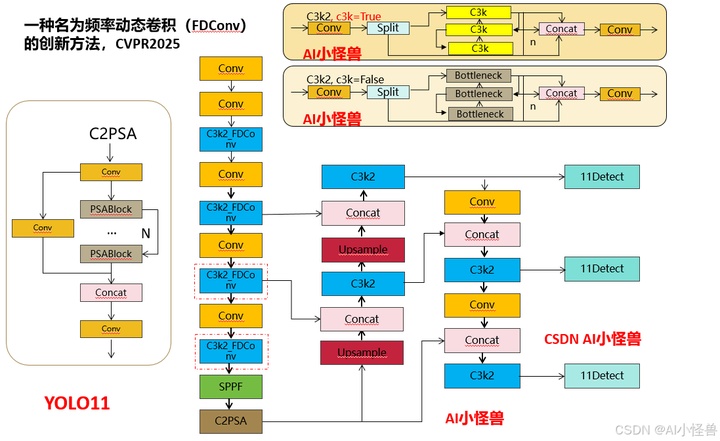

class FDConv(nn.Conv2d):
    def __init__(self,
                 in_channels: int,
                 out_channels: int,
                 kernel_size=3,
                 reduction=0.0625,
                 kernel_num=16,
                 use_fdconv_if_c_gt=16,  # if channel greater or equal to 16, e.g., 64, 128, 256, 512
                 use_fdconv_if_k_in=[1, 3],  # if kernel_size in the list
                 use_fbm_if_k_in=[3],  # if kernel_size in the list
                 kernel_temp=1.0,
                 temp=None,
                 att_multi=2.0,
                 param_ratio=1,
                 param_reduction=1.0,
                 ksm_only_kernel_att=False,
                 att_grid=1,
                 use_ksm_local=True,
                 ksm_local_act='sigmoid',
                 ksm_global_act='sigmoid',
                 spatial_freq_decompose=False,
                 convert_param=True,
                 linear_mode=False,
                 fbm_cfg={
                     'k_list': [2, 4, 8],
                     'lowfreq_att': False,
                     'fs_feat': 'feat',
                     'act': 'sigmoid',
                     'spatial': 'conv',
                     'spatial_group': 1,
                     'spatial_kernel': 3,
                     'init': 'zero',
                     'global_selection': False,
                 },
                 **kwargs,
                 ):
        p = autopad(kernel_size, None)
        super().__init__(in_channels=in_channels, out_channels=out_channels, kernel_size=kernel_size, padding=p,
                         **kwargs)
        self.use_fdconv_if_c_gt = use_fdconv_if_c_gt
        self.use_fdconv_if_k_in = use_fdconv_if_k_in
        self.kernel_num = kernel_num
        self.param_ratio = param_ratio
        self.param_reduction = param_reduction
        self.use_ksm_local = use_ksm_local
        self.att_multi = att_multi
        self.spatial_freq_decompose = spatial_freq_decompose
        self.use_fbm_if_k_in = use_fbm_if_k_in

        self.ksm_local_act = ksm_local_act
        self.ksm_global_act = ksm_global_act
        assert self.ksm_local_act in ['sigmoid', 'tanh']
        assert self.ksm_global_act in ['softmax', 'sigmoid', 'tanh']

        ### Kernel num & Kernel temp setting
        if self.kernel_num is None:
            self.kernel_num = self.out_channels // 2
            kernel_temp = math.sqrt(self.kernel_num * self.param_ratio)
        if temp is None:
            temp = kernel_temp

        # print('*** kernel_num:', self.kernel_num)
        self.alpha = min(self.out_channels,
                         self.in_channels) // 2 * self.kernel_num * self.param_ratio / param_reduction
        if min(self.in_channels, self.out_channels) <= self.use_fdconv_if_c_gt or self.kernel_size[
            0] not in self.use_fdconv_if_k_in:
            return
        self.KSM_Global = KernelSpatialModulation_Global(self.in_channels, self.out_channels, self.kernel_size[0],
                                                         groups=self.groups,
                                                         temp=temp,
                                                         kernel_temp=kernel_temp,
                                                         reduction=reduction,
                                                         kernel_num=self.kernel_num * self.param_ratio,
                                                         kernel_att_init=None, att_multi=att_multi,
                                                         ksm_only_kernel_att=ksm_only_kernel_att,
                                                         act_type=self.ksm_global_act,
                                                         att_grid=att_grid, stride=self.stride,
                                                         spatial_freq_decompose=spatial_freq_decompose)

        if self.kernel_size[0] in use_fbm_if_k_in:
            self.FBM = FrequencyBandModulation(self.in_channels, **fbm_cfg)
            # self.FBM = OctaveFrequencyAttention(2 * self.in_channels // 16, **fbm_cfg)
            # self.channel_comp = ChannelPool(reduction=16)

        if self.use_ksm_local:
            self.KSM_Local = KernelSpatialModulation_Local(channel=self.in_channels, kernel_num=1, out_n=int(
                self.out_channels * self.kernel_size[0] * self.kernel_size[1]))

        self.linear_mode = linear_mode
        self.convert2dftweight(convert_param)

    def convert2dftweight(self, convert_param):
        d1, d2, k1, k2 = self.out_channels, self.in_channels, self.kernel_size[0], self.kernel_size[1]
        freq_indices, _ = get_fft2freq(d1 * k1, d2 * k2, use_rfft=True)  # 2, d1 * k1 * (d2 * k2 // 2 + 1)
        # freq_indices = freq_indices.reshape(2, self.kernel_num, -1)
        weight = self.weight.permute(0, 2, 1, 3).reshape(d1 * k1, d2 * k2)
        weight_rfft = torch.fft.rfft2(weight, dim=(0, 1))  # d1 * k1, d2 * k2 // 2 + 1
        if self.param_reduction < 1:
            freq_indices = freq_indices[:, torch.randperm(freq_indices.size(1), generator=torch.Generator().manual_seed(
                freq_indices.size(1)))]  # 2, indices
            freq_indices = freq_indices[:, :int(freq_indices.size(1) * self.param_reduction)]  # 2, indices
            weight_rfft = torch.stack([weight_rfft.real, weight_rfft.imag], dim=-1)
            weight_rfft = weight_rfft[freq_indices[0, :], freq_indices[1, :]]
            weight_rfft = weight_rfft.reshape(-1, 2)[None,].repeat(self.param_ratio, 1, 1) / (
                        min(self.out_channels, self.in_channels) // 2)
        else:
            weight_rfft = torch.stack([weight_rfft.real, weight_rfft.imag], dim=-1)[None,].repeat(self.param_ratio, 1,
                                                                                                  1, 1) / (
                                      min(self.out_channels, self.in_channels) // 2)  # param_ratio, d1, d2, k*k, 2

        if convert_param:
            self.dft_weight = nn.Parameter(weight_rfft, requires_grad=True)
            del self.weight
        else:
            if self.linear_mode:
                self.weight = torch.nn.Parameter(self.weight.squeeze(), requires_grad=True)
        self.indices = []
        for i in range(self.param_ratio):
            self.indices.append(freq_indices.reshape(2, self.kernel_num,
                                                     -1))  # paramratio, 2, kernel_num, d1 * k1 * (d2 * k2 // 2 + 1) // kernel_num

    def get_FDW(self, ):
        d1, d2, k1, k2 = self.out_channels, self.in_channels, self.kernel_size[0], self.kernel_size[1]
        weight = self.weight.reshape(d1, d2, k1, k2).permute(0, 2, 1, 3).reshape(d1 * k1, d2 * k2)
        weight_rfft = torch.fft.rfft2(weight, dim=(0, 1))  # d1 * k1, d2 * k2 // 2 + 1
        weight_rfft = torch.stack([weight_rfft.real, weight_rfft.imag], dim=-1)[None,].repeat(self.param_ratio, 1, 1,
                                                                                              1) / (
                                  min(self.out_channels, self.in_channels) // 2)  # param_ratio, d1, d2, k*k, 2
        return weight_rfft

    def forward(self, x):
        x_dtype = x.dtype
        if min(self.in_channels, self.out_channels) <= self.use_fdconv_if_c_gt or self.kernel_size[
            0] not in self.use_fdconv_if_k_in:
            return super().forward(x)
        global_x = F.adaptive_avg_pool2d(x, 1)
        channel_attention, filter_attention, spatial_attention, kernel_attention = self.KSM_Global(global_x)
        if self.use_ksm_local:
            # global_x_std = torch.std(x, dim=(-1, -2), keepdim=True)
            hr_att_logit = self.KSM_Local(global_x)  # b, kn, cin, cout * ratio, k1*k2,
            hr_att_logit = hr_att_logit.reshape(x.size(0), 1, self.in_channels, self.out_channels, self.kernel_size[0],
                                                self.kernel_size[1])
            # hr_att_logit = hr_att_logit + self.hr_cin_bias[None, None, :, None, None, None] + self.hr_cout_bias[None, None, None, :, None, None] + self.hr_spatial_bias[None, None, None, None, :, :]
            hr_att_logit = hr_att_logit.permute(0, 1, 3, 2, 4, 5)
            if self.ksm_local_act == 'sigmoid':
                hr_att = hr_att_logit.sigmoid() * self.att_multi
            elif self.ksm_local_act == 'tanh':
                hr_att = 1 + hr_att_logit.tanh()
            else:
                raise NotImplementedError
        else:
            hr_att = 1
        b = x.size(0)
        batch_size, in_planes, height, width = x.size()
        DFT_map = torch.zeros(
            (b, self.out_channels * self.kernel_size[0], self.in_channels * self.kernel_size[1] // 2 + 1, 2),
            device=x.device)
        kernel_attention = kernel_attention.reshape(b, self.param_ratio, self.kernel_num, -1)
        if hasattr(self, 'dft_weight'):
            dft_weight = self.dft_weight
        else:
            dft_weight = self.get_FDW()

        for i in range(self.param_ratio):
            indices = self.indices[i]
            if self.param_reduction < 1:
                w = dft_weight[i].reshape(self.kernel_num, -1, 2)[None]
                DFT_map[:, indices[0, :, :], indices[1, :, :]] += torch.stack(
                    [w[..., 0] * kernel_attention[:, i], w[..., 1] * kernel_attention[:, i]], dim=-1)
            else:
                w = dft_weight[i][indices[0, :, :], indices[1, :, :]][None] * self.alpha  # 1, kernel_num, -1, 2
                # print(w.shape)
                DFT_map[:, indices[0, :, :], indices[1, :, :]] += torch.stack(
                    [w[..., 0] * kernel_attention[:, i], w[..., 1] * kernel_attention[:, i]], dim=-1)

        adaptive_weights = torch.fft.irfft2(torch.view_as_complex(DFT_map), dim=(1, 2)).reshape(batch_size, 1,
                                                                                                self.out_channels,
                                                                                                self.kernel_size[0],
                                                                                                self.in_channels,
                                                                                                self.kernel_size[1])
        adaptive_weights = adaptive_weights.permute(0, 1, 2, 4, 3, 5)
        # print(spatial_attention, channel_attention, filter_attention)
        if hasattr(self, 'FBM'):
            x = self.FBM(x)
            # x = self.FBM(x, self.channel_comp(x))

        if self.out_channels * self.in_channels * self.kernel_size[0] * self.kernel_size[1] < (
                in_planes + self.out_channels) * height * width:
            # print(channel_attention.shape, filter_attention.shape, hr_att.shape)
            aggregate_weight = spatial_attention * channel_attention * filter_attention * adaptive_weights * hr_att
            # aggregate_weight = spatial_attention * channel_attention * adaptive_weights * hr_att
            aggregate_weight = torch.sum(aggregate_weight, dim=1)
            # print(aggregate_weight.abs().max())
            aggregate_weight = aggregate_weight.view(
                [-1, self.in_channels // self.groups, self.kernel_size[0], self.kernel_size[1]])
            x = x.reshape(1, -1, height, width)
            output = F.conv2d(x.to(aggregate_weight.dtype), weight=aggregate_weight, bias=None, stride=self.stride,
                              padding=self.padding,
                              dilation=self.dilation, groups=self.groups * batch_size).to(x_dtype)
            if isinstance(filter_attention, float):
                output = output.view(batch_size, self.out_channels, output.size(-2), output.size(-1))
            else:
                output = output.view(batch_size, self.out_channels, output.size(-2),
                                     output.size(-1))  # * filter_attention.reshape(b, -1, 1, 1)
        else:
            aggregate_weight = spatial_attention * adaptive_weights * hr_att
            aggregate_weight = torch.sum(aggregate_weight, dim=1)
            if not isinstance(channel_attention, float):
                x = x * channel_attention.view(b, -1, 1, 1)
            aggregate_weight = aggregate_weight.view(
                [-1, self.in_channels // self.groups, self.kernel_size[0], self.kernel_size[1]])
            x = x.reshape(1, -1, height, width)
            output = F.conv2d(x.to(aggregate_weight.dtype), weight=aggregate_weight, bias=None, stride=self.stride,
                              padding=self.padding,
                              dilation=self.dilation, groups=self.groups * batch_size).to(x_dtype)
            # if isinstance(filter_attention, torch.FloatTensor):
            if isinstance(filter_attention, float):
                output = output.view(batch_size, self.out_channels, output.size(-2), output.size(-1))
            else:
                output = output.view(batch_size, self.out_channels, output.size(-2),
                                     output.size(-1)) * filter_attention.view(b, -1, 1, 1)
        if self.bias is not None:
            output = output + self.bias.view(1, -1, 1, 1)
        return output.to(x_dtype)

    def profile_module(
            self, input: Tensor, *args, **kwargs
    ):
        # TODO: to edit it
        b_sz, c, h, w = input.shape
        seq_len = h * w

        # FFT iFFT
        p_ff, m_ff = 0, 5 * b_sz * seq_len * int(math.log(seq_len)) * c
        # others
        # params = macs = sum([p.numel() for p in self.parameters()])
        params = macs = self.hidden_size * self.hidden_size_factor * self.hidden_size * 2 * 2 // self.num_blocks
        # // 2 min n become half after fft
        macs = macs * b_sz * seq_len

        # return input, params, macs
        return input, params, macs + m_ff

https://cv2023.blog.csdn.net/article/details/148550929

# Ultralytics YOLO 🚀, AGPL-3.0 license

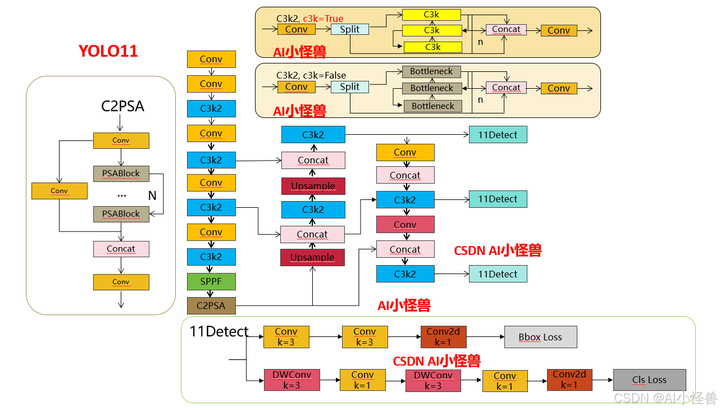

# YOLO11 object detection model with P3-P5 outputs. For Usage examples see https://docs.ultralytics.com/tasks/detect

# Parameters
nc: 80 # number of classes
scales: # model compound scaling constants, i.e. 'model=yolo11n.yaml' will call yolo11.yaml with scale 'n'
  # [depth, width, max_channels]
  n: [0.50, 0.25, 1024] # summary: 319 layers, 2624080 parameters, 2624064 gradients, 6.6 GFLOPs
  s: [0.50, 0.50, 1024] # summary: 319 layers, 9458752 parameters, 9458736 gradients, 21.7 GFLOPs
  m: [0.50, 1.00, 512] # summary: 409 layers, 20114688 parameters, 20114672 gradients, 68.5 GFLOPs
  l: [1.00, 1.00, 512] # summary: 631 layers, 25372160 parameters, 25372144 gradients, 87.6 GFLOPs
  x: [1.00, 1.50, 512] # summary: 631 layers, 56966176 parameters, 56966160 gradients, 196.0 GFLOPs

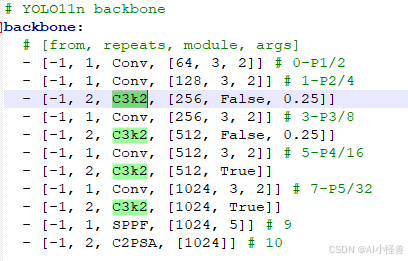

# YOLO11n backbone
backbone:
  # [from, repeats, module, args]
  - [-1, 1, Conv, [64, 3, 2]] # 0-P1/2
  - [-1, 1, Conv, [128, 3, 2]] # 1-P2/4
  - [-1, 2, C3k2_FDConv, [256, False, 0.25]]
  - [-1, 1, Conv, [256, 3, 2]] # 3-P3/8
  - [-1, 2, C3k2_FDConv, [512, False, 0.25]]
  - [-1, 1, Conv, [512, 3, 2]] # 5-P4/16
  - [-1, 2, C3k2_FDConv, [512, True]]
  - [-1, 1, Conv, [1024, 3, 2]] # 7-P5/32
  - [-1, 2, C3k2_FDConv, [1024, True]]
  - [-1, 1, SPPF, [1024, 5]] # 9

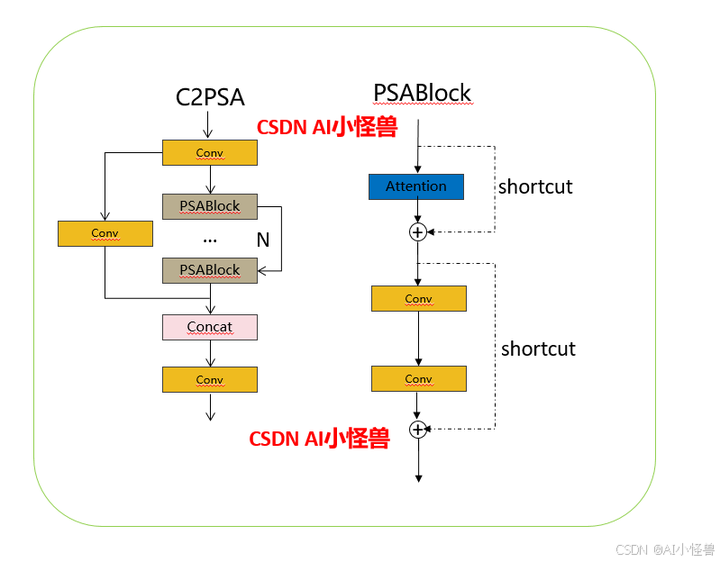

  - [-1, 2, C2PSA, [1024]] # 10

# YOLO11n head
head:
  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 6], 1, Concat, [1]] # cat backbone P4
  - [-1, 2, C3k2, [512, False]] # 13

  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 4], 1, Concat, [1]] # cat backbone P3
  - [-1, 2, C3k2, [256, False]] # 16 (P3/8-small)

  - [-1, 1, Conv, [256, 3, 2]]
  - [[-1, 13], 1, Concat, [1]] # cat head P4
  - [-1, 2, C3k2, [512, False]] # 19 (P4/16-medium)

  - [-1, 1, Conv, [512, 3, 2]]
  - [[-1, 10], 1, Concat, [1]] # cat head P5
  - [-1, 2, C3k2, [1024, True]] # 22 (P5/32-large)

  - [[16, 19, 22], 1, Detect, [nc]] # Detect(P3, P4, P5)
