HV06系列高压贴片电阻核心解析与设计指南

​型号示例​：HV06W4F5623T5E（562kΩ±1%）、HV06W4J0754T5E（750kΩ±5%）、HV06W4J0276T5E（27MΩ±5%）

一、核心参数详解

HV06系列是厚声（UNI-ROYAL）针对500V级高压场景设计的1206封装贴片电阻，核心参数如下：

​参数类别​

​技术规格​

​备注​

​封装与尺寸​

1206（3.1mm×1.55mm×0.55mm）

兼容高密度SMT贴装，比常规1206电阻节省30% PCB空间 19

​电气特性​

额定电压：500V；最大过载电压：1000V（脉宽＜10ms）；耐压：600V

支持4kV/2Ω雷击浪涌防护 28

​阻值与精度​

范围：24kΩ~27MΩ（E-24/E-96标准）；精度：±1%（F级）或±5%（J级）

高阻值型号（如27MΩ）需注意噪声抑制设计 1011

​功率与温升​

额定功率：1/4W（0.25W@70℃）；降额曲线：100℃→0.2W，155℃→0.125W

需增加散热铜箔或强制风冷 8

​温度特性​

温度系数（TCR）：±100ppm/℃；工作温度：-55℃~+155℃

极端温差阻值变化≤2.1% 8

​可靠性认证​

兼容AEC-Q200车规标准；通过IATF16949体系认证

机械强度可承受3mm PCB弯曲 412

二、典型应用场景与方案设计

1. ​工业电源母线电压采样​
  • ​设计要点​：
    • 800V系统分压：2颗270kΩ（HV06W4J2743T5E）串联 → ​总耐压1000V​（安全余量100%）8 。
    • PCB爬电距离≥1.5mm，基板材耐压≥500V，避免高压击穿。
2. ​新能源车OBC（车载充电器）反馈回路​
  • ​设计要点​：
    • 选用±1%精度型号（如HV06W4F2402T5E，24kΩ）降低采样误差；
    • 布局避开发热源（如MOSFET），温升ΔT≤40℃12 。
3. ​LCD背光驱动限流保护​
  • ​设计要点​：
    • 串联750kΩ（HV06W4J0754T5E）限流 → 工作电流≤0.67mA（@500V），响应时间 ​​＜1μs；
    • 并联TVS二极管（如SMCJ系列）吸收瞬态能量2 8 。
4. ​医疗设备高压检测电路​
  • ​设计要点​：
    • 27MΩ高阻值型号（HV06W4J0276T5E）用于漏电流检测 → 并联1pF陶瓷电容抑制高频噪声10 。

三、设计风险规避指南

​风险类型​

​安全阈值​

​规避方案​

​验证方法​

​电压超限​

工作电压≤400V（500V×80%）

预留20%余量；高压链路串联多电阻均压

耐压测试（3000V/1min） 8

​脉冲损伤​

瞬时电压≤1000V

脉冲宽度＜10ms；布局时电阻间间距≥2mm

雷击测试（4kV/2Ω波形） 2

​高温失效​

155℃时功率≤0.125W

环境温度＞70℃时按0.8倍降额；PCB增加散热铜箔

IR热成像仪监测温升 8

​高频失真​

适用频率≤300kHz

＞300kHz时选用薄膜电阻或仿真寄生电容（0.6pF）影响

网络分析仪测试频响 8

​焊接不良​

回流焊峰值温度≤260℃

优化曲线：预热150℃→220℃（60s）→峰值260℃（＜5s）

焊点切片分析 4

四、选型与供应链建议

  1. ​阻值覆盖​：
    • ​常规阻值​：24kΩ（HV06W4F2402T5E）、562kΩ（HV06W4F5623T5E）；
    • ​高阻值​：27MΩ（HV06W4J0276T5E），适用于医疗设备漏电流检测10 11 。
  2. ​车规级应用​：
    • 优选AEC-Q200认证型号（如HV06W4F系列），适用于新能源车BMS、OBC等高压回路

📦 ​五、全系阻值选型

型号

额定电压

系列

封装

阻值

功率额定值

容差

温度系数

最小工作温度

最大工作温度

应用

HV06S4F1001T5E

500 V

HV

1206

1 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1002T5E

500 V

HV

1206

10 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1003T5E

500 V

HV

1206

100 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1004T5E

500 V

HV

1206

1 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1005T5E

500 V

HV

1206

10 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1103T5E

500 V

HV

1206

110 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1104T5E

500 V

HV

1206

1.1 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1203T5E

500 V

HV

1206

120 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1204T5E

500 V

HV

1206

1.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1243T5E

500 V

HV

1206

124 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1303T5E

500 V

HV

1206

130 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1304T5E

500 V

HV

1206

1.3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1403T5E

500 V

HV

1206

140 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1503T5E

500 V

HV

1206

150 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1504T5E

500 V

HV

1206

1.5 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1583T5E

500 V

HV

1206

158 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1604T5E

500 V

HV

1206

1.6 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1623T5E

500 V

HV

1206

162 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1653T5E

500 V

HV

1206

165 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1693T5E

500 V

HV

1206

169 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1803T5E

500 V

HV

1206

180 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1804T5E

500 V

HV

1206

1.8 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1824T5E

500 V

HV

1206

1.82 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F1873T5E

500 V

HV

1206

187 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2003T5E

500 V

HV

1206

200 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2004T5E

500 V

HV

1206

2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2153T5E

500 V

HV

1206

215 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2203T5E

500 V

HV

1206

220 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2204T5E

500 V

HV

1206

2.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2213T5E

500 V

HV

1206

221 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2323T5E

500 V

HV

1206

232 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2373T5E

500 V

HV

1206

237 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2403T5E

500 V

HV

1206

240 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2404T5E

500 V

HV

1206

2.4 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2433T5E

500 V

HV

1206

243 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2493T5E

500 V

HV

1206

249 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2553T5E

500 V

HV

1206

255 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2613T5E

500 V

HV

1206

261 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2673T5E

500 V

HV

1206

267 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2703T5E

500 V

HV

1206

270 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2704T5E

500 V

HV

1206

2.7 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2743T5E

500 V

HV

1206

274 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F2803T5E

500 V

HV

1206

280 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3003T5E

500 V

HV

1206

300 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3004T5E

500 V

HV

1206

3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3013T5E

500 V

HV

1206

301 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3243T5E

500 V

HV

1206

324 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3303T5E

500 V

HV

1206

330 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3304T5E

500 V

HV

1206

3.3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3323T5E

500 V

HV

1206

332 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3403T5E

500 V

HV

1206

340 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3573T5E

500 V

HV

1206

357 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3603T5E

500 V

HV

1206

360 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3604T5E

500 V

HV

1206

3.6 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3653T5E

500 V

HV

1206

365 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3743T5E

500 V

HV

1206

374 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3833T5E

500 V

HV

1206

383 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3903T5E

500 V

HV

1206

390 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F3904T5E

500 V

HV

1206

3.9 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4023T5E

500 V

HV

1206

402 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4303T5E

500 V

HV

1206

430 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4304T5E

500 V

HV

1206

4.3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4323T5E

500 V

HV

1206

432 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4423T5E

500 V

HV

1206

442 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4533T5E

500 V

HV

1206

453 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4534T5E

500 V

HV

1206

4.53 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4643T5E

500 V

HV

1206

464 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4703T5E

500 V

HV

1206

470 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4704T5E

500 V

HV

1206

4.7 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4753T5E

500 V

HV

1206

475 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4873T5E

500 V

HV

1206

487 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4993T5E

500 V

HV

1206

499 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F4994T5E

500 V

HV

1206

4.99 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5103T5E

500 V

HV

1206

510 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5104T5E

500 V

HV

1206

5.1 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5113T5E

500 V

HV

1206

511 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5233T5E

500 V

HV

1206

523 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5363T5E

500 V

HV

1206

536 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5493T5E

500 V

HV

1206

549 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5603T5E

500 V

HV

1206

560 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5604T5E

500 V

HV

1206

5.6 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5623T5E

500 V

HV

1206

562 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5763T5E

500 V

HV

1206

576 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F5903T5E

500 V

HV

1206

590 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F6043T5E

500 V

HV

1206

604 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F6193T5E

500 V

HV

1206

619 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F6203T5E

500 V

HV

1206

620 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F6204T5E

500 V

HV

1206

6.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F6343T5E

500 V

HV

1206

634 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F6493T5E

500 V

HV

1206

649 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F6653T5E

500 V

HV

1206

665 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F6803T5E

500 V

HV

1206

680 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F6813T5E

500 V

HV

1206

681 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F7153T5E

500 V

HV

1206

715 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F7323T5E

500 V

HV

1206

732 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F7503T5E

500 V

HV

1206

750 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F7504T5E

500 V

HV

1206

7.5 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F7683T5E

500 V

HV

1206

768 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F7873T5E

500 V

HV

1206

787 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F8063T5E

500 V

HV

1206

806 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F8203T5E

500 V

HV

1206

820 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F8204T5E

500 V

HV

1206

8.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F8253T5E

500 V

HV

1206

825 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F8453T5E

500 V

HV

1206

845 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F8663T5E

500 V

HV

1206

866 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F9093T5E

500 V

HV

1206

909 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F9103T5E

500 V

HV

1206

910 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F9313T5E

500 V

HV

1206

931 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4F9533T5E

500 V

HV

1206

953 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0104T5E

500 V

HV

1206

100 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0105T5E

500 V

HV

1206

1 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0106T5E

500 V

HV

1206

10 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0114T5E

500 V

HV

1206

110 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0115T5E

500 V

HV

1206

1.1 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0124T5E

500 V

HV

1206

120 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0125T5E

500 V

HV

1206

1.2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0134T5E

500 V

HV

1206

130 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0135T5E

500 V

HV

1206

1.3 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0154T5E

500 V

HV

1206

150 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0155T5E

500 V

HV

1206

1.5 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0164T5E

500 V

HV

1206

160 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0165T5E

500 V

HV

1206

1.6 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0184T5E

500 V

HV

1206

180 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0185T5E

500 V

HV

1206

1.8 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0204T5E

500 V

HV

1206

200 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0205T5E

500 V

HV

1206

2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0214T5E

500 V

HV

1206

210 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0224T5E

500 V

HV

1206

220 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0225T5E

500 V

HV

1206

2.2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0244T5E

500 V

HV

1206

240 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0245T5E

500 V

HV

1206

2.4 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0274T5E

500 V

HV

1206

270 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0275T5E

500 V

HV

1206

2.7 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0304T5E

500 V

HV

1206

300 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0305T5E

500 V

HV

1206

3 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0334T5E

500 V

HV

1206

330 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0335T5E

500 V

HV

1206

3.3 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0364T5E

500 V

HV

1206

360 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0365T5E

500 V

HV

1206

3.6 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0394T5E

500 V

HV

1206

390 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0395T5E

500 V

HV

1206

3.9 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0434T5E

500 V

HV

1206

430 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0435T5E

500 V

HV

1206

4.3 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0474T5E

500 V

HV

1206

470 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0475T5E

500 V

HV

1206

4.7 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0514T5E

500 V

HV

1206

510 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0515T5E

500 V

HV

1206

5.1 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0564T5E

500 V

HV

1206

560 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0565T5E

500 V

HV

1206

5.6 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0624T5E

500 V

HV

1206

620 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0625T5E

500 V

HV

1206

6.2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0684T5E

500 V

HV

1206

680 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0685T5E

500 V

HV

1206

6.8 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0754T5E

500 V

HV

1206

750 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0755T5E

500 V

HV

1206

7.5 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0824T5E

500 V

HV

1206

820 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0825T5E

500 V

HV

1206

8.2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0914T5E

500 V

HV

1206

910 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06S4J0915T5E

500 V

HV

1206

9.1 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1001T5E

500 V

HV

1206

1 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1002T5E

500 V

HV

1206

10 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1003T5E

500 V

HV

1206

100 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1004T5E

500 V

HV

1206

1 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1005T5E

500 V

HV

1206

10 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1103T5E

500 V

HV

1206

110 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1104T5E

500 V

HV

1206

1.1 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1203T5E

500 V

HV

1206

120 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1204T5E

500 V

HV

1206

1.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1243T5E

500 V

HV

1206

124 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1303T5E

500 V

HV

1206

130 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1304T5E

500 V

HV

1206

1.3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1403T5E

500 V

HV

1206

140 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1503T5E

500 V

HV

1206

150 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1504T5E

500 V

HV

1206

1.5 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1583T5E

500 V

HV

1206

158 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1604T5E

500 V

HV

1206

1.6 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1623T5E

500 V

HV

1206

162 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1653T5E

500 V

HV

1206

165 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1693T5E

500 V

HV

1206

169 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1803T5E

500 V

HV

1206

180 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1804T5E

500 V

HV

1206

1.8 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1824T5E

500 V

HV

1206

1.82 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F1873T5E

500 V

HV

1206

187 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2003T5E

500 V

HV

1206

200 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2004T5E

500 V

HV

1206

2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2153T5E

500 V

HV

1206

215 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2203T5E

500 V

HV

1206

220 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2204T5E

500 V

HV

1206

2.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2213T5E

500 V

HV

1206

221 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2323T5E

500 V

HV

1206

232 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2373T5E

500 V

HV

1206

237 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2403T5E

500 V

HV

1206

240 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2404T5E

500 V

HV

1206

2.4 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2433T5E

500 V

HV

1206

243 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2493T5E

500 V

HV

1206

249 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2553T5E

500 V

HV

1206

255 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2613T5E

500 V

HV

1206

261 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2673T5E

500 V

HV

1206

267 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2703T5E

500 V

HV

1206

270 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

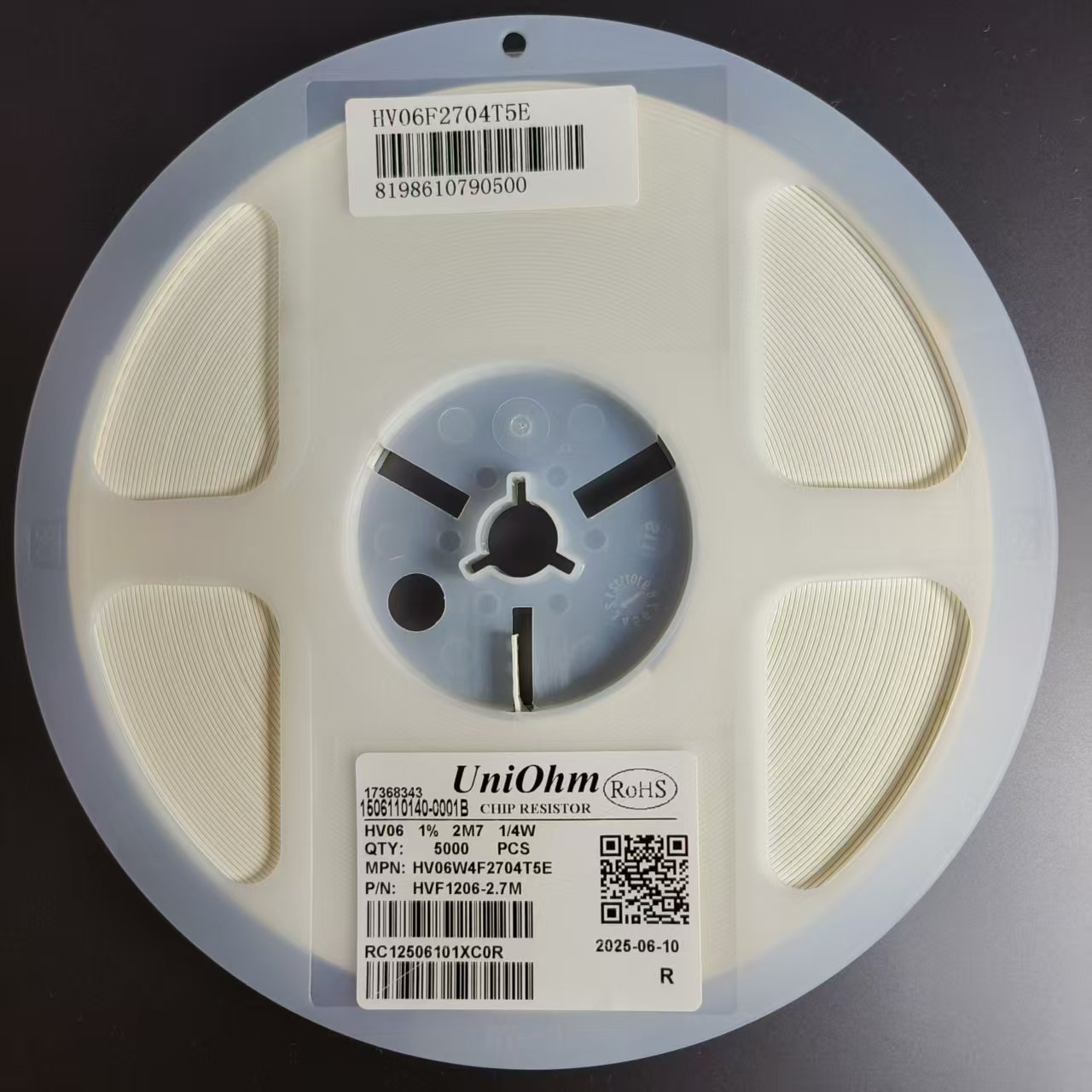

HV06W4F2704T5E

500 V

HV

1206

2.7 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2743T5E

500 V

HV

1206

274 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F2803T5E

500 V

HV

1206

280 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3003T5E

500 V

HV

1206

300 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3004T5E

500 V

HV

1206

3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3013T5E

500 V

HV

1206

301 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3243T5E

500 V

HV

1206

324 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3303T5E

500 V

HV

1206

330 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3304T5E

500 V

HV

1206

3.3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3323T5E

500 V

HV

1206

332 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3403T5E

500 V

HV

1206

340 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3573T5E

500 V

HV

1206

357 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3603T5E

500 V

HV

1206

360 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3604T5E

500 V

HV

1206

3.6 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3653T5E

500 V

HV

1206

365 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3743T5E

500 V

HV

1206

374 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3833T5E

500 V

HV

1206

383 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3903T5E

500 V

HV

1206

390 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F3904T5E

500 V

HV

1206

3.9 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4023T5E

500 V

HV

1206

402 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4303T5E

500 V

HV

1206

430 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4304T5E

500 V

HV

1206

4.3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4323T5E

500 V

HV

1206

432 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4423T5E

500 V

HV

1206

442 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4533T5E

500 V

HV

1206

453 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4534T5E

500 V

HV

1206

4.53 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4643T5E

500 V

HV

1206

464 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4703T5E

500 V

HV

1206

470 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4704T5E

500 V

HV

1206

4.7 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4753T5E

500 V

HV

1206

475 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4873T5E

500 V

HV

1206

487 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4993T5E

500 V

HV

1206

499 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F4994T5E

500 V

HV

1206

4.99 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5103T5E

500 V

HV

1206

510 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5104T5E

500 V

HV

1206

5.1 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5113T5E

500 V

HV

1206

511 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5233T5E

500 V

HV

1206

523 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5363T5E

500 V

HV

1206

536 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5493T5E

500 V

HV

1206

549 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5603T5E

500 V

HV

1206

560 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5604T5E

500 V

HV

1206

5.6 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5623T5E

500 V

HV

1206

562 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5763T5E

500 V

HV

1206

576 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F5903T5E

500 V

HV

1206

590 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F6043T5E

500 V

HV

1206

604 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F6193T5E

500 V

HV

1206

619 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F6203T5E

500 V

HV

1206

620 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F6204T5E

500 V

HV

1206

6.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F6343T5E

500 V

HV

1206

634 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F6493T5E

500 V

HV

1206

649 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F6653T5E

500 V

HV

1206

665 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F6803T5E

500 V

HV

1206

680 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F6813T5E

500 V

HV

1206

681 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F7153T5E

500 V

HV

1206

715 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F7323T5E

500 V

HV

1206

732 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F7503T5E

500 V

HV

1206

750 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F7504T5E

500 V

HV

1206

7.5 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F7683T5E

500 V

HV

1206

768 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F7873T5E

500 V

HV

1206

787 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F8063T5E

500 V

HV

1206

806 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F8203T5E

500 V

HV

1206

820 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F8204T5E

500 V

HV

1206

8.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F8253T5E

500 V

HV

1206

825 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F8453T5E

500 V

HV

1206

845 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F8663T5E

500 V

HV

1206

866 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F9093T5E

500 V

HV

1206

909 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F9103T5E

500 V

HV

1206

910 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F9313T5E

500 V

HV

1206

931 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4F9533T5E

500 V

HV

1206

953 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0104T5E

500 V

HV

1206

100 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0105T5E

500 V

HV

1206

1 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0106T5E

500 V

HV

1206

10 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0114T5E

500 V

HV

1206

110 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0115T5E

500 V

HV

1206

1.1 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0124T5E

500 V

HV

1206

120 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0125T5E

500 V

HV

1206

1.2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0134T5E

500 V

HV

1206

130 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0135T5E

500 V

HV

1206

1.3 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0154T5E

500 V

HV

1206

150 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0155T5E

500 V

HV

1206

1.5 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0164T5E

500 V

HV

1206

160 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0165T5E

500 V

HV

1206

1.6 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0184T5E

500 V

HV

1206

180 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0185T5E

500 V

HV

1206

1.8 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0204T5E

500 V

HV

1206

200 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0205T5E

500 V

HV

1206

2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0214T5E

500 V

HV

1206

210 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0224T5E

500 V

HV

1206

220 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0225T5E

500 V

HV

1206

2.2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0244T5E

500 V

HV

1206

240 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0245T5E

500 V

HV

1206

2.4 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0274T5E

500 V

HV

1206

270 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0275T5E

500 V

HV

1206

2.7 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0304T5E

500 V

HV

1206

300 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0305T5E

500 V

HV

1206

3 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0334T5E

500 V

HV

1206

330 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0335T5E

500 V

HV

1206

3.3 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0364T5E

500 V

HV

1206

360 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0365T5E

500 V

HV

1206

3.6 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0394T5E

500 V

HV

1206

390 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0395T5E

500 V

HV

1206

3.9 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0434T5E

500 V

HV

1206

430 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0435T5E

500 V

HV

1206

4.3 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0474T5E

500 V

HV

1206

470 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0475T5E

500 V

HV

1206

4.7 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0514T5E

500 V

HV

1206

510 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0515T5E

500 V

HV

1206

5.1 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0564T5E

500 V

HV

1206

560 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0565T5E

500 V

HV

1206

5.6 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0624T5E

500 V

HV

1206

620 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0625T5E

500 V

HV

1206

6.2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0684T5E

500 V

HV

1206

680 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0685T5E

500 V

HV

1206

6.8 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0754T5E

500 V

HV

1206

750 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0755T5E

500 V

HV

1206

7.5 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0824T5E

500 V

HV

1206

820 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0825T5E

500 V

HV

1206

8.2 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0914T5E

500 V

HV

1206

910 kOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W4J0915T5E

500 V

HV

1206

9.1 MOhms

250 mW (1/4 W)

5%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1001T5E

500 V

HV

1206

1 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1002T5E

500 V

HV

1206

10 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1003T5E

500 V

HV

1206

100 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1004T5E

500 V

HV

1206

1 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1005T5E

500 V

HV

1206

10 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1103T5E

500 V

HV

1206

110 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1104T5E

500 V

HV

1206

1.1 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1203T5E

500 V

HV

1206

120 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1204T5E

500 V

HV

1206

1.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1243T5E

500 V

HV

1206

124 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1303T5E

500 V

HV

1206

130 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1304T5E

500 V

HV

1206

1.3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1403T5E

500 V

HV

1206

140 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1503T5E

500 V

HV

1206

150 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1504T5E

500 V

HV

1206

1.5 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1583T5E

500 V

HV

1206

158 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1604T5E

500 V

HV

1206

1.6 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1623T5E

500 V

HV

1206

162 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1653T5E

500 V

HV

1206

165 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1693T5E

500 V

HV

1206

169 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1803T5E

500 V

HV

1206

180 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1804T5E

500 V

HV

1206

1.8 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1824T5E

500 V

HV

1206

1.82 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F1873T5E

500 V

HV

1206

187 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2003T5E

500 V

HV

1206

200 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2004T5E

500 V

HV

1206

2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2153T5E

500 V

HV

1206

215 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2203T5E

500 V

HV

1206

220 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2204T5E

500 V

HV

1206

2.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2213T5E

500 V

HV

1206

221 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2323T5E

500 V

HV

1206

232 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2373T5E

500 V

HV

1206

237 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2403T5E

500 V

HV

1206

240 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2404T5E

500 V

HV

1206

2.4 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2433T5E

500 V

HV

1206

243 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2493T5E

500 V

HV

1206

249 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2553T5E

500 V

HV

1206

255 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2613T5E

500 V

HV

1206

261 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2673T5E

500 V

HV

1206

267 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2703T5E

500 V

HV

1206

270 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2704T5E

500 V

HV

1206

2.7 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2743T5E

500 V

HV

1206

274 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F2803T5E

500 V

HV

1206

280 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3003T5E

500 V

HV

1206

300 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3004T5E

500 V

HV

1206

3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3013T5E

500 V

HV

1206

301 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3243T5E

500 V

HV

1206

324 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3303T5E

500 V

HV

1206

330 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3304T5E

500 V

HV

1206

3.3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3323T5E

500 V

HV

1206

332 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3403T5E

500 V

HV

1206

340 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3573T5E

500 V

HV

1206

357 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3603T5E

500 V

HV

1206

360 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3604T5E

500 V

HV

1206

3.6 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3653T5E

500 V

HV

1206

365 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3743T5E

500 V

HV

1206

374 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3833T5E

500 V

HV

1206

383 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3903T5E

500 V

HV

1206

390 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F3904T5E

500 V

HV

1206

3.9 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4023T5E

500 V

HV

1206

402 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4303T5E

500 V

HV

1206

430 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4304T5E

500 V

HV

1206

4.3 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4323T5E

500 V

HV

1206

432 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4423T5E

500 V

HV

1206

442 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4533T5E

500 V

HV

1206

453 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4534T5E

500 V

HV

1206

4.53 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4643T5E

500 V

HV

1206

464 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4703T5E

500 V

HV

1206

470 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4704T5E

500 V

HV

1206

4.7 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4753T5E

500 V

HV

1206

475 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4873T5E

500 V

HV

1206

487 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4993T5E

500 V

HV

1206

499 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F4994T5E

500 V

HV

1206

4.99 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5103T5E

500 V

HV

1206

510 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5104T5E

500 V

HV

1206

5.1 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5113T5E

500 V

HV

1206

511 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5233T5E

500 V

HV

1206

523 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5363T5E

500 V

HV

1206

536 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5493T5E

500 V

HV

1206

549 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5603T5E

500 V

HV

1206

560 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5604T5E

500 V

HV

1206

5.6 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5623T5E

500 V

HV

1206

562 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5763T5E

500 V

HV

1206

576 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F5903T5E

500 V

HV

1206

590 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F6043T5E

500 V

HV

1206

604 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F6193T5E

500 V

HV

1206

619 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F6203T5E

500 V

HV

1206

620 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F6204T5E

500 V

HV

1206

6.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F6343T5E

500 V

HV

1206

634 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F6493T5E

500 V

HV

1206

649 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F6653T5E

500 V

HV

1206

665 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F6803T5E

500 V

HV

1206

680 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F6813T5E

500 V

HV

1206

681 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F7153T5E

500 V

HV

1206

715 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F7323T5E

500 V

HV

1206

732 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F7503T5E

500 V

HV

1206

750 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F7504T5E

500 V

HV

1206

7.5 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F7683T5E

500 V

HV

1206

768 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F7873T5E

500 V

HV

1206

787 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F8063T5E

500 V

HV

1206

806 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F8203T5E

500 V

HV

1206

820 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F8204T5E

500 V

HV

1206

8.2 MOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

HV06W8F8253T5E

500 V

HV

1206

825 kOhms

250 mW (1/4 W)

1%

100 PPM / C

- 55 C

+ 155 C

Automotive Grade

原创声明：本文系作者授权腾讯云开发者社区发表，未经许可，不得转载。

如有侵权，请联系 cloudcommunity@tencent.com 删除。

芯片

原创声明：本文系作者授权腾讯云开发者社区发表，未经许可，不得转载。

如有侵权，请联系 cloudcommunity@tencent.com 删除。

芯片
评论
登录后参与评论
0 条评论
热度
最新
登录 后参与评论
推荐阅读
目录
  • HV06系列高压贴片电阻核心解析与设计指南
  • 一、核心参数详解
  • 二、典型应用场景与方案设计
    • 1. ​工业电源母线电压采样​
    • 2. ​新能源车OBC（车载充电器）反馈回路​
    • 3. ​LCD背光驱动限流保护​
    • 4. ​医疗设备高压检测电路​
  • 三、设计风险规避指南
  • 四、选型与供应链建议
领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2025 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 深公网安备号 44030502008569

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号 | 京公网安备号11010802020287

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档

Copyright © 2013 - 2025 Tencent Cloud.

All Rights Reserved. 腾讯云 版权所有

登录 后参与评论
