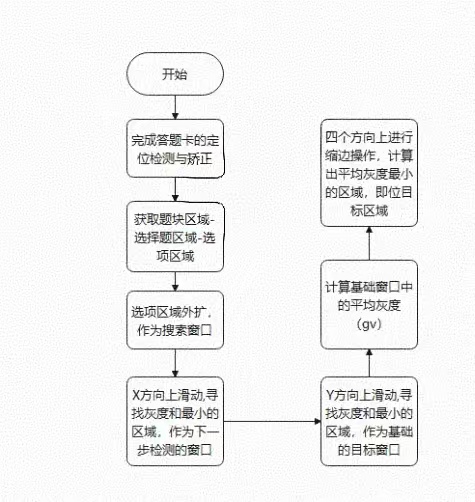

基于滑动窗口的填涂范围寻找

void publicImgTools::detect_aim_optrect(cv::Mat& gray, vector<new_optBlock>& opt_blocks)
{

#ifdef DEBUG_OUTPUT
	Mat orignal_img;
	cv::cvtColor(gray, orignal_img, COLOR_GRAY2BGR);
#endif

	for (auto& opt_block : opt_blocks)
	{
		//题块外接矩形
		cv::Rect block_rect = opt_block.block_rect;
		cv::Mat optblock_area = gray(block_rect);
		//publicImgTools::show_img(optblock_area);
		for (auto& ques_block : opt_block.opts_info)
		{
			//单个选择题外接矩形
			cv::Rect opt_round_rect = ques_block.round_rect;
			cv::Mat opt_area = gray(opt_round_rect);
			//publicImgTools::show_img(opt_area);

			cv::Rect target_rect;
			for (auto rect : ques_block.opt_rects)
			{
				//选择题选项快扩矩形（搜索窗口）
				cv::Rect expand_rect(rect.x - 10, rect.y - 5, rect.width + 20, rect.height + 10);
				cv::Mat exp_choice_area = gray(expand_rect);
				//publicImgTools::show_img(exp_choice_area);

				int sum_pixel = std::numeric_limits<int>::max();
				int max_x = 0;
				int max_y = 0;
				for (int row = 0; row < exp_choice_area.cols - rect.width - 1; row++)
				{
					cv::Rect x_aim_range = cv::Rect(row, 0, rect.width, exp_choice_area.rows);

					/*Mat temp;
					cv::cvtColor(exp_choice_area, temp, COLOR_GRAY2BGR);
					cv::rectangle(temp, x_aim_range, Scalar(0, 0, 255), 2);
					publicImgTools::show_img(temp);*/

					cv::Mat x_aim_area = exp_choice_area(x_aim_range);
					int total_pixelcount = publicImgTools::count_gray_pixelSum(x_aim_area);
					if (total_pixelcount < sum_pixel)
					{
						sum_pixel = total_pixelcount;
						max_x = row;
					}
				}

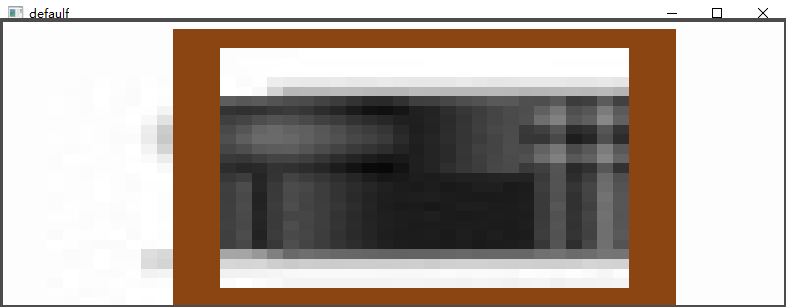

#ifdef DEBUG_OUTPUT
				Mat temp;
				cv::cvtColor(exp_choice_area, temp, COLOR_GRAY2BGR);

				cv::Rect x_aim_range = cv::Rect(max_x, 0, rect.width, exp_choice_area.rows);
				cv::rectangle(temp, x_aim_range, Scalar(19, 69, 139), 2);
				//publicImgTools::show_img(temp);
#endif

				sum_pixel = std::numeric_limits<int>::max();
				for (int col = 0; col < exp_choice_area.rows - rect.height - 1; col++)
				{
					cv::Rect y_aim_range = cv::Rect(max_x, col, rect.width, rect.height);

					/*Mat temp;
					cv::cvtColor(exp_choice_area, temp, COLOR_GRAY2BGR);
					cv::rectangle(temp, x_aim_range, Scalar(0, 0, 255), 2);
					publicImgTools::show_img(temp);*/

					cv::Mat y_aim_area = exp_choice_area(y_aim_range);
					int total_pixelcount = publicImgTools::count_gray_pixelSum(y_aim_area);
					if (total_pixelcount < sum_pixel)
					{
						sum_pixel = total_pixelcount;
						max_y = col;
					}
				}

#ifdef DEBUG_OUTPUT
				cv::Rect final_aim_range = cv::Rect(max_x, max_y, rect.width, rect.height);
				cv::rectangle(temp, final_aim_range, Scalar(0, 255, 255), 2);
				//publicImgTools::show_img(temp);
#endif
				target_rect.x = expand_rect.x + max_x;
				target_rect.y = expand_rect.y + max_y;
				target_rect.width = rect.width;
				target_rect.height = rect.height;
#ifdef DEBUG_OUTPUT
				cv::rectangle(orignal_img, target_rect, Scalar(0, 255, 0), 1);
#endif

				cv::Mat target_area = gray(target_rect);
				double gray_v = publicImgTools::count_gray_pixelSum(target_area) / (double)(target_area.rows * target_area.cols);

				int data_lx = down_scale_rect(target_area, gray_v,2,0);
				if (data_lx > 0)
					target_rect.x = target_rect.x + data_lx;
				target_area = gray(target_rect);
				gray_v = publicImgTools::count_gray_pixelSum(target_area) / (double)(target_area.rows * target_area.cols);

				int data_ty = down_scale_rect(target_area, gray_v, 2, 1);
				if (data_ty > 0)
					target_rect.y = target_rect.y + data_ty;
				target_area = gray(target_rect);
				gray_v = publicImgTools::count_gray_pixelSum(target_area) / (double)(target_area.rows * target_area.cols);

				int data_rx = down_scale_rect(target_area, gray_v, 2, 2);
				if (data_rx > 0)
					target_rect.width = target_rect.width - data_rx;
				target_area = gray(target_rect);
				gray_v = publicImgTools::count_gray_pixelSum(target_area) / (double)(target_area.rows * target_area.cols);

				int data_by = down_scale_rect(target_area, gray_v, 2, 3);
				if (data_by > 0)
					target_rect.height = target_rect.height - data_by;
				target_area = gray(target_rect);
				gray_v = publicImgTools::count_gray_pixelSum(target_area) / (double)(target_area.rows * target_area.cols);

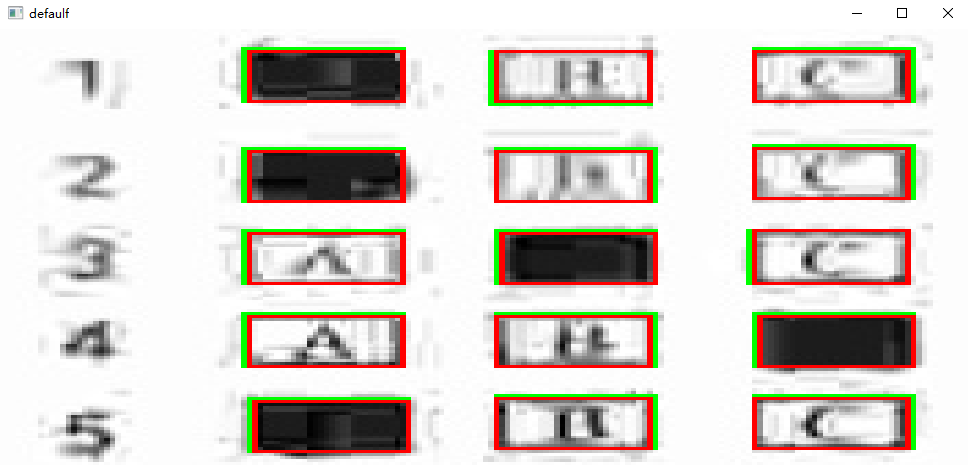

#ifdef DEBUG_OUTPUT
				cv::rectangle(orignal_img, target_rect, Scalar(0, 0, 255), 1);
#endif
			}
		}

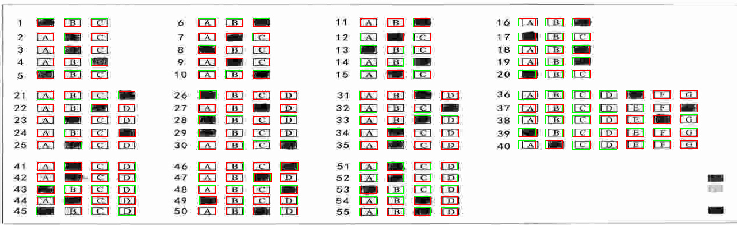

#ifdef DEBUG_OUTPUT
		cv::Mat display_img = orignal_img(block_rect);
		publicImgTools::show_img(orignal_img);
#endif
	}
