构建AI智能体：模型拟合的平衡艺术：深入理解欠拟合与过拟合

import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression
from sklearn.tree import DecisionTreeRegressor
from sklearn.ensemble import RandomForestRegressor
from sklearn.metrics import mean_squared_error

# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False

# 生成示例数据
np.random.seed(42)
X = np.linspace(0, 10, 100).reshape(-1, 1)
y_true = 2 * np.sin(X.ravel()) + 0.5 * X.ravel()  # 真实关系
y_noisy = y_true + np.random.normal(0, 0.5, 100)  # 添加噪声

# 使用过于简单的模型（线性回归）拟合非线性数据
linear_model = LinearRegression()
linear_model.fit(X, y_noisy)
y_pred_linear = linear_model.predict(X)

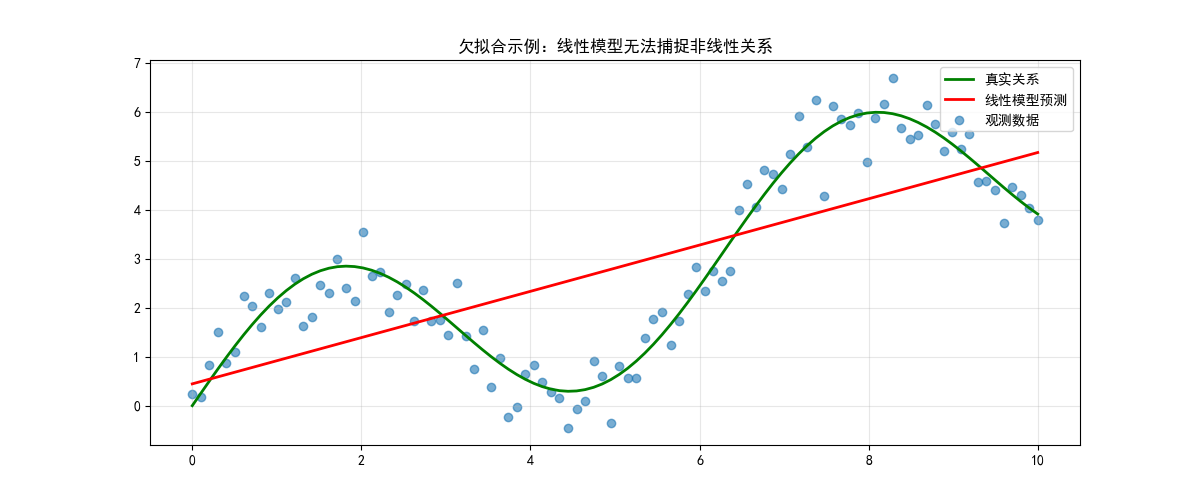

plt.figure(figsize=(12, 5))
plt.scatter(X, y_noisy, alpha=0.6, label='观测数据')
plt.plot(X, y_true, 'g-', linewidth=2, label='真实关系')
plt.plot(X, y_pred_linear, 'r-', linewidth=2, label='线性模型预测')
plt.title('欠拟合示例：线性模型无法捕捉非线性关系')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"线性模型训练MSE: {mean_squared_error(y_noisy, y_pred_linear):.4f}")

# 欠拟合的线性模型
model = LinearRegression()  # 过于简单

# 方法1：多项式回归
from sklearn.preprocessing import PolynomialFeatures
from sklearn.pipeline import Pipeline

poly_model = Pipeline([
    ('poly', PolynomialFeatures(degree=4)),  # 增加复杂度
    ('linear', LinearRegression())
])

# 方法2：使用非线性模型
from sklearn.tree import DecisionTreeRegressor
tree_model = DecisionTreeRegressor(max_depth=5)

# 方法3：添加正弦特征
X_enhanced = np.column_stack([X, np.sin(X), np.cos(X)])
enhanced_model = LinearRegression()

import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression
from sklearn.tree import DecisionTreeRegressor
from sklearn.preprocessing import PolynomialFeatures
from sklearn.pipeline import Pipeline
from sklearn.metrics import mean_squared_error, r2_score
import warnings
warnings.filterwarnings('ignore')

# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False

# 生成示例数据
np.random.seed(42)
X = np.linspace(0, 10, 100).reshape(-1, 1)
y_true = 2 * np.sin(X.ravel()) + 0.5 * X.ravel()  # 真实关系
y_noisy = y_true + np.random.normal(0, 0.5, 100)  # 添加噪声

print("=" * 70)
print("原始线性模型（欠拟合）")
print("=" * 70)

# 使用过于简单的模型（线性回归）拟合非线性数据
linear_model = LinearRegression()
linear_model.fit(X, y_noisy)
y_pred_linear = linear_model.predict(X)

# 计算性能指标
linear_mse = mean_squared_error(y_noisy, y_pred_linear)
linear_r2 = r2_score(y_noisy, y_pred_linear)

plt.figure(figsize=(12, 5))
plt.scatter(X, y_noisy, alpha=0.6, label='观测数据')
plt.plot(X, y_true, 'g-', linewidth=2, label='真实关系')
plt.plot(X, y_pred_linear, 'r-', linewidth=2, label='线性模型预测')
plt.title(f'欠拟合示例：线性模型无法捕捉非线性关系\nMSE: {linear_mse:.4f}, R²: {linear_r2:.4f}')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"线性模型训练MSE: {linear_mse:.4f}")
print(f"线性模型R²分数: {linear_r2:.4f}")
print()

# ============================================================================
# 方法1：多项式回归
# ============================================================================
print("=" * 70)
print("方法1: 多项式回归")
print("=" * 70)

# 创建多项式回归模型
poly_model = Pipeline([
    ('poly', PolynomialFeatures(degree=4)),  # 4次多项式，增加复杂度
    ('linear', LinearRegression())
])

poly_model.fit(X, y_noisy)
y_pred_poly = poly_model.predict(X)

# 计算性能指标
poly_mse = mean_squared_error(y_noisy, y_pred_poly)
poly_r2 = r2_score(y_noisy, y_pred_poly)

# 生成平滑曲线用于更好的可视化
X_smooth = np.linspace(0, 10, 300).reshape(-1, 1)
y_smooth_poly = poly_model.predict(X_smooth)

plt.figure(figsize=(12, 5))
plt.scatter(X, y_noisy, alpha=0.6, label='观测数据')
plt.plot(X, y_true, 'g-', linewidth=2, label='真实关系')
plt.plot(X_smooth, y_smooth_poly, 'r-', linewidth=2, label='4次多项式预测')
plt.title(f'多项式回归改进\nMSE: {poly_mse:.4f}, R²: {poly_r2:.4f}')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"多项式回归MSE: {poly_mse:.4f} (改进: {((linear_mse - poly_mse) / linear_mse * 100):.1f}%)")
print(f"多项式回归R²分数: {poly_r2:.4f}")
print()

# ============================================================================

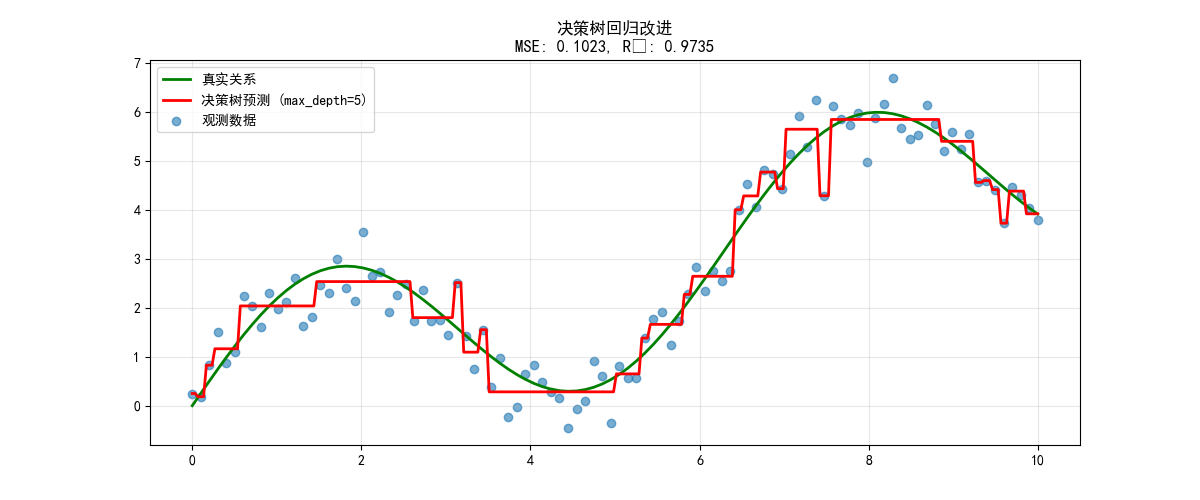

# 方法2：决策树回归
# ============================================================================
print("=" * 70)
print("方法2: 决策树回归")
print("=" * 70)

# 创建决策树模型
tree_model = DecisionTreeRegressor(max_depth=5, random_state=42)
tree_model.fit(X, y_noisy)
y_pred_tree = tree_model.predict(X)

# 计算性能指标
tree_mse = mean_squared_error(y_noisy, y_pred_tree)
tree_r2 = r2_score(y_noisy, y_pred_tree)

# 生成平滑曲线
y_smooth_tree = tree_model.predict(X_smooth)

plt.figure(figsize=(12, 5))
plt.scatter(X, y_noisy, alpha=0.6, label='观测数据')
plt.plot(X, y_true, 'g-', linewidth=2, label='真实关系')
plt.plot(X_smooth, y_smooth_tree, 'r-', linewidth=2, label='决策树预测 (max_depth=5)')
plt.title(f'决策树回归改进\nMSE: {tree_mse:.4f}, R²: {tree_r2:.4f}')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"决策树回归MSE: {tree_mse:.4f} (改进: {((linear_mse - tree_mse) / linear_mse * 100):.1f}%)")
print(f"决策树回归R²分数: {tree_r2:.4f}")
print()

# ============================================================================

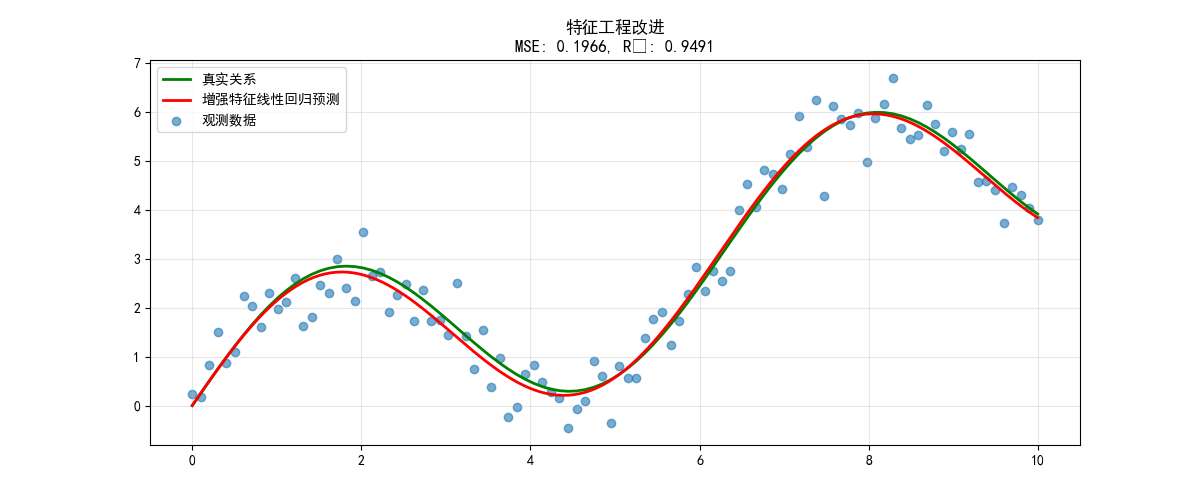

# 方法3：添加正弦特征的线性回归
# ============================================================================
print("=" * 70)
print("方法3: 特征工程 - 添加三角函数特征")
print("=" * 70)

# 添加正弦和余弦特征
X_enhanced = np.column_stack([X, np.sin(X), np.cos(X)])
enhanced_model = LinearRegression()
enhanced_model.fit(X_enhanced, y_noisy)
y_pred_enhanced = enhanced_model.predict(X_enhanced)

# 计算性能指标
enhanced_mse = mean_squared_error(y_noisy, y_pred_enhanced)
enhanced_r2 = r2_score(y_noisy, y_pred_enhanced)

# 生成平滑曲线
X_smooth_enhanced = np.column_stack([X_smooth, np.sin(X_smooth), np.cos(X_smooth)])
y_smooth_enhanced = enhanced_model.predict(X_smooth_enhanced)

plt.figure(figsize=(12, 5))
plt.scatter(X, y_noisy, alpha=0.6, label='观测数据')
plt.plot(X, y_true, 'g-', linewidth=2, label='真实关系')
plt.plot(X_smooth, y_smooth_enhanced, 'r-', linewidth=2, label='增强特征线性回归预测')
plt.title(f'特征工程改进\nMSE: {enhanced_mse:.4f}, R²: {enhanced_r2:.4f}')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"增强特征线性回归MSE: {enhanced_mse:.4f} (改进: {((linear_mse - enhanced_mse) / linear_mse * 100):.1f}%)")
print(f"增强特征线性回归R²分数: {enhanced_r2:.4f}")
print()

# ============================================================================
# 综合对比
# ============================================================================
print("=" * 70)
print("所有方法性能对比")
print("=" * 70)

methods = {
    '线性回归 (欠拟合)': linear_mse,
    '4次多项式回归': poly_mse,
    '决策树回归': tree_mse,
    '增强特征线性回归': enhanced_mse
}

# 按MSE排序
sorted_methods = sorted(methods.items(), key=lambda x: x[1])

print("按MSE从低到高排序:")
print("-" * 50)
for name, mse in sorted_methods:
    improvement = ((linear_mse - mse) / linear_mse * 100)
    print(f"{name:<25}: MSE = {mse:.4f} | 改进 = {improvement:>6.1f}%")

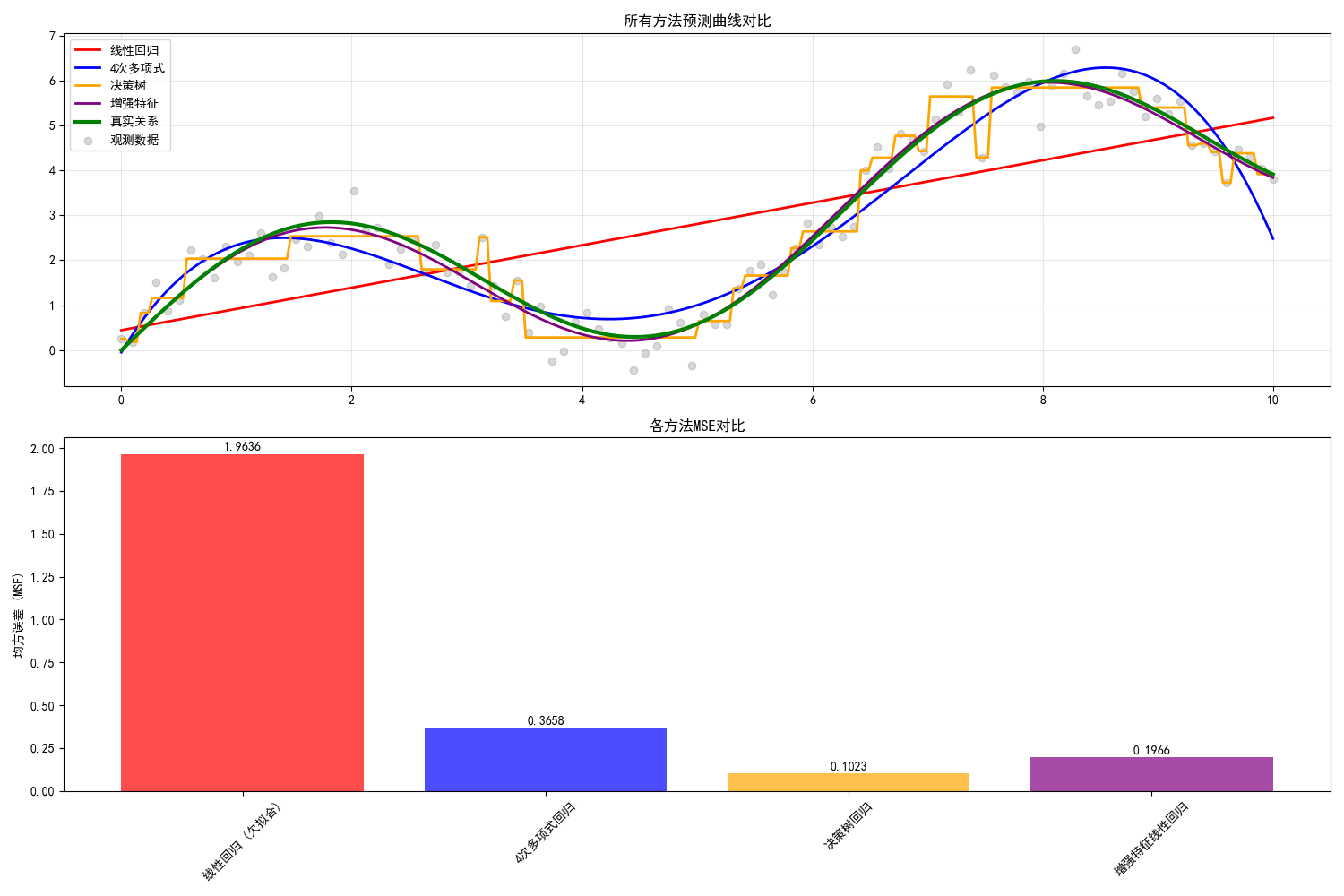

# 绘制所有方法的对比图
plt.figure(figsize=(15, 10))

# 准备预测曲线
predictions = {
    '真实关系': (X_smooth, 2 * np.sin(X_smooth.ravel()) + 0.5 * X_smooth.ravel(), 'g-'),
    '线性回归': (X_smooth, linear_model.predict(X_smooth), 'r-'),
    '4次多项式': (X_smooth, y_smooth_poly, 'b-'),
    '决策树': (X_smooth, y_smooth_tree, 'orange'),
    '增强特征': (X_smooth, y_smooth_enhanced, 'purple')
}

colors = ['red', 'blue', 'orange', 'purple']
models_names = ['线性回归', '4次多项式', '决策树', '增强特征']

plt.subplot(2, 1, 1)
plt.scatter(X, y_noisy, alpha=0.3, color='gray', label='观测数据')
for i, (name, (x_vals, y_vals, style)) in enumerate(predictions.items()):
    if name != '真实关系':
        plt.plot(x_vals, y_vals, color=colors[i-1], linewidth=2, label=name)
plt.plot(X_smooth, predictions['真实关系'][1], 'g-', linewidth=3, label='真实关系')
plt.title('所有方法预测曲线对比')
plt.legend()
plt.grid(True, alpha=0.3)

plt.subplot(2, 1, 2)
# 绘制性能对比条形图
names = list(methods.keys())
mses = list(methods.values())
colors_bar = ['red', 'blue', 'orange', 'purple']

bars = plt.bar(names, mses, color=colors_bar, alpha=0.7)
plt.title('各方法MSE对比')
plt.ylabel('均方误差 (MSE)')
plt.xticks(rotation=45)

# 在条形图上添加数值标签
for bar, mse in zip(bars, mses):
    plt.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 0.01,
             f'{mse:.4f}', ha='center', va='bottom')

plt.tight_layout()
plt.show()

# 原理：通过树结构学习分段常数函数
if x < 2.5:
    if x < 1.2:
        y = 值1
    else:
        y = 值2
else:
    # 更多分支...

import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression
from sklearn.tree import DecisionTreeRegressor
from sklearn.ensemble import RandomForestRegressor
from sklearn.metrics import mean_squared_error

# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False

# 生成示例数据
np.random.seed(42)
X = np.linspace(0, 10, 100).reshape(-1, 1)
y_true = 2 * np.sin(X.ravel()) + 0.5 * X.ravel()  # 真实关系
y_noisy = y_true + np.random.normal(0, 0.5, 100)  # 添加噪声

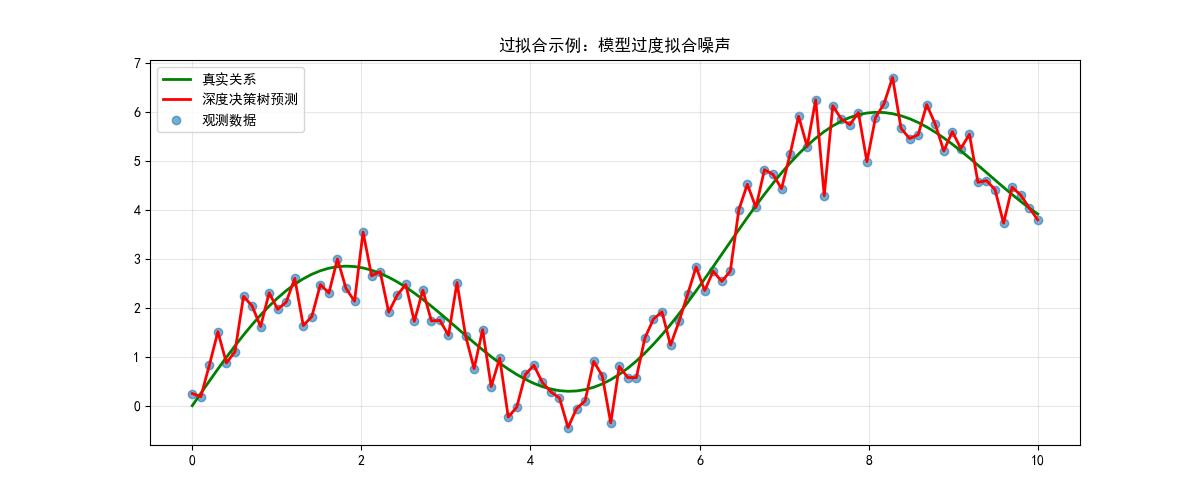

# 使用过于复杂的模型（深度决策树）拟合数据
deep_tree = DecisionTreeRegressor(max_depth=20, random_state=42)
deep_tree.fit(X, y_noisy)
y_pred_tree = deep_tree.predict(X)

plt.figure(figsize=(12, 5))
plt.scatter(X, y_noisy, alpha=0.6, label='观测数据')
plt.plot(X, y_true, 'g-', linewidth=2, label='真实关系')
plt.plot(X, y_pred_tree, 'r-', linewidth=2, label='深度决策树预测')
plt.title('过拟合示例：模型过度拟合噪声')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"深度决策树训练MSE: {mean_squared_error(y_noisy, y_pred_tree):.4f}")

# 问题代码：过度复杂的模型
deep_tree = DecisionTreeRegressor(max_depth=20, random_state=42)

# 参数分析：
# - max_depth=20：树深度极大
# - 100个数据点，深度20意味着极端细分
# - 每个叶节点可能只包含1-2个样本

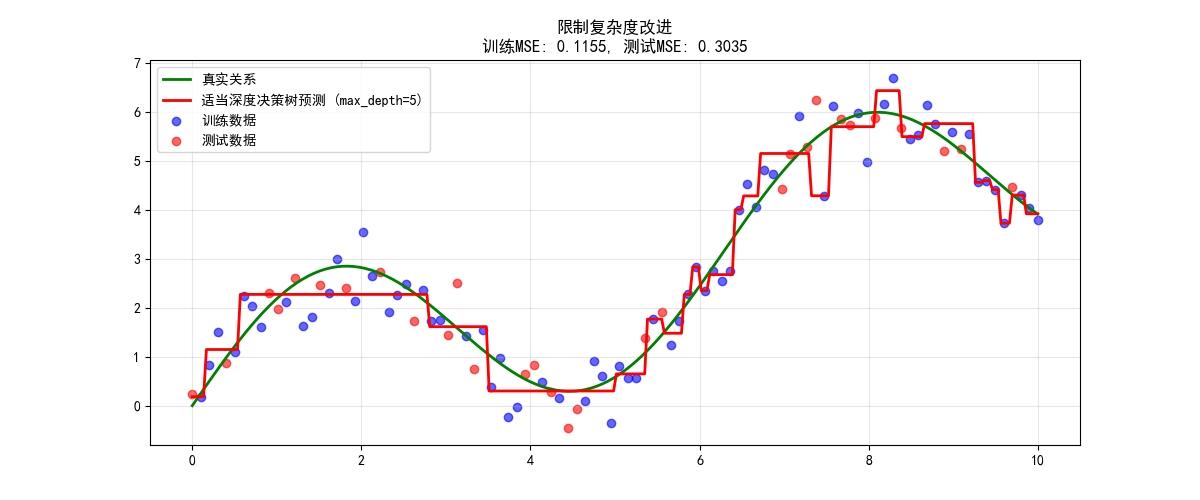

# 修复：适当限制树深度
proper_tree = DecisionTreeRegressor(max_depth=5, random_state=42)

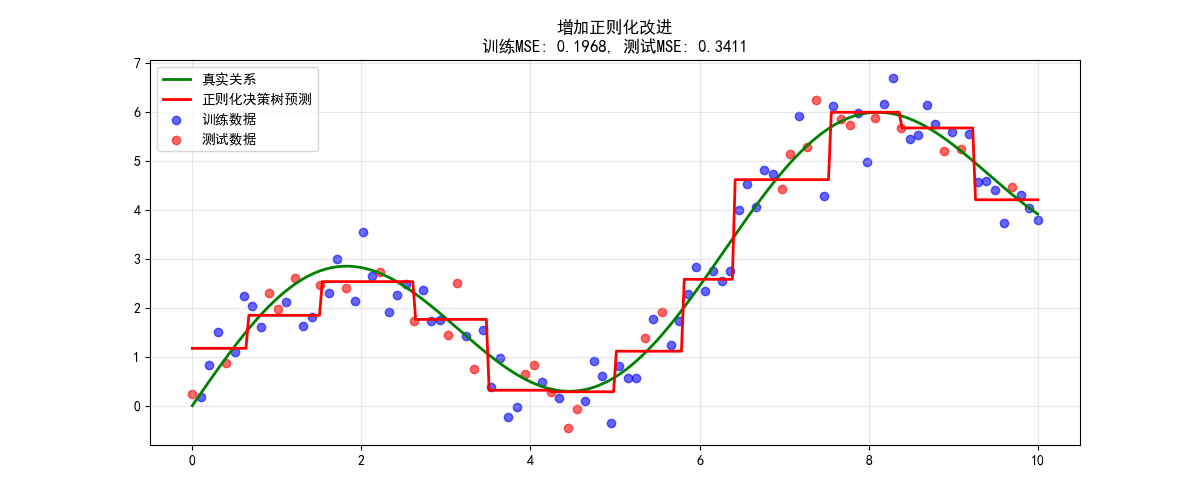

# 决策树的正则化参数
good_tree = DecisionTreeRegressor(
    max_depth=5,
    min_samples_split=10,    # 节点最少样本数
    min_samples_leaf=5,      # 叶节点最少样本数
    random_state=42
)

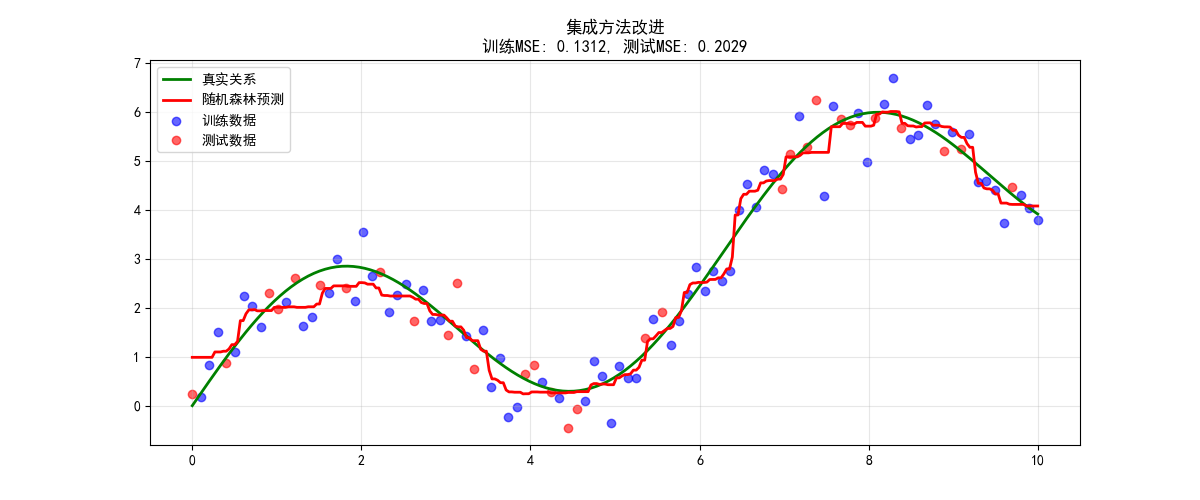

# 随机森林通过平均减少过拟合
from sklearn.ensemble import RandomForestRegressor
forest = RandomForestRegressor(
    n_estimators=100,
    max_depth=5,
    random_state=42
)

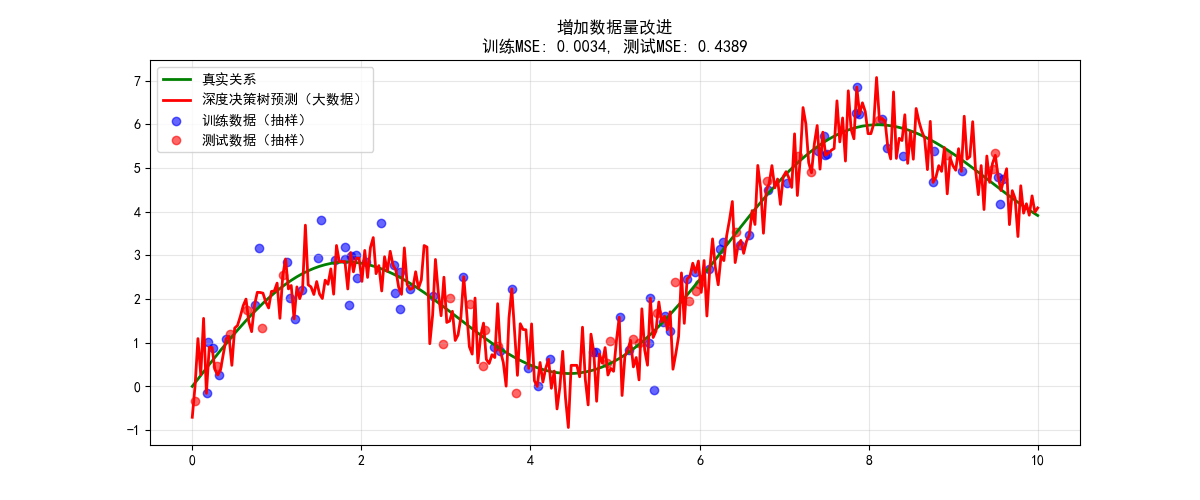

# 如果可能，收集更多数据
# 更多数据可以约束复杂模型
X_large = np.linspace(0, 10, 1000).reshape(-1, 1)
y_large = 2 * np.sin(X_large.ravel()) + 0.5 * X_large.ravel() + np.random.normal(0, 0.5, 1000)

import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression
from sklearn.tree import DecisionTreeRegressor
from sklearn.ensemble import RandomForestRegressor
from sklearn.metrics import mean_squared_error, r2_score
from sklearn.model_selection import train_test_split

# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False

# 生成示例数据
np.random.seed(42)
X = np.linspace(0, 10, 100).reshape(-1, 1)
y_true = 2 * np.sin(X.ravel()) + 0.5 * X.ravel()  # 真实关系
y_noisy = y_true + np.random.normal(0, 0.5, 100)  # 添加噪声

# 划分训练集和测试集
X_train, X_test, y_train, y_test = train_test_split(X, y_noisy, test_size=0.3, random_state=42)

print("=" * 70)
print("原始过拟合模型（深度决策树）")
print("=" * 70)

# 使用过于复杂的模型（深度决策树）拟合数据
deep_tree = DecisionTreeRegressor(max_depth=20, random_state=42)
deep_tree.fit(X_train, y_train)
y_pred_train = deep_tree.predict(X_train)
y_pred_test = deep_tree.predict(X_test)

# 计算性能指标
train_mse_deep = mean_squared_error(y_train, y_pred_train)
test_mse_deep = mean_squared_error(y_test, y_pred_test)
train_r2_deep = r2_score(y_train, y_pred_train)
test_r2_deep = r2_score(y_test, y_pred_test)

# 生成平滑曲线用于可视化
X_smooth = np.linspace(0, 10, 300).reshape(-1, 1)
y_smooth_deep = deep_tree.predict(X_smooth)

plt.figure(figsize=(12, 5))
plt.scatter(X_train, y_train, color='blue', alpha=0.6, label='训练数据')
plt.scatter(X_test, y_test, color='red', alpha=0.6, label='测试数据')
plt.plot(X_smooth, 2 * np.sin(X_smooth.ravel()) + 0.5 * X_smooth.ravel(),
         'g-', linewidth=2, label='真实关系')
plt.plot(X_smooth, y_smooth_deep, 'r-', linewidth=2, label='深度决策树预测')
plt.title(f'过拟合示例：模型过度拟合噪声\n训练MSE: {train_mse_deep:.4f}, 测试MSE: {test_mse_deep:.4f}')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"深度决策树训练MSE: {train_mse_deep:.4f}")
print(f"深度决策树测试MSE: {test_mse_deep:.4f}")
print(f"深度决策树训练R²: {train_r2_deep:.4f}")
print(f"深度决策树测试R²: {test_r2_deep:.4f}")
print(f"泛化差距: {test_mse_deep - train_mse_deep:.4f}")
print()

# ============================================================================
# 方法1：限制模型复杂度（减小树深度）
# ============================================================================
print("=" * 70)
print("方法1: 限制模型复杂度")
print("=" * 70)

# 创建适当深度的决策树
proper_tree = DecisionTreeRegressor(max_depth=5, random_state=42)
proper_tree.fit(X_train, y_train)
y_pred_train_proper = proper_tree.predict(X_train)
y_pred_test_proper = proper_tree.predict(X_test)

# 计算性能指标
train_mse_proper = mean_squared_error(y_train, y_pred_train_proper)
test_mse_proper = mean_squared_error(y_test, y_pred_test_proper)
train_r2_proper = r2_score(y_train, y_pred_train_proper)
test_r2_proper = r2_score(y_test, y_pred_test_proper)

# 生成平滑曲线
y_smooth_proper = proper_tree.predict(X_smooth)

plt.figure(figsize=(12, 5))
plt.scatter(X_train, y_train, color='blue', alpha=0.6, label='训练数据')
plt.scatter(X_test, y_test, color='red', alpha=0.6, label='测试数据')
plt.plot(X_smooth, 2 * np.sin(X_smooth.ravel()) + 0.5 * X_smooth.ravel(),
         'g-', linewidth=2, label='真实关系')
plt.plot(X_smooth, y_smooth_proper, 'r-', linewidth=2, label='适当深度决策树预测 (max_depth=5)')
plt.title(f'限制复杂度改进\n训练MSE: {train_mse_proper:.4f}, 测试MSE: {test_mse_proper:.4f}')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"适当深度决策树训练MSE: {train_mse_proper:.4f}")
print(f"适当深度决策树测试MSE: {test_mse_proper:.4f}")
print(f"适当深度决策树训练R²: {train_r2_proper:.4f}")
print(f"适当深度决策树测试R²: {test_r2_proper:.4f}")
print(f"泛化差距: {test_mse_proper - train_mse_proper:.4f}")
print(f"测试MSE改进: {((test_mse_deep - test_mse_proper) / test_mse_deep * 100):.1f}%")
print()

# ============================================================================
# 方法2：增加正则化（决策树的正则化参数）
# ============================================================================
print("=" * 70)
print("方法2: 增加正则化")
print("=" * 70)

# 创建带有正则化的决策树
regularized_tree = DecisionTreeRegressor(
    max_depth=10,
    min_samples_split=10,    # 节点最少需要10个样本才分裂
    min_samples_leaf=5,      # 叶节点最少需要5个样本
    max_features=0.8,        # 每次分裂考虑80%的特征
    random_state=42
)
regularized_tree.fit(X_train, y_train)
y_pred_train_reg = regularized_tree.predict(X_train)
y_pred_test_reg = regularized_tree.predict(X_test)

# 计算性能指标
train_mse_reg = mean_squared_error(y_train, y_pred_train_reg)
test_mse_reg = mean_squared_error(y_test, y_pred_test_reg)
train_r2_reg = r2_score(y_train, y_pred_train_reg)
test_r2_reg = r2_score(y_test, y_pred_test_reg)

# 生成平滑曲线
y_smooth_reg = regularized_tree.predict(X_smooth)

plt.figure(figsize=(12, 5))
plt.scatter(X_train, y_train, color='blue', alpha=0.6, label='训练数据')
plt.scatter(X_test, y_test, color='red', alpha=0.6, label='测试数据')
plt.plot(X_smooth, 2 * np.sin(X_smooth.ravel()) + 0.5 * X_smooth.ravel(),
         'g-', linewidth=2, label='真实关系')
plt.plot(X_smooth, y_smooth_reg, 'r-', linewidth=2, label='正则化决策树预测')
plt.title(f'增加正则化改进\n训练MSE: {train_mse_reg:.4f}, 测试MSE: {test_mse_reg:.4f}')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"正则化决策树训练MSE: {train_mse_reg:.4f}")
print(f"正则化决策树测试MSE: {test_mse_reg:.4f}")
print(f"正则化决策树训练R²: {train_r2_reg:.4f}")
print(f"正则化决策树测试R²: {test_r2_reg:.4f}")
print(f"泛化差距: {test_mse_reg - train_mse_reg:.4f}")
print(f"测试MSE改进: {((test_mse_deep - test_mse_reg) / test_mse_deep * 100):.1f}%")
print()

# ============================================================================
# 方法3：使用集成方法（随机森林）
# ============================================================================
print("=" * 70)
print("方法3: 使用集成方法")
print("=" * 70)

# 创建随机森林模型
forest_model = RandomForestRegressor(
    n_estimators=100,        # 100棵树
    max_depth=5,             # 每棵树深度5
    min_samples_split=5,     # 正则化参数
    min_samples_leaf=2,      # 正则化参数
    max_features=0.8,        # 特征采样
    random_state=42
)
forest_model.fit(X_train, y_train)
y_pred_train_forest = forest_model.predict(X_train)
y_pred_test_forest = forest_model.predict(X_test)

# 计算性能指标
train_mse_forest = mean_squared_error(y_train, y_pred_train_forest)
test_mse_forest = mean_squared_error(y_test, y_pred_test_forest)
train_r2_forest = r2_score(y_train, y_pred_train_forest)
test_r2_forest = r2_score(y_test, y_pred_test_forest)

# 生成平滑曲线
y_smooth_forest = forest_model.predict(X_smooth)

plt.figure(figsize=(12, 5))
plt.scatter(X_train, y_train, color='blue', alpha=0.6, label='训练数据')
plt.scatter(X_test, y_test, color='red', alpha=0.6, label='测试数据')
plt.plot(X_smooth, 2 * np.sin(X_smooth.ravel()) + 0.5 * X_smooth.ravel(),
         'g-', linewidth=2, label='真实关系')
plt.plot(X_smooth, y_smooth_forest, 'r-', linewidth=2, label='随机森林预测')
plt.title(f'集成方法改进\n训练MSE: {train_mse_forest:.4f}, 测试MSE: {test_mse_forest:.4f}')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"随机森林训练MSE: {train_mse_forest:.4f}")
print(f"随机森林测试MSE: {test_mse_forest:.4f}")
print(f"随机森林训练R²: {train_r2_forest:.4f}")
print(f"随机森林测试R²: {test_r2_forest:.4f}")
print(f"泛化差距: {test_mse_forest - train_mse_forest:.4f}")
print(f"测试MSE改进: {((test_mse_deep - test_mse_forest) / test_mse_deep * 100):.1f}%")
print()

# ============================================================================
# 方法4：增加数据量
# ============================================================================
print("=" * 70)
print("方法4: 增加数据量")
print("=" * 70)

# 生成更多数据
X_large = np.linspace(0, 10, 1000).reshape(-1, 1)
y_true_large = 2 * np.sin(X_large.ravel()) + 0.5 * X_large.ravel()
y_noisy_large = y_true_large + np.random.normal(0, 0.5, 1000)

# 划分训练集和测试集
X_train_large, X_test_large, y_train_large, y_test_large = train_test_split(
    X_large, y_noisy_large, test_size=0.3, random_state=42
)

# 在大量数据上训练深度决策树
deep_tree_large = DecisionTreeRegressor(max_depth=20, random_state=42)
deep_tree_large.fit(X_train_large, y_train_large)
y_pred_train_large = deep_tree_large.predict(X_train_large)
y_pred_test_large = deep_tree_large.predict(X_test_large)

# 计算性能指标
train_mse_large = mean_squared_error(y_train_large, y_pred_train_large)
test_mse_large = mean_squared_error(y_test_large, y_pred_test_large)
train_r2_large = r2_score(y_train_large, y_pred_train_large)
test_r2_large = r2_score(y_test_large, y_pred_test_large)

# 生成平滑曲线（只显示部分区域以避免过于密集）
X_smooth_large = np.linspace(0, 10, 300).reshape(-1, 1)
y_smooth_large = deep_tree_large.predict(X_smooth_large)

plt.figure(figsize=(12, 5))
# 只显示部分训练数据点，避免图像过于密集
plt.scatter(X_train_large[::10], y_train_large[::10], color='blue', alpha=0.6, label='训练数据（抽样）')
plt.scatter(X_test_large[::10], y_test_large[::10], color='red', alpha=0.6, label='测试数据（抽样）')
plt.plot(X_smooth_large, 2 * np.sin(X_smooth_large.ravel()) + 0.5 * X_smooth_large.ravel(),
         'g-', linewidth=2, label='真实关系')
plt.plot(X_smooth_large, y_smooth_large, 'r-', linewidth=2, label='深度决策树预测（大数据）')
plt.title(f'增加数据量改进\n训练MSE: {train_mse_large:.4f}, 测试MSE: {test_mse_large:.4f}')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

print(f"大数据深度决策树训练MSE: {train_mse_large:.4f}")
print(f"大数据深度决策树测试MSE: {test_mse_large:.4f}")
print(f"大数据深度决策树训练R²: {train_r2_large:.4f}")
print(f"大数据深度决策树测试R²: {test_r2_large:.4f}")
print(f"泛化差距: {test_mse_large - train_mse_large:.4f}")
print(f"测试MSE改进（相比小数据）: {((test_mse_deep - test_mse_large) / test_mse_deep * 100):.1f}%")
print()

# ============================================================================
# 综合对比
# ============================================================================
print("=" * 70)
print("所有方法性能对比（按测试MSE排序）")
print("=" * 70)

methods = {
    '深度决策树 (过拟合)': (train_mse_deep, test_mse_deep),
    '限制复杂度 (深度=5)': (train_mse_proper, test_mse_proper),
    '增加正则化': (train_mse_reg, test_mse_reg),
    '随机森林': (train_mse_forest, test_mse_forest),
    '增加数据量': (train_mse_large, test_mse_large)
}

# 按测试MSE排序
sorted_methods = sorted(methods.items(), key=lambda x: x[1][1])

print("方法名称                    | 训练MSE   | 测试MSE   | 泛化差距  | 测试改进%")
print("-" * 75)
for name, (train_mse, test_mse) in sorted_methods:
    gap = test_mse - train_mse
    improvement = ((test_mse_deep - test_mse) / test_mse_deep * 100) if name != '深度决策树 (过拟合)' else 0
    print(f"{name:<25} | {train_mse:.4f}   | {test_mse:.4f}   | {gap:.4f}   | {improvement:>6.1f}%")

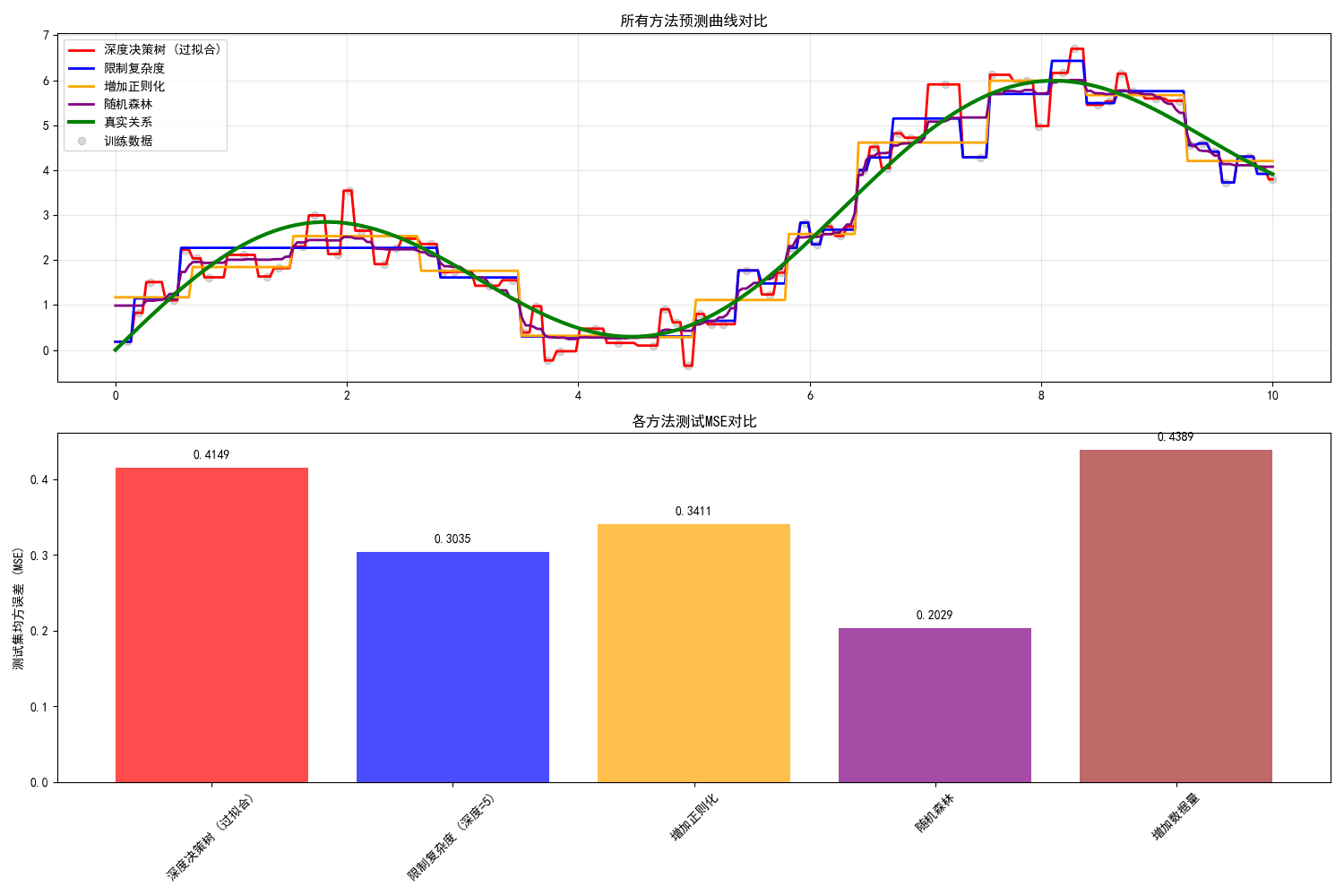

# 绘制所有方法的预测曲线对比
plt.figure(figsize=(15, 10))

# 准备预测曲线
predictions = {
    '真实关系': (X_smooth, 2 * np.sin(X_smooth.ravel()) + 0.5 * X_smooth.ravel(), 'g-'),
    '深度决策树 (过拟合)': (X_smooth, y_smooth_deep, 'red'),
    '限制复杂度': (X_smooth, y_smooth_proper, 'blue'),
    '增加正则化': (X_smooth, y_smooth_reg, 'orange'),
    '随机森林': (X_smooth, y_smooth_forest, 'purple')
}

colors = ['red', 'blue', 'orange', 'purple']
models_names = ['深度决策树 (过拟合)', '限制复杂度', '增加正则化', '随机森林']

plt.subplot(2, 1, 1)
plt.scatter(X_train, y_train, alpha=0.3, color='gray', label='训练数据')
for i, (name, (x_vals, y_vals, style)) in enumerate(predictions.items()):
    if name != '真实关系':
        plt.plot(x_vals, y_vals, color=colors[i-1], linewidth=2, label=name)
plt.plot(X_smooth, predictions['真实关系'][1], 'g-', linewidth=3, label='真实关系')
plt.title('所有方法预测曲线对比')
plt.legend()
plt.grid(True, alpha=0.3)

plt.subplot(2, 1, 2)
# 绘制性能对比条形图
names = list(methods.keys())
test_mses = [methods[name][1] for name in names]
colors_bar = ['red', 'blue', 'orange', 'purple', 'brown']

bars = plt.bar(names, test_mses, color=colors_bar, alpha=0.7)
plt.title('各方法测试MSE对比')
plt.ylabel('测试集均方误差 (MSE)')
plt.xticks(rotation=45)

# 在条形图上添加数值标签
for bar, mse in zip(bars, test_mses):
    plt.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 0.01,
             f'{mse:.4f}', ha='center', va='bottom')

plt.tight_layout()
plt.show()

# 原理：减少模型容量，防止过度拟合
DecisionTreeRegressor(max_depth=5)  # 而不是20

# 效果：
- 叶节点数量从2^20 ≈ 1百万减少到2^5 = 32
- 每个叶节点包含更多样本，学习普遍模式而非噪声

# 原理：通过约束条件限制模型灵活性
DecisionTreeRegressor(
    min_samples_split=10,  # 节点至少10个样本才分裂
    min_samples_leaf=5,    # 叶节点至少5个样本
    max_features=0.8       # 每次分裂只考虑80%特征
)

# 原理：多个模型的平均减少方差
RandomForestRegressor(
    n_estimators=100,      # 100个树
    max_depth=5,           # 每个树适度复杂
    # 通过bootstrap和特征采样增加多样性
)
