问请问，哨兵一号数据进行地形校正和refinedLee预处理，得到的数据出现条带状有规律的空缺，该怎么解决？

var roi =table

/*##############################S1数据滤波###############################################################*/

var s1 = ee.ImageCollection('COPERNICUS/S1_GRD')

.filter(ee.Filter.listContains('transmitterReceiverPolarisation', 'VH'))

.filter(ee.Filter.listContains('transmitterReceiverPolarisation', 'VV'))

//.filter(ee.Filter.eq('orbitProperties_pass', ['ASCENDING', 'DESCENDING']))

.filter(ee.Filter.eq('instrumentMode', 'IW'))

.filterBounds(roi)

.filterDate("2018-07-8","2018-08-26");

var firstNoTerrainCorrection = ee.Image(s1.median()).clip(roi);

//Map.addLayer(firstNoTerrainCorrection,{min:-25,max:20},"no terrain correction");

Map.centerObject(roi, 5);

s1 = s1.map(terrainCorrection);

var s1_lee_sigma = s1.map(refinedLee);

var firstTerrainCorrection = ee.Image(s1.first());

var s1_refinedLee = ee.Image(s1_lee_sigma.median());

//print('s1_refinedLee',s1_refinedLee);

s1_refinedLee = s1_refinedLee.clip(roi);

var S1TerrainCorrection = firstTerrainCorrection.clip(roi);

//Map.addLayer(s1_lee_sigma,{min:-25,max:20},"s1_lee_sigma")

Map.addLayer(s1_refinedLee,{min:-25,max:20},"refined lee");

//Map.addLayer(s1,{min:-25,max:20},"s1")

// Implementation by Andreas Vollrath (ESA), inspired by Johannes Reiche (Wageningen)

function Clip(image,roi){

var mask=ee.Image.constant(1).clip(roi).mask();

return image.updateMask(mask);

}

function terrainCorrection(image) {

var imgGeom = image.geometry();

var srtm = ee.Image('USGS/SRTMGL1_003').clip(imgGeom); // 30m srtm

var sigma0Pow = ee.Image.constant(10).pow(image.divide(10.0));

// Article ( numbers relate to chapters)

// 2.1.1 Radar geometry

var theta_i = image.select('angle');

var phi_i = ee.Terrain.aspect(theta_i)

.reduceRegion(ee.Reducer.mean(), theta_i.get('system:footprint'), 1000)

.get('aspect');

// 2.1.2 Terrain geometry

var alpha_s = ee.Terrain.slope(srtm).select('slope');

var phi_s = ee.Terrain.aspect(srtm).select('aspect');

// 2.1.3 Model geometry

// reduce to 3 angle

var phi_r = ee.Image.constant(phi_i).subtract(phi_s);

// convert all to radians

var phi_rRad = phi_r.multiply(Math.PI / 180);

var alpha_sRad = alpha_s.multiply(Math.PI / 180);

var theta_iRad = theta_i.multiply(Math.PI / 180);

var ninetyRad = ee.Image.constant(90).multiply(Math.PI / 180);

// slope steepness in range (eq. 2)

var alpha_r = (alpha_sRad.tan().multiply(phi_rRad.cos())).atan();

// slope steepness in azimuth (eq 3)

var alpha_az = (alpha_sRad.tan().multiply(phi_rRad.sin())).atan();

// local incidence angle (eq. 4)

var theta_lia = (alpha_az.cos().multiply((theta_iRad.subtract(alpha_r)).cos())).acos();

var theta_liaDeg = theta_lia.multiply(180 / Math.PI);

// 2.2

// Gamma_nought_flat

var gamma0 = sigma0Pow.divide(theta_iRad.cos());

var gamma0dB = ee.Image.constant(10).multiply(gamma0.log10());

var ratio_1 = gamma0dB.select('VV').subtract(gamma0dB.select('VH'));

// Volumetric Model

var nominator = (ninetyRad.subtract(theta_iRad).add(alpha_r)).tan();

var denominator = (ninetyRad.subtract(theta_iRad)).tan();

var volModel = (nominator.divide(denominator)).abs();

// apply model

var gamma0_Volume = gamma0.divide(volModel);

var gamma0_VolumeDB = ee.Image.constant(10).multiply(gamma0_Volume.log10());

// we add a layover/shadow maskto the original implmentation

// layover, where slope > radar viewing angle

var alpha_rDeg = alpha_r.multiply(180 / Math.PI);

var layover = alpha_rDeg.lt(theta_i);

// shadow where LIA > 90

var shadow = theta_liaDeg.lt(90);

// calculate the ratio for RGB vis

var ratio = gamma0_VolumeDB.select('VV').subtract(gamma0_VolumeDB.select('VH'));

var output = gamma0_VolumeDB.addBands(ratio).addBands(alpha_r).addBands(phi_s).addBands(theta_iRad)

.addBands(layover).addBands(shadow).addBands(gamma0dB).addBands(ratio_1);

return image.addBands(

output.select(['VV', 'VH'], ['VV', 'VH']),

null,

true

);

}

function powerToDb(img){

return ee.Image(10).multiply(img.log10());

}

function dbToPower(img){

return ee.Image(10).pow(img.divide(10));

}

// The RL speckle filter

function refinedLee(image) {

var bandNames = image.bandNames();

image = dbToPower(image);

var result = ee.ImageCollection(bandNames.map(function(b){

var img = image.select([b]);

// img must be in natural units, i.e. not in dB!

// Set up 3x3 kernels

var weights3 = ee.List.repeat(ee.List.repeat(1,3),3);

var kernel3 = ee.Kernel.fixed(3,3, weights3, 1, 1, false);

var mean3 = img.reduceNeighborhood(ee.Reducer.mean(), kernel3);

var variance3 = img.reduceNeighborhood(ee.Reducer.variance(), kernel3);

// Use a sample of the 3x3 windows inside a 7x7 windows to determine gradients and directions

var sample_weights = ee.List([[0,0,0,0,0,0,0], [0,1,0,1,0,1,0],[0,0,0,0,0,0,0], [0,1,0,1,0,1,0], [0,0,0,0,0,0,0], [0,1,0,1,0,1,0],[0,0,0,0,0,0,0]]);

var sample_kernel = ee.Kernel.fixed(7,7, sample_weights, 3,3, false);

// Calculate mean and variance for the sampled windows and store as 9 bands

var sample_mean = mean3.neighborhoodToBands(sample_kernel);

var sample_var = variance3.neighborhoodToBands(sample_kernel);

// Determine the 4 gradients for the sampled windows

var gradients = sample_mean.select(1).subtract(sample_mean.select(7)).abs();

gradients = gradients.addBands(sample_mean.select(6).subtract(sample_mean.select(2)).abs());

gradients = gradients.addBands(sample_mean.select(3).subtract(sample_mean.select(5)).abs());

gradients = gradients.addBands(sample_mean.select(0).subtract(sample_mean.select(8)).abs());

// And find the maximum gradient amongst gradient bands

var max_gradient = gradients.reduce(ee.Reducer.max());

// Create a mask for band pixels that are the maximum gradient

var gradmask = gradients.eq(max_gradient);

// duplicate gradmask bands: each gradient represents 2 directions

gradmask = gradmask.addBands(gradmask);

// Determine the 8 directions

var directions = sample_mean.select(1).subtract(sample_mean.select(4))

.gt(sample_mean.select(4).subtract(sample_mean.select(7)))

.multiply(1);

directions = directions.addBands(sample_mean.select(6).subtract(sample_mean.select(4))

.gt(sample_mean.select(4).subtract(sample_mean.select(2)))

.multiply(2));

directions = directions.addBands(sample_mean.select(3).subtract(sample_mean.select(4))

.gt(sample_mean.select(4).subtract(sample_mean.select(5)))

.multiply(3));

directions = directions.addBands(sample_mean.select(0).subtract(sample_mean.select(4))

.gt(sample_mean.select(4).subtract(sample_mean.select(8)))

.multiply(4));

// The next 4 are the not() of the previous 4

directions = directions.addBands(directions.select(0).not().multiply(5));

directions = directions.addBands(directions.select(1).not().multiply(6));

directions = directions.addBands(directions.select(2).not().multiply(7));

directions = directions.addBands(directions.select(3).not().multiply(8));

// Mask all values that are not 1-8

directions = directions.updateMask(gradmask);

// "collapse" the stack into a singe band image (due to masking, each pixel has just one value (1-8) in it's directional band, and is otherwise masked)

directions = directions.reduce(ee.Reducer.sum());

//var pal = ['ffffff','ff0000','ffff00', '00ff00', '00ffff', '0000ff', 'ff00ff', '000000'];

//Map.addLayer(directions.reduce(ee.Reducer.sum()), {min:1, max:8, palette: pal}, 'Directions', false);

var sample_stats = sample_var.divide(sample_mean.multiply(sample_mean));

// Calculate localNoiseVariance

var sigmaV = sample_stats.toArray().arraySort().arraySlice(0,0,5).arrayReduce(ee.Reducer.mean(), [0]);

// Set up the 7*7 kernels for directional statistics

var rect_weights = ee.List.repeat(ee.List.repeat(0,7),3).cat(ee.List.repeat(ee.List.repeat(1,7),4));

var diag_weights = ee.List([[1,0,0,0,0,0,0], [1,1,0,0,0,0,0], [1,1,1,0,0,0,0],

[1,1,1,1,0,0,0], [1,1,1,1,1,0,0], [1,1,1,1,1,1,0], [1,1,1,1,1,1,1]]);

var rect_kernel = ee.Kernel.fixed(7,7, rect_weights, 3, 3, false);

var diag_kernel = ee.Kernel.fixed(7,7, diag_weights, 3, 3, false);

// Create stacks for mean and variance using the original kernels. Mask with relevant direction.

var dir_mean = img.reduceNeighborhood(ee.Reducer.mean(), rect_kernel)//.updateMask(directions.eq(1));

var dir_var = img.reduceNeighborhood(ee.Reducer.variance(), rect_kernel)//.updateMask(directions.eq(1));

dir_mean = dir_mean.addBands(img.reduceNeighborhood(ee.Reducer.mean(), diag_kernel).updateMask(directions.eq(2)));

dir_var = dir_var.addBands(img.reduceNeighborhood(ee.Reducer.variance(), diag_kernel).updateMask(directions.eq(2)));

// and add the bands for rotated kernels

for (var i=1; i<4; i++) {

dir_mean = dir_mean.addBands(img.reduceNeighborhood(ee.Reducer.mean(), rect_kernel.rotate(i)).updateMask(directions.eq(2*i+1)));

dir_var = dir_var.addBands(img.reduceNeighborhood(ee.Reducer.variance(), rect_kernel.rotate(i)).updateMask(directions.eq(2*i+1)));

dir_mean = dir_mean.addBands(img.reduceNeighborhood(ee.Reducer.mean(), diag_kernel.rotate(i)).updateMask(directions.eq(2*i+2)));

dir_var = dir_var.addBands(img.reduceNeighborhood(ee.Reducer.variance(), diag_kernel.rotate(i)).updateMask(directions.eq(2*i+2)));

}

// "collapse" the stack into a single band image (due to masking, each pixel has just one value in it's directional band, and is otherwise masked)

dir_mean = dir_mean.reduce(ee.Reducer.sum());

dir_var = dir_var.reduce(ee.Reducer.sum());

// A finally generate the filtered value

var varX = dir_var.subtract(dir_mean.multiply(dir_mean).multiply(sigmaV)).divide(sigmaV.add(1.0));

var b = varX.divide(dir_var);

return dir_mean.add(b.multiply(img.subtract(dir_mean)))

.arrayProject([0])

// Get a multi-band image bands.

.arrayFlatten([['sum']])

.float();

})).toBands().rename(bandNames);

return powerToDb(ee.Image(result));

}

Sentinel-1数据经过地形校正，并由refinedLee进行了预处理，得到的数据有规律地出现间隙，不知道问题出在哪里，请帮忙看看是怎么回事,非常感谢。

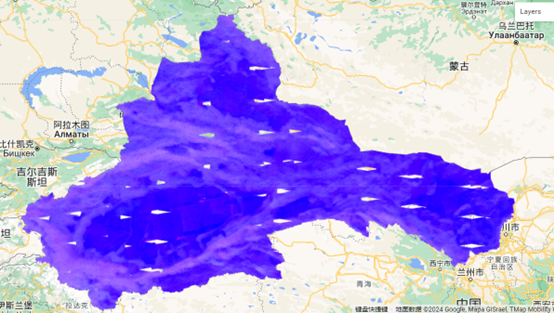

预处理后结果图
