在geom_map下面添加图例中的国家名称
在geom_map下面添加图例中的国家名称
提问于 2022-11-01 13:14:52
我想在我的地图下面加上一个国名的传说。
我有关于不同地区事件发生频率的数据：
trend_country_freq <- structure(list(country = c("US", "CN", "KR", "IN", "AU", "GB",
"JP"), n = c(25L, 20L, 12L, 5L, 2L, 1L, 1L), country_name = c("USA",
"China", "South Korea", "India", "Australia", "UK", "Japan")), row.names = c(1L,
2L, 3L, 4L, 5L, 7L, 8L), class = "data.frame")现在，我使用maps和ggplot2包创建一个世界地图，显示事件发生的频率：
library(maps)
library(ggplot2)
world_map <- map_data("world")
world_map <- subset(world_map, region != "Antarctica")
ggplot(trend_country_freq) +
geom_map(
dat = world_map, map = world_map, aes(map_id = region),
fill = "white", color = "#7f7f7f", size = 0.25
) +
geom_map(map = world_map, aes(map_id = country_name, fill = n), size = 0.25) +
scale_fill_gradient(low = "#fff7bc", high = "#cc4c02", name = "Total Cases") +
expand_limits(x = world_map$long, y = world_map$lat) +
theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
panel.background = element_blank()) +
theme(axis.title = element_blank(),
axis.ticks = element_blank(),

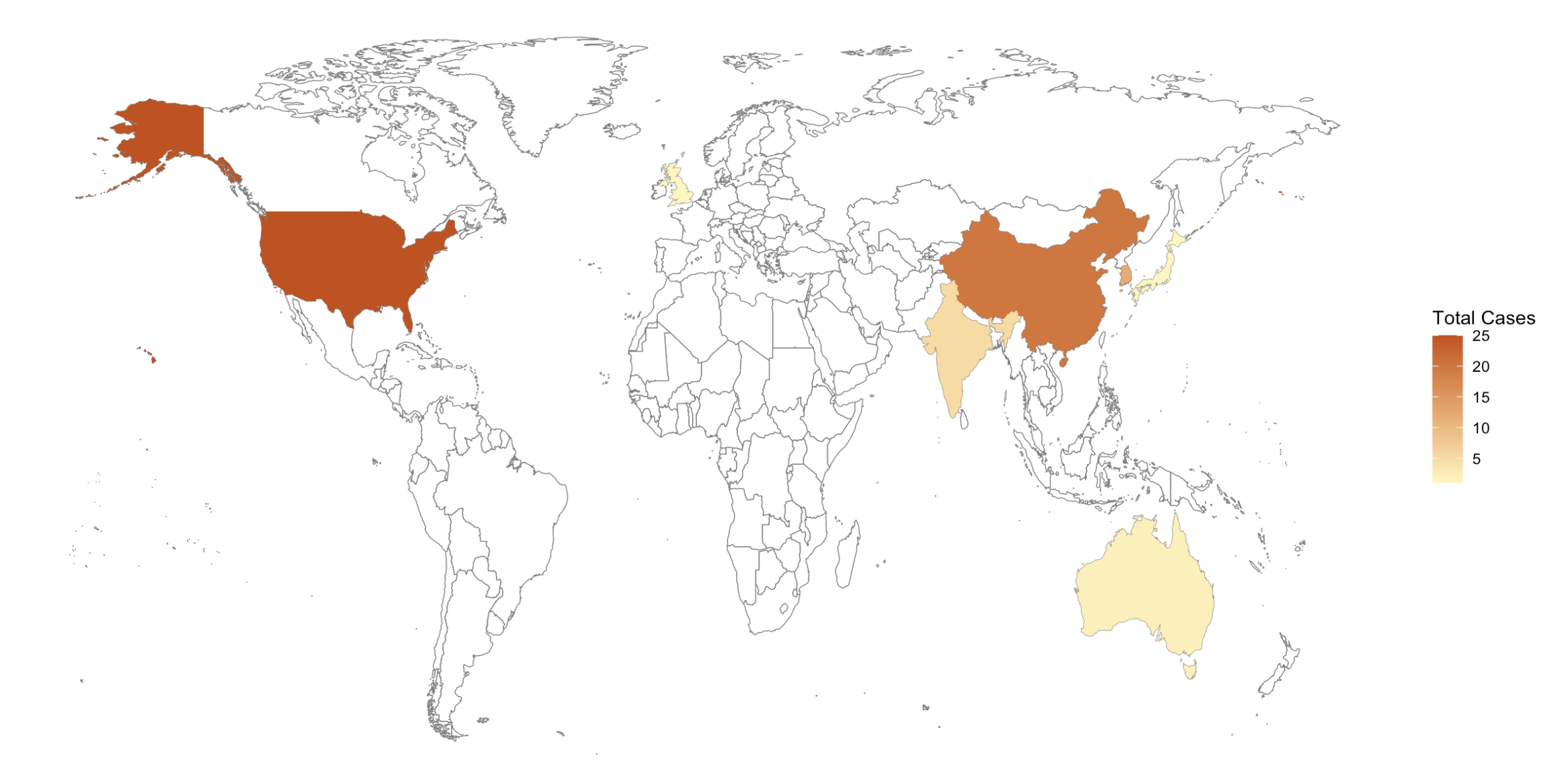

axis.text = element_blank())结果如下：

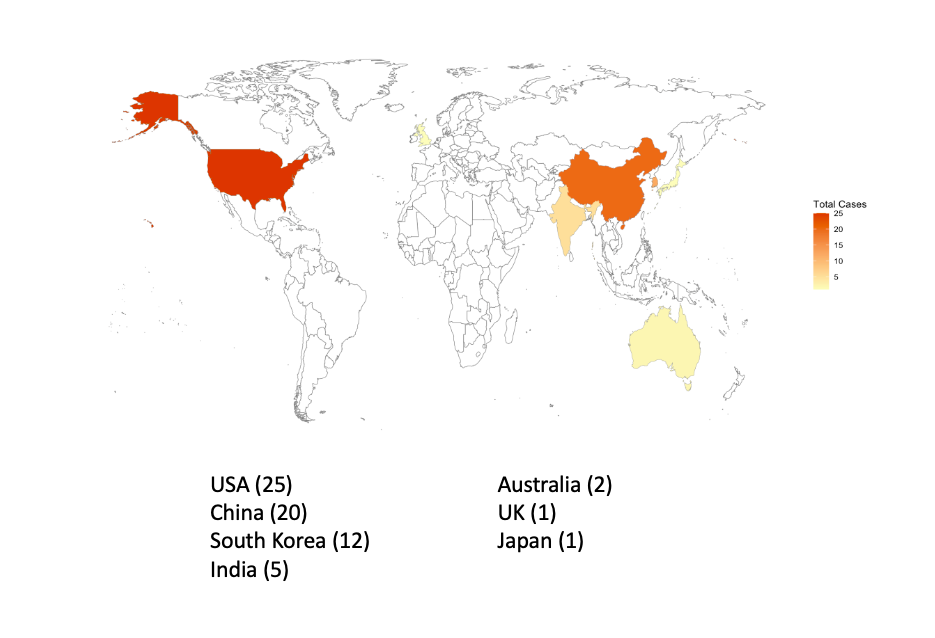

但我真的想要这样的东西：
你有办法生成这样一张地图吗？非常感谢!
Stack Overflow用户
发布于 2022-11-01 13:44:55

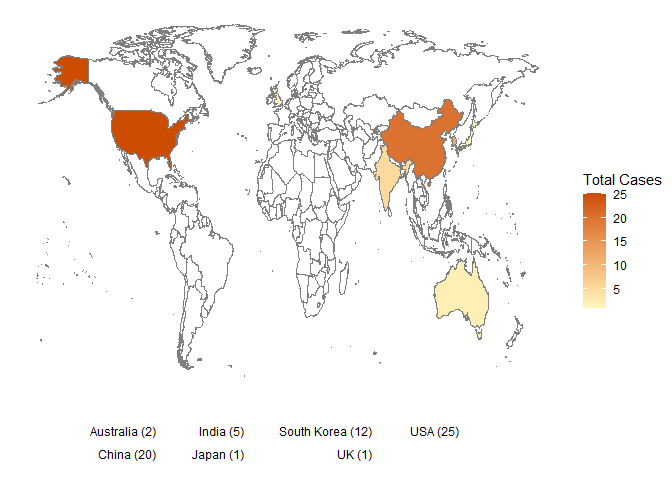

另一种选择：
library(tidyverse)
library(maps)
p1 <- trend_country_freq |>
mutate(lab = paste0(country_name, " (", n, ")")) |>
ggplot() +
geom_map(
dat = world_map, map = world_map, aes(map_id = region),
fill = "white", color = "#7f7f7f", size = 0.25
) +
geom_map(map = world_map, aes(map_id = country_name, fill = n, color = lab), size = 0.25) +
scale_fill_gradient(low = "#fff7bc", high = "#cc4c02", name = "Total Cases") +
scale_color_manual(values = rep(NA, 7), name = "")+
expand_limits(x = world_map$long, y = world_map$lat) +
theme(panel.grid.major = element_blank(),
panel.grid.minor = element_blank(),
panel.background = element_blank(),
axis.title = element_blank(),
axis.ticks = element_blank(),
axis.text = element_blank(),
legend.key = element_blank()) +
guides(color = guide_legend(direction='horizontal',label.position = "left",
override.aes = list(fill = NA, color = NA)))
guide_color <- cowplot::get_legend(p1 + guides(color = "none"))
cowplot::plot_grid(p1 +
guides(fill = "none") +
theme(legend.position = "bottom"),
guide_color,
ncol = 2, rel_widths = c(.85, .15))
