Yes, you should create a <code>Meeting</code> entity to represent the many to many relationship between <code>Student</code> and <code>Supervisor</code>. In it you can relate to those tables using foreign keys that correspond to the those respective tables. In SQL it may look something like this:
<pre><code>Create table Meeting {
id INT NOT NULL PRIMARY KEY AUTO_INCREMENT,
student_id INT NOT NULL,
supervisor_id INT NOT NULL,
//rest of the fields...
FOREIGN KEY (student_id) REFERENCES Student(id)
FOREIGN KEY (supervisor_id) REFERENCES Supervisor(id)
}
</code></pre>
You would also do the same thing for the <code>Supervise</code> between <code>Project</code> and <code>Supervisor</code>. Also you could use something called a composite key on your Meeting table, I guess it comes down to personal preference, I usually do it this way when representing many to many relationships. I'm not saying this is the syntax you will use, that depends on your database, this was just an example to point you in the right direction. Hope it helps.
Also for your diagram (I'm just guessing this is for a class) you might want to look into software such as visio or visual paradigm to create your ER diagram. While most people will be able to understand your current diagram, that's not correct modeling.
For fun I made a diagram based on your tables:
<img src="https://i.stack.imgur.com/drNu5.png" alt="enter image description here" />
You would want an entity between <code>Supervisor</code> and <code>Project</code> if they are a many to many relationship. This is called an <code>associative entity</code>. I labeled mine <code>SupervisorProject</code> just so they are a little more clear.
Edit
Overlooked the fact that Student and project was a many to one, fixed that, sorry.

blocks|key|2179001|text|作为对Cohagen的回应，this+stackoverflow+post建议，即使关系表没有属性，也可以通过保留关系表来表示许多到许多关系的关系，比如Supervise。相反，Do表位于多到一个关系之间，没有属性，因此我们可以去掉它，只需在学生中向项目表添加一个外键引用。|type|unstyled|depth|inlineStyleRanges|offset|length|style|CODE|entityRanges|data|2179002|entityMap|0|LINK|mutability|MUTABLE|url|https://stackoverflow.com/questions/7296846/how-to-implement-one-to-one-one-to-many-and-many-to-many-relationships-while-de^0|24|9|2H|2|E|N|0|0^^$0|@$1|2|3|4|5|6|7|N|8|@$9|O|A|P|B|C]|$9|Q|A|R|B|C]]|D|@$9|S|A|T|1|U]]|E|$]]|$1|F|3|-4|5|6|7|V|8|@]|D|@]|E|$]]]|G|$H|$5|I|J|K|E|$L|M]]]]

In response to Cohagen <a href="https://stackoverflow.com/questions/7296846/how-to-implement-one-to-one-one-to-many-and-many-to-many-relationships-while-de">this stackoverflow post</a> suggests that many to many relationships like <code>Supervise</code> can be represented by keeping the relationship table even if it has no attributes. In contrast the <code>Do</code> table lies between a many to one relationship and doesn't have attributes so we can get rid of it and simply add a foreign key reference to the project table in students.

Currently trying to get to grips with SQL for the first time, so I am working through a few problems. Here is a sample database spec:

<blockquote>
 Students (name, gender, course) do projects(title). Each project has
 two supervisors (name, gender, department). All students do a project
 but not all projects get taken. More than one student can do the same
 project. Students meet one of their supervisors regular and these
 meetings are recorded (date, time, student, supervisor, notes).
</blockquote>

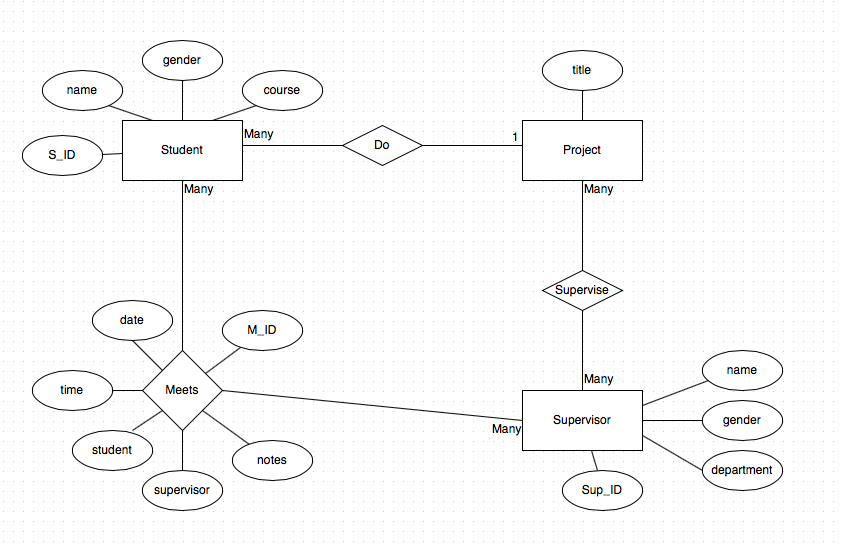

So far I've got an ER diagram drawn up which I think is correct:

<img src="https://i.stack.imgur.com/i5hmk.png" alt="enter image description here">

I can get the basics (e.g. creating a Student table etc) but I'm having trouble getting my head around how to represent the relationships, specifically the meetings relationship, and how to represent it and its attributes in SQL. Should I instead create a 'meetings' entity?
