如何绘制叠加事件持续时间(甘特图)
如何绘制叠加事件持续时间(甘特图)
提问于 2015-08-04 22:38:37
我有一个Pandas DataFrame，它包含一个流规开始测量流量的日期和空间站退役的日期。我想要生成一个以图形方式显示这些日期的图表。下面是我的DataFrame示例：
import pandas as pd
data = {'index': [40623, 40637, 40666, 40697, 40728, 40735, 40742, 40773, 40796, 40819, 40823, 40845, 40867, 40887, 40945, 40964, 40990, 41040, 41091, 41100],
'StationId': ['UTAHDWQ-5932100', 'UTAHDWQ-5932230', 'UTAHDWQ-5932240', 'UTAHDWQ-5932250', 'UTAHDWQ-5932253', 'UTAHDWQ-5932254', 'UTAHDWQ-5932280', 'UTAHDWQ-5932290', 'UTAHDWQ-5932750', 'UTAHDWQ-5983753', 'UTAHDWQ-5983754', 'UTAHDWQ-5983755', 'UTAHDWQ-5983756', 'UTAHDWQ-5983757', 'UTAHDWQ-5983759', 'UTAHDWQ-5983760', 'UTAHDWQ-5983775', 'UTAHDWQ-5989066', 'UTAHDWQ-5996780', 'UTAHDWQ-5996800'],
'amin': ['1994-07-19 13:15:00', '2006-03-16 13:55:00', '1980-10-31 16:00:00', '1981-06-11 17:45:00', '2006-06-28 13:15:00', '2006-06-28 13:55:00', '1981-06-11 15:30:00', '1992-06-10 15:45:00', '2005-10-03 16:30:00', '2006-04-25 09:56:00', '2006-04-25 11:05:00', '2006-04-25 13:50:00', '2006-04-25 14:20:00', '2006-04-25 12:45:00', '2008-04-08 13:03:00', '2008-04-08 13:15:00', '2008-04-15 12:47:00', '2005-10-04 10:15:00', '1995-03-09 13:59:00', '1995-03-09 15:13:00'],
'amax': ['1998-06-30 14:51:00', '2007-01-24 12:55:00', '2007-07-31 11:35:00', '1990-08-01 08:30:00', '2007-01-24 13:35:00', '2007-01-24 14:05:00', '2006-08-22 16:00:00', '1998-06-30 11:33:00', '2005-10-22 15:00:00', '2006-04-25 10:00:00', '2008-04-08 12:16:00', '2008-04-08 09:10:00', '2008-04-08 09:30:00', '2008-04-08 11:27:00', '2008-04-08 13:05:00', '2008-04-08 13:23:00', '2009-04-07 13:15:00', '2005-10-05 11:40:00', '1996-03-14 10:40:00', '1996-03-14 11:05:00']}
df = pd.DataFrame(data)
df.set_index('index', inplace=True)
# display(df.head())
StationId amin amax
index
40623 UTAHDWQ-5932100 1994-07-19 13:15:00 1998-06-30 14:51:00
40637 UTAHDWQ-5932230 2006-03-16 13:55:00 2007-01-24 12:55:00
40666 UTAHDWQ-5932240 1980-10-31 16:00:00 2007-07-31 11:35:00
40697 UTAHDWQ-5932250 1981-06-11 17:45:00 1990-08-01 08:30:00

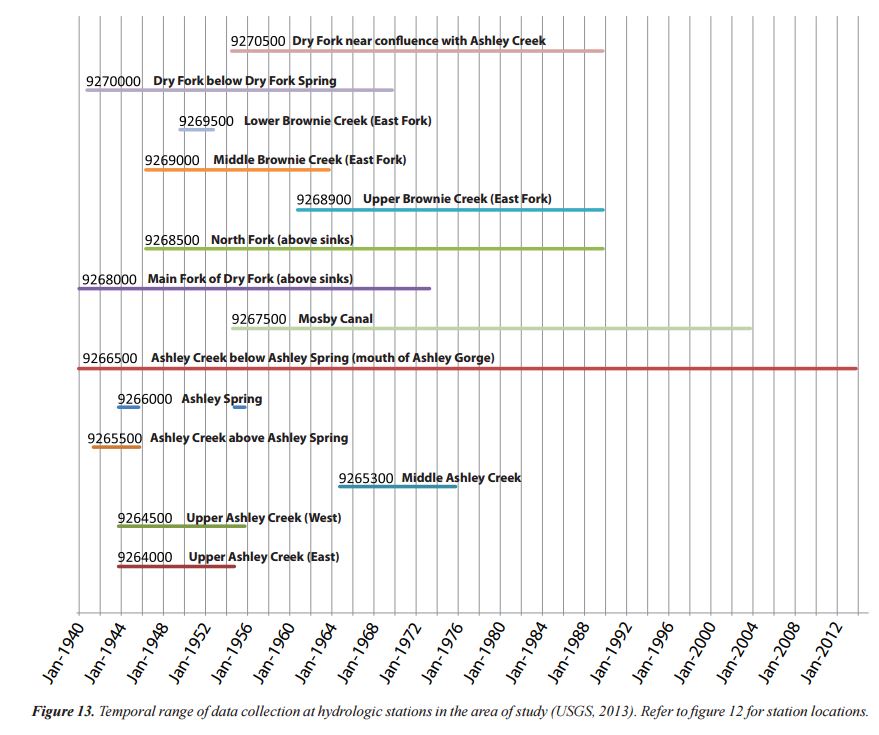

40728 UTAHDWQ-5932253 2006-06-28 13:15:00 2007-01-24 13:35:00我想创建一个类似于此的图(请注意，我没有使用上面的数据绘制此图)：
图中不需要在每条线上显示文本，只要y轴有站名。
虽然这看起来像是熊猫的利基应用，但我知道有几个科学家会从这种绘图能力中受益。
我能找到的最接近的答案是：
最后的答案最接近于满足我的需要。
虽然我更喜欢通过Pandas包装器来完成这个任务，但是我会对一个直接的matplotlib解决方案表示感谢。
Stack Overflow用户
发布于 2017-07-01 07:47:12
您可以使用Bokeh制作甘特图。
下面是取自这个记事本的代码。它已经被更新，以删除不推荐的方法，并使用标准别名。
为了有正确的悬停注释，'Start'和'End'必须保持字符串，因此为x轴添加了单独的列(如datetime64[ns] Dtype )。
进口和样本DataFrame
import pandas as pd
from bokeh.plotting import figure, show, output_notebook, output_file
from bokeh.models import ColumnDataSource, Range1d
from bokeh.models.tools import HoverTool
output_notebook()
#output_file('GanntChart.html') #use this to create a standalone html file to send to others
# create sample dataframe
items =\
[['Completion of Project', '2016-11-1', '2016-11-30', 'red'],
['Stakeholder Meeting', '2016-10-20', '2016-10-21', 'blue'],
['Finalize Improvement Concepts', '2016-10-1', '2016-10-31', 'gray'],
['Determine Passability', '2016-9-15', '2016-10-1', 'gray'],
['Finalize Hydrodynamic Models', '2016-9-15', '2016-10-15', 'gray'],
['Retrieve Water Level Data', '2016-8-15', '2016-9-15', 'gray'],
['Improvement Conceptual Designs', '2016-5-1', '2016-6-1', 'gray'],
['Prepare Suitability Curves', '2016-2-1', '2016-3-1', 'gray'],
['Init. Hydrodynamic Modeling', '2016-1-2', '2016-3-15', 'gray'],
['Topographic Procesing', '2015-9-1', '2016-6-1', 'gray'],
['Initial Field Study', '2015-8-17', '2015-8-21', 'gray'],
['Submit SOW', '2015-8-10', '2015-8-14', 'gray'],
['Contract Review & Award', '2015-7-22', '2015-8-7', 'red']]
df = pd.DataFrame(data=items, columns=['Item', 'Start', 'End', 'Color'])
# add separate columns with the Start and End with a datetime dtype
df[['Start_dt', 'End_dt']] = df[['Start', 'End']].apply(pd.to_datetime)
# add id columns for plotting
df['ID'] = df.index + 0.8
df['ID1'] = df.index + 1.2df
Item Start End Color Start_dt End_dt ID ID1
0 Completion of Project 2016-11-1 2016-11-30 red 2016-11-01 2016-11-30 0.8 1.2
1 Stakeholder Meeting 2016-10-20 2016-10-21 blue 2016-10-20 2016-10-21 1.8 2.2
2 Finalize Improvement Concepts 2016-10-1 2016-10-31 gray 2016-10-01 2016-10-31 2.8 3.2
3 Determine Passability 2016-9-15 2016-10-1 gray 2016-09-15 2016-10-01 3.8 4.2
4 Finalize Hydrodynamic Models 2016-9-15 2016-10-15 gray 2016-09-15 2016-10-15 4.8 5.2
5 Retrieve Water Level Data 2016-8-15 2016-9-15 gray 2016-08-15 2016-09-15 5.8 6.2
6 Improvement Conceptual Designs 2016-5-1 2016-6-1 gray 2016-05-01 2016-06-01 6.8 7.2
7 Prepare Suitability Curves 2016-2-1 2016-3-1 gray 2016-02-01 2016-03-01 7.8 8.2
8 Init. Hydrodynamic Modeling 2016-1-2 2016-3-15 gray 2016-01-02 2016-03-15 8.8 9.2
9 Topographic Procesing 2015-9-1 2016-6-1 gray 2015-09-01 2016-06-01 9.8 10.2
10 Initial Field Study 2015-8-17 2015-8-21 gray 2015-08-17 2015-08-21 10.8 11.2
11 Submit SOW 2015-8-10 2015-8-14 gray 2015-08-10 2015-08-14 11.8 12.2
12 Contract Review & Award 2015-7-22 2015-8-7 red 2015-07-22 2015-08-07 12.8 13.2标绘
G = figure(title='Project Schedule', x_axis_type='datetime', width=800, height=400, y_range=df.Item,
x_range=Range1d(df.Start_dt.min(), df.End_dt.max()), tools='save')
hover = HoverTool(tooltips="Task: @Item<br>\
Start: @Start<br>\
End: @End")
G.add_tools(hover)
CDS = ColumnDataSource(df)
G.quad(left='Start_dt', right='End_dt', bottom='ID', top='ID1', source=CDS, color="Color")
#G.rect(,"Item",source=CDS)
show(G)该情节的实时版本具有交互式的悬停注释。
