This guide will help you quickly create a Private Connection Service, allowing you to share cloud services deployed in your account's VPC with other accounts' VPCs for access.
Background Information
A Virtual Private Cloud (VPC) is your exclusive cloud-based Virtual Private Cloud, with complete isolation between different VPCs by default. By using Private Link Service, you can establish secure and stable access connections between Tencent Cloud VPCs and other VPCs, simplifying network architecture and avoiding potential security risks associated with public network access.
To establish a connection using Private Link, you need to create an Endpoint Service and an Endpoint. Before creating an Endpoint Service, you need to create an internal Layer 4 Cloud Load Balancer (CLB) instance and a listener associated with the deployed Cloud Virtual Machine (CVM) instance. Then, associate the CLB instance when creating the Endpoint Service. At this point, the Endpoint Service will serve as the access entry point for the service provider's business, allowing the service consumer's created Endpoint to request a connection. Once the connection is successfully established, the service consumer can access the service provider's deployed business services.
Scenario Example
In this guide, we will use the following business scenario as an example. A company has its business deployed in VPC2 and needs to share access to this business with other departments' VPC1 under different accounts within the company. To avoid potential security risks associated with public network access, Tencent Cloud's Private Link is used to implement a secure private network access solution from VPC1 to VPC2.
Preparations
Service provider's VPC2 and service consumer's VPC1 have been created.
The service consumer should provide their UIN account to the service provider, who will then add it to the allowlist to enable connectivity. Additionally, the service consumer should obtain the service provider's UIN account.
In the service provider's VPC2, an internal Layer 4 CLB instance has been created, and related service resources are deployed in the backend Cloud Virtual Machine instances. Please ensure that the backend Cloud Virtual Machine instances can properly handle requests forwarded by the Cloud Load Balancer. For more information, refer to the Cloud Load Balancer Quick Start Guide.
The service provider must inform the service consumer of the Cloud Load Balancer's VPORT in advance.

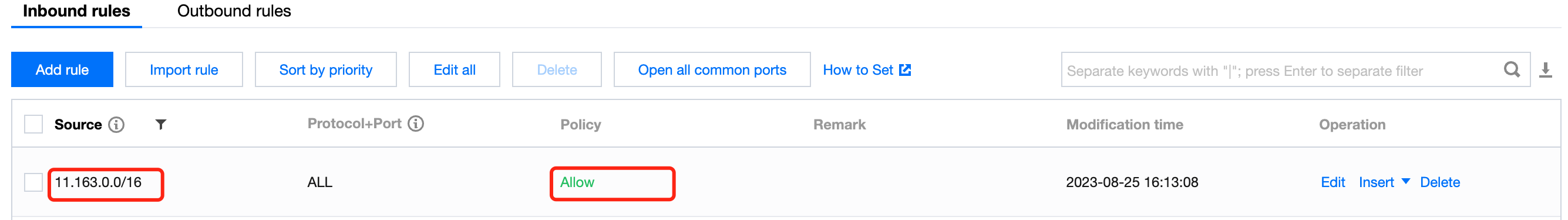

Please ensure that the security group associated with the Cloud Virtual Machine in the service provider's VPC2 has allowed the 11.163.0.0/16 address range, as shown in the following diagram.
Instructions
Step 1: Service provider creates an Endpoint Service
Note
In this example, the service provider's VPC2 has created a Layer 4 private network CLB, with the backend Cloud Virtual Machine instances already deployed with the relevant business services. The security group of the Cloud Virtual Machine instances has allowed the 11.163.0.0/16 IP address range.
2. Click Private Link > Endpoint Services in the left sidebar.

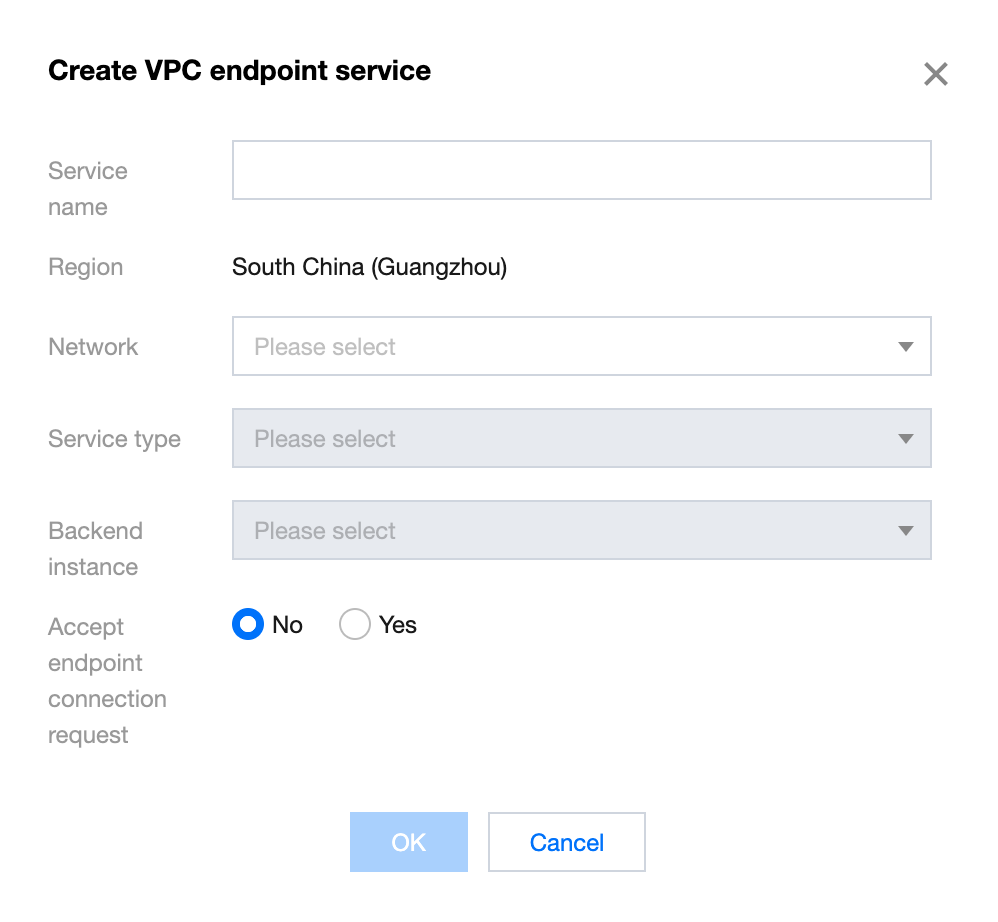

3. Click Create, and in the pop-up window for creating a new Endpoint Service, configure the relevant parameters.
Parameter name
Description
Service name
Customize the Endpoint Service name.
Region
Endpoint Service Region.
Network
Select the associated VPC; in this example, choose VPC2.
Cloud Load Balancer
Select the Cloud Load Balancer instance that has been created in the VPC. In this example, choose the CLB instance already created in VPC2.
Accept endpoint connection request
Specify whether the Endpoint Service does or does not automatically accept connection requests initiated by the Endpoint. In this example, we choose not to automatically accept requests.
When Yes is selected for automatic acceptance, the Endpoint Service will accept all connection requests from Endpoints by default. Once the Endpoint is successfully created, its status will be Available.
When selecting No, to not accept automatic connections, the Endpoint connection status will be Pending Acceptance. The Endpoint Service must manually perform Accept Connection to change the status from Pending Acceptance to Available.

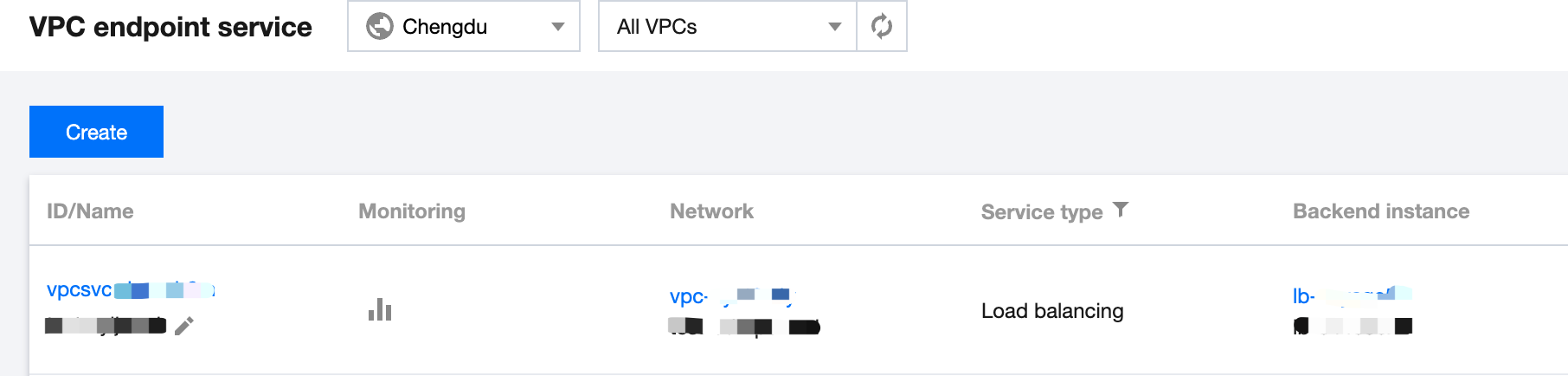

4. After completing the parameter settings, click OK to finish creating the Endpoint Service.
Step 2: Add Service Consumer Account to the Allowlist
1. Click More > Manage User Allowlist on the right side of the created Endpoint Service, or click the Endpoint Service ID to enter the Allowlist tab in the details page.
2. In the whitelist management interface, click on "Add".

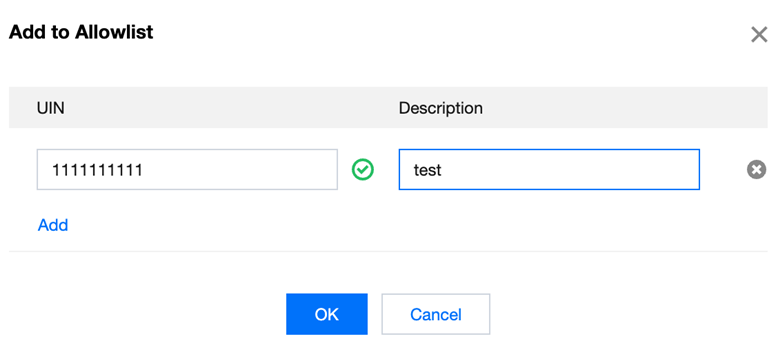

3. In the pop-up dialog box, please enter the service consumer's UIN account and description information based on the actual situation, and click OK.
Step 3: Service Consumer Creates an Endpoint
1. In the left sidebar, click Endpoint.

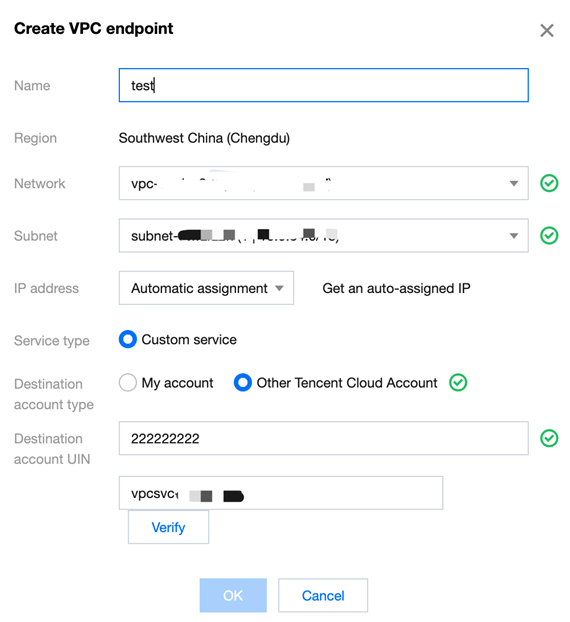

2. Click Create and, in the pop-up window for creating a new Endpoint, configure the relevant parameters.
Parameter name
Description
Name
Specify a custom name for the endpoint.
Region
Endpoint Region
Network
Select the VPC where the Endpoint is located; in this example, choose VPC1.
Subnet
Select the subnet where the Endpoint is located.
IP Addresses
Endpoint IP address: You can specify an IP address, which should be a private IP within VPC1, or you can choose to have the IP address automatically assigned.
Destination account type
Select the account to which the Endpoint Service to be connected belongs. In this example, choose Another Account:
For access between VPCs within the same account, select My Account.
For cross-account VPC access, select Other Account.
Select a service
After entering the Endpoint Service ID, click Validate. Only validated services can establish a connection.
3. After completing the parameter configuration, click OK. The current connection status of the Endpoint is Pending Acceptance.
Step 4: Manage Endpoint Connection Requests
For cross-account connections, the service provider must accept the connection request initiated by the service consumer in order to establish communication.

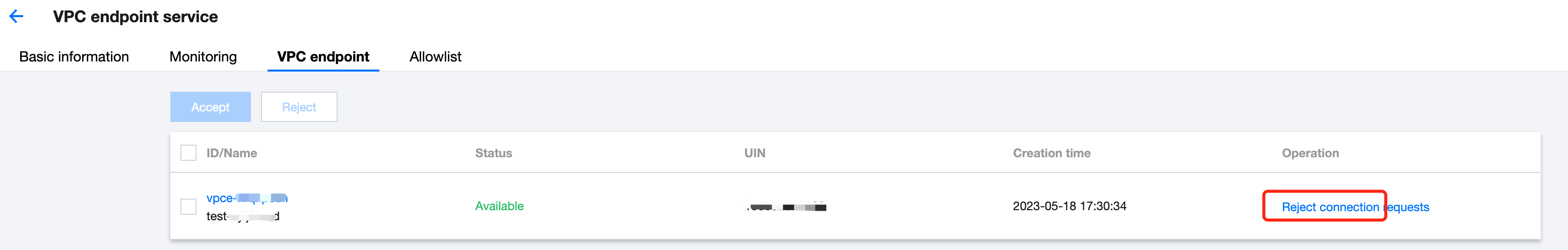

1. Click More > Manage Endpoint Connections on the right side of the created Endpoint Service, or click the Endpoint Service ID to enter the Endpoints tab on the details page.
2. Click Accept Connection, and in the pop-up confirmation dialog, click Confirm.

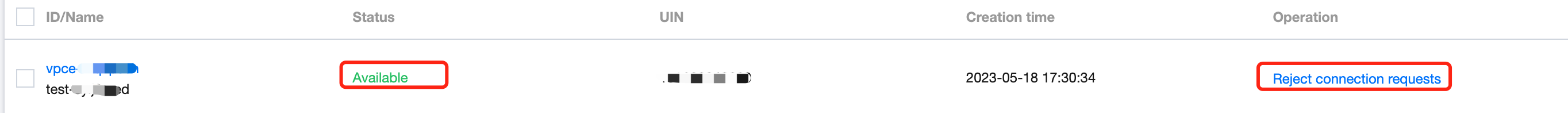

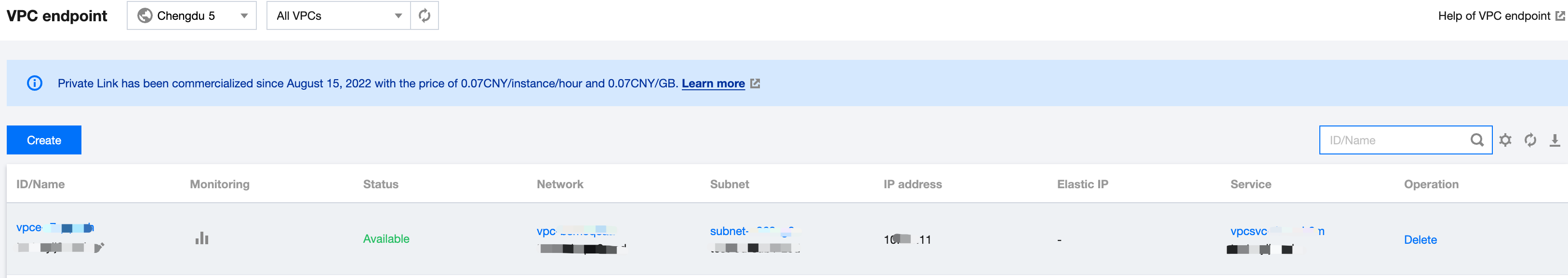

After accepting, the Endpoint's status changes to Available:
Step 5: Service consumer initiates access request to verify the connection
1. Log in to a CVM instance under the service consumer's VPC1 and access the service provider's backend services via VIP+VPORT.
2. In this example, telnet is used to verify connectivity by executing telnet VIP VPORT.
Note
If the server does not have telnet installed, please run yum install telnet to install telnet first.
Obtain the Endpoint VIP:
Obtaining the CLB VPort:
If the following information appears, it indicates a successful connection:
