云资源自动化 for Crossplane 构建 MySQL 资

本文介绍如何创建一个包含 MySQL、VPC 和对应子网的组合资源 XMySQL。为了构建XMySQL资源，需要创建并定义xrd.yaml、composition.yaml、xmysql.yaml和secret.yaml，然后执行这三个配置文件。
定义 XRD
首先我们需要创建自定义 API，即为后面创建的复合资源，定义该复合资源对应的参数和类型。
我们在 xrd.yaml 定义了 MySQL 相关的配置（例如规格，内存，计费类型等）和 VPC、子网资源配置。
其中vpcName，subnetName，availabilityZone 为必选参数，用于创建 VPC 和对应子网。
# xrd.yaml
apiVersion: apiextensions.crossplane.io/v1
kind: CompositeResourceDefinition
metadata:
  name: xmysqls.crd.tencentcloud.crossplane.io
spec:
  group: crd.tencentcloud.crossplane.io
  names:
    kind: XMySQL
    plural: xmysqls
  versions:
    - name: v1alpha1
      served: true
      referenceable: true
      schema:
        openAPIV3Schema:
          type: object
          properties:
            spec:
              type: object
              properties:
                vpcName:
                  type: string
                subnetName:
                  type: string
                availabilityZone:
                  type: string
                instanceName:
                  type: string
                  default: test-crossplane-mysql # 实例默认值
                chargeType:
                  type: string
                  default: POSTPAID # 默认按量计费
                intranetPort:
                  type: integer
                  default: 3306 # 默认端口
                parameters:
                  type: object
                  properties:
                    maxConnections:
                      type: integer
                      default: 1000 # 默认最大链接数
                    character_set_server:
                      type: string
                      default: utf8 # 默认字符集
                volumeSize:
                  type: integer
                  default: 200 # 默认容量
                memSize:
                  type: integer
                  default: 4000 # 默认内存值
                sgId:
                  type: string
                securityGroups:
                  type: array
                  items:
                    type: string
              required:
                - vpcName
                - subnetName
                - availabilityZone
            status:
              description: A Status represents the observed state
              properties:
                share:
                  description: Freeform field containing status information
                  type: object
                  x-kubernetes-preserve-unknown-fields: true
              type: object
定义 Composition
接着，在 composition.yaml 中定义复合资源，包括一个 VPC，一个子网，和在该 VPC 下的 MySQL 实例。
用户可在资源创建后，通过 status.share 获取 MySQL 的实例 Id。
# composition.yaml
apiVersion: apiextensions.crossplane.io/v1
kind: Composition
metadata:
  name: composition-mysql
spec:
  compositeTypeRef:
    apiVersion: crd.tencentcloud.crossplane.io/v1alpha1
    kind: XMySQL
  resources:
  # vpc 配置
    - name: vpc
      base:
        apiVersion: vpc.tencentcloud.crossplane.io/v1alpha1
        kind: VPC
        spec:
          forProvider:
            cidrBlock: "10.1.0.0/16"
      patches:
        - fromFieldPath: spec.vpcName
          toFieldPath: spec.forProvider.name
        - type: ToCompositeFieldPath
          fromFieldPath: status.atProvider.id
          toFieldPath: status.share.vpcId

  # 子网配置
    - name: subnet
      base:
        apiVersion: vpc.tencentcloud.crossplane.io/v1alpha1
        kind: Subnet
        spec:
          forProvider:
            cidrBlock: "10.1.2.0/24"
      patches:
        - fromFieldPath: status.share.vpcId
          toFieldPath: spec.forProvider.vpcId
        - fromFieldPath: spec.subnetName
          toFieldPath: spec.forProvider.name
        - fromFieldPath: spec.availabilityZone
          toFieldPath: spec.forProvider.availabilityZone
        - type: ToCompositeFieldPath
          fromFieldPath: status.atProvider.id
          toFieldPath: status.share.subnetId
﻿
    - name: mysql
      base:
        apiVersion: mysql.tencentcloud.crossplane.io/v1alpha1
        kind: Instance
        spec:
          forProvider:
            rootPasswordSecretRef: # password 配置
              key: password
              namespace: crossplane-system
              name: mysql-root-password
      patches:
        - fromFieldPath: status.share.vpcId # 使用上面创建的 VPC
          toFieldPath: spec.forProvider.vpcId
        - fromFieldPath: status.share.subnetId # 使用上面创建的子网
          toFieldPath: spec.forProvider.subnetId
        - fromFieldPath: spec.securityGroups
          toFieldPath: spec.forProvider.securityGroups
        - fromFieldPath: spec.chargeType
          toFieldPath: spec.forProvider.chargeType
        - fromFieldPath: spec.availabilityZone
          toFieldPath: spec.forProvider.availabilityZone
        - fromFieldPath: spec.instanceName
          toFieldPath: spec.forProvider.instanceName
        - fromFieldPath: spec.volumeSize
          toFieldPath: spec.forProvider.volumeSize
        - fromFieldPath: spec.memSize
          toFieldPath: spec.forProvider.memSize
        - fromFieldPath: spec.intranetPort
          toFieldPath: spec.forProvider.intranetPort
        - fromFieldPath: spec.parameters
          toFieldPath: spec.forProvider.parameters
        - type: ToCompositeFieldPath
          fromFieldPath: status.atProvider.id
          toFieldPath: status.share.mysqlId # 实例 Id
然后，在 secret.yaml中定义 MySQL 实例的密码：
# secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: mysql-root-password
  namespace: crossplane-system
stringData:
  password: my-secure-password
创建 XMySQL 资源
现在，在xmysql.yaml 中为复合资源设置子网和实例配置。
# xmysql.yaml
apiVersion: crd.tencentcloud.crossplane.io/v1alpha1
kind: XMySQL
metadata:
  name: xmysql-example # 复合资源前缀
  namespace: crossplane-system
spec:
  # 指定子网和可用区
  vpcName: test-crossplane-vpc
  subnetName: test-crossplane-subnet
  availabilityZone: ap-guangzhou-3
  # 实例配置
  volumeSize: 30
  memSize: 2000
  instanceName: test-crossplane-mysql-instance
  # 安全组配置
  securityGroups:
    - sg-xxxxxx
使用 kubectl apply 命令依次执行上述配置文件，完成资源的创建。
kubectl apply -f xrd.yaml
kubectl apply -f secret.yaml
kubectl apply -f composition.yaml
kubectl apply -f xmysql.yaml
执行结果如下：
创建了前缀为 xmysql-example- 的 VPC，子网和 MySQL 实例。
❯ kubectl get managed
NAME                                                             READY   SYNCED   EXTERNAL-NAME   AGE
instance.mysql.tencentcloud.crossplane.io/xmysql-example-bqg56   True    True    cdb-071eyvvt    3m6s
﻿
NAME                                                         READY   SYNCED   EXTERNAL-NAME     AGE
subnet.vpc.tencentcloud.crossplane.io/xmysql-example-b5jmh   True    True     subnet-qmac9t04   16m
﻿
NAME                                                      READY   SYNCED   EXTERNAL-NAME   AGE
vpc.vpc.tencentcloud.crossplane.io/xmysql-example-pc7dt   True    True     vpc-124cxb6p    16m
此时，您可在控制台查看刚才创建的 MySQL 资源。
﻿
﻿
﻿

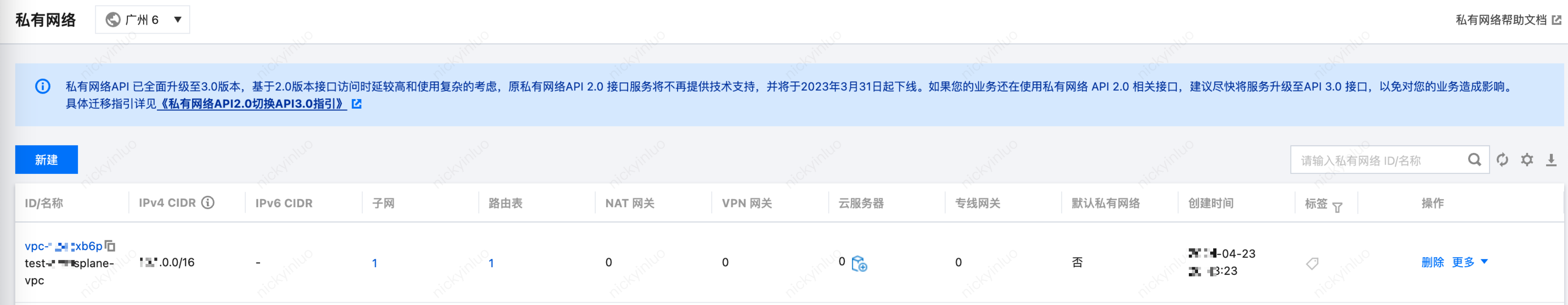

查看 VPC 资源。
﻿
﻿
﻿

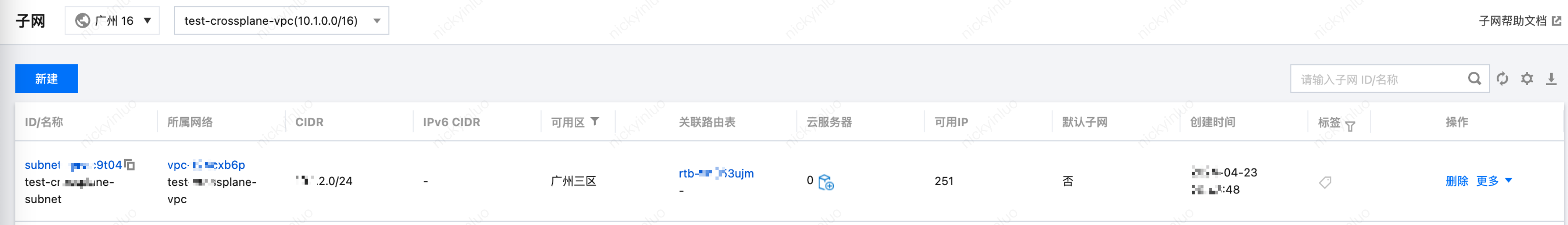

查看 子网资源。
﻿
﻿
﻿
﻿
