云资源自动化 for Crossplane 构建 CKafka

本文介绍如何创建一个包含 CKafka、VPC和对应子网的复合资源 XCKafka。为了构建XCKafka资源，需要创建并定义xrd.yaml、composition.yaml、xckafka.yaml，然后执行这三个配置文件。
定义 XRD
首先我们需要创建自定义 API，即为后面创建的复合资源，定义该复合资源对应的参数和类型。
我们在 xrd.yaml 定义了 MySQL 相关的配置（如：规格，内存，计费类型等）和 VPC、子网资源配置。
其中vpcName，subnetName，zoneId，chargeType 为必选参数，用于创建 VPC、子网和 KafKa 实例。
# xrd.yaml
apiVersion: apiextensions.crossplane.io/v1
kind: CompositeResourceDefinition
metadata:
  name: xckafka.crd.tencentcloud.crossplane.io
spec:
  group: crd.tencentcloud.crossplane.io
  names:
    kind: XCkafka
    plural: xckafka
  versions:
    - name: v1alpha1
      served: true
      referenceable: true
      schema:
        openAPIV3Schema:
          type: object
          properties:
            spec:
              type: object
              properties:
                vpcName: # VPC名称
                  type: string
                subnetName: # 子网名称
                  type: string
                vpcAvailabilityZone: # VPC可用区
                  type: string
                  default: ap-guangzhou-3
                chargeType: # 计费类型
                  type: string
                zoneId: # Ckafka可用区，需要与VPC可用区匹配
                  type: integer
                diskSize: # 磁盘容量
                  type: integer
                diskType: # 磁盘类型
                  type: string
                bandWidth: # 带宽
                  type: integer
                partition: # 分区
                  type: integer
                instanceName: # 实例名称
                  type: string
                  default: test-crossplane-ckafka-instance
                period: # 计费时长，用于包年包月类型
                  type: string
              required:
                - vpcName
                - subnetName
                - zoneId
                - chargeType
            status:
              description: A Status represents the observed state
              properties:
                share:
                  description: Freeform field containing status information
                  type: object
                  x-kubernetes-preserve-unknown-fields: true
              type: object
定义 Composition
接着，在 composition.yaml 中定义复合资源，包括一个 VPC，一个子网，和在该 VPC 下的 MySQL 实例。
用户可在资源创建后，通过 status.share 获取 MySQL 的实例 Id。
# composition.yaml
apiVersion: apiextensions.crossplane.io/v1
kind: Composition
metadata:
  name: composition-ckafka
spec:
  compositeTypeRef:
    apiVersion: crd.tencentcloud.crossplane.io/v1alpha1
    kind: XCkafka
  resources:
    - name: vpc
      base:
        apiVersion: vpc.tencentcloud.crossplane.io/v1alpha1
        kind: VPC
        spec:
          forProvider:
            cidrBlock: "10.1.0.0/16"
      patches:
        - fromFieldPath: spec.vpcName
          toFieldPath: spec.forProvider.name
        - type: ToCompositeFieldPath
          fromFieldPath: status.atProvider.id
          toFieldPath: status.share.vpcId

    - name: subnet
      base:
        apiVersion: vpc.tencentcloud.crossplane.io/v1alpha1
        kind: Subnet
        spec:
          forProvider:
            cidrBlock: "10.1.2.0/24"
      patches:
        - fromFieldPath: status.share.vpcId # 使用上面定义的 VPC
          toFieldPath: spec.forProvider.vpcId
        - fromFieldPath: spec.subnetName
          toFieldPath: spec.forProvider.name
        - fromFieldPath: spec.vpcAvailabilityZone # VPC 的可用区
          toFieldPath: spec.forProvider.availabilityZone
        - type: ToCompositeFieldPath
          fromFieldPath: status.atProvider.id
          toFieldPath: status.share.subnetId
﻿
    - name: ckafka
      base:
        apiVersion: kafka.tencentcloud.crossplane.io/v1alpha1
        kind: Instance
        spec:
          forProvider:
            kafkaVersion: 2.4.1
      patches:
        - fromFieldPath: status.share.vpcId
          toFieldPath: spec.forProvider.vpcId
        - fromFieldPath: status.share.subnetId
          toFieldPath: spec.forProvider.subnetId
        - fromFieldPath: spec.zoneId
          toFieldPath: spec.forProvider.zoneId
        - fromFieldPath: spec.chargeType
          toFieldPath: spec.forProvider.chargeType
        - fromFieldPath: spec.instanceName
          toFieldPath: spec.forProvider.instanceName
        - fromFieldPath: spec.diskSize
          toFieldPath: spec.forProvider.diskSize
        - fromFieldPath: spec.bandWidth
          toFieldPath: spec.forProvider.bandWidth
        - fromFieldPath: spec.partition
          toFieldPath: spec.forProvider.partition
        - fromFieldPath: spec.diskType
          toFieldPath: spec.forProvider.diskType
        - type: ToCompositeFieldPath
          fromFieldPath: status.atProvider.id
          toFieldPath: status.share.ckafkaId # 实例Id
创建 XCkafka 资源
现在，在 xckafka.yaml 中为复合资源设置子网和实例配置。
# xckafka.yaml
apiVersion: crd.tencentcloud.crossplane.io/v1alpha1
kind: XCkafka
metadata:
  name: xckafka-example # 复合资源前缀
spec:
  # 指定子网和可用区
  vpcName: test-crossplane-vpc
  subnetName: test-crossplane-subnet
  vpcAvailabilityZone: ap-guangzhou-7
  # 实例配置
  zoneId: 100007
  chargeType: POSTPAID_BY_HOUR
  instanceName: test-crossplane-ckafka-instance
  diskSize: 200
  bandWidth: 20
  partition: 400
  diskType: CLOUD_BASIC

使用 kubectl apply 命令依次执行上述配置文件，完成资源的创建。
kubectl apply -f xrd.yaml
kubectl apply -f composition.yaml
kubectl apply -f xckafka.yaml
执行结果如下：
创建了前缀为 xckafka-example- 的 VPC，子网和 CKafka 实例。
❯ kubectl get managed
NAME                                                              READY   SYNCED   EXTERNAL-NAME     AGE
instance.kafka.tencentcloud.crossplane.io/xckafka-example-2fpsm   False   False    ckafka-xjvq5d5p   6m31s
﻿
NAME                                                          READY   SYNCED   EXTERNAL-NAME     AGE
subnet.vpc.tencentcloud.crossplane.io/xckafka-example-gdjb4   True    True     subnet-8ylo7i5s   6m31s
﻿
NAME                                                       READY   SYNCED   EXTERNAL-NAME   AGE
vpc.vpc.tencentcloud.crossplane.io/xckafka-example-z8x5z   True    True     vpc-kkmy0ikp    6m31s
此时，您可在控制台查看刚才创建的CKafka 资源。
﻿
﻿
﻿

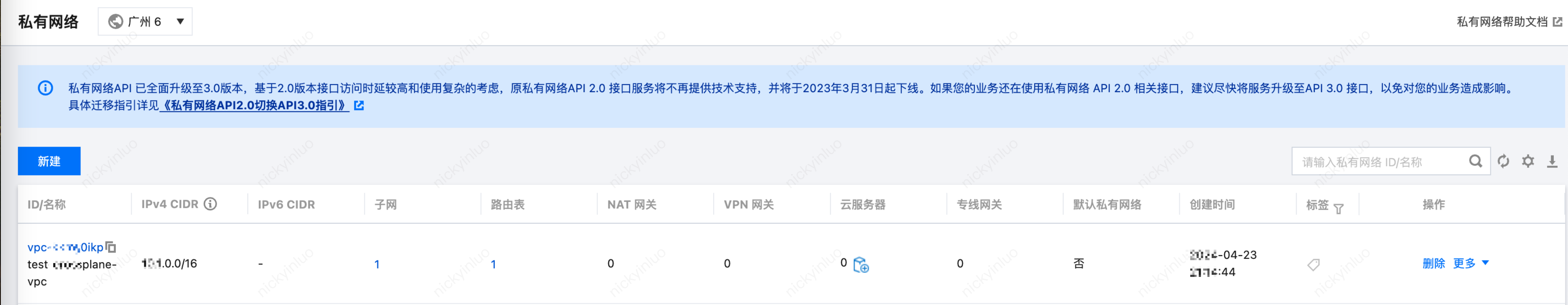

查看 VPC 资源。
﻿
﻿
﻿

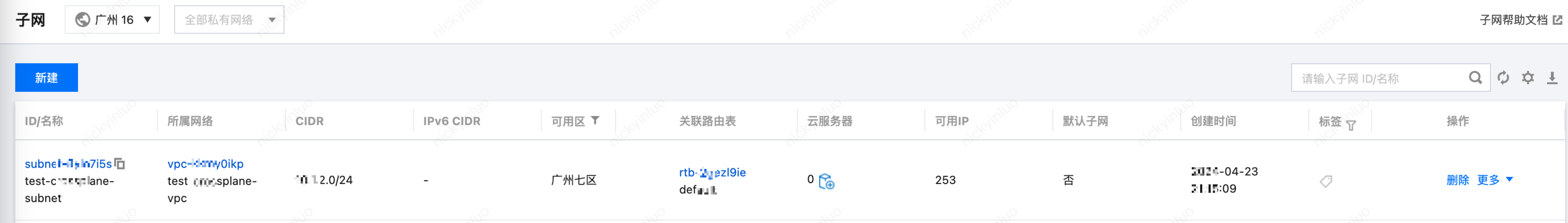

查看 子网资源。
﻿
﻿
﻿
﻿
