消息队列 CKafka 版公网 SASL

操作背景
本文以 C# 客户端为例介绍在公网环境下，使用 SASL_PLAINTEXT 方式接入消息队列 CKafka 版并收发消息的过程。
前提条件
安装 .NET 环境。以 CentOS 为例，使用如下命令安装 .NET 环境。
sudo yum install -y dotnet-sdk-6.0
操作步骤
步骤1：控制台配置
1. 创建接入点。
1.1 在 实例列表 页面，单击目标实例 ID，进入实例详情页。

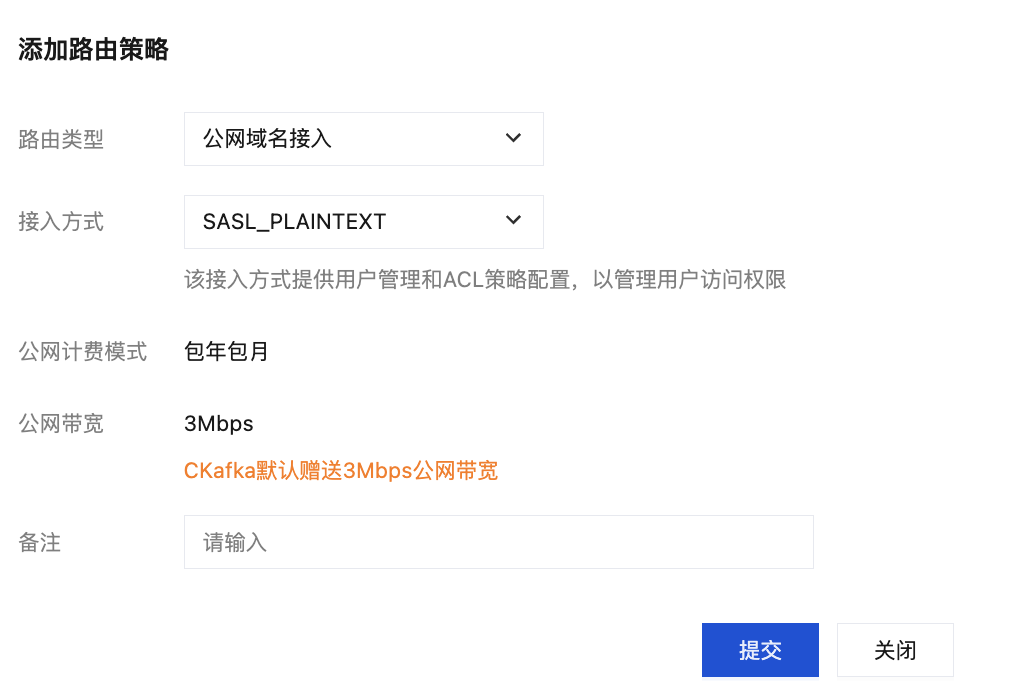

1.2 在 基本信息 > 接入方式 中，单击添加路由策略，在弹窗中选择：路由类型：公网域名接入, 接入方式：SASL_PLAINTEXT。
﻿
2. 创建角色。

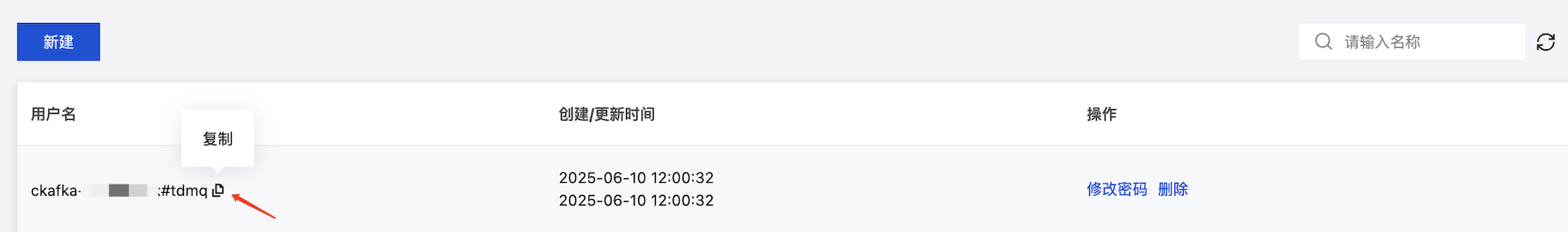

在 ACL 策略管理下的用户管理页面新建角色，设置密码。
﻿
3. 创建 Topic。
在控制台 Topic 列表页面新建 Topic（参见 创建 Topic）。
4. 配置 ACL 策略。
参考配置 Topic 读写权限为创建好的角色配置 Topic 的读写权限。
步骤2：准备配置
1. 登录 Linux 服务器
1.1 创建项目目录，生产者创建如下目录
mkdir KafkaProducer
cd KafkaProducer
dotnet new console -n KafkaProducer
cd KafkaProducer
1.2 创建项目目录，消费者创建如下目录
mkdir KafkaConsumer
cd KafkaConsumer
dotnet new console -n KafkaConsumer
cd KafkaConsumer
1.3 安装 Confluent.Kafka NuGet 包
dotnet add package Confluent.Kafka
参数
说明
BootstrapServers
接入网络，在控制台的实例基本信息页面内接入方式模块的网络列复制。
步骤3：发送消息
1. 编写生产消息文件 KafkaProducer.cs
using Confluent.Kafka;
using System;
using System.Threading.Tasks;
﻿
class KafkaProducer
{
    static async Task Main(string[] args)
    {
        var config = new ProducerConfig
        {
            BootstrapServers = "your_bootstrap_servers", // 替换为实际的服务器地址
            SaslMechanism = SaslMechanism.Plain,
            SecurityProtocol = SecurityProtocol.SaslPlaintext,
            SaslUsername = "your_api_key",              // 替换为实际的 API Key
            SaslPassword = "your_secret",               // 替换为实际的 Secret
            Acks = Acks.Leader,                         // acks 配置：可选值如下
                                                        // Acks.All (等同于 acks=all)：所有 ISR 副本确认（最强可靠性）
                                                        // Acks.Leader (等同于 acks=1)：仅 leader 确认（默认）
                                                        // Acks.None (等同于 acks=0)：不等待任何确认（最高吞吐，最低可靠性）
            EnableIdempotence = false,                  // 关闭幂等性
            MaxInFlight = 5                             // 关闭幂等性
        };
﻿
        using var producer = new ProducerBuilder<Null, string>(config).Build();
﻿
        for (int i = 1; i <= 10; i++)
        {
            var msg = $"this is ckafka msg value";
            try
            {
                var result = await producer.ProduceAsync("test-topic",
                    new Message<Null, string> { Value = msg });
﻿
                Console.WriteLine($"Sent: {msg} | Offset: {result.Offset}");
            }
            catch (ProduceException<Null, string> e)
            {
                Console.WriteLine($"Failed: {e.Error.Reason}");
            }
        }
﻿
        producer.Flush(TimeSpan.FromSeconds(10));
    }
}
﻿
2. 编译并运行KafkaProducer.cs 发送消息。
dotnet run
说明
username 是实例 ID + # + 配置的用户名，password 是配置的用户密码。
参数
说明
BootstrapServers
接入网络，在控制台的实例基本信息页面内接入方式模块的网络列复制。
3. 查看结果
Sent: this is ckafka msg value | Offset: 0
Sent: this is ckafka msg value | Offset: 1
Sent: this is ckafka msg value | Offset: 2
Sent: this is ckafka msg value | Offset: 3
Sent: this is ckafka msg value | Offset: 4
Sent: this is ckafka msg value | Offset: 5
Sent: this is ckafka msg value | Offset: 6
Sent: this is ckafka msg value | Offset: 7
Sent: this is ckafka msg value | Offset: 8
Sent: this is ckafka msg value | Offset: 9
步骤4：消费消息
1. 编写生产消息文件 KafkaConsumer.cs
using Confluent.Kafka;
using System;
using System.Threading;
﻿
﻿
class KafkaConsumer
{
    static void Main(string[] args)
    {
        var config = new ConsumerConfig
        {
                                                         // Kafka 公网接入点
            BootstrapServers = "your_bootstrap_servers", // 替换为实际地址，如：kafka.example.com:9092
﻿
﻿
                                                         // 消费者组（建议不同消费者使用不同 GroupId）
            GroupId = "consumer-group",
            EnableAutoCommit = true,                     // 开启自动提交
            AutoCommitIntervalMs = 5000,                 // 设置自动提交间隔：5000ms = 5秒
            AutoOffsetReset = AutoOffsetReset.Earliest,  // 如果没有初始化位点，从最早的消息开始消费
            SecurityProtocol = SecurityProtocol.SaslPlaintext,
            SaslMechanism = SaslMechanism.Plain,
            SaslUsername = "your_api_key",   // 替换为你的 API Key
            SaslPassword = "your_secret"    // 替换为你的 Secret
        };
﻿
﻿
        using var consumer = new ConsumerBuilder<Ignore, string>(config).Build();
        consumer.Subscribe("test-topic");
﻿
﻿
        Console.WriteLine("Consumer started...");
﻿
﻿
        var cts = new CancellationTokenSource();
        Console.CancelKeyPress += (_, e) =>
        {
            e.Cancel = true;
            cts.Cancel();
        };
﻿
﻿
        try
        {
            while (!cts.IsCancellationRequested)
            {
                try
                {
                    // 同步消费消息（最长等待 100ms）
                    var consumeResult = consumer.Consume(100);
﻿
﻿
                    if (consumeResult != null)
                    {
                        Console.WriteLine($"Received: {consumeResult.Message.Value} " +
                            $"| Topic: {consumeResult.Topic} " +
                            $"| Partition: {consumeResult.Partition} " +
                            $"| Offset: {consumeResult.Offset} " +
                            $"| Timestamp: {consumeResult.Message.Timestamp.UtcDateTime:HH:mm:ss}");
                    }
                }
                catch (ConsumeException e)
                {
                    Console.WriteLine($"Consume error: {e.Error.Reason}");
                }
            }
        }
        catch (OperationCanceledException)
        {
            Console.WriteLine("Shutdown signal received. Closing consumer...");
        }
        finally
        {
            // 关闭消费者，确保最后的提交完成
            consumer.Close();
            Console.WriteLine("Consumer closed.");
        }
    }
}
2. 编译并运行KafkaConsumer.cs
dotnet run
3. 运行结果。
﻿
Consumer started...
Received: this is ckafka msg value | Topic: test-topic | Partition: [1] | Offset: 0 | Timestamp: 12:39:55
Received: this is ckafka msg value | Topic: test-topic | Partition: [1] | Offset: 1 | Timestamp: 12:39:55
Received: this is ckafka msg value | Topic: test-topic | Partition: [1] | Offset: 2 | Timestamp: 12:40:35
Received: this is ckafka msg value | Topic: test-topic | Partition: [1] | Offset: 3 | Timestamp: 12:40:35
Received: this is ckafka msg value | Topic: test-topic | Partition: [1] | Offset: 4 | Timestamp: 12:40:36
Received: this is ckafka msg value | Topic: test-topic | Partition: [1] | Offset: 5 | Timestamp: 12:40:36
Received: this is ckafka msg value | Topic: test-topic | Partition: [2] | Offset: 0 | Timestamp: 12:39:55
Received: this is ckafka msg value | Topic: test-topic | Partition: [2] | Offset: 1 | Timestamp: 12:39:55
Received: this is ckafka msg value | Topic: test-topic | Partition: [2] | Offset: 2 | Timestamp: 12:39:55
Received: this is ckafka msg value | Topic: test-topic | Partition: [2] | Offset: 3 | Timestamp: 12:39:55
Received: this is ckafka msg value | Topic: test-topic | Partition: [2] | Offset: 4 | Timestamp: 12:40:35
Received: this is ckafka msg value | Topic: test-topic | Partition: [2] | Offset: 5 | Timestamp: 12:40:36
Received: this is ckafka msg value | Topic: test-topic | Partition: [2] | Offset: 6 | Timestamp: 12:40:36
Received: this is ckafka msg value | Topic: test-topic | Partition: [0] | Offset: 0 | Timestamp: 12:39:54
Received: this is ckafka msg value | Topic: test-topic | Partition: [0] | Offset: 1 | Timestamp: 12:39:54
Received: this is ckafka msg value | Topic: test-topic | Partition: [0] | Offset: 2 | Timestamp: 12:39:55
Received: this is ckafka msg value | Topic: test-topic | Partition: [0] | Offset: 3 | Timestamp: 12:39:55
Received: this is ckafka msg value | Topic: test-topic | Partition: [0] | Offset: 4 | Timestamp: 12:40:36
Received: this is ckafka msg value | Topic: test-topic | Partition: [0] | Offset: 5 | Timestamp: 12:40:36
Received: this is ckafka msg value | Topic: test-topic | Partition: [0] | Offset: 6 | Timestamp: 12:40:36
﻿

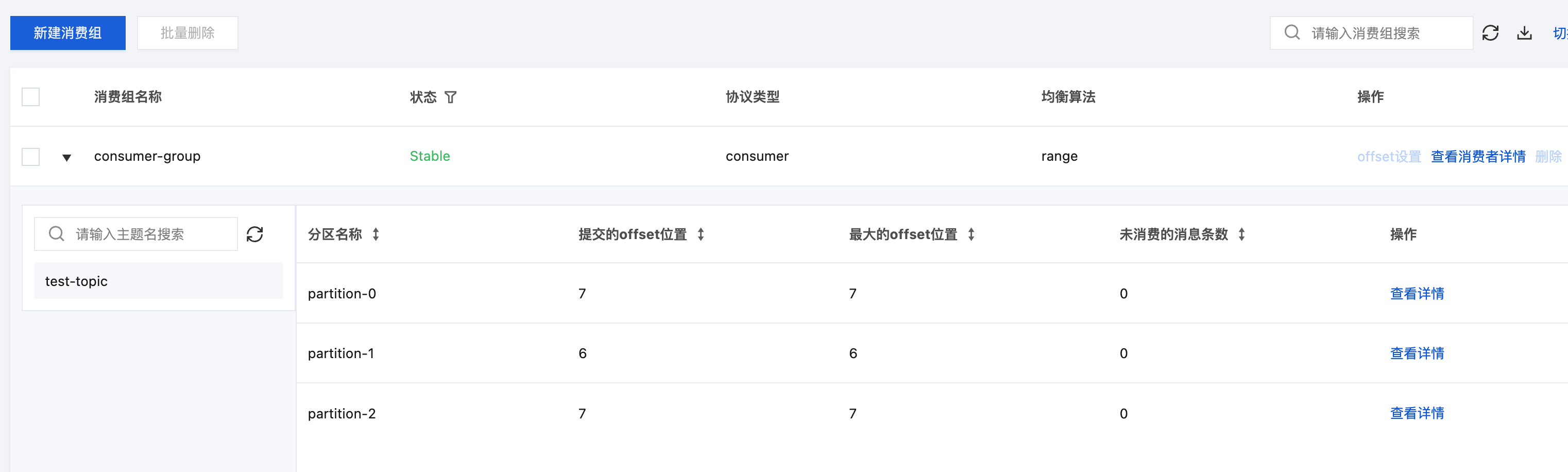

4. 在 CKafka 控制台 Consumer Group 页面，查看消费详情。
﻿
﻿
