云计算运维kubernetes集群里集成Apollo配置中心

作者头像
王先森sec
发布于 2023-04-24 17:08:34
发布于 2023-04-24 17:08:34
1.8K0
举报
文章被收录于专栏：王先森王先森

Apollo介绍

Apollo（阿波罗）是携程框架部门研发的分布式配置中心，能够集中化管理应用不同环境、不同集群的配置，配置修改后能够实时推送到应用端，并且具备规范的权限、流程治理等特性，适用于微服务配置管理场景。

Apollo安装部署

Apollo官方地址

官方release包

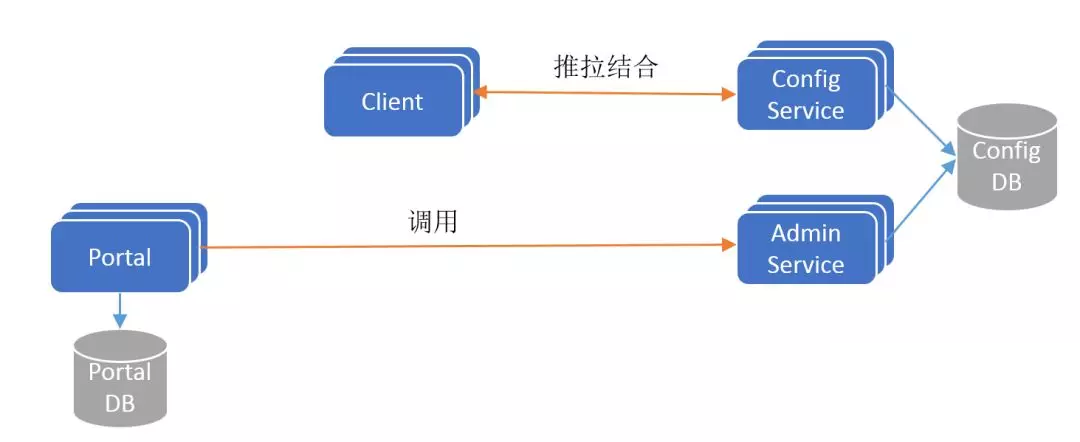

基础架构
简化模型

交付apollo-configservice

准备软件包

在k8s-dns.boysec.cn上：

下载官方release包

代码语言：javascript
复制
cd /tools/
mkdir /data/dockerfile/apollo-configservice && unzip -o apollo-configservice-1.7.1-github.zip -d /data/dockerfile/apollo-configservice

执行数据库脚本

注意：MySQL版本应为5.6或以上！

  • 更新yum源
代码语言：javascript
复制
vi /etc/yum.repos.d/MariaDB.repo
[mariadb]
name = MariaDB
baseurl = https://mirrors.ustc.edu.cn/mariadb/yum/10.2/centos7-amd64/
gpgkey=https://mirrors.ustc.edu.cn/mariadb/yum/RPM-GPG-KEY-MariaDB
gpgcheck=1
  • 导入GPG-KEY
代码语言：javascript
复制
rpm --import https://mirrors.ustc.edu.cn/mariadb/yum/RPM-GPG-KEY-MariaDB
  • 更新数据库版本
代码语言：javascript
复制
yum install MariaDB-server -y
  • 配置my.cnf
代码语言：javascript
复制
vim /etc/my.cnf.d/mysql-clients.cnf
[mysql]
default-character-set = utf8mb4

vim /etc/my.cnf.d/server.cnf
[mysqld]
character_set_server = utf8mb4
collation_server = utf8mb4_general_ci
init_connect = "SET NAMES 'utf8mb4'"

数据库脚本地址

代码语言：javascript
复制
mysql -uroot -p
mysql> source ./apolloconfigdb.sql
数据库用户授权
代码语言：javascript
复制
MariaDB [(none)]> grant INSERT,DELETE,UPDATE,SELECT on TestBetaApolloConfigDB.* to "apolloconfig"@"10.1.1.%" identified by "123456";
修改初始数据
代码语言：javascript
复制
update TestBetaApolloConfigDB.ServerConfig set ServerConfig.Value="http://config-test.od.com/eureka" where ServerConfig.Key="eureka.service.url";

制作Docker镜像

配置数据库连接串
代码语言：javascript
复制
[root@k8s-dns apollo-configservice]# cat config/application-github.properties
# DataSource
spring.datasource.url = jdbc:mysql://mysql.od.com:3306/TestBetaApolloConfigDB?characterEncoding=utf8
spring.datasource.username = apolloconfig
spring.datasource.password = 123456
更新startup.sh

官方脚本

vim scripts/startup.sh

代码语言：javascript
复制
#!/bin/bash
SERVICE_NAME=apollo-configservice
## Adjust log dir if necessary
LOG_DIR=/opt/logs/apollo-config-server
## Adjust server port if necessary
SERVER_PORT=8080
APOLLO_CONFIG_SERVICE_NAME=$(hostname -i)
SERVER_URL="http://${APOLLO_CONFIG_SERVICE_NAME}:${SERVER_PORT}"

## Adjust memory settings if necessary
#export JAVA_OPTS="-Xms6144m -Xmx6144m -Xss256k -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=384m -XX:NewSize=4096m -XX:MaxNewSize=4096m -XX:SurvivorRatio=8"

## Only uncomment the following when you are using server jvm
#export JAVA_OPTS="$JAVA_OPTS -server -XX:-ReduceInitialCardMarks"

########### The following is the same for configservice, adminservice, portal ###########
export JAVA_OPTS="$JAVA_OPTS -XX:ParallelGCThreads=4 -XX:MaxTenuringThreshold=9 -XX:+DisableExplicitGC -XX:+ScavengeBeforeFullGC -XX:SoftRefLRUPolicyMSPerMB=0 -XX:+ExplicitGCInvokesConcurrent -XX:+HeapDumpOnOutOfMemoryError -XX:-OmitStackTraceInFastThrow -Duser.timezone=Asia/Shanghai -Dclient.encoding.override=UTF-8 -Dfile.encoding=UTF-8 -Djava.security.egd=file:/dev/./urandom"
export JAVA_OPTS="$JAVA_OPTS -Dserver.port=$SERVER_PORT -Dlogging.file=$LOG_DIR/$SERVICE_NAME.log -XX:HeapDumpPath=$LOG_DIR/HeapDumpOnOutOfMemoryError/"

# Find Java
if [[ -n "$JAVA_HOME" ]] && [[ -x "$JAVA_HOME/bin/java" ]]; then
    javaexe="$JAVA_HOME/bin/java"
elif type -p java > /dev/null 2>&1; then
    javaexe=$(type -p java)
elif [[ -x "/usr/bin/java" ]];  then
    javaexe="/usr/bin/java"
else
    echo "Unable to find Java"
    exit 1
fi

if [[ "$javaexe" ]]; then
    version=$("$javaexe" -version 2>&1 | awk -F '"' '/version/ {print $2}')
    version=$(echo "$version" | awk -F. '{printf("%03d%03d",$1,$2);}')
    # now version is of format 009003 (9.3.x)
    if [ $version -ge 011000 ]; then
        JAVA_OPTS="$JAVA_OPTS -Xlog:gc*:$LOG_DIR/gc.log:time,level,tags -Xlog:safepoint -Xlog:gc+heap=trace"
    elif [ $version -ge 010000 ]; then
        JAVA_OPTS="$JAVA_OPTS -Xlog:gc*:$LOG_DIR/gc.log:time,level,tags -Xlog:safepoint -Xlog:gc+heap=trace"
    elif [ $version -ge 009000 ]; then
        JAVA_OPTS="$JAVA_OPTS -Xlog:gc*:$LOG_DIR/gc.log:time,level,tags -Xlog:safepoint -Xlog:gc+heap=trace"
    else
        JAVA_OPTS="$JAVA_OPTS -XX:+UseParNewGC"
        JAVA_OPTS="$JAVA_OPTS -Xloggc:$LOG_DIR/gc.log -XX:+PrintGCDetails"
        JAVA_OPTS="$JAVA_OPTS -XX:+UseConcMarkSweepGC -XX:+UseCMSCompactAtFullCollection -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=60 -XX:+CMSClassUnloadingEnabled -XX:+CMSParallelRemarkEnabled -XX:CMSFullGCsBeforeCompaction=9 -XX:+CMSClassUnloadingEnabled  -XX:+PrintGCDateStamps -XX:+PrintGCApplicationConcurrentTime -XX:+PrintHeapAtGC -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=5M"
    fi
fi

printf "$(date) ==== Starting ==== \n"

cd `dirname $0`/..
chmod 755 $SERVICE_NAME".jar"
./$SERVICE_NAME".jar" start

rc=$?;

if [[ $rc != 0 ]];
then
    echo "$(date) Failed to start $SERVICE_NAME.jar, return code: $rc"
    exit $rc;
fi

tail -f /dev/null
编写Dockerfile
代码语言：javascript
复制
FROM wangxiansen/jre8:8u112

ENV VERSION 1.7.1

RUN ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&\
    echo "Asia/Shanghai" > /etc/timezone

ADD apollo-configservice-${VERSION}.jar /apollo-configservice/apollo-configservice.jar
ADD config/ /apollo-configservice/config
ADD scripts/ /apollo-configservice/scripts

CMD ["/apollo-configservice/scripts/startup.sh"]
制作镜像并推送
代码语言：javascript
复制
docker build . -t harbor.od.com/infra/apollo-configservice:v1.7.1
docker push  harbor.od.com/infra/apollo-configservice:v1.7.1
解析域名
代码语言：javascript
复制
vi /var/named/chroot/etc/od.com.zone
mysql   A    10.1.1.250
config-test A 10.1.1.50

准备资源配置清单

代码语言：javascript
复制
mkdir /var/k8s-yaml/apollo-configservice && cd /var/k8s-yaml/apollo-configservice
  • Deployment
  • Service
  • Ingress
  • ConfigMap

vim /var/k8s-yaml/apollo-configservice/deployment.yaml

代码语言：javascript
复制
kind: Deployment
apiVersion: apps/v1
metadata:
  name: apollo-configservice
  namespace: test
  labels:
    name: apollo-configservice
spec:
  replicas: 1
  selector:
    matchLabels:
      name: apollo-configservice
  template:
    metadata:
      labels:
        app: apollo-configservice
        name: apollo-configservice
    spec:
      volumes:
      - name: configmap-volume
        configMap:
          name: apollo-configservice-cm
      containers:
      - name: apollo-configservice
        image: harbor.od.com/infra/apollo-configservice:v1.7.1
        ports:
        - containerPort: 8080
          protocol: TCP
        volumeMounts:
        - name: configmap-volume
          mountPath: /apollo-configservice/config
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        imagePullPolicy: IfNotPresent
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600

vim /var/k8s-yaml/apollo-configservice/svc.yaml

代码语言：javascript
复制
kind: Service
apiVersion: v1
metadata:
  name: apollo-configservice
  namespace: test
spec:
  ports:
  - protocol: TCP
    port: 8080
    targetPort: 8080
  selector:
    app: apollo-configservice
  clusterIP: None
  type: ClusterIP
  sessionAffinity: None

vim /var/k8s-yaml/apollo-configservice/ingress.yaml

代码语言：javascript
复制
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: apollo-configservice
  namespace: test
spec:
  rules:
  - host: config-test.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: apollo-configservice
          servicePort: 8080

vim /var/k8s-yaml/apollo-configservice/configmap.yaml

代码语言：javascript
复制
apiVersion: v1
kind: ConfigMap
metadata:
  name: apollo-configservice-cm
  namespace: test
data:
  application-github.properties: |
    # DataSource
    spring.datasource.url = jdbc:mysql://mysql.od.com:3306/TestBetaApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = apolloconfig
    spring.datasource.password = 123456
    eureka.service.url = http://config-test.od.com/eureka
  app.properties: |
    appId=100003171

应用资源配置清单

在任意一台k8s运算节点执行：

代码语言：javascript
复制
kubectl create ns test
kubectl create  secret docker-registry harbor --docker-server=harbor.od.com --docker-username=admin --docker-password=Harbor12345 -n test
kubectl apply -f http://k8s-yaml.od.com/apollo-configservice/deployment.yaml
kubectl apply -f http://k8s-yaml.od.com/apollo-configservice/svc.yaml
kubectl apply -f http://k8s-yaml.od.com/apollo-configservice/ingress.yaml
kubectl apply -f http://k8s-yaml.od.com/apollo-configservice/configmap.yaml

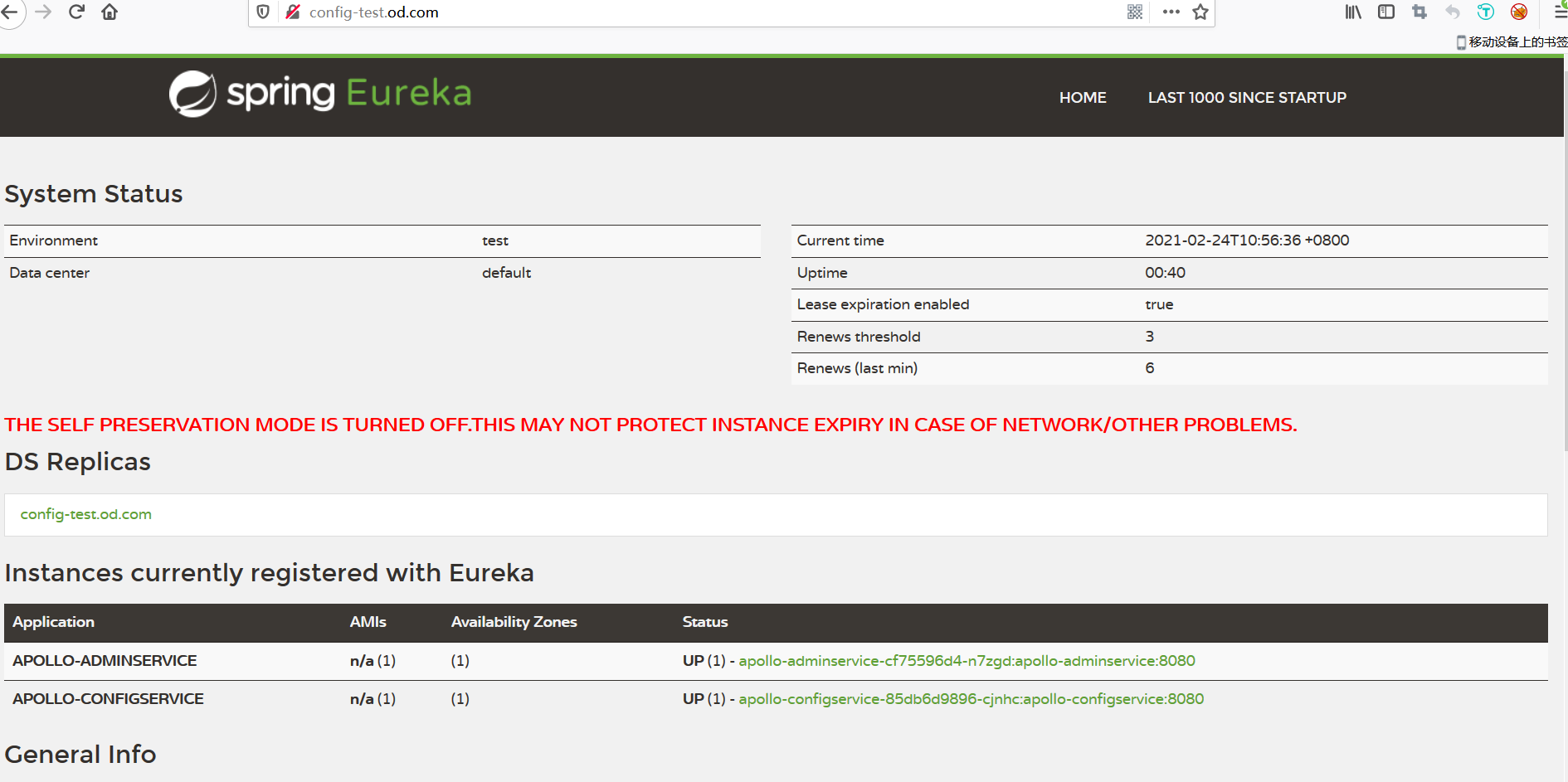

浏览器访问

http://config-test.od.com

交付apollo-adminservice

准备软件包

在k8s-dns.boysec.cn上：

下载官方release包

代码语言：javascript
复制
[root@k8s-dns tools]# mkdir /data/dockerfile/apollo-adminservice && unzip -o apollo-adminservice-1.7.1-github.zip -d /data/dockerfile/apollo-adminservice

制作Docker镜像

配置数据库连接串
代码语言：javascript
复制
[root@k8s-dns apollo-adminservice]# cat config/application-github.properties
# DataSource
spring.datasource.url = jdbc:mysql://mysql.od.com:3306/TestBetaApolloConfigDB?characterEncoding=utf8
spring.datasource.username = apolloconfig
spring.datasource.password = 123456
更新starup.sh

vi scripts/startup.sh

代码语言：javascript
复制
#!/bin/bash
SERVICE_NAME=apollo-adminservice
## Adjust log dir if necessary
LOG_DIR=/opt/logs/apollo-adminservice
## Adjust server port if necessary
SERVER_PORT=8080
APOLLO_ADMIN_SERVICE_NAME=$(hostname -i)
# SERVER_URL="http://localhost:${SERVER_PORT}"
SERVER_URL="http://${APOLLO_ADMIN_SERVICE_NAME}:${SERVER_PORT}"

## Adjust memory settings if necessary
#export JAVA_OPTS="-Xms2560m -Xmx2560m -Xss256k -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=384m -XX:NewSize=1536m -XX:MaxNewSize=1536m -XX:SurvivorRatio=8"

## Only uncomment the following when you are using server jvm
#export JAVA_OPTS="$JAVA_OPTS -server -XX:-ReduceInitialCardMarks"

########### The following is the same for configservice, adminservice, portal ###########
export JAVA_OPTS="$JAVA_OPTS -XX:ParallelGCThreads=4 -XX:MaxTenuringThreshold=9 -XX:+DisableExplicitGC -XX:+ScavengeBeforeFullGC -XX:SoftRefLRUPolicyMSPerMB=0 -XX:+ExplicitGCInvokesConcurrent -XX:+PrintGCDetails -XX:+HeapDumpOnOutOfMemoryError -XX:-OmitStackTraceInFastThrow -Duser.timezone=Asia/Shanghai -Dclient.encoding.override=UTF-8 -Dfile.encoding=UTF-8 -Djava.security.egd=file:/dev/./urandom"
export JAVA_OPTS="$JAVA_OPTS -Dserver.port=$SERVER_PORT -Dlogging.file=$LOG_DIR/$SERVICE_NAME.log -XX:HeapDumpPath=$LOG_DIR/HeapDumpOnOutOfMemoryError/"

# Find Java
if [[ -n "$JAVA_HOME" ]] && [[ -x "$JAVA_HOME/bin/java" ]]; then
    javaexe="$JAVA_HOME/bin/java"
elif type -p java > /dev/null 2>&1; then
    javaexe=$(type -p java)
elif [[ -x "/usr/bin/java" ]];  then
    javaexe="/usr/bin/java"
else
    echo "Unable to find Java"
    exit 1
fi

if [[ "$javaexe" ]]; then
    version=$("$javaexe" -version 2>&1 | awk -F '"' '/version/ {print $2}')
    version=$(echo "$version" | awk -F. '{printf("%03d%03d",$1,$2);}')
    # now version is of format 009003 (9.3.x)
    if [ $version -ge 011000 ]; then
        JAVA_OPTS="$JAVA_OPTS -Xlog:gc*:$LOG_DIR/gc.log:time,level,tags -Xlog:safepoint -Xlog:gc+heap=trace"
    elif [ $version -ge 010000 ]; then
        JAVA_OPTS="$JAVA_OPTS -Xlog:gc*:$LOG_DIR/gc.log:time,level,tags -Xlog:safepoint -Xlog:gc+heap=trace"
    elif [ $version -ge 009000 ]; then
        JAVA_OPTS="$JAVA_OPTS -Xlog:gc*:$LOG_DIR/gc.log:time,level,tags -Xlog:safepoint -Xlog:gc+heap=trace"
    else
        JAVA_OPTS="$JAVA_OPTS -XX:+UseParNewGC"
        JAVA_OPTS="$JAVA_OPTS -Xloggc:$LOG_DIR/gc.log -XX:+PrintGCDetails"
        JAVA_OPTS="$JAVA_OPTS -XX:+UseConcMarkSweepGC -XX:+UseCMSCompactAtFullCollection -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=60 -XX:+CMSClassUnloadingEnabled -XX:+CMSParallelRemarkEnabled -XX:CMSFullGCsBeforeCompaction=9 -XX:+CMSClassUnloadingEnabled  -XX:+PrintGCDateStamps -XX:+PrintGCApplicationConcurrentTime -XX:+PrintHeapAtGC -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=5M"
    fi
fi

printf "$(date) ==== Starting ==== \n"

cd `dirname $0`/..
chmod 755 $SERVICE_NAME".jar"
./$SERVICE_NAME".jar" start

rc=$?;

if [[ $rc != 0 ]];
then
    echo "$(date) Failed to start $SERVICE_NAME.jar, return code: $rc"
    exit $rc;
fi

tail -f /dev/null
编写Dockerfile

vi /data/dockerfile/apollo-adminservice/Dockerfile

代码语言：javascript
复制
FROM wangxiansen/jre8:8u112

ENV VERSION 1.7.1

RUN ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&\
    echo "Asia/Shanghai" > /etc/timezone

ADD apollo-adminservice-${VERSION}.jar /apollo-adminservice/apollo-adminservice.jar
ADD config/ /apollo-adminservice/config
ADD scripts/ /apollo-adminservice/scripts

CMD ["/apollo-adminservice/scripts/startup.sh"]
制作镜像并推送
代码语言：javascript
复制
[root@k8s-dns apollo-adminservice]# docker build . -t harbor.od.com/infra/apollo-adminservice:v1.7.1

[root@k8s-dns apollo-adminservice]# docker push harbor.od.com/infra/apollo-adminservice:v1.7.1

准备资源配置清单

代码语言：javascript
复制
mkdir /var/k8s-yaml/apollo-adminservice && cd /var/k8s-yaml/apollo-adminservice
  • Deployment
  • ConfigMap

vim /var/k8s-yaml/apollo-adminservice/deployment.yaml

代码语言：javascript
复制
kind: Deployment
apiVersion: apps/v1
metadata:
  name: apollo-adminservice
  namespace: test
  labels:
    name: apollo-adminservice
spec:
  replicas: 1
  selector:
    matchLabels:
      name: apollo-adminservice
  template:
    metadata:
      labels:
        app: apollo-adminservice
        name: apollo-adminservice
    spec:
      volumes:
      - name: configmap-volume
        configMap:
          name: apollo-adminservice-cm
      containers:
      - name: apollo-adminservice
        image: harbor.od.com/infra/apollo-adminservice:v1.7.1
        ports:
        - containerPort: 8080
          protocol: TCP
        volumeMounts:
        - name: configmap-volume
          mountPath: /apollo-adminservice/config
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        imagePullPolicy: IfNotPresent
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600

vim /var/k8s-yaml/apollo-adminservice/configmap.yaml

代码语言：javascript
复制
apiVersion: v1
kind: ConfigMap
metadata:
  name: apollo-adminservice-cm
  namespace: test
data:
  application-github.properties: |
    # DataSource
    spring.datasource.url = jdbc:mysql://mysql.od.com:3306/TestBetaApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = apolloconfig
    spring.datasource.password = 123456
    eureka.service.url = http://config-test.od.com/eureka
  app.properties: |
    appId=100003172

应用资源配置清单

在任意一台k8s运算节点执行：

代码语言：javascript
复制
kubectl apply -f http://k8s-yaml.od.com/apollo-adminservice/configmap.yaml
kubectl apply -f http://k8s-yaml.od.com/apollo-adminservice/deployment.yaml

浏览器访问

http://config-test.od.com

交付apollo-portal

准备软件包

在运维主机HDSS7-200.host.com上： 下载官方release包

代码语言：javascript
复制
[root@k8s-dns tools]# mkdir /data/dockerfile/apollo-portal && unzip -o apollo-portal-1.7.1-github.zip -d /data/dockerfile/apollo-portal
[root@k8s-dns tools]# cd /data/dockerfile/apollo-portal

执行数据库脚本

在数据库主机HDSS7-11.host.com上： 数据库脚本地址

代码语言：javascript
复制
[root@k8s-dns apollo-portal]# mysql -uroot -p123456 < apolloportaldb.sql
## 授权
grant INSERT,DELETE,UPDATE,SELECT on ApolloPortalDB.* to "apolloportal"@"10.1.1.%" identified by "123456";

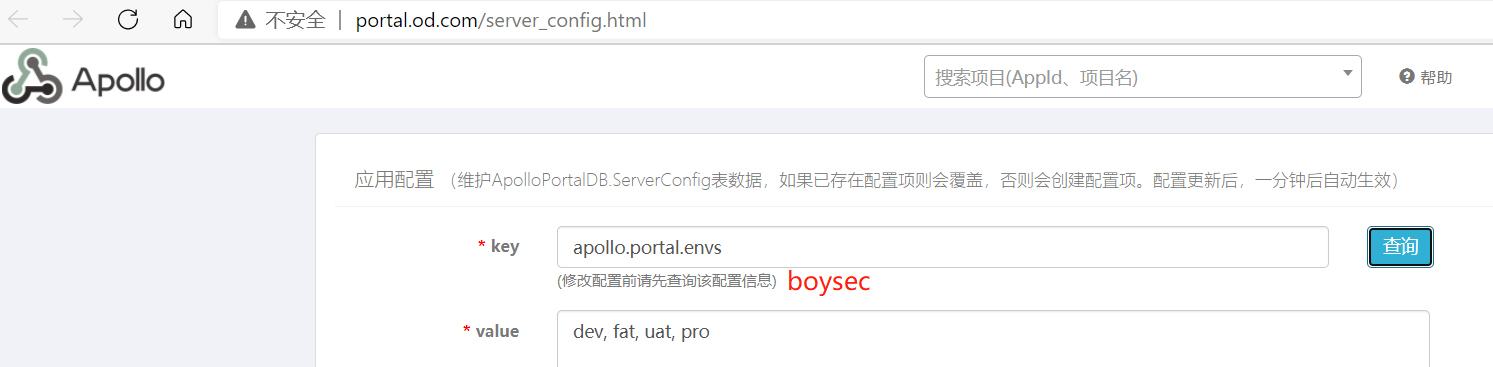

update ServerConfig set value='[{"orgId":"boy1","orgName":"Linux男孩"},{"orgId":"boy","orgName":"LinuxBoy"}]' where id=2;

制作Docker镜像

配置数据库连接串
代码语言：javascript
复制
[root@k8s-dns apollo-portal]# cat config/application-github.properties
# DataSource
spring.datasource.url = jdbc:mysql://mysql.od.com:3306/ApolloPortalDB?characterEncoding=utf8
spring.datasource.username = apolloportal
spring.datasource.password = 123456
配置Portal的meta service
代码语言：javascript
复制
[root@k8s-dns apollo-portal]# cat config/apollo-env.properties
dev.meta=http://config.od.com
更新starup.sh

vim scripts/startup.sh

代码语言：javascript
复制
#!/bin/bash
SERVICE_NAME=apollo-portal
## Adjust log dir if necessary
LOG_DIR=/opt/logs/apollo-portal-server
## Adjust server port if necessary
SERVER_PORT=8080
APOLLO_PORTAL_SERVICE_NAME=$(hostname -i)
# SERVER_URL="http://localhost:$SERVER_PORT"
SERVER_URL="http://${APOLLO_PORTAL_SERVICE_NAME}:${SERVER_PORT}"

## Adjust memory settings if necessary
#export JAVA_OPTS="-Xms2560m -Xmx2560m -Xss256k -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=384m -XX:NewSize=1536m -XX:MaxNewSize=1536m -XX:SurvivorRatio=8"

## Only uncomment the following when you are using server jvm
#export JAVA_OPTS="$JAVA_OPTS -server -XX:-ReduceInitialCardMarks"

########### The following is the same for configservice, adminservice, portal ###########
export JAVA_OPTS="$JAVA_OPTS -XX:ParallelGCThreads=4 -XX:MaxTenuringThreshold=9 -XX:+DisableExplicitGC -XX:+ScavengeBeforeFullGC -XX:SoftRefLRUPolicyMSPerMB=0 -XX:+ExplicitGCInvokesConcurrent -XX:+PrintGCDetails -XX:+HeapDumpOnOutOfMemoryError -XX:-OmitStackTraceInFastThrow -Duser.timezone=Asia/Shanghai -Dclient.encoding.override=UTF-8 -Dfile.encoding=UTF-8 -Djava.security.egd=file:/dev/./urandom"
export JAVA_OPTS="$JAVA_OPTS -Dserver.port=$SERVER_PORT -Dlogging.file=$LOG_DIR/$SERVICE_NAME.log -XX:HeapDumpPath=$LOG_DIR/HeapDumpOnOutOfMemoryError/"

# Find Java
if [[ -n "$JAVA_HOME" ]] && [[ -x "$JAVA_HOME/bin/java" ]]; then
    javaexe="$JAVA_HOME/bin/java"
elif type -p java > /dev/null 2>&1; then
    javaexe=$(type -p java)
elif [[ -x "/usr/bin/java" ]];  then
    javaexe="/usr/bin/java"
else
    echo "Unable to find Java"
    exit 1
fi

if [[ "$javaexe" ]]; then
    version=$("$javaexe" -version 2>&1 | awk -F '"' '/version/ {print $2}')
    version=$(echo "$version" | awk -F. '{printf("%03d%03d",$1,$2);}')
    # now version is of format 009003 (9.3.x)
    if [ $version -ge 011000 ]; then
        JAVA_OPTS="$JAVA_OPTS -Xlog:gc*:$LOG_DIR/gc.log:time,level,tags -Xlog:safepoint -Xlog:gc+heap=trace"
    elif [ $version -ge 010000 ]; then
        JAVA_OPTS="$JAVA_OPTS -Xlog:gc*:$LOG_DIR/gc.log:time,level,tags -Xlog:safepoint -Xlog:gc+heap=trace"
    elif [ $version -ge 009000 ]; then
        JAVA_OPTS="$JAVA_OPTS -Xlog:gc*:$LOG_DIR/gc.log:time,level,tags -Xlog:safepoint -Xlog:gc+heap=trace"
    else
        JAVA_OPTS="$JAVA_OPTS -XX:+UseParNewGC"
        JAVA_OPTS="$JAVA_OPTS -Xloggc:$LOG_DIR/gc.log -XX:+PrintGCDetails"
        JAVA_OPTS="$JAVA_OPTS -XX:+UseConcMarkSweepGC -XX:+UseCMSCompactAtFullCollection -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=60 -XX:+CMSClassUnloadingEnabled -XX:+CMSParallelRemarkEnabled -XX:CMSFullGCsBeforeCompaction=9 -XX:+CMSClassUnloadingEnabled  -XX:+PrintGCDateStamps -XX:+PrintGCApplicationConcurrentTime -XX:+PrintHeapAtGC -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=5M"
    fi
fi

printf "$(date) ==== Starting ==== \n"

cd `dirname $0`/..
chmod 755 $SERVICE_NAME".jar"
./$SERVICE_NAME".jar" start

rc=$?;

if [[ $rc != 0 ]];
then
    echo "$(date) Failed to start $SERVICE_NAME.jar, return code: $rc"
    exit $rc;
fi

tail -f /dev/null
编写Dockerfile
代码语言：javascript
复制
FROM wangxiansen/jre8:8u112

ENV VERSION 1.7.1

RUN ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&\
    echo "Asia/Shanghai" > /etc/timezone

ADD apollo-portal-${VERSION}.jar /apollo-portal/apollo-portal.jar
ADD config/ /apollo-portal/config
ADD scripts/ /apollo-portal/scripts

CMD ["/apollo-portal/scripts/startup.sh"]
制作镜像并推送
代码语言：javascript
复制
[root@k8s-dns apollo-portal]# docker build . -t harbor.od.com/infra/apollo-portal:v1.7.1

[root@k8s-dns apollo-portal]# docker push harbor.od.com/infra/apollo-portal:v1.7.1

解析域名

代码语言：javascript
复制
[root@k8s-dns apollo-portal]# cat /var/named/chroot/etc/od.com.zone
...
portal   A 10.1.1.50

准备资源配置清单

代码语言：javascript
复制
mkdir /var/k8s-yaml/apollo-portal
cd /var/k8s-yaml/apollo-portal
  • Deployment
  • Service
  • Ingress
  • ConfigMap

vim /var/k8s-yaml/apollo-portal/deployment.yaml

代码语言：javascript
复制
kind: Deployment
apiVersion: apps/v1
metadata:
  name: apollo-portal
  namespace: test
  labels:
    name: apollo-portal
spec:
  replicas: 1
  selector:
    matchLabels:
      name: apollo-portal
  template:
    metadata:
      labels:
        app: apollo-portal
        name: apollo-portal
    spec:
      volumes:
      - name: configmap-volume
        configMap:
          name: apollo-portal-cm
      containers:
      - name: apollo-portal
        image: harbor.od.com/infra/apollo-portal:v1.7.1
        ports:
        - containerPort: 8080
          protocol: TCP
        volumeMounts:
        - name: configmap-volume
          mountPath: /apollo-portal/config
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        imagePullPolicy: IfNotPresent
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600

vim /var/k8s-yaml/apollo-portal/svc.yaml

代码语言：javascript
复制
kind: Service
apiVersion: v1
metadata:
  name: apollo-portal
  namespace: test
spec:
  ports:
  - protocol: TCP
    port: 8080
    targetPort: 8080
  selector:
    app: apollo-portal
  clusterIP: None
  type: ClusterIP
  sessionAffinity: None

vim /var/k8s-yaml/apollo-portal/ingress.yaml

代码语言：javascript
复制
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: apollo-portal
  namespace: test
spec:
  rules:
  - host: portal.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: apollo-portal
          servicePort: 8080

vim /var/k8s-yaml/apollo-portal/configmap.yaml

代码语言：javascript
复制
apiVersion: v1
kind: ConfigMap
metadata:
  name: apollo-portal-cm
  namespace: test
data:
  application-github.properties: |
    # DataSource
    spring.datasource.url = jdbc:mysql://mysql.od.com:3306/ApolloPortalDB?characterEncoding=utf8
    spring.datasource.username = apolloportal
    spring.datasource.password = 123456
  app.properties: |
    appId=100003173
  apollo-env.properties: |
    dev.meta=http://config-test.od.com

应用资源配置清单

在任意一台k8s运算节点执行：

代码语言：javascript
复制

[root@k8s-node01 ~]# kubectl apply -f http://k8s-yaml.od.com/apollo-portal/configmap.yaml
configmap/apollo-portal-cm created
[root@k8s-node01 ~]# kubectl apply -f http://k8s-yaml.od.com/apollo-portal/deployment.yaml
deployment.apps/apollo-portal created
[root@k8s-node01 ~]# kubectl apply -f http://k8s-yaml.od.com/apollo-portal/svc.yaml
service/apollo-portal created
[root@k8s-node01 ~]# kubectl apply -f http://k8s-yaml.od.com/apollo-portal/ingress.yaml
ingress.extensions/apollo-portal created

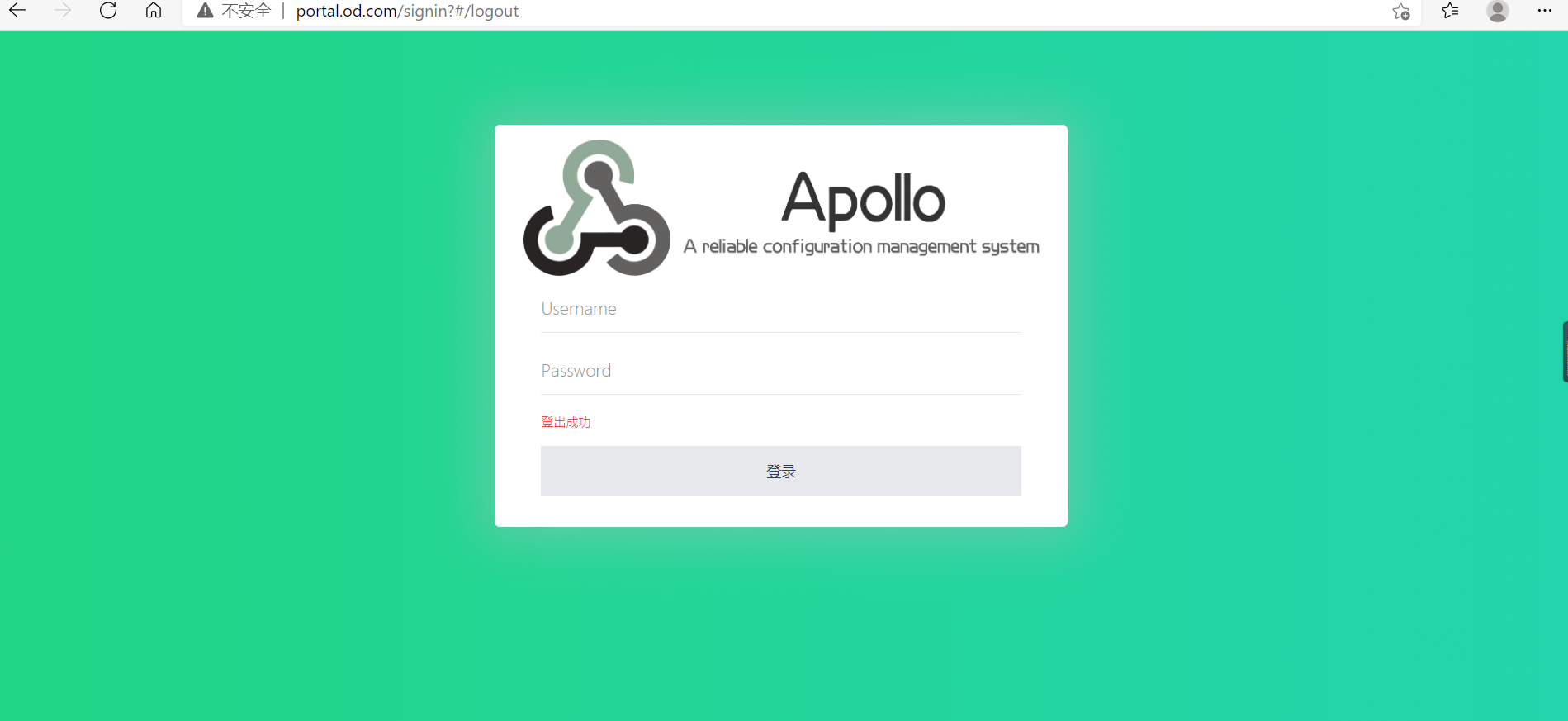

浏览器访问

http://portal.od.com

  • 用户名：apollo
  • 密码： admin

实战dubbo微服务接入Apollo配置中心

apollo项目地址

这里将k8s-slave.boysec.cn作为zookeeper独立服务来使用

配置apollo-portal

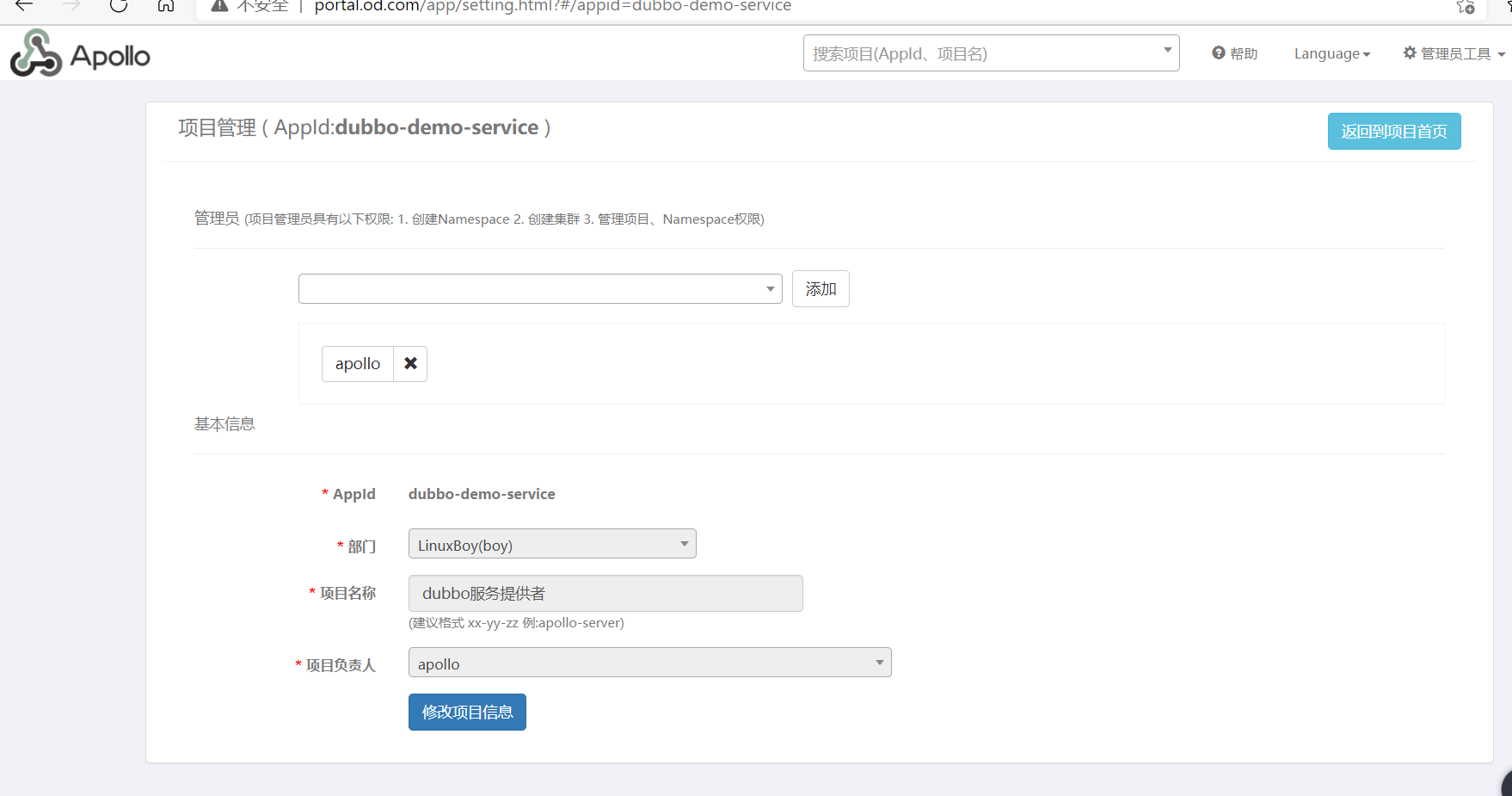

创建项目

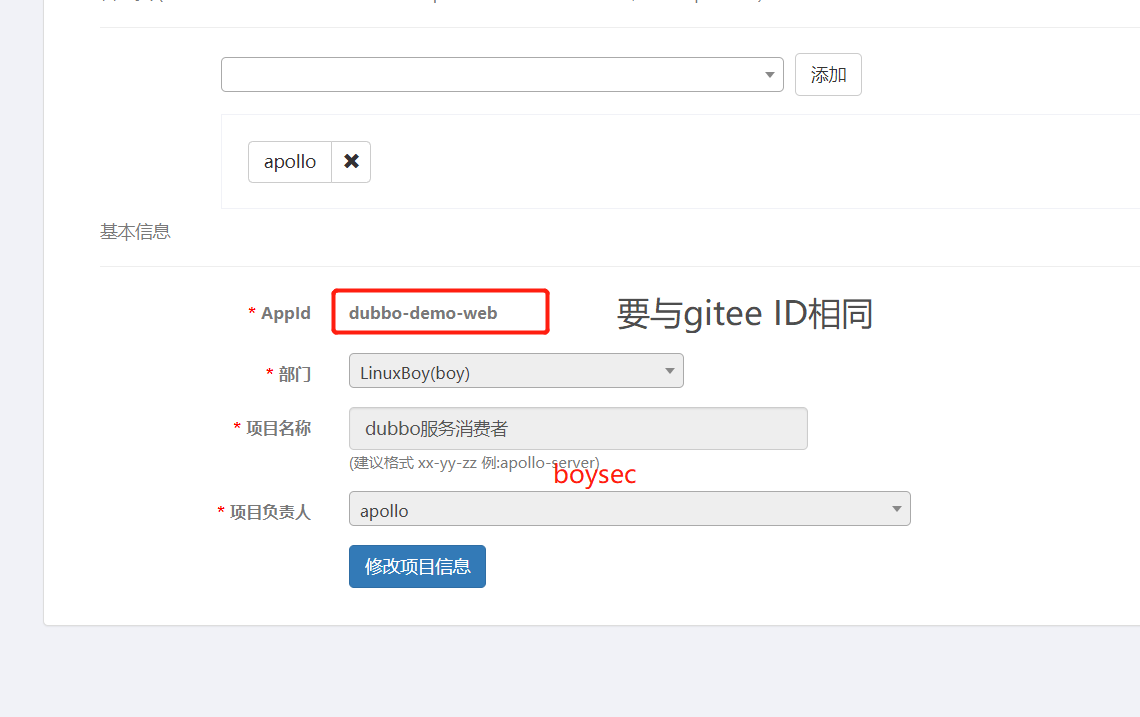

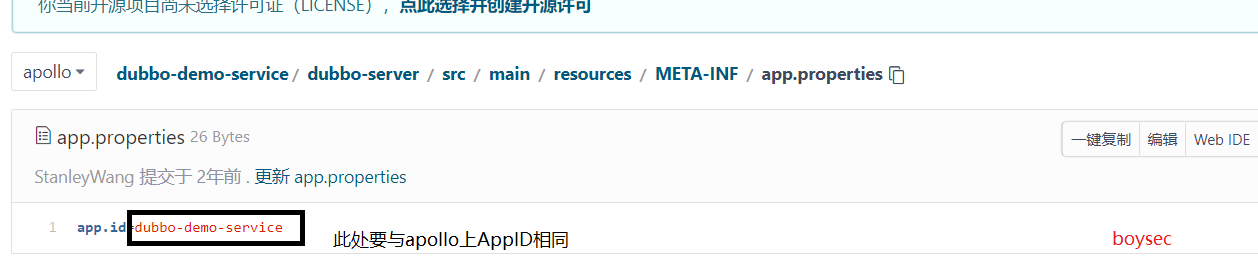

注意：此处AppID要与gitee上项目id相同

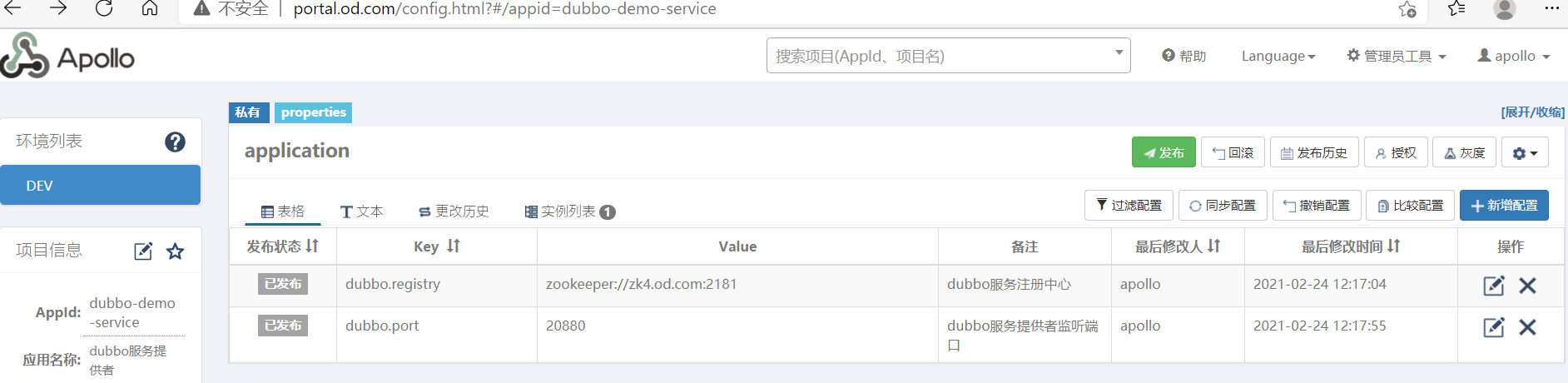

进入配置页面

dubbo.registry：zookeeper://zk4.od.com:2181

dubbo.port：20880

发布配置

点击发布，配置生效

使用jenkins进行CI

略（注意记录镜像的tag）

上线新构建的项目

准备资源配置清单

vim /var/k8s-yaml/dubbo-demo-service/apollo-deployment.yaml

代码语言：javascript
复制
kind: Deployment
apiVersion: apps/v1
metadata:
  name: dubbo-demo-service
  namespace: test
  labels:
    name: dubbo-demo-service
spec:
  replicas: 1
  selector:
    matchLabels:
      name: dubbo-demo-service
  template:
    metadata:
      labels:
        app: dubbo-demo-service
        name: dubbo-demo-service
    spec:
      containers:
      - name: dubbo-demo-service
        image: harbor.od.com/app/dubbo-demo-service:apollo_1230
        ports:
        - containerPort: 20880
          protocol: TCP
        env:
        - name: JAR_BALL
          value: dubbo-server.jar
        - name: C_OPTS
          value: -Denv=dev -Dapollo.meta=http://config-test.od.com
        imagePullPolicy: IfNotPresent
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600

注意：增加了env段配置 注意：docker镜像新版的tag

应用资源配置清单

在任意一台k8s运算节点上执行：

代码语言：javascript
复制
kubectl apply -f http://k8s-yaml.od.com/dubbo-demo-service/apollo-deployment.yaml

观察项目运行情况

http://dubbo-monitor.od.com/

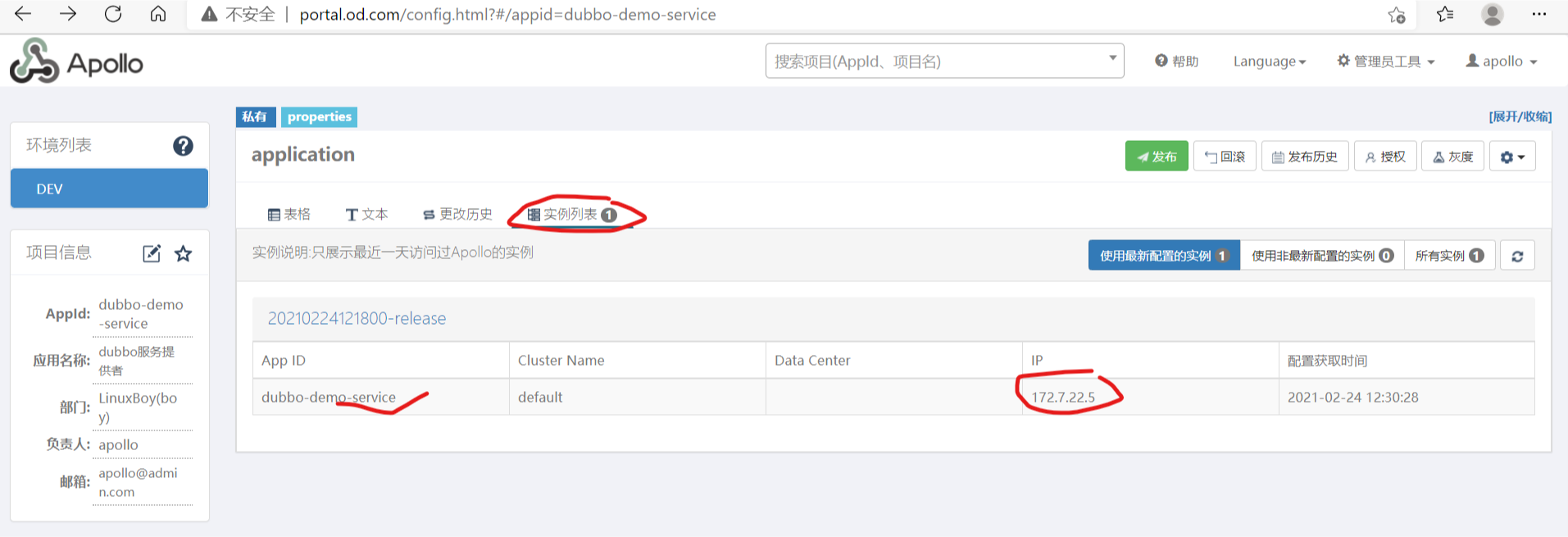

Apollo实例列表：

创建dubbo消费者服务

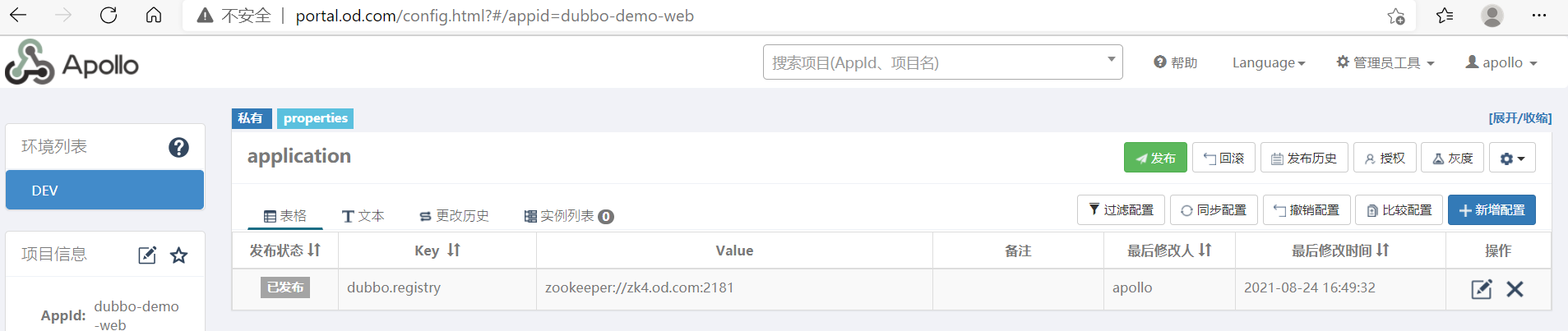

配置apollo-portal

dubbo.registry：zookeeper://zk4.od.com:2181

准备资源配置清单

vim /var/k8s-yaml/dubbo-demo-consumer/apollo-deployment.yaml

代码语言：javascript
复制
kind: Deployment
apiVersion: apps/v1
metadata:
  name: dubbo-demo-consumer
  namespace: test
  labels:
    name: dubbo-demo-consumer
spec:
  replicas: 1
  selector:
    matchLabels:
      name: dubbo-demo-consumer
  template:
    metadata:
      labels:
        app: dubbo-demo-consumer
        name: dubbo-demo-consumer
    spec:
      containers:
      - name: dubbo-demo-consumer
        image: harbor.od.com/app/dubbo-demo-consumer:apollo_20210824_1654
        ports:
        - containerPort: 20880
          protocol: TCP
        - containerPort: 8080
          protocol: TCP
        env:
        - name: C_OPTS
          value: -Denv=dev -Dapollo.meta=http://config-test.od.com
        - name: JAR_BALL
          value: dubbo-client.jar
        imagePullPolicy: IfNotPresent
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600

注意：增加了env段配置 注意：docker镜像新版的tag

应用资源配置清单

在任意一台k8s运算节点上执行：

代码语言：javascript
复制
kubectl apply -f http://k8s-yaml.od.com/dubbo-demo-consumer/apollo-deployment.yaml

实战维护多套dubbo微服务环境

生产实践

  1. 迭代新需求/修复BUG（编码->提GIT）
  2. 测试环境发版，测试（应用通过编译打包发布至TEST命名空间）
  3. 测试通过，上线（应用镜像直接发布至PROD命名空间）

系统架构

  • 物理架构

主机名

角色

ip

k8s-master.boysec.cn

zk-test(测试环境Test)

10.1.1.120

k8s-slave.boysec.cn

zk-prod(生产环境Prod)

10.1.1.130

k8s-node01.boysec.cn

kubernetes运算节点

10.1.1.100

k8s-node02.boysec.cn

kubernetes运算节点

10.1.1.110

k8s-dns.boysec.cn

运维主机，harbor仓库

10.1.1.250

  • K8S内系统架构

环境

命名空间

应用

测试环境（TEST）

test

apollo-config，apollo-admin

测试环境（TEST）

test

dubbo-demo-service，dubbo-demo-web

生产环境（PROD）

prod

apollo-config，apollo-admin

生产环境（PROD）

prod

dubbo-demo-service，dubbo-demo-web

ops环境（infra）

infra

jenkins，dubbo-monitor，apollo-portal

修改/添加域名解析

DNS主机k8s-dns.boysec.cn上：

代码语言：javascript
复制
vim /var/named/chroot/etc/od.com.zone
...
zk-test 60 IN A 10.1.1.120
zk-prod 60 IN A 10.1.1.130
config-test A 10.1.1.50
config-prod A 10.1.1.50

Apollo的k8s应用配置

  • 删除app命名空间内应用，创建test命名空间，创建prod命名空间
  • 删除infra命名空间内apollo-configservice，apollo-adminservice应用
  • 数据库内删除ApolloConfigDB，创建ApolloConfigTestDB，创建ApolloConfigProdDB
代码语言：javascript
复制
mysql> drop database ApolloConfigDB;

mysql> create database ApolloConfigTestDB;
mysql> use ApolloConfigTestDB;
mysql> source ./apolloconfig.sql
mysql> update ApolloConfigTestDB.ServerConfig set ServerConfig.Value="http://config-test.od.com/eureka" where ServerConfig.Key="eureka.service.url";
mysql> grant INSERT,DELETE,UPDATE,SELECT on ApolloConfigTestDB.* to "apolloconfig"@"10.1.1.%" identified by "123456";

mysql> create database ApolloConfigProdDB;
mysql> use ApolloConfigProdDB;
mysql> source ./apolloconfig.sql
mysql> update ApolloConfigProdDB.ServerConfig set ServerConfig.Value="http://config-prod.od.com/eureka" where ServerConfig.Key="eureka.service.url";
mysql> grant INSERT,DELETE,UPDATE,SELECT on ApolloConfigProdDB.* to "apolloconfig"@"10.1.1.%" identified by "123456";
  • 准备apollo-config，apollo-admin的资源配置清单（各2套）

注：apollo-config/apollo-admin的configmap配置要点

  • Test环境
代码语言：javascript
复制
application-github.properties: |
    # DataSource
    spring.datasource.url = jdbc:mysql://mysql.od.com:3306/ApolloConfigTestDB?characterEncoding=utf8
    spring.datasource.username = apolloconfig
    spring.datasource.password = 123456
    eureka.service.url = http://config-test.od.com/eureka
  • Prod环境
代码语言：javascript
复制
application-github.properties: |
    # DataSource
    spring.datasource.url = jdbc:mysql://mysql.od.com:3306/ApolloConfigProdDB?characterEncoding=utf8
    spring.datasource.username = apolloconfig
    spring.datasource.password = 123456
    eureka.service.url = http://config-prod.od.com/eureka
  • 依次应用，分别发布在test和prod命名空间
  • 修改apollo-portal的configmap并重启portal
代码语言：javascript
复制
apollo-env.properties: |
    TEST.meta=http://config-test.od.com
    PROD.meta=http://config-prod.od.com

Apollo的portal配置

管理员工具

删除应用、集群、AppNamespace，将已配置应用删除

系统参数

  • Key apollo.portal.envs
  • Value TEST,PROD

查询

  • Value TEST,PROD

保存

新建dubbo-demo-service和dubbo-demo-web项目

在TEST/PROD环境分别增加配置项并发布

发布dubbo微服务

  • 准备dubbo-demo-service和dubbo-demo-web的资源配置清单（各2套）
  • 依次应用，分别发布至test和prod命名空间
  • 使用dubbo-monitor查验
本文参与 腾讯云自媒体同步曝光计划，分享自作者个人站点/博客。
原始发表：2021-08-15，如有侵权请联系 cloudcommunity@tencent.com 删除
数据库
运维
云计算
镜像
配置

本文分享自 作者个人站点/博客 前往查看

如有侵权，请联系 cloudcommunity@tencent.com 删除。

本文参与 腾讯云自媒体同步曝光计划  ，欢迎热爱写作的你一起参与！

数据库
运维
云计算
镜像
配置
评论
登录后参与评论
0 条评论
热度
最新
登录 后参与评论
推荐阅读
目录
  • Apollo介绍
    • Apollo安装部署
      • 基础架构
      • 简化模型
  • 交付apollo-configservice
    • 准备软件包
    • 执行数据库脚本
      • 数据库用户授权
      • 修改初始数据
    • 制作Docker镜像
      • 配置数据库连接串
      • 更新startup.sh
      • 编写Dockerfile
      • 制作镜像并推送
      • 解析域名
    • 准备资源配置清单
    • 应用资源配置清单
    • 浏览器访问
  • 交付apollo-adminservice
    • 准备软件包
    • 制作Docker镜像
      • 配置数据库连接串
      • 更新starup.sh
      • 编写Dockerfile
      • 制作镜像并推送
    • 准备资源配置清单
    • 应用资源配置清单
    • 浏览器访问
  • 交付apollo-portal
    • 准备软件包
    • 执行数据库脚本
    • 制作Docker镜像
      • 配置数据库连接串
      • 配置Portal的meta service
      • 更新starup.sh
      • 编写Dockerfile
      • 制作镜像并推送
    • 解析域名
    • 准备资源配置清单
    • 应用资源配置清单
    • 浏览器访问
  • 实战dubbo微服务接入Apollo配置中心
    • 配置apollo-portal
      • 创建项目
      • 进入配置页面
      • 发布配置
    • 使用jenkins进行CI
    • 上线新构建的项目
      • 准备资源配置清单
    • 应用资源配置清单
    • 观察项目运行情况
    • 创建dubbo消费者服务
      • 配置apollo-portal
      • 准备资源配置清单
    • 应用资源配置清单
  • 实战维护多套dubbo微服务环境
    • 生产实践
  • 系统架构
  • 修改/添加域名解析
    • Apollo的k8s应用配置
  • Apollo的portal配置
    • 管理员工具
    • 系统参数
  • 新建dubbo-demo-service和dubbo-demo-web项目
  • 发布dubbo微服务
领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 粤公网安备44030502008569号

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档

Copyright © 2013 - 2026 Tencent Cloud.

All Rights Reserved. 腾讯云 版权所有

登录 后参与评论
