Elastic Search全网第一篇最新版本的解读入门，你了解吗

@派大星

发布于 2023-06-28 14:27:44

3360

文章被收录于专栏：码上遇见你码上遇见你

下载链接ES：

https://www.elastic.co/cn/downloads/elasticsearch

ES特点：

Elasticsearch is a distributed document store 分布式存储
Instead of storing information as rows of columnar data 不是将信息作为柱状数据的行存储
it is indexed and fully searchable in near real-time--within 1 second 近期实时搜索和完全搜索 1s内
An index can be thought of as an optimized collection of documents and each document is a collection of fields 可以认为索引作为优化文档每个文档都是一个字段的集合
text fields are stored in inverted indices, and numeric and geo fields are stored in BKD trees. 文档存储在倒排索引中，数字和地理字段存储在BKD trees中
When you have multiple Elasticsearch nodes in a cluster, stored documents are distributed across the cluster and can be accessed immediately from any node. 当集群中存在多个节点时存储的文档会分布在整个集群中，并且可以从任何节点立即访问

ES是如何做到这么快，和全文检索的呢？

最最重要的一点：

Elasticsearch uses a data structure called an inverted index that supports very fast full-text searches ES使用的是倒排索引的数据结构，支持非常快的全文检索
An inverted index lists every unique word that appears in any document and identifies all of the documents each word occurs in 倒排索引列出了任何文档中显示的每个唯一单词，并标识每个单词出现的所有文档
An index can be thought of as an optimized collection of documents and each document is a collection of fields, which are the key-value pairs that contain your data 索引可以认为是文档的优化集合，每个文档都是字段的集合，这些字段是包含数据的键值对
By default, Elasticsearch indexes all data in every field and each indexed field has a dedicated, optimized data structure 默认情况下，ES对每个字段的所有数据都进行建立索引，并且每个索引字段都具有专用的优化数据结构例如: 数据类型数据结构text/keyword倒排索引数字/地理位置BKD tree 关系行数据库和Elasticsearch的对比 Relational DBElasticsearch数据库(database)索引(indices)表(tables)types(8 之后废弃)行(rows)documents字段(columns)fileds

ES7.14 新特性:

Cross-cluster EQL searchedit 跨集群搜索
Async SQL searchedit 异步搜索
Transforms: support for top metricsedit 转换-支持顶级指标
Anomaly detection: reset job APIedit 异常检测、重置作业
New match_only_text field typeedit 新的match_only_text 字段类型
More memory-efficient composite aggregationsedit 更节省内存的复合聚合
New migrate to data tiers routing API 新的迁移到数据层路由 API
New terms enum API
Automatic database updates for the GeoIP processoredit

移除的特性

Starting in version 7.14, Beats central management has been removed. If you’re currently using Beats central management, we recommend that you start using Fleet instead. For more information, refer to the Fleet documentation.

ES操作

新增

单条新增

注意

Documents sent to a data stream must have a @timestamp field 发送给数据流的文档必须具有@timestamp字段

POST logs-my_app-default/_doc
{
  "@timestamp":"2021-10-20T14:13:10.000Z",
  "event":{
    "original":"192.0.2.42 --[10/Sep/2021:14:13 +0000] " GET /images/bg.jpg HTTP/1.0"  200 24736 "
  }
}

多条新增

Use the _bulk 进行新增 Each line must end in a newline character (\n), including the last line. - {"create":{}}


PUT logs-my_app-default/_bulk
{"create":{}}
{ "@timestamp":"2021-09-20T14:24:10.000Z","event":{ "original": "192.0.2.242 - - [07/May/2020:16:24:32 -0500] "GET /images/hm_nbg.jpg HTTP/1.0" 304 0" } }
{"create":{}}
{ "@timestamp": "2099-05-08T16:25:42.000Z", "event": { "original": "192.0.2.255 - - [08/May/2099:16:25:42+0000] "GET /favicon.ico HTTP/1.0" 200 3638" } }

搜索

搜索数据(根据 @timestamp 降序)

GET logs-my_app-default/_search
{
  "query": {
    "match_all": { }
  },
  "sort": [
    {
      "@timestamp": "desc"
    }
  ]
}

获取指定的字段

通过fileds指定字段

GET logs-my_app-default/_search
{
  "query": {
    "match_all": {}
  },
  "fields": [
    "@timestamp"
  ],
  "_source": false,
  "sort": [
    {
      "@timestamp":"desc"
    }
  ]
}

按照日期搜索

GET logs-my_app-default/_search
{
  "query": {
    "range": {
      "@timestamp": {
        "gte": "2021-05-05",
        "lte": "2099-05-08"
      }
    }
  },
  "fields": [
    "@timestamp"
  ],
  "_source": false,
  "sort": [
    {
      "@timestamp":"desc"
    }
  ]
}

按日期的相对搜索，如：当前日期的前一天

通过使用 now/d 的方式

GET logs-my_app-default/_search
{
  "query": {
    "range": {
      "@timestamp": {
        "gte": "now-1d/d",
        "lte": "now/d"
      }
    }
  },
  "fields": [
    "@timestamp"
  ],
  "_source": false,
  "sort": [
    {
      "@timestamp":"desc"
    }
  ]
}

从非结构化内容中提取字段 您可以在搜索期间从非结构化内容中提取来自非结构化内容的运行时字段，例如日志消息

例如：获取从非结构化的内容中获取ip

"script": """ String sourceip=grok('%{IPORHOST:sourceip}.*').extract(doc["event.original"].value).sourceip; if(sourceip != null) emit(sourceip) """

GET logs-my_app-default/_search
{
  "runtime_mappings": {
    "source.ip": {
      "type": "ip",
      "script": """
        String sourceip=grok('%{IPORHOST:sourceip}.*').extract(doc["event.original"].value)?.sourceip;
        if(sourceip != null) emit(sourceip)
      """
    }
  },
  "query": {
    "range": {
      "@timestamp": {
        "gte": "now",
        "lte": "2099-05-08"
      }
    }
  },
  "fields": [
    "@timestamp",
    "source.ip"
  ],
  "_source": false,
  "sort": [
    {
      "@timestamp":"desc"
    }
  ]
}

结合查询

使用bool 进行组合查询

GET logs-my_app-default/_search
{
  "runtime_mappings": {
    "source.ip": {
      "type": "ip",
      "script": """
      String sourceip = grok('%{IPORHOST:sourceip}.*').extract(doc[ "event.original" ].value)?.sourceip;
      if (sourceip != null) emit(sourceip);
      """
    }
  },
  "query": {
    "bool": {
      "filter": [
        {
          "range": {
            "@timestamp": {
              "gte": "now",
              "lte": "2099-05-08"
            }
          }
        },
        {
          "range": {
            "source.ip": {
              "gte": "192.0.2.0",
              "lte": "192.0.2.240"
            }
          }
        }
      ]
    }
  },
  "fields": [
    "@timestamp",
    "source.ip"
  ],
  "_source": false,
  "sort": [
    {
      "@timestamp":"desc"
    }
  ]
}

汇总数据

注意：

The aggregation only runs on documents that match the query 聚合仅在与查询匹配的文档上运行

下面使用聚合来计算运行时的http.response.body.bytes字段的 average_response_siz

GET logs-my_app-default/_search
{
  "runtime_mappings": {
    "http.response.body.bytes": {
      "type": "long",
      "script": """
      String bytes = grok('%{COMMONAPACHELOG}').extract(doc[ "event.original" ].value)?.bytes;
      if (bytes != null) emit(Integer.parseInt(bytes));
      """
    }
  },
  "aggs": {
    "average_response_size": {
      "avg": {
        "field": "http.response.body.bytes"
      }
    }
  },
  "query": {
    "bool": {
      "filter": [
        {
          "range": {
            "@timestamp": {
              "gte": "now",
              "lte": "2099-05-09"
            }
          }
        }
      ]
    }
  },
  "fields": [
    "@timestamp",
    "http.response.bytes"
  ],
  "_source": false,
  "sort": [
    {
      "@timestamp":"desc"
    }
  ]
}

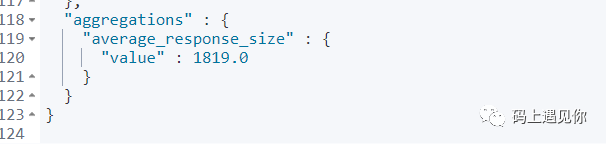

结果：
