物模型设计核心架构详解：从理论到实践的完整指南
前言
在物联网系统开发中，如何优雅地描述和管理各种智能设备？如何让一个温湿度传感器、智能灯具、空调设备在数字世界中有统一的表达方式？本文将深入解析物模型的核心设计架构，并提供完整的实现代码，让你能够快速上手构建自己的物模型系统。
本文分为两大模块：
- 第一部分：架构设计 - 深入理解物模型的设计理念和架构思想
- 第二部分：核心实现 - 提供完整的代码实现和实战示例
第一部分：架构设计模块
1. 物模型的本质：设备的数字化抽象
物模型是对物理设备在数字世界中的抽象表达。它解决的核心问题是：如何用统一的语言描述千差万别的IoT设备？

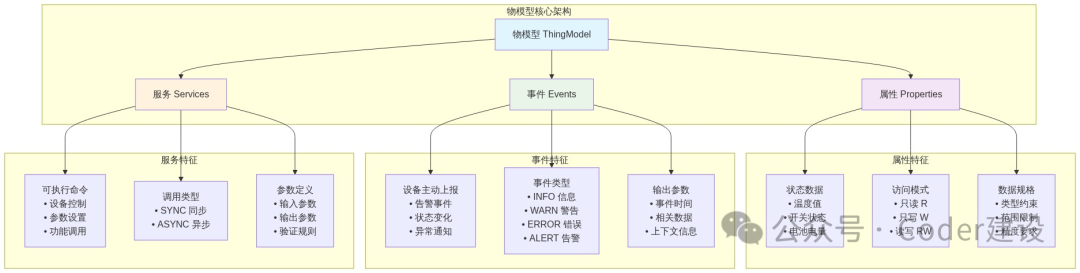

1.1 物模型三要素架构
这种三要素设计体现了面向对象的核心思想：
- 属性（Properties）：设备的状态和特征，相当于对象的属性
- 事件（Events）：设备的行为表达，相当于对象主动发出的通知
- 服务（Services）：设备的能力接口，相当于对象可调用的方法

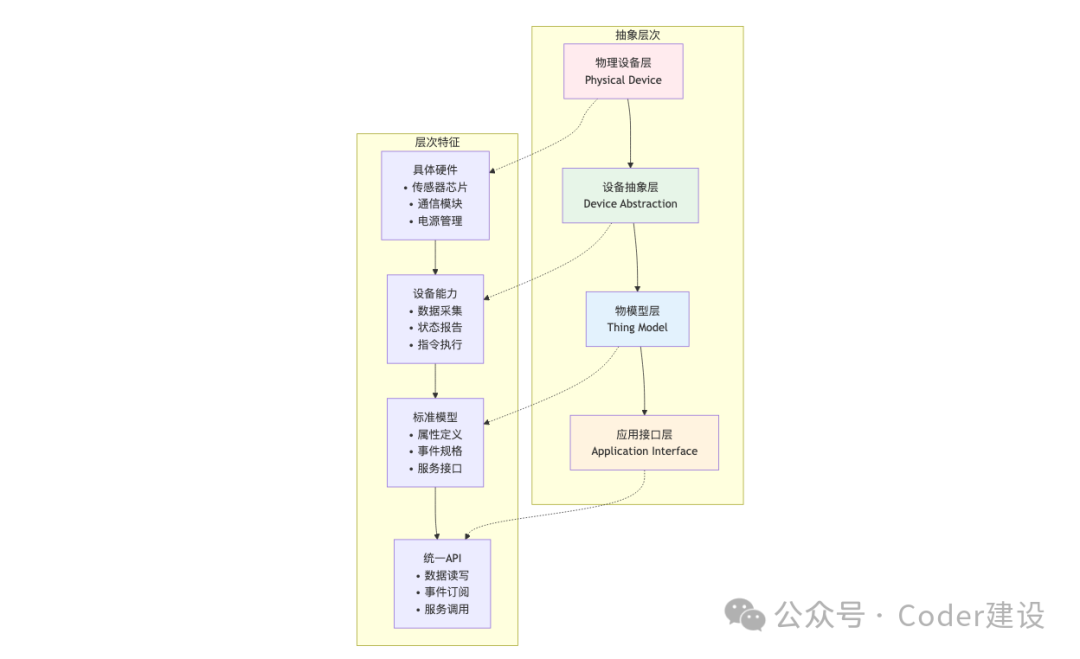

1.2 设备类型抽象层次
2. 核心架构设计

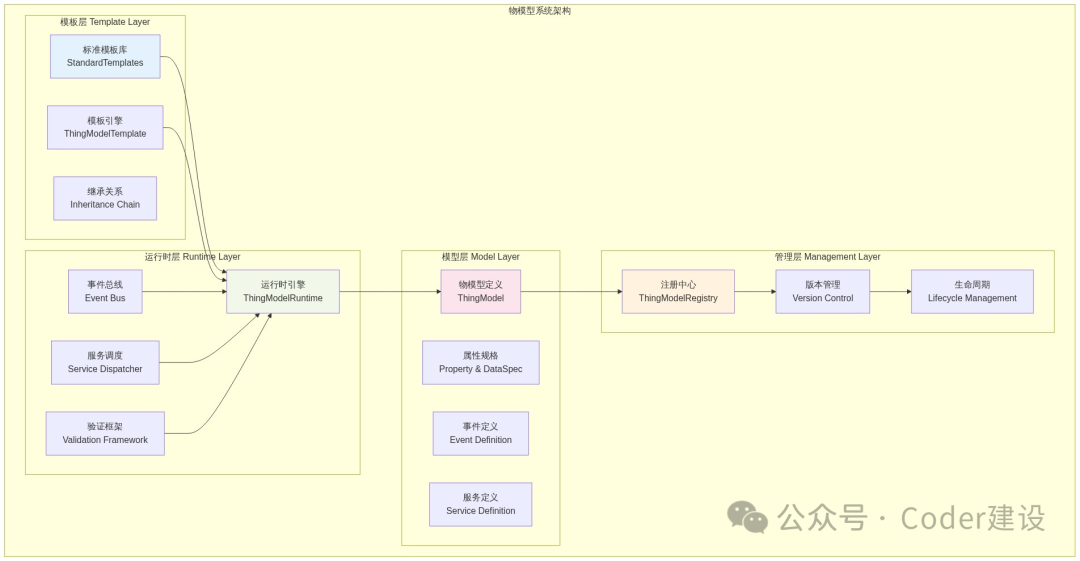

2.1 系统整体架构

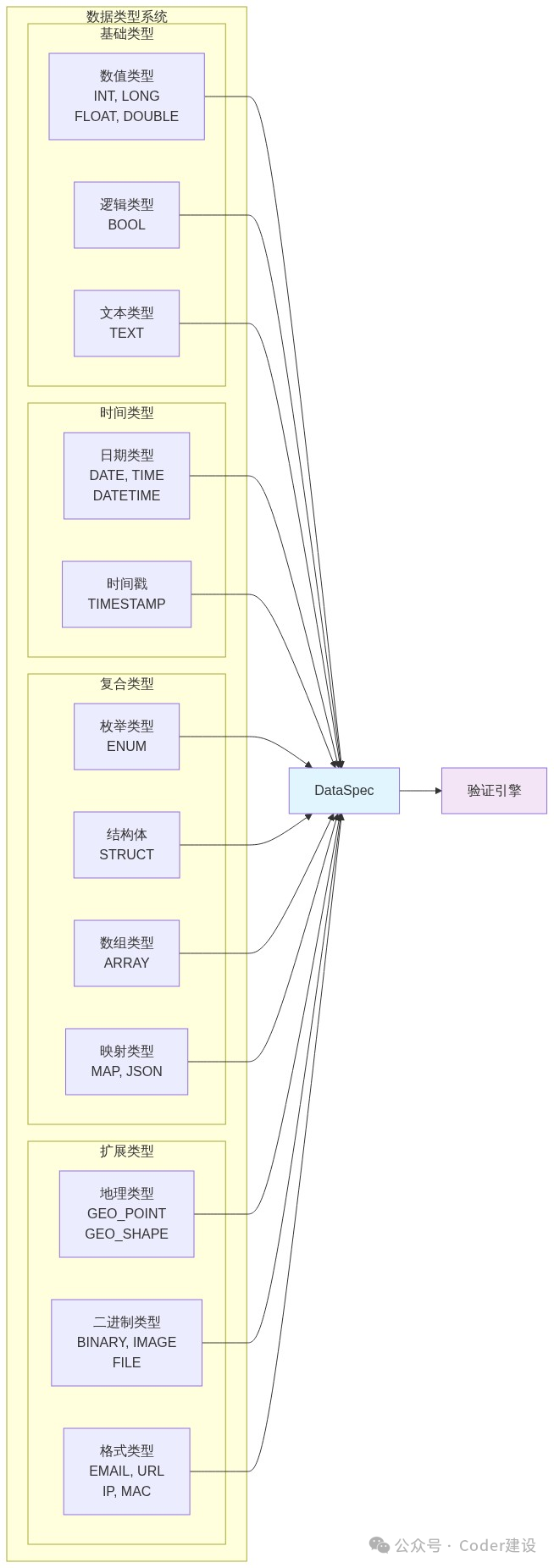

2.2 数据类型系统架构

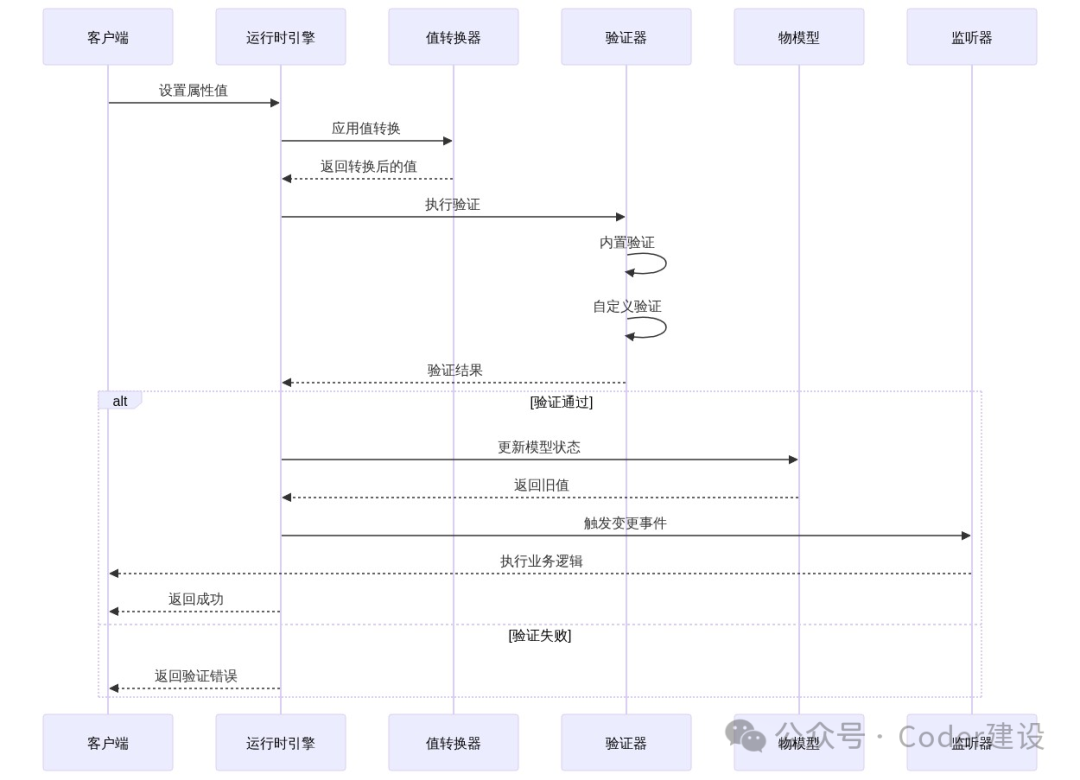

2.3 运行时处理流程

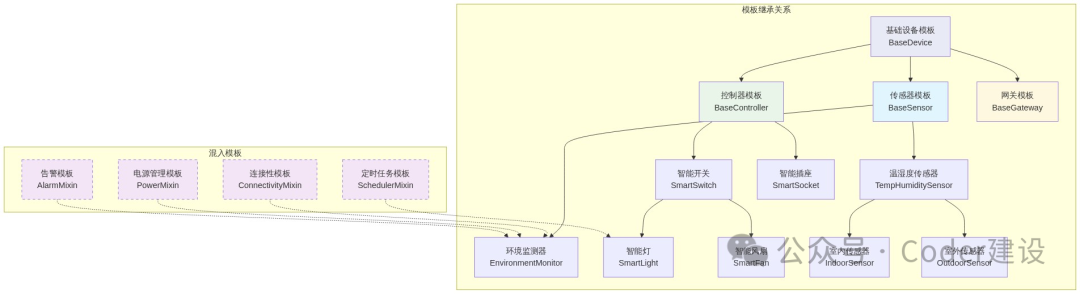

2.4 模板继承体系

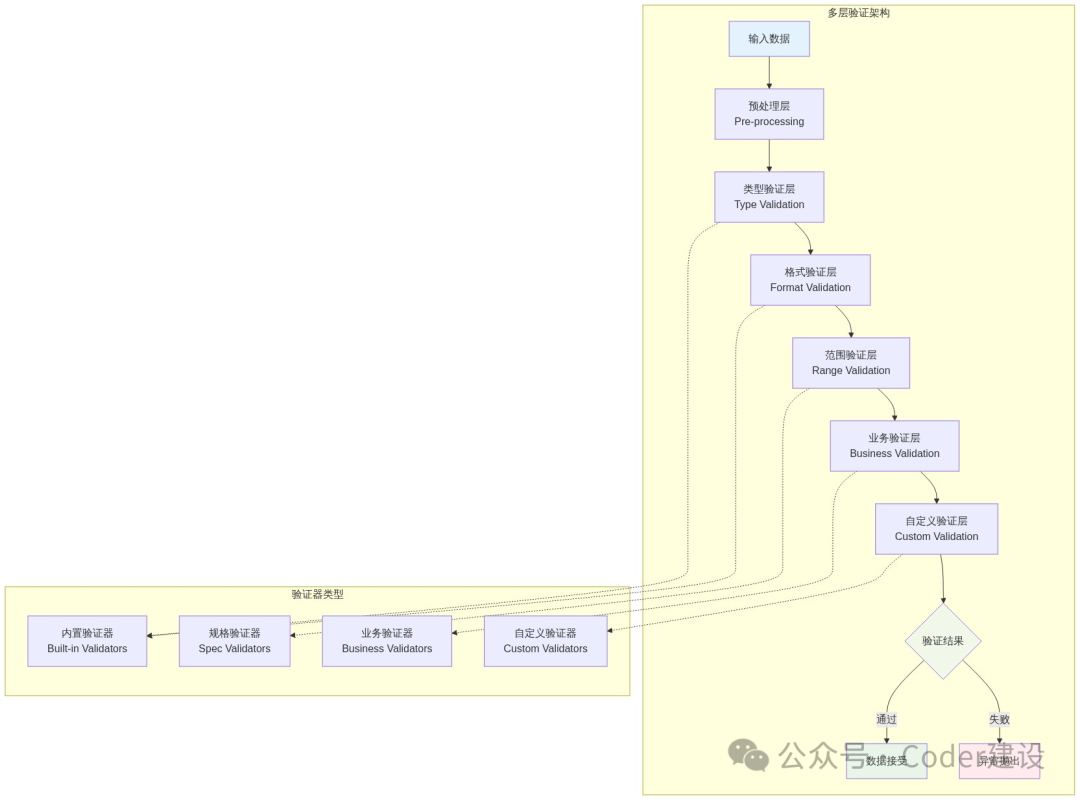

2.5 验证框架架构

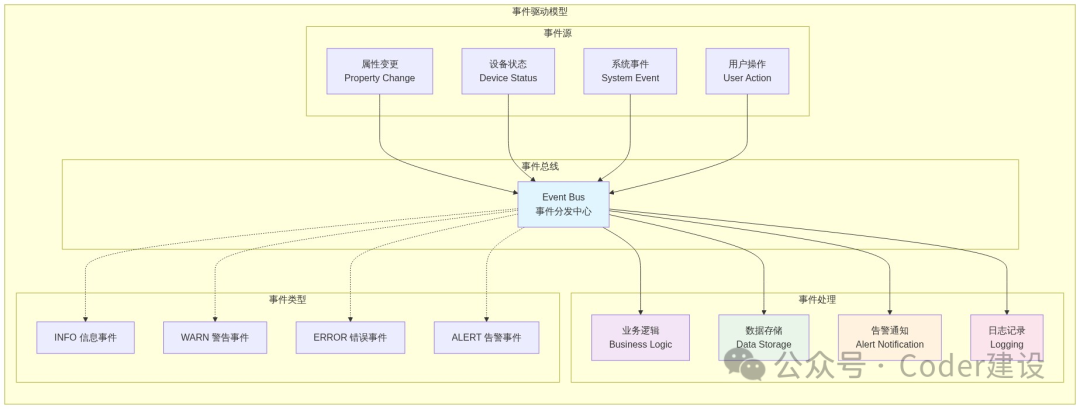

2.6 事件驱动架构
3. 核心设计理念

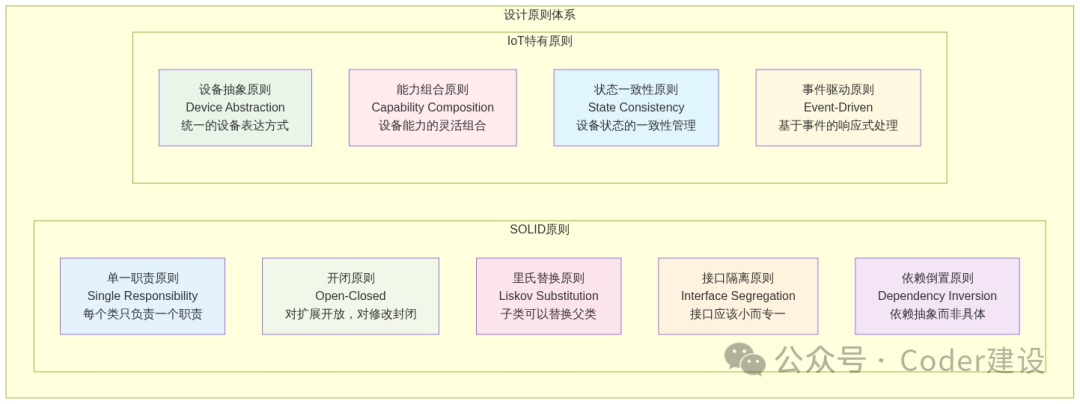

3.1 设计原则矩阵

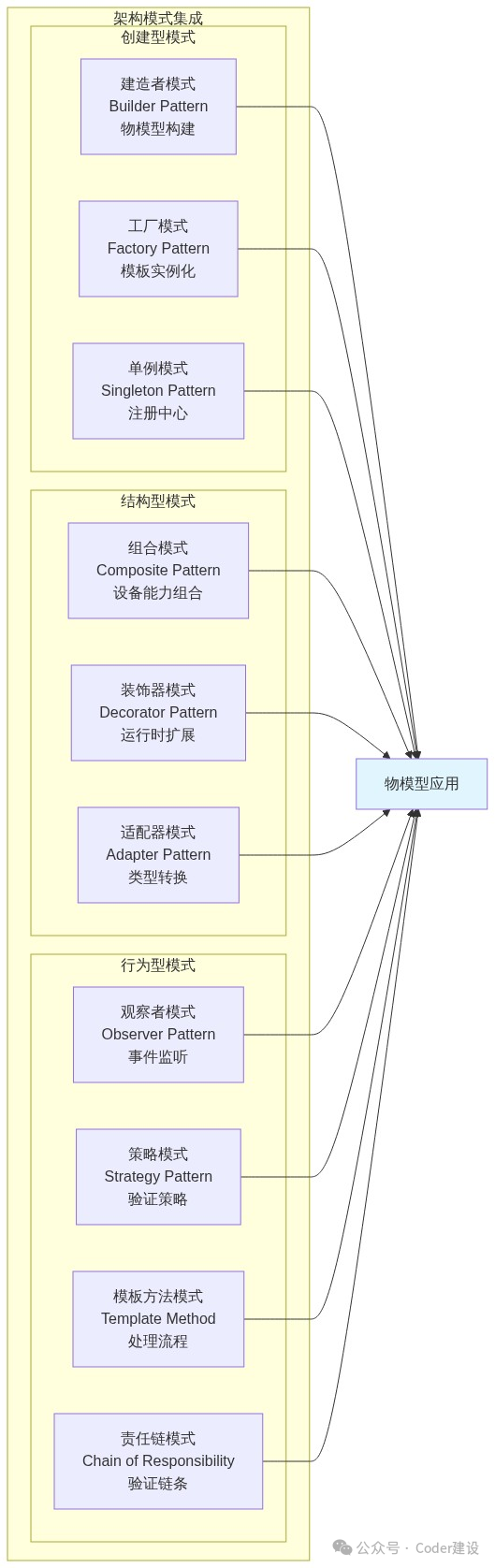

3.2 架构模式应用
第二部分：核心实现模块
4. 基础数据结构实现
4.1 物模型核心定义
public class ThingModel {
private String productKey; // 产品标识
private String productName; // 产品名称
private String version; // 版本号
private String description; // 描述信息
private List<Property> properties = new ArrayList<>(); // 属性列表
private List<Event> events = new ArrayList<>(); // 事件列表
private List<Service> services = new ArrayList<>(); // 服务列表
private Map<String, Object> extendInfo = new HashMap<>(); // 扩展信息
// 为提高查询效率，使用Map做缓存
privatetransient Map<String, Property> propertyMap;
privatetransient Map<String, Event> eventMap;
privatetransient Map<String, Service> serviceMap;
/**
* 初始化缓存
*/
private void initCache() {
if (propertyMap == null) {
propertyMap = new HashMap<>();
for (Property property : properties) {
propertyMap.put(property.getIdentifier(), property);
}
}
if (eventMap == null) {
eventMap = new HashMap<>();
for (Event event : events) {
eventMap.put(event.getIdentifier(), event);
}
}
if (serviceMap == null) {
serviceMap = new HashMap<>();
for (Service service : services) {
serviceMap.put(service.getIdentifier(), service);
}
}
}
/**
* 根据标识符获取属性
*/
public Property getProperty(String identifier) {
initCache();
return propertyMap.get(identifier);
}
/**
* 根据标识符获取事件
*/
public Event getEvent(String identifier) {
initCache();
return eventMap.get(identifier);
}
/**
* 根据标识符获取服务
*/
public Service getService(String identifier) {
initCache();
return serviceMap.get(identifier);
}
/**
* 添加属性
*/
public void addProperty(Property property) {
if (property != null) {
properties.add(property);
if (propertyMap != null) {
propertyMap.put(property.getIdentifier(), property);
}
}
}
/**
* 添加事件
*/
public void addEvent(Event event) {
if (event != null) {
events.add(event);
if (eventMap != null) {
eventMap.put(event.getIdentifier(), event);
}
}
}
/**
* 添加服务
*/
public void addService(Service service) {
if (service != null) {
services.add(service);
if (serviceMap != null) {
serviceMap.put(service.getIdentifier(), service);
}
}
}
// Getters and Setters
public String getProductKey() { return productKey; }
public void setProductKey(String productKey) { this.productKey = productKey; }
public String getProductName() { return productName; }
public void setProductName(String productName) { this.productName = productName; }
public String getVersion() { return version; }
public void setVersion(String version) { this.version = version; }
public String getDescription() { return description; }
public void setDescription(String description) { this.description = description; }
public List<Property> getProperties() { return properties; }
public void setProperties(List<Property> properties) { this.properties = properties; }
public List<Event> getEvents() { return events; }
public void setEvents(List<Event> events) { this.events = events; }
public List<Service> getServices() { return services; }
public void setServices(List<Service> services) { this.services = services; }
public Map<String, Object> getExtendInfo() { return extendInfo; }
public void setExtendInfo(Map<String, Object> extendInfo) { this.extendInfo = extendInfo; }
}
4.2 属性定义实现
public class Property {
private String identifier; // 属性标识符，如"temperature"
private String name; // 属性名称，如"环境温度"
private String description; // 属性描述
private AccessMode accessMode; // 访问模式：只读、只写、读写
private DataSpec dataSpec; // 数据规格
private Boolean required; // 是否必需
private Object extendInfo; // 扩展信息
/**
* 验证属性值是否有效
*/
public boolean validateValue(Object value) {
if (dataSpec == null) {
returntrue;
}
return dataSpec.validate(value);
}
/**
* 是否可读
*/
public boolean isReadable() {
return accessMode == AccessMode.R || accessMode == AccessMode.RW;
}
/**
* 是否可写
*/
public boolean isWritable() {
return accessMode == AccessMode.W || accessMode == AccessMode.RW;
}
// Getters and Setters
public String getIdentifier() { return identifier; }
public void setIdentifier(String identifier) { this.identifier = identifier; }
public String getName() { return name; }
public void setName(String name) { this.name = name; }
public String getDescription() { return description; }
public void setDescription(String description) { this.description = description; }
public AccessMode getAccessMode() { return accessMode; }
public void setAccessMode(AccessMode accessMode) { this.accessMode = accessMode; }
public DataSpec getDataSpec() { return dataSpec; }
public void setDataSpec(DataSpec dataSpec) { this.dataSpec = dataSpec; }
public Boolean getRequired() { return required; }
public void setRequired(Boolean required) { this.required = required; }
public Object getExtendInfo() { return extendInfo; }
public void setExtendInfo(Object extendInfo) { this.extendInfo = extendInfo; }
}
4.3 数据规格详细实现
public class DataSpec {
private DataType dataType; // 数据类型
private Number min; // 最小值（数值类型）
private Number max; // 最大值（数值类型）
private Number step; // 步长（数值类型）
private String unit; // 单位
private Integer maxLength; // 最大长度（字符串类型）
private Map<String, String> enumValues; // 枚举值（枚举类型）
private DataSpec itemType; // 数组元素类型
private Integer arrayMaxLength; // 数组最大长度
private Map<String, Property> structFields; // 结构体字段
private Object defaultValue; // 默认值
private Boolean required; // 是否必填
/**
* 验证数据是否符合规格
*/
public boolean validate(Object value) {
if (value == null) {
return !Boolean.TRUE.equals(required);
}
switch (dataType) {
case INT:
case LONG:
case FLOAT:
case DOUBLE:
return validateNumber(value);
case BOOL:
return value instanceof Boolean;
case TEXT:
return validateText(value);
case ENUM:
return validateEnum(value);
case ARRAY:
return validateArray(value);
case STRUCT:
return validateStruct(value);
case DATE:
case TIME:
case DATETIME:
case TIMESTAMP:
return validateDate(value);
case EMAIL:
return validateEmail(value);
case URL:
return validateURL(value);
case IP:
return validateIP(value);
case MAC:
return validateMAC(value);
default:
returntrue;
}
}
private boolean validateNumber(Object value) {
if (!(value instanceof Number)) {
returnfalse;
}
double doubleValue = ((Number) value).doubleValue();
if (min != null && doubleValue < min.doubleValue()) {
returnfalse;
}
if (max != null && doubleValue > max.doubleValue()) {
returnfalse;
}
// 步长验证
if (step != null && min != null) {
double stepValue = step.doubleValue();
double minValue = min.doubleValue();
double diff = doubleValue - minValue;
if (stepValue > && Math.abs(diff % stepValue) > 1e-10) {
returnfalse;
}
}
returntrue;
}
private boolean validateText(Object value) {
if (!(value instanceof String)) {
returnfalse;
}
String str = (String) value;
return maxLength == null || str.length() <= maxLength;
}
private boolean validateEnum(Object value) {
return enumValues != null && enumValues.containsKey(value.toString());
}
private boolean validateArray(Object value) {
if (!(value instanceof List)) {
returnfalse;
}
List<?> list = (List<?>) value;
if (arrayMaxLength != null && list.size() > arrayMaxLength) {
returnfalse;
}
if (itemType != null) {
for (Object item : list) {
if (!itemType.validate(item)) {
returnfalse;
}
}
}
returntrue;
}
private boolean validateStruct(Object value) {
if (!(value instanceof Map)) {
returnfalse;
}
Map<?, ?> map = (Map<?, ?>) value;
if (structFields != null) {
for (Map.Entry<String, Property> entry : structFields.entrySet()) {
Object fieldValue = map.get(entry.getKey());
Property property = entry.getValue();
if (property.getRequired() && fieldValue == null) {
returnfalse;
}
if (fieldValue != null && !property.validateValue(fieldValue)) {
returnfalse;
}
}
}
returntrue;
}
private boolean validateDate(Object value) {
return value instanceof String || value instanceof Long || value instanceof java.util.Date;
}
private boolean validateEmail(Object value) {
if (!(value instanceof String)) {
returnfalse;
}
String email = (String) value;
return email.matches("^[A-Za-z0-9+_.-]+@[A-Za-z0-9.-]+\\.[A-Za-z]{2,}$");
}
private boolean validateURL(Object value) {
if (!(value instanceof String)) {
returnfalse;
}
try {
new java.net.URL((String) value);
returntrue;
} catch (Exception e) {
returnfalse;
}
}
private boolean validateIP(Object value) {
if (!(value instanceof String)) {
returnfalse;
}
String ip = (String) value;
return ip.matches("^(?:(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\\.){3}(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)$");
}
private boolean validateMAC(Object value) {
if (!(value instanceof String)) {
returnfalse;
}
String mac = (String) value;
return mac.matches("^([0-9A-Fa-f]{2}[:-]){5}([0-9A-Fa-f]{2})$");
}
// Getters and Setters
public DataType getDataType() { return dataType; }
public void setDataType(DataType dataType) { this.dataType = dataType; }
public Number getMin() { return min; }
public void setMin(Number min) { this.min = min; }
public Number getMax() { return max; }
public void setMax(Number max) { this.max = max; }
public Number getStep() { return step; }
public void setStep(Number step) { this.step = step; }
public String getUnit() { return unit; }
public void setUnit(String unit) { this.unit = unit; }
public Integer getMaxLength() { return maxLength; }
public void setMaxLength(Integer maxLength) { this.maxLength = maxLength; }
public Map<String, String> getEnumValues() { return enumValues; }
public void setEnumValues(Map<String, String> enumValues) { this.enumValues = enumValues; }
public DataSpec getItemType() { return itemType; }
public void setItemType(DataSpec itemType) { this.itemType = itemType; }
public Integer getArrayMaxLength() { return arrayMaxLength; }
public void setArrayMaxLength(Integer arrayMaxLength) { this.arrayMaxLength = arrayMaxLength; }
public Map<String, Property> getStructFields() { return structFields; }
public void setStructFields(Map<String, Property> structFields) { this.structFields = structFields; }
public Object getDefaultValue() { return defaultValue; }
public void setDefaultValue(Object defaultValue) { this.defaultValue = defaultValue; }
public Boolean getRequired() { return required; }
public void setRequired(Boolean required) { this.required = required; }
}
4.4 事件定义实现
public class Event {
private String identifier; // 事件标识符
private String name; // 事件名称
private String description; // 事件描述
private EventType eventType; // 事件类型
private Boolean required; // 是否必需
private List<Property> outputData = new ArrayList<>(); // 输出参数
private Object extendInfo; // 扩展信息
/**
* 验证事件数据
*/
public boolean validateEventData(Object data) {
if (!(data instanceof Map)) {
returnfalse;
}
Map<?, ?> dataMap = (Map<?, ?>) data;
for (Property outputParam : outputData) {
Object value = dataMap.get(outputParam.getIdentifier());
if (outputParam.getRequired() && value == null) {
returnfalse;
}
if (value != null && !outputParam.validateValue(value)) {
returnfalse;
}
}
returntrue;
}
/**
* 添加输出参数
*/
public void addOutputParam(Property param) {
if (param != null) {
outputData.add(param);
}
}
// Getters and Setters
public String getIdentifier() { return identifier; }
public void setIdentifier(String identifier) { this.identifier = identifier; }
public String getName() { return name; }
public void setName(String name) { this.name = name; }
public String getDescription() { return description; }
public void setDescription(String description) { this.description = description; }
public EventType getEventType() { return eventType; }
public void setEventType(EventType eventType) { this.eventType = eventType; }
public Boolean getRequired() { return required; }
public void setRequired(Boolean required) { this.required = required; }
public List<Property> getOutputData() { return outputData; }
public void setOutputData(List<Property> outputData) { this.outputData = outputData; }
public Object getExtendInfo() { return extendInfo; }
public void setExtendInfo(Object extendInfo) { this.extendInfo = extendInfo; }
}
4.5 服务定义实现
public class Service {
private String identifier; // 服务标识符
private String name; // 服务名称
private String description; // 服务描述
private String callType; // 调用类型：sync/async
private Boolean required; // 是否必需
private List<Property> inputData = new ArrayList<>(); // 输入参数
private List<Property> outputData = new ArrayList<>(); // 输出参数
private Object extendInfo; // 扩展信息
/**
* 验证输入参数
*/
public boolean validateInput(Map<String, Object> input) {
if (input == null) {
input = new HashMap<>();
}
for (Property inputParam : inputData) {
Object value = input.get(inputParam.getIdentifier());
if (inputParam.getRequired() && value == null) {
returnfalse;
}
if (value != null && !inputParam.validateValue(value)) {
returnfalse;
}
}
returntrue;
}
/**
* 验证输出参数
*/
public boolean validateOutput(Map<String, Object> output) {
if (output == null) {
output = new HashMap<>();
}
for (Property outputParam : outputData) {
Object value = output.get(outputParam.getIdentifier());
if (outputParam.getRequired() && value == null) {
returnfalse;
}
if (value != null && !outputParam.validateValue(value)) {
returnfalse;
}
}
returntrue;
}
/**
* 添加输入参数
*/
public void addInputParam(Property param) {
if (param != null) {
inputData.add(param);
}
}
/**
* 添加输出参数
*/
public void addOutputParam(Property param) {
if (param != null) {
outputData.add(param);
}
}
// Getters and Setters
public String getIdentifier() { return identifier; }
public void setIdentifier(String identifier) { this.identifier = identifier; }
public String getName() { return name; }
public void setName(String name) { this.name = name; }
public String getDescription() { return description; }
public void setDescription(String description) { this.description = description; }
public String getCallType() { return callType; }
public void setCallType(String callType) { this.callType = callType; }
public Boolean getRequired() { return required; }
public void setRequired(Boolean required) { this.required = required; }
public List<Property> getInputData() { return inputData; }
public void setInputData(List<Property> inputData) { this.inputData = inputData; }
public List<Property> getOutputData() { return outputData; }
public void setOutputData(List<Property> outputData) { this.outputData = outputData; }
public Object getExtendInfo() { return extendInfo; }
public void setExtendInfo(Object extendInfo) { this.extendInfo = extendInfo; }
}
5. 枚举类型定义
5.1 数据类型枚举
public enum DataType {
// 基础数值类型
INT("int", "整数型"),
LONG("long", "长整数型"),
FLOAT("float", "单精度浮点型"),
DOUBLE("double", "双精度浮点型"),
BOOL("bool", "布尔型"),
TEXT("text", "字符串型"),
// 时间类型
DATE("date", "日期型"),
TIME("time", "时间型"),
DATETIME("datetime", "日期时间型"),
TIMESTAMP("timestamp", "时间戳"),
// 复合类型
ENUM("enum", "枚举型"),
STRUCT("struct", "结构体"),
ARRAY("array", "数组型"),
MAP("map", "映射型"),
JSON("json", "JSON对象"),
JSON_ARRAY("jsonArray", "JSON数组"),
// 二进制类型
BINARY("binary", "二进制数据"),
IMAGE("image", "图片"),
FILE("file", "文件"),
// 地理位置类型
GEO_POINT("geoPoint", "地理坐标点"),
GEO_SHAPE("geoShape", "地理形状"),
// 特殊格式类型
PASSWORD("password", "密码"),
EMAIL("email", "邮箱"),
URL("url", "URL地址"),
IP("ip", "IP地址"),
MAC("mac", "MAC地址"),
COLOR("color", "颜色值"),
CRON("cron", "Cron表达式");
privatefinal String code;
privatefinal String description;
DataType(String code, String description) {
this.code = code;
this.description = description;
}
public String getCode() {
return code;
}
public String getDescription() {
return description;
}
public static DataType fromCode(String code) {
for (DataType type : values()) {
if (type.getCode().equals(code)) {
return type;
}
}
thrownew IllegalArgumentException("Unknown data type: " + code);
}
/**
* 是否为基础类型
*/
public boolean isBasicType() {
returnthis == INT || this == LONG || this == FLOAT ||
this == DOUBLE || this == BOOL || this == TEXT;
}
/**
* 是否为时间相关类型
*/
public boolean isTimeType() {
returnthis == DATE || this == TIME || this == DATETIME || this == TIMESTAMP;
}
/**
* 是否为复合类型
*/
public boolean isCompositeType() {
returnthis == STRUCT || this == ARRAY || this == MAP ||
this == JSON || this == JSON_ARRAY;
}
/**
* 是否为二进制类型
*/
public boolean isBinaryType() {
returnthis == BINARY || this == IMAGE || this == FILE;
}
/**
* 是否为地理类型
*/
public boolean isGeoType() {
returnthis == GEO_POINT || this == GEO_SHAPE;
}
/**
* 是否为格式验证类型
*/
public boolean isFormatType() {
returnthis == EMAIL || this == URL || this == IP ||
this == MAC || this == COLOR || this == CRON;
}
}
5.2 访问模式枚举
public enum AccessMode {
R("r", "只读"),
W("w", "只写"),
RW("rw", "读写");
privatefinal String code;
privatefinal String description;
AccessMode(String code, String description) {
this.code = code;
this.description = description;
}
public String getCode() {
return code;
}
public String getDescription() {
return description;
}
public static AccessMode fromCode(String code) {
for (AccessMode mode : values()) {
if (mode.getCode().equals(code)) {
return mode;
}
}
thrownew IllegalArgumentException("Unknown access mode: " + code);
}
public boolean isReadable() {
returnthis == R || this == RW;
}
public boolean isWritable() {
returnthis == W || this == RW;
}
}
5.3 事件类型枚举
public enum EventType {
INFO("info", "信息"),
WARN("warn", "警告"),
ERROR("error", "错误"),
ALERT("alert", "告警");
privatefinal String code;
privatefinal String description;
EventType(String code, String description) {
this.code = code;
this.description = description;
}
public String getCode() {
return code;
}
public String getDescription() {
return description;
}
public static EventType fromCode(String code) {
for (EventType type : values()) {
if (type.getCode().equals(code)) {
return type;
}
}
thrownew IllegalArgumentException("Unknown event type: " + code);
}
/**
* 获取事件严重程度级别
*/
public int getSeverityLevel() {
switch (this) {
case INFO: return;
case WARN: return;
case ERROR: return;
case ALERT: return;
default: return;
}
}
/**
* 是否需要立即处理
*/
public boolean requiresImmediateAction() {
returnthis == ERROR || this == ALERT;
}
}
6. 运行时引擎实现
6.1 ThingModelRuntime核心实现
public class ThingModelRuntime {
privatefinal ThingModel model;
privatefinal Map<String, Object> runtimeData = new ConcurrentHashMap<>();
privatefinal Map<String, List<PropertyChangeListener>> propertyListeners = new ConcurrentHashMap<>();
privatefinal Map<String, List<EventListener>> eventListeners = new ConcurrentHashMap<>();
privatefinal Map<String, ServiceHandler> serviceHandlers = new ConcurrentHashMap<>();
privatefinal Map<String, Function<Object, Object>> valueTransformers = new ConcurrentHashMap<>();
privatefinal List<DataValidator> customValidators = new ArrayList<>();
public ThingModelRuntime(ThingModel model) {
this.model = model;
initializeRuntimeData();
}
/**
* 初始化运行时数据
*/
private void initializeRuntimeData() {
for (Property property : model.getProperties()) {
if (property.getDataSpec() != null &&
property.getDataSpec().getDefaultValue() != null) {
runtimeData.put(property.getIdentifier(),
property.getDataSpec().getDefaultValue());
}
}
}
/**
* 设置属性值的完整流程
*/
public void setPropertyValue(String identifier, Object value) {
Property property = model.getProperty(identifier);
if (property == null) {
thrownew IllegalArgumentException("Property not found: " + identifier);
}
if (!property.isWritable()) {
thrownew IllegalStateException("Property is read-only: " + identifier);
}
// 1. 应用值转换器
Object transformedValue = applyTransformer(identifier, value);
// 2. 多层验证
validatePropertyValue(property, transformedValue);
// 3. 获取旧值
Object oldValue = runtimeData.get(identifier);
// 4. 设置新值
runtimeData.put(identifier, transformedValue);
// 5. 触发变更事件
firePropertyChange(identifier, oldValue, transformedValue);
}
/**
* 获取属性值
*/
public Object getPropertyValue(String identifier) {
Property property = model.getProperty(identifier);
if (property == null) {
thrownew IllegalArgumentException("Property not found: " + identifier);
}
if (!property.isReadable()) {
thrownew IllegalStateException("Property is write-only: " + identifier);
}
return runtimeData.get(identifier);
}
/**
* 批量设置属性值
*/
public void setPropertyValues(Map<String, Object> values) {
for (Map.Entry<String, Object> entry : values.entrySet()) {
setPropertyValue(entry.getKey(), entry.getValue());
}
}
/**
* 获取所有属性值
*/
public Map<String, Object> getAllPropertyValues() {
Map<String, Object> result = new HashMap<>();
for (Property property : model.getProperties()) {
if (property.isReadable()) {
result.put(property.getIdentifier(), runtimeData.get(property.getIdentifier()));
}
}
return result;
}
/**
* 触发事件
*/
public void fireEvent(String identifier, Map<String, Object> data) {
Event event = model.getEvent(identifier);
if (event == null) {
thrownew IllegalArgumentException("Event not found: " + identifier);
}
// 验证事件数据
if (!event.validateEventData(data)) {
thrownew ValidationException("Invalid event data for: " + identifier);
}
// 触发事件监听器
List<EventListener> listeners = eventListeners.get(identifier);
if (listeners != null) {
for (EventListener listener : listeners) {
try {
listener.onEvent(identifier, data);
} catch (Exception e) {
System.err.println("Error in event listener: " + e.getMessage());
}
}
}
}
/**
* 调用服务
*/
public Map<String, Object> invokeService(String identifier, Map<String, Object> input) {
Service service = model.getService(identifier);
if (service == null) {
thrownew IllegalArgumentException("Service not found: " + identifier);
}
// 验证输入参数
if (!service.validateInput(input)) {
thrownew ValidationException("Invalid input for service: " + identifier);
}
// 获取服务处理器
ServiceHandler handler = serviceHandlers.get(identifier);
if (handler == null) {
thrownew IllegalStateException("No handler registered for service: " + identifier);
}
// 执行服务
Map<String, Object> output = handler.handle(input);
// 验证输出参数
if (!service.validateOutput(output)) {
thrownew ValidationException("Invalid output from service: " + identifier);
}
return output;
}
/**
* 注册属性变更监听器
*/
public void addPropertyChangeListener(String identifier, PropertyChangeListener listener) {
propertyListeners.computeIfAbsent(identifier, k -> new ArrayList<>()).add(listener);
}
/**
* 注册事件监听器
*/
public void addEventListener(String identifier, EventListener listener) {
eventListeners.computeIfAbsent(identifier, k -> new ArrayList<>()).add(listener);
}
/**
* 注册服务处理器
*/
public void registerServiceHandler(String identifier, ServiceHandler handler) {
serviceHandlers.put(identifier, handler);
}
/**
* 注册值转换器
*/
public void registerValueTransformer(String identifier, Function<Object, Object> transformer) {
valueTransformers.put(identifier, transformer);
}
/**
* 添加自定义验证器
*/
public void addCustomValidator(DataValidator validator) {
customValidators.add(validator);
}
/**
* 动态添加属性
*/
public void addDynamicProperty(Property property) {
model.addProperty(property);
if (property.getDataSpec() != null && property.getDataSpec().getDefaultValue() != null) {
runtimeData.put(property.getIdentifier(), property.getDataSpec().getDefaultValue());
}
}
// 私有辅助方法
private Object applyTransformer(String identifier, Object value) {
Function<Object, Object> transformer = valueTransformers.get(identifier);
if (transformer != null) {
return transformer.apply(value);
}
return value;
}
private void validatePropertyValue(Property property, Object value) {
// 内置验证
if (!property.validateValue(value)) {
thrownew ValidationException("Value validation failed for property: " +
property.getIdentifier());
}
// 自定义验证器
for (DataValidator validator : customValidators) {
if (!validator.validate(property, value)) {
thrownew ValidationException("Custom validation failed for property: " +
property.getIdentifier());
}
}
}
private void firePropertyChange(String identifier, Object oldValue, Object newValue) {
List<PropertyChangeListener> listeners = propertyListeners.get(identifier);
if (listeners != null) {
for (PropertyChangeListener listener : listeners) {
try {
listener.onPropertyChange(identifier, oldValue, newValue);
} catch (Exception e) {
System.err.println("Error in property change listener: " + e.getMessage());
}
}
}
}
// 内部接口定义
@FunctionalInterface
publicinterface PropertyChangeListener {
void onPropertyChange(String identifier, Object oldValue, Object newValue);
}
@FunctionalInterface
publicinterface EventListener {
void onEvent(String identifier, Map<String, Object> data);
}
@FunctionalInterface
publicinterface ServiceHandler {
Map<String, Object> handle(Map<String, Object> input);
}
@FunctionalInterface
publicinterface DataValidator {
boolean validate(Property property, Object value);
}
}
7. 建造者模式实现
7.1 ThingModelBuilder核心实现
public class ThingModelBuilder {
private ThingModel model;
private PropertyBuilder currentPropertyBuilder;
private EventBuilder currentEventBuilder;
private ServiceBuilder currentServiceBuilder;
public ThingModelBuilder() {
this.model = new ThingModel();
}
public ThingModelBuilder productKey(String productKey) {
model.setProductKey(productKey);
returnthis;
}
public ThingModelBuilder productName(String productName) {
model.setProductName(productName);
returnthis;
}
public ThingModelBuilder version(String version) {
model.setVersion(version);
returnthis;
}
public ThingModelBuilder description(String description) {
model.setDescription(description);
returnthis;
}
public PropertyBuilder addProperty(String identifier) {
currentPropertyBuilder = new PropertyBuilder(this, identifier);
return currentPropertyBuilder;
}
public EventBuilder addEvent(String identifier) {
currentEventBuilder = new EventBuilder(this, identifier);
return currentEventBuilder;
}
public ServiceBuilder addService(String identifier) {
currentServiceBuilder = new ServiceBuilder(this, identifier);
return currentServiceBuilder;
}
public ThingModel build() {
return model;
}
// 属性建造者
publicstaticclass PropertyBuilder {
private ThingModelBuilder parent;
private Property property;
private DataSpec dataSpec;
public PropertyBuilder(ThingModelBuilder parent, String identifier) {
this.parent = parent;
this.property = new Property();
this.property.setIdentifier(identifier);
this.dataSpec = new DataSpec();
this.property.setDataSpec(dataSpec);
}
public PropertyBuilder name(String name) {
property.setName(name);
returnthis;
}
public PropertyBuilder description(String description) {
property.setDescription(description);
returnthis;
}
public PropertyBuilder dataType(DataType dataType) {
dataSpec.setDataType(dataType);
returnthis;
}
public PropertyBuilder accessMode(AccessMode accessMode) {
property.setAccessMode(accessMode);
returnthis;
}
public PropertyBuilder min(Number min) {
dataSpec.setMin(min);
returnthis;
}
public PropertyBuilder max(Number max) {
dataSpec.setMax(max);
returnthis;
}
public PropertyBuilder step(Number step) {
dataSpec.setStep(step);
returnthis;
}
public PropertyBuilder unit(String unit) {
dataSpec.setUnit(unit);
returnthis;
}
public PropertyBuilder maxLength(Integer maxLength) {
dataSpec.setMaxLength(maxLength);
returnthis;
}
public PropertyBuilder enumValue(String key, String value) {
if (dataSpec.getEnumValues() == null) {
dataSpec.setEnumValues(new HashMap<>());
}
dataSpec.getEnumValues().put(key, value);
returnthis;
}
public PropertyBuilder defaultValue(Object defaultValue) {
dataSpec.setDefaultValue(defaultValue);
returnthis;
}
public PropertyBuilder required(Boolean required) {
property.setRequired(required);
returnthis;
}
public ThingModelBuilder endProperty() {
parent.model.addProperty(property);
return parent;
}
}
// 事件建造者
publicstaticclass EventBuilder {
private ThingModelBuilder parent;
private Event event;
public EventBuilder(ThingModelBuilder parent, String identifier) {
this.parent = parent;
this.event = new Event();
this.event.setIdentifier(identifier);
}
public EventBuilder name(String name) {
event.setName(name);
returnthis;
}
public EventBuilder description(String description) {
event.setDescription(description);
returnthis;
}
public EventBuilder eventType(EventType eventType) {
event.setEventType(eventType);
returnthis;
}
public EventBuilder addOutputParam(String identifier, String name, DataType dataType) {
Property param = new Property();
param.setIdentifier(identifier);
param.setName(name);
param.setAccessMode(AccessMode.R);
DataSpec spec = new DataSpec();
spec.setDataType(dataType);
param.setDataSpec(spec);
event.addOutputParam(param);
returnthis;
}
public ThingModelBuilder endEvent() {
parent.model.addEvent(event);
return parent;
}
}
// 服务建造者
publicstaticclass ServiceBuilder {
private ThingModelBuilder parent;
private Service service;
public ServiceBuilder(ThingModelBuilder parent, String identifier) {
this.parent = parent;
this.service = new Service();
this.service.setIdentifier(identifier);
}
public ServiceBuilder name(String name) {
service.setName(name);
returnthis;
}
public ServiceBuilder description(String description) {
service.setDescription(description);
returnthis;
}
public ServiceBuilder callType(String callType) {
service.setCallType(callType);
returnthis;
}
public ServiceBuilder addInputParam(String identifier, String name, DataType dataType) {
Property param = new Property();
param.setIdentifier(identifier);
param.setName(name);
param.setAccessMode(AccessMode.W);
DataSpec spec = new DataSpec();
spec.setDataType(dataType);
param.setDataSpec(spec);
service.addInputParam(param);
returnthis;
}
public ServiceBuilder addOutputParam(String identifier, String name, DataType dataType) {
Property param = new Property();
param.setIdentifier(identifier);
param.setName(name);
param.setAccessMode(AccessMode.R);
DataSpec spec = new DataSpec();
spec.setDataType(dataType);
param.setDataSpec(spec);
service.addOutputParam(param);
returnthis;
}
public ThingModelBuilder endService() {
parent.model.addService(service);
return parent;
}
}
}
8. 模板系统实现
8.1 ThingModelTemplate实现
public class ThingModelTemplate {
private String templateId;
private String templateName;
private String description;
private String category;
private ThingModelTemplate parent;
private List<ThingModelTemplate> mixins = new ArrayList<>();
private ThingModel baseModel;
private Map<String, Object> metadata = new HashMap<>();
public ThingModelTemplate(String templateId, String templateName) {
this.templateId = templateId;
this.templateName = templateName;
this.baseModel = new ThingModel();
}
public ThingModelTemplate extend(ThingModelTemplate parent) {
this.parent = parent;
returnthis;
}
public ThingModelTemplate mixin(ThingModelTemplate... templates) {
Collections.addAll(this.mixins, templates);
returnthis;
}
public ThingModel instantiate(String productKey, String productName) {
ThingModel model = new ThingModel();
model.setProductKey(productKey);
model.setProductName(productName);
// 应用继承链
applyInheritance(model);
// 应用混入
for (ThingModelTemplate mixin : mixins) {
applyTemplate(model, mixin.baseModel);
}
// 应用自身定义
applyTemplate(model, baseModel);
// 设置模板信息
model.getExtendInfo().put("templateId", templateId);
model.getExtendInfo().put("templateName", templateName);
return model;
}
private void applyInheritance(ThingModel model) {
if (parent != null) {
parent.applyInheritance(model);
applyTemplate(model, parent.baseModel);
}
}
private void applyTemplate(ThingModel target, ThingModel source) {
// 复制属性（避免重复）
for (Property property : source.getProperties()) {
if (target.getProperty(property.getIdentifier()) == null) {
target.addProperty(cloneProperty(property));
}
}
// 复制事件（避免重复）
for (Event event : source.getEvents()) {
if (target.getEvent(event.getIdentifier()) == null) {
target.addEvent(cloneEvent(event));
}
}
// 复制服务（避免重复）
for (Service service : source.getServices()) {
if (target.getService(service.getIdentifier()) == null) {
target.addService(cloneService(service));
}
}
}
private Property cloneProperty(Property source) {
Property property = new Property();
property.setIdentifier(source.getIdentifier());
property.setName(source.getName());
property.setDescription(source.getDescription());
property.setAccessMode(source.getAccessMode());
property.setRequired(source.getRequired());
property.setDataSpec(cloneDataSpec(source.getDataSpec()));
property.setExtendInfo(source.getExtendInfo());
return property;
}
private DataSpec cloneDataSpec(DataSpec source) {
if (source == null) returnnull;
DataSpec spec = new DataSpec();
spec.setDataType(source.getDataType());
spec.setMin(source.getMin());
spec.setMax(source.getMax());
spec.setStep(source.getStep());
spec.setUnit(source.getUnit());
spec.setMaxLength(source.getMaxLength());
spec.setEnumValues(source.getEnumValues() != null ?
new HashMap<>(source.getEnumValues()) : null);
spec.setDefaultValue(source.getDefaultValue());
spec.setRequired(source.getRequired());
return spec;
}
private Event cloneEvent(Event source) {
Event event = new Event();
event.setIdentifier(source.getIdentifier());
event.setName(source.getName());
event.setDescription(source.getDescription());
event.setEventType(source.getEventType());
event.setRequired(source.getRequired());
event.setOutputData(new ArrayList<>(source.getOutputData()));
event.setExtendInfo(source.getExtendInfo());
return event;
}
private Service cloneService(Service source) {
Service service = new Service();
service.setIdentifier(source.getIdentifier());
service.setName(source.getName());
service.setDescription(source.getDescription());
service.setCallType(source.getCallType());
service.setRequired(source.getRequired());
service.setInputData(new ArrayList<>(source.getInputData()));
service.setOutputData(new ArrayList<>(source.getOutputData()));
service.setExtendInfo(source.getExtendInfo());
return service;
}
// Getters and Setters
public String getTemplateId() { return templateId; }
public void setTemplateId(String templateId) { this.templateId = templateId; }
public String getTemplateName() { return templateName; }
public void setTemplateName(String templateName) { this.templateName = templateName; }
public String getDescription() { return description; }
public void setDescription(String description) { this.description = description; }
public String getCategory() { return category; }
public void setCategory(String category) { this.category = category; }
public ThingModel getBaseModel() { return baseModel; }
public void setBaseModel(ThingModel baseModel) { this.baseModel = baseModel; }
public Map<String, Object> getMetadata() { return metadata; }
public void setMetadata(Map<String, Object> metadata) { this.metadata = metadata; }
}
9. 注册中心实现
9.1 ThingModelRegistry实现
public class ThingModelRegistry {
privatefinal Map<String, Map<String, ThingModel>> registry = new ConcurrentHashMap<>();
privatefinal Map<String, String> aliasMap = new ConcurrentHashMap<>();
privatefinal Map<String, Set<String>> tagIndex = new ConcurrentHashMap<>();
privatestatic ThingModelRegistry instance;
private ThingModelRegistry() {}
public static ThingModelRegistry getInstance() {
if (instance == null) {
synchronized (ThingModelRegistry.class) {
if (instance == null) {
instance = new ThingModelRegistry();
}
}
}
return instance;
}
/**
* 注册物模型
*/
public void register(ThingModel model) {
if (model == null || model.getProductKey() == null) {
thrownew IllegalArgumentException("物模型或产品标识不能为空");
}
String productKey = model.getProductKey();
String version = model.getVersion() != null ? model.getVersion() : "1.0";
registry.computeIfAbsent(productKey, k -> new ConcurrentHashMap<>())
.put(version, model);
System.out.println("注册物模型: " + productKey + " v" + version);
}
/**
* 获取最新版本的物模型
*/
public ThingModel get(String productKey) {
Map<String, ThingModel> versions = registry.get(resolveAlias(productKey));
if (versions == null || versions.isEmpty()) {
returnnull;
}
// 获取最新版本
return versions.entrySet().stream()
.max(Map.Entry.comparingByKey(this::compareVersion))
.map(Map.Entry::getValue)
.orElse(null);
}
/**
* 获取指定版本的物模型
*/
public ThingModel get(String productKey, String version) {
Map<String, ThingModel> versions = registry.get(resolveAlias(productKey));
return versions != null ? versions.get(version) : null;
}
/**
* 获取所有版本
*/
public List<String> getVersions(String productKey) {
Map<String, ThingModel> versions = registry.get(resolveAlias(productKey));
if (versions == null) {
return Collections.emptyList();
}
returnnew ArrayList<>(versions.keySet());
}
/**
* 设置别名
*/
public void setAlias(String alias, String productKey) {
aliasMap.put(alias, productKey);
}
/**
* 添加标签
*/
public void addTag(String productKey, String tag) {
tagIndex.computeIfAbsent(tag, k -> ConcurrentHashMap.newKeySet())
.add(productKey);
}
/**
* 根据标签查找物模型
*/
public List<ThingModel> findByTag(String tag) {
Set<String> productKeys = tagIndex.get(tag);
if (productKeys == null) {
return Collections.emptyList();
}
return productKeys.stream()
.map(this::get)
.filter(Objects::nonNull)
.collect(Collectors.toList());
}
/**
* 搜索物模型
*/
public List<ThingModel> search(String keyword) {
return registry.values().stream()
.flatMap(versions -> versions.values().stream())
.filter(model -> matchKeyword(model, keyword))
.collect(Collectors.toList());
}
private String resolveAlias(String key) {
return aliasMap.getOrDefault(key, key);
}
private boolean matchKeyword(ThingModel model, String keyword) {
if (keyword == null || keyword.isEmpty()) {
returntrue;
}
String lowerKeyword = keyword.toLowerCase();
return (model.getProductKey() != null && model.getProductKey().toLowerCase().contains(lowerKeyword)) ||
(model.getProductName() != null && model.getProductName().toLowerCase().contains(lowerKeyword)) ||
(model.getDescription() != null && model.getDescription().toLowerCase().contains(lowerKeyword));
}
private int compareVersion(String v1, String v2) {
String[] parts1 = v1.split("\\.");
String[] parts2 = v2.split("\\.");
int length = Math.max(parts1.length, parts2.length);
for (int i = ; i < length; i++) {
int num1 = i < parts1.length ? Integer.parseInt(parts1[i]) : ;
int num2 = i < parts2.length ? Integer.parseInt(parts2[i]) : ;
if (num1 != num2) {
return Integer.compare(num1, num2);
}
}
return;
}
}
10. 完整实战示例
10.1 温湿度传感器完整示例
public class TempHumiditySensorExample {
public static void main(String[] args) {
// 1. 创建物模型
ThingModel sensorModel = createTempHumiditySensorModel();
// 2. 注册到注册中心
ThingModelRegistry registry = ThingModelRegistry.getInstance();
registry.register(sensorModel);
// 3. 创建运行时实例
ThingModelRuntime runtime = new ThingModelRuntime(sensorModel);
// 4. 注册监听器和服务处理器
setupRuntimeHandlers(runtime);
// 5. 模拟设备数据处理
simulateDeviceOperation(runtime);
}
private static ThingModel createTempHumiditySensorModel() {
returnnew ThingModelBuilder()
.productKey("TEMP_HUMIDITY_SENSOR_V2")
.productName("高精度温湿度传感器")
.version("2.0")
.description("支持多种环境参数监测的智能传感器")
// 温度属性
.addProperty("temperature")
.name("环境温度")
.description("当前环境的温度值")
.dataType(DataType.FLOAT)
.accessMode(AccessMode.R)
.min(-40.0)
.max(125.0)
.step(0.1)
.unit("℃")
.required(true)
.endProperty()
// 湿度属性
.addProperty("humidity")
.name("环境湿度")
.description("当前环境的相对湿度")
.dataType(DataType.FLOAT)
.accessMode(AccessMode.R)
.min(0.0)
.max(100.0)
.step(0.1)
.unit("%RH")
.required(true)
.endProperty()
// 工作模式属性
.addProperty("workMode")
.name("工作模式")
.description("传感器的工作模式")
.dataType(DataType.ENUM)
.accessMode(AccessMode.RW)
.enumValue("normal", "正常模式")
.enumValue("power_save", "节能模式")
.enumValue("high_precision", "高精度模式")
.defaultValue("normal")
.endProperty()
// 采集间隔属性
.addProperty("collectInterval")
.name("采集间隔")
.description("数据采集的时间间隔")
.dataType(DataType.INT)
.accessMode(AccessMode.RW)
.min()
.max()
.unit("秒")
.defaultValue()
.endProperty()
// 温度告警事件
.addEvent("tempAlert")
.name("温度告警")
.description("温度超出阈值时触发")
.eventType(EventType.ALERT)
.addOutputParam("temperature", "当前温度", DataType.FLOAT)
.addOutputParam("threshold", "告警阈值", DataType.FLOAT)
.addOutputParam("alertType", "告警类型", DataType.TEXT)
.endEvent()
// 湿度告警事件
.addEvent("humidityAlert")
.name("湿度告警")
.description("湿度超出阈值时触发")
.eventType(EventType.ALERT)
.addOutputParam("humidity", "当前湿度", DataType.FLOAT)
.addOutputParam("threshold", "告警阈值", DataType.FLOAT)
.endEvent()
// 校准服务
.addService("calibrate")
.name("传感器校准")
.description("对传感器进行校准")
.callType("async")
.addInputParam("tempOffset", "温度偏移", DataType.FLOAT)
.addInputParam("humidityOffset", "湿度偏移", DataType.FLOAT)
.addOutputParam("taskId", "任务ID", DataType.TEXT)
.addOutputParam("estimatedTime", "预计耗时", DataType.INT)
.endService()
// 重置服务
.addService("reset")
.name("重置传感器")
.description("将传感器恢复到出厂设置")
.callType("sync")
.addOutputParam("success", "是否成功", DataType.BOOL)
.addOutputParam("message", "结果消息", DataType.TEXT)
.endService()
.build();
}
private static void setupRuntimeHandlers(ThingModelRuntime runtime) {
// 注册温度变更监听器
runtime.addPropertyChangeListener("temperature", (identifier, oldValue, newValue) -> {
System.out.println("温度变化: " + oldValue + " -> " + newValue);
// 检查是否需要触发告警
if (newValue instanceof Number) {
double temp = ((Number) newValue).doubleValue();
if (temp > 40.0) {
Map<String, Object> alertData = new HashMap<>();
alertData.put("temperature", temp);
alertData.put("threshold", 40.0);
alertData.put("alertType", "HIGH_TEMPERATURE");
runtime.fireEvent("tempAlert", alertData);
}
}
});
// 注册湿度变更监听器
runtime.addPropertyChangeListener("humidity", (identifier, oldValue, newValue) -> {
System.out.println("湿度变化: " + oldValue + " -> " + newValue);
if (newValue instanceof Number) {
double humidity = ((Number) newValue).doubleValue();
if (humidity > 90.0) {
Map<String, Object> alertData = new HashMap<>();
alertData.put("humidity", humidity);
alertData.put("threshold", 90.0);
runtime.fireEvent("humidityAlert", alertData);
}
}
});
// 注册温度告警事件监听器
runtime.addEventListener("tempAlert", (eventId, data) -> {
System.out.println("收到温度告警: " + data);
// 这里可以执行告警处理逻辑，如发送通知等
});
// 注册校准服务处理器
runtime.registerServiceHandler("calibrate", input -> {
System.out.println("执行校准服务，输入参数: " + input);
// 模拟校准过程
String taskId = "CALIB_" + System.currentTimeMillis();
Map<String, Object> output = new HashMap<>();
output.put("taskId", taskId);
output.put("estimatedTime", ); // 5分钟
// 启动后台校准任务
startCalibrationTask(taskId, input);
return output;
});
// 注册重置服务处理器
runtime.registerServiceHandler("reset", input -> {
System.out.println("执行重置服务");
Map<String, Object> output = new HashMap<>();
try {
// 模拟重置过程
Thread.sleep();
// 重置工作模式为正常模式
runtime.setPropertyValue("workMode", "normal");
runtime.setPropertyValue("collectInterval", );
output.put("success", true);
output.put("message", "重置成功");
} catch (Exception e) {
output.put("success", false);
output.put("message", "重置失败: " + e.getMessage());
}
return output;
});
// 注册值转换器（温度值四舍五入到一位小数）
runtime.registerValueTransformer("temperature", value -> {
if (value instanceof Number) {
double temp = ((Number) value).doubleValue();
return Math.round(temp * 10.0) / 10.0;
}
return value;
});
// 注册自定义验证器
runtime.addCustomValidator((property, value) -> {
if ("temperature".equals(property.getIdentifier()) && value instanceof Number) {
double temp = ((Number) value).doubleValue();
// 自定义业务逻辑：冬季温度不应超过50度
if (isWinter() && temp > 50.0) {
System.out.println("警告：冬季温度异常 " + temp + "°C");
returnfalse;
}
}
returntrue;
});
}
private static void simulateDeviceOperation(ThingModelRuntime runtime) {
System.out.println("\n=== 开始模拟设备操作 ===");
// 1. 设置初始属性值
runtime.setPropertyValue("temperature", 25.3);
runtime.setPropertyValue("humidity", 65.8);
runtime.setPropertyValue("workMode", "normal");
runtime.setPropertyValue("collectInterval", );
// 2. 模拟温度变化并触发告警
runtime.setPropertyValue("temperature", 45.2); // 这会触发高温告警
// 3. 模拟湿度变化并触发告警
runtime.setPropertyValue("humidity", 95.5); // 这会触发高湿度告警
// 4. 调用校准服务
Map<String, Object> calibrateInput = new HashMap<>();
calibrateInput.put("tempOffset", 0.5);
calibrateInput.put("humidityOffset", -1.2);
Map<String, Object> calibrateResult = runtime.invokeService("calibrate", calibrateInput);
System.out.println("校准服务返回: " + calibrateResult);
// 5. 调用重置服务
Map<String, Object> resetResult = runtime.invokeService("reset", new HashMap<>());
System.out.println("重置服务返回: " + resetResult);
// 6. 查看当前所有属性值
System.out.println("\n当前设备状态:");
Map<String, Object> allValues = runtime.getAllPropertyValues();
allValues.forEach((key, value) -> {
System.out.println(key + ": " + value);
});
}
private static void startCalibrationTask(String taskId, Map<String, Object> input) {
// 模拟异步校准任务
new Thread(() -> {
try {
System.out.println("校准任务 " + taskId + " 开始执行...");
Thread.sleep(); // 模拟校准耗时
System.out.println("校准任务 " + taskId + " 执行完成");
} catch (InterruptedException e) {
System.out.println("校准任务 " + taskId + " 被中断");
}
}).start();
}
private static boolean isWinter() {
// 简单的季节判断逻辑
int month = java.time.LocalDate.now().getMonthValue();
return month == || month == || month == ;
}
}
10.2 异常类定义
public class ValidationException extends RuntimeException {
public ValidationException(String message) {
super(message);
}
public ValidationException(String message, Throwable cause) {
super(message, cause);
}
}
11. 项目结构
12. 总结
通过这套物模型系统，我们实现了：
- 统一的设备描述语言：使用属性-事件-服务三元组模型统一描述各种IoT设备
- 完备的数据类型系统：30多种数据类型覆盖各种IoT场景需求
- 严格的验证机制：多层验证确保数据质量和系统稳定性
- 动态扩展能力：运行时可以动态添加属性、事件、服务
- 模板复用机制：通过继承和组合避免重复定义
- 版本管理能力：支持物模型的版本演进和管理
- 事件驱动架构：基于观察者模式的响应式设计
- 建造者模式：提供流式API简化物模型构建
这套架构设计遵循了SOLID原则和常用设计模式，具有良好的可扩展性和可维护性。代码结构清晰，职责分明，可以作为IoT物模型系统的标准实现参考。
本文参与 腾讯云自媒体同步曝光计划，分享自微信公众号。
原始发表：2025-06-24，如有侵权请联系 cloudcommunity@tencent.com 删除
评论
登录后参与评论
推荐阅读
目录
腾讯云开发者
Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有
深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059
粤公网安备44030502008569号
腾讯云计算（北京）有限责任公司 京ICP证150476号 | 京ICP备11018762号
