大数据领域开山鼻祖组件Hadoop核心源码剖析

start-dfs.sh

public class NameNode extends ReconfigurableBase implements
    NameNodeStatusMXBean {
    //该静态代码块主要是初始化一些HDFS的配置信息
 static {
  //进入之后发现方法是空的，没有任何操作?其实不是观察HdfsConfiguration的静态代码块
   HdfsConfiguration.init();
 }
 ...
}

public class HdfsConfiguration extends Configuration {
 static {
  addDeprecatedKeys();

  // adds the default resources
  Configuration.addDefaultResource("hdfs-default.xml");
  Configuration.addDefaultResource("hdfs-site.xml");
 }
 ...
}

//main方法
public static void main(String argv[]) throws Exception {
//分析传入的参数是否为帮助参数，如果是帮助的话打印帮助信息，并退出。
    if (DFSUtil.parseHelpArgument(argv, NameNode.USAGE, System.out, true)) {
      System.exit(0);
    }

    try {
      //格式化输出启动信息，并且创建hook(打印节点关闭信息)
      StringUtils.startupShutdownMessage(NameNode.class, argv, LOG);
      //创建namenode
      NameNode namenode = createNameNode(argv, null);
      if (namenode != null) {
        //加入集群
       namenode.join();
      }
    } catch (Throwable e) {
      //异常处理
      LOG.error("Failed to start namenode.", e);
      terminate(1, e);
    }
  }

//关注createNameNode
public static NameNode createNameNode(String argv[], Configuration conf)
      throws IOException {
    LOG.info("createNameNode " + Arrays.asList(argv));
    if (conf == null)
      conf = new HdfsConfiguration();
    // Parse out some generic args into Configuration.
    GenericOptionsParser hParser = new GenericOptionsParser(conf, argv);
    argv = hParser.getRemainingArgs();
    // Parse the rest, NN specific args.
    //解析启动的参数
    StartupOption startOpt = parseArguments(argv);
    if (startOpt == null) {
      printUsage(System.err);
      returnnull;
    }
    setStartupOption(conf, startOpt);

    switch (startOpt) {
      case FORMAT: {
        boolean aborted = format(conf, startOpt.getForceFormat(),
            startOpt.getInteractiveFormat());
        terminate(aborted ? 1 : 0);
        returnnull; // avoid javac warning
      }
      case GENCLUSTERID: {
        System.err.println("Generating new cluster id:");
        System.out.println(NNStorage.newClusterID());
        terminate(0);
        returnnull;
      }
      case FINALIZE: {
        System.err.println("Use of the argument '" + StartupOption.FINALIZE +
            "' is no longer supported. To finalize an upgrade, start the NN " +
            " and then run `hdfs dfsadmin -finalizeUpgrade'");
        terminate(1);
        returnnull; // avoid javac warning
      }
      case ROLLBACK: {
        boolean aborted = doRollback(conf, true);
        terminate(aborted ? 1 : 0);
        returnnull; // avoid warning
      }
      case BOOTSTRAPSTANDBY: {
        String toolArgs[] = Arrays.copyOfRange(argv, 1, argv.length);
        int rc = BootstrapStandby.run(toolArgs, conf);
        terminate(rc);
        returnnull; // avoid warning
      }
      case INITIALIZESHAREDEDITS: {
        boolean aborted = initializeSharedEdits(conf,
            startOpt.getForceFormat(),
            startOpt.getInteractiveFormat());
        terminate(aborted ? 1 : 0);
        returnnull; // avoid warning
      }
      case BACKUP:
      case CHECKPOINT: {
        NamenodeRole role = startOpt.toNodeRole();
        DefaultMetricsSystem.initialize(role.toString().replace(" ", ""));
        returnnew BackupNode(conf, role);
      }
      case RECOVER: {
        NameNode.doRecovery(startOpt, conf);
        returnnull;
      }
      case METADATAVERSION: {
        printMetadataVersion(conf);
        terminate(0);
        returnnull; // avoid javac warning
      }
      case UPGRADEONLY: {
        DefaultMetricsSystem.initialize("NameNode");
        new NameNode(conf);
        terminate(0);
        returnnull;
      }
      default: {//正常启动进入该分支
       //初始化metric系统
        DefaultMetricsSystem.initialize("NameNode");
        //返回新的NameNode
        returnnew NameNode(conf);
      }
    }
}

//NameNode的构造
public NameNode(Configuration conf) throws IOException {
 this(conf, NamenodeRole.NAMENODE);
}

protected NameNode(Configuration conf, NamenodeRole role)
    throws IOException {
super(conf);
this.tracer = new Tracer.Builder("NameNode").
     conf(TraceUtils.wrapHadoopConf(NAMENODE_HTRACE_PREFIX, conf)).
     build();
this.tracerConfigurationManager =
     new TracerConfigurationManager(NAMENODE_HTRACE_PREFIX, conf);
this.role = role;
// 设置NameNode#clientNamenodeAddress为"hdfs://localhost:9000"
 setClientNamenodeAddress(conf);
 String nsId = getNameServiceId(conf);
 String namenodeId = HAUtil.getNameNodeId(conf, nsId);
// HA相关
this.haEnabled = HAUtil.isHAEnabled(conf, nsId);
 state = createHAState(getStartupOption(conf));
this.allowStaleStandbyReads = HAUtil.shouldAllowStandbyReads(conf);
this.haContext = createHAContext();
try {
   initializeGenericKeys(conf, nsId, namenodeId);
   // 完成实际的初始化工作
   initialize(getConf());
   // HA相关
   try {
     haContext.writeLock();
     state.prepareToEnterState(haContext);
     state.enterState(haContext);
   } finally {
     haContext.writeUnlock();
   }
 } catch (IOException e) {
   this.stopAtException(e);
   throw e;
 } catch (HadoopIllegalArgumentException e) {
   this.stopAtException(e);
   throw e;
 }
this.started.set(true);
}

// 完成实际的初始化工作
protected void initialize(Configuration conf) throws IOException {
if (conf.get(HADOOP_USER_GROUP_METRICS_PERCENTILES_INTERVALS) == null) {
    String intervals = conf.get(DFS_METRICS_PERCENTILES_INTERVALS_KEY);
    if (intervals != null) {
      conf.set(HADOOP_USER_GROUP_METRICS_PERCENTILES_INTERVALS,
        intervals);
    }
  }

  UserGroupInformation.setConfiguration(conf);
  loginAsNameNodeUser(conf);

// 初始化metric
  NameNode.initMetrics(conf, this.getRole());
  StartupProgressMetrics.register(startupProgress);

  pauseMonitor = new JvmPauseMonitor();
  pauseMonitor.init(conf);
  pauseMonitor.start();
  metrics.getJvmMetrics().setPauseMonitor(pauseMonitor);

// 启动httpServer
if (NamenodeRole.NAMENODE == role) {
    startHttpServer(conf);
  }

// 从namenode目录加载fsimage与editlog，初始化FsNamesystem、FsDirectory、 LeaseManager等
  loadNamesystem(conf);

// 创建RpcServer，封装了NameNodeRpcServer clientRpcServer，支持 ClientNamenodeProtocol、DatanodeProtocolPB等协议
  rpcServer = createRpcServer(conf);

  initReconfigurableBackoffKey();

if (clientNamenodeAddress == null) {
    // This is expected for MiniDFSCluster. Set it now using
    // the RPC server's bind address.
    clientNamenodeAddress =
        NetUtils.getHostPortString(getNameNodeAddress());
    LOG.info("Clients are to use " + clientNamenodeAddress + " to access"
        + " this namenode/service.");
  }
if (NamenodeRole.NAMENODE == role) {
    httpServer.setNameNodeAddress(getNameNodeAddress());
    httpServer.setFSImage(getFSImage());
  }

// 启动执行多个非常重要工作的多个线程
  startCommonServices(conf);
  startMetricsLogger(conf);
}

private void startCommonServices(Configuration conf) throws IOException {
// 创建NameNodeResourceChecker、激活BlockManager等
  namesystem.startCommonServices(conf, haContext);
  registerNNSMXBean();
// 角色非`NamenodeRole.NAMENODE`的在此处启动HttpServer
if (NamenodeRole.NAMENODE != role) {
    startHttpServer(conf);
    httpServer.setNameNodeAddress(getNameNodeAddress());
    httpServer.setFSImage(getFSImage());
  }
// 启动RPCServer
  rpcServer.start();
try {
    plugins = conf.getInstances(DFS_NAMENODE_PLUGINS_KEY,
        ServicePlugin.class);
  } catch (RuntimeException e) {
    String pluginsValue = conf.get(DFS_NAMENODE_PLUGINS_KEY);
    LOG.error("Unable to load NameNode plugins. Specified list of plugins: " +
        pluginsValue, e);
    throw e;
  }
// 启动各插件
for (ServicePlugin p: plugins) {
    try {
      p.start(this);
    } catch (Throwable t) {
      LOG.warn("ServicePlugin " + p + " could not be started", t);
    }
  }
  LOG.info(getRole() + " RPC up at: " + getNameNodeAddress());
if (rpcServer.getServiceRpcAddress() != null) {
    LOG.info(getRole() + " service RPC up at: "
        + rpcServer.getServiceRpcAddress());
  }
}

void startCommonServices(Configuration conf, HAContext haContext) throws IOException {
this.registerMBean(); // register the MBean for the FSNamesystemState
  writeLock();
this.haContext = haContext;
try {
    // 创建NameNodeResourceChecker，并立即检查一次
    nnResourceChecker = new NameNodeResourceChecker(conf);
    checkAvailableResources();
    assert !blockManager.isPopulatingReplQueues();
    // 设置一些启动过程中的信息
    StartupProgress prog = NameNode.getStartupProgress();
    prog.beginPhase(Phase.SAFEMODE);
    long completeBlocksTotal = getCompleteBlocksTotal();
    prog.setTotal(Phase.SAFEMODE, STEP_AWAITING_REPORTED_BLOCKS,
        completeBlocksTotal);
    // 设置已完成的数据块总量以及激活BlockManager
    blockManager.activate(conf, completeBlocksTotal);
  } finally {
    writeUnlock("startCommonServices");
  }

  registerMXBean();
  DefaultMetricsSystem.instance().register(this);
if (inodeAttributeProvider != null) {
    inodeAttributeProvider.start();
    dir.setINodeAttributeProvider(inodeAttributeProvider);
  }
  snapshotManager.registerMXBean();
  InetSocketAddress serviceAddress = NameNode.getServiceAddress(conf, true);
this.nameNodeHostName = (serviceAddress != null) ?
      serviceAddress.getHostName() : "";
}

public void activate(Configuration conf, long blockTotal) {
// 启动PendingReplicationMonitor
  pendingReplications.start();
// 激活DatanodeManager:启动DecommissionManager--Monitor、HeartbeatManager--Monitor
  datanodeManager.activate(conf);
this.replicationThread.setName("ReplicationMonitor");
// 启动BlockManager--ReplicationMonitor
this.replicationThread.start();
this.blockReportThread.start();
  mxBeanName = MBeans.register("NameNode", "BlockStats", this);
  bmSafeMode.activate(blockTotal);
}

public class DataNode extends ReconfigurableBase
    implements InterDatanodeProtocol, ClientDatanodeProtocol,
        TraceAdminProtocol, DataNodeMXBean, ReconfigurationProtocol {
publicstaticfinal Logger LOG = LoggerFactory.getLogger(DataNode.class);

static{
    HdfsConfiguration.init();
  }

  ...

public static void main(String args[]) {
    if (DFSUtil.parseHelpArgument(args, DataNode.USAGE, System.out, true)) {
      System.exit(0);
    }
    secureMain(args, null);
  }

public static void secureMain(String args[], SecureResources resources) {
    int errorCode = 0;
    try {
      // 打印启动信息
      StringUtils.startupShutdownMessage(DataNode.class, args, LOG);
      // 完成创建datanode的主要工作
      DataNode datanode = createDataNode(args, null, resources);
      if (datanode != null) {
        datanode.join();
      } else {
        errorCode = 1;
      }
    } catch (Throwable e) {
      LOG.error("Exception in secureMain", e);
      terminate(1, e);
    } finally {
      // We need to terminate the process here because either shutdown was called
      // or some disk related conditions like volumes tolerated or volumes required
      // condition was not met. Also, In secure mode, control will go to Jsvc
      // and Datanode process hangs if it does not exit.
      LOG.warn("Exiting Datanode");
      terminate(errorCode);
    }
  }
}

public static DataNode createDataNode(String args[], Configuration conf,
    SecureResources resources) throws IOException {
  // 完成大部分初始化的工作，并启动部分工作线程
  DataNode dn = instantiateDataNode(args, conf, resources);
  if (dn != null) {
    // 启动剩余工作线程
    dn.runDatanodeDaemon();
  }
  return dn;
}

public void runDatanodeDaemon() throws IOException {
// 在DataNode.instantiateDataNode()执行过程中会调用该方法(见后)
  blockPoolManager.startAll();

// start dataXceiveServer
  dataXceiverServer.start();
if (localDataXceiverServer != null) {
    localDataXceiverServer.start();
  }
  ipcServer.setTracer(tracer);
  ipcServer.start();
  startPlugins(getConf());
}

public static DataNode instantiateDataNode(String args[],
 Configuration conf) throws IOException {
return instantiateDataNode(args, conf, null);
}

public static DataNode instantiateDataNode(String args [], Configuration conf,
    SecureResources resources) throws IOException {
if (conf == null)
    conf = new HdfsConfiguration();

if (args != null) {
    // parse generic hadoop options
    GenericOptionsParser hParser = new GenericOptionsParser(conf, args);
    args = hParser.getRemainingArgs();
  }

if (!parseArguments(args, conf)) {
    printUsage(System.err);
    returnnull;
  }
  Collection<StorageLocation> dataLocations = getStorageLocations(conf);
  UserGroupInformation.setConfiguration(conf);
  SecurityUtil.login(conf, DFS_DATANODE_KEYTAB_FILE_KEY,
      DFS_DATANODE_KERBEROS_PRINCIPAL_KEY, getHostName(conf));
return makeInstance(dataLocations, conf, resources);
}

// DataNode.makeInstance()开始创建DataNode
static DataNode makeInstance(Collection<StorageLocation> dataDirs,
    Configuration conf, SecureResources resources) throws IOException {
  List<StorageLocation> locations;
  StorageLocationChecker storageLocationChecker =
      new StorageLocationChecker(conf, new Timer());
try {
    // 检查数据目录的权限
    locations = storageLocationChecker.check(conf, dataDirs);
  } catch (InterruptedException ie) {
    thrownew IOException("Failed to instantiate DataNode", ie);
  }
  DefaultMetricsSystem.initialize("DataNode");

assert locations.size() > 0 : "number of data directories should be > 0";
returnnew DataNode(conf, locations, storageLocationChecker, resources);
}

DataNode(final Configuration conf,
         final List<StorageLocation> dataDirs,
         final StorageLocationChecker storageLocationChecker,
         final SecureResources resources) throws IOException {
super(conf);
this.tracer = createTracer(conf);
this.tracerConfigurationManager =
      new TracerConfigurationManager(DATANODE_HTRACE_PREFIX, conf);
this.fileIoProvider = new FileIoProvider(conf, this);
this.blockScanner = new BlockScanner(this);
this.lastDiskErrorCheck = 0;
this.maxNumberOfBlocksToLog = conf.getLong(DFS_MAX_NUM_BLOCKS_TO_LOG_KEY,
      DFS_MAX_NUM_BLOCKS_TO_LOG_DEFAULT);

this.usersWithLocalPathAccess = Arrays.asList(
      conf.getTrimmedStrings(DFSConfigKeys.DFS_BLOCK_LOCAL_PATH_ACCESS_USER_KEY));
this.connectToDnViaHostname = conf.getBoolean(
      DFSConfigKeys.DFS_DATANODE_USE_DN_HOSTNAME,
      DFSConfigKeys.DFS_DATANODE_USE_DN_HOSTNAME_DEFAULT);
this.getHdfsBlockLocationsEnabled = conf.getBoolean(
      DFSConfigKeys.DFS_HDFS_BLOCKS_METADATA_ENABLED,
      DFSConfigKeys.DFS_HDFS_BLOCKS_METADATA_ENABLED_DEFAULT);
this.supergroup = conf.get(DFSConfigKeys.DFS_PERMISSIONS_SUPERUSERGROUP_KEY,
      DFSConfigKeys.DFS_PERMISSIONS_SUPERUSERGROUP_DEFAULT);
this.isPermissionEnabled = conf.getBoolean(
      DFSConfigKeys.DFS_PERMISSIONS_ENABLED_KEY,
      DFSConfigKeys.DFS_PERMISSIONS_ENABLED_DEFAULT);
this.pipelineSupportECN = conf.getBoolean(
      DFSConfigKeys.DFS_PIPELINE_ECN_ENABLED,
      DFSConfigKeys.DFS_PIPELINE_ECN_ENABLED_DEFAULT);

  confVersion = "core-" +
      conf.get("hadoop.common.configuration.version", "UNSPECIFIED") +
      ",hdfs-" +
      conf.get("hadoop.hdfs.configuration.version", "UNSPECIFIED");

this.volumeChecker = new DatasetVolumeChecker(conf, new Timer());

// Determine whether we should try to pass file descriptors to clients.
if (conf.getBoolean(HdfsClientConfigKeys.Read.ShortCircuit.KEY,
            HdfsClientConfigKeys.Read.ShortCircuit.DEFAULT)) {
    String reason = DomainSocket.getLoadingFailureReason();
    if (reason != null) {
      LOG.warn("File descriptor passing is disabled because " + reason);
      this.fileDescriptorPassingDisabledReason = reason;
    } else {
      LOG.info("File descriptor passing is enabled.");
      this.fileDescriptorPassingDisabledReason = null;
    }
  } else {
    this.fileDescriptorPassingDisabledReason =
        "File descriptor passing was not configured.";
    LOG.debug(this.fileDescriptorPassingDisabledReason);
  }

try {
    hostName = getHostName(conf);
    LOG.info("Configured hostname is " + hostName);
    startDataNode(dataDirs, resources);
  } catch (IOException ie) {
    shutdown();
    throw ie;
  }
finalint dncCacheMaxSize =
      conf.getInt(DFS_DATANODE_NETWORK_COUNTS_CACHE_MAX_SIZE_KEY,
          DFS_DATANODE_NETWORK_COUNTS_CACHE_MAX_SIZE_DEFAULT) ;
  datanodeNetworkCounts =
      CacheBuilder.newBuilder()
          .maximumSize(dncCacheMaxSize)
          .build(new CacheLoader<String, Map<String, Long>>() {
            @Override
            public Map<String, Long> load(String key) throws Exception {
              final Map<String, Long> ret = new HashMap<String, Long>();
              ret.put("networkErrors", 0L);
              return ret;
            }
          });

  initOOBTimeout();
this.storageLocationChecker = storageLocationChecker;
}

void startDataNode(List<StorageLocation> dataDirectories,
                   SecureResources resources
                   ) throws IOException {

// settings global for all BPs in the Data Node
this.secureResources = resources;
synchronized (this) {
    this.dataDirs = dataDirectories;
  }
this.dnConf = new DNConf(this);
  checkSecureConfig(dnConf, getConf(), resources);

if (dnConf.maxLockedMemory > 0) {
    if (!NativeIO.POSIX.getCacheManipulator().verifyCanMlock()) {
      thrownew RuntimeException(String.format(
          "Cannot start datanode because the configured max locked memory" +
          " size (%s) is greater than zero and native code is not available.",
          DFS_DATANODE_MAX_LOCKED_MEMORY_KEY));
    }
    if (Path.WINDOWS) {
      NativeIO.Windows.extendWorkingSetSize(dnConf.maxLockedMemory);
    } else {
      long ulimit = NativeIO.POSIX.getCacheManipulator().getMemlockLimit();
      if (dnConf.maxLockedMemory > ulimit) {
        thrownew RuntimeException(String.format(
          "Cannot start datanode because the configured max locked memory" +
          " size (%s) of %d bytes is more than the datanode's available" +
          " RLIMIT_MEMLOCK ulimit of %d bytes.",
          DFS_DATANODE_MAX_LOCKED_MEMORY_KEY,
          dnConf.maxLockedMemory,
          ulimit));
      }
    }
  }
  LOG.info("Starting DataNode with maxLockedMemory = " +
      dnConf.maxLockedMemory);

int volFailuresTolerated = dnConf.getVolFailuresTolerated();
int volsConfigured = dnConf.getVolsConfigured();
if (volFailuresTolerated < 0 || volFailuresTolerated >= volsConfigured) {
    thrownew DiskErrorException("Invalid value configured for "
        + "dfs.datanode.failed.volumes.tolerated - " + volFailuresTolerated
        + ". Value configured is either less than 0 or >= "
        + "to the number of configured volumes (" + volsConfigured + ").");
  }

// 初始化DataStorage
  storage = new DataStorage();

// global DN settings
// 注册JMX
  registerMXBean();
// 初始化DataXceiver(流式通信)，DataNode runDatanodeDaemon()中启动
  initDataXceiver();
// 启动InfoServer(Web UI)
  startInfoServer();
// 启动JVMPauseMonitor(反向监控JVM情况，可通过JMX查询)
  pauseMonitor = new JvmPauseMonitor();
  pauseMonitor.init(getConf());
  pauseMonitor.start();

// BlockPoolTokenSecretManager is required to create ipc server.
this.blockPoolTokenSecretManager = new BlockPoolTokenSecretManager();

// Login is done by now. Set the DN user name.
  dnUserName = UserGroupInformation.getCurrentUser().getUserName();
  LOG.info("dnUserName = " + dnUserName);
  LOG.info("supergroup = " + supergroup);
// 初始化IpcServer(RPC通信)，DataNode-runDatanodeDaemon()中启动
  initIpcServer();

  metrics = DataNodeMetrics.create(getConf(), getDisplayName());
  peerMetrics = dnConf.peerStatsEnabled ?
      DataNodePeerMetrics.create(getDisplayName()) : null;
  metrics.getJvmMetrics().setPauseMonitor(pauseMonitor);

  blockRecoveryWorker = new BlockRecoveryWorker(this);

// 按照namespace(nameservice)、namenode的结构进行初始化
  blockPoolManager = new BlockPoolManager(this);
  blockPoolManager.refreshNamenodes(getConf());

// Create the ReadaheadPool from the DataNode context so we can
// exit without having to explicitly shutdown its thread pool.
  readaheadPool = ReadaheadPool.getInstance();
  saslClient = new SaslDataTransferClient(dnConf.getConf(),
      dnConf.saslPropsResolver, dnConf.trustedChannelResolver);
  saslServer = new SaslDataTransferServer(dnConf, blockPoolTokenSecretManager);
  startMetricsLogger();

if (dnConf.diskStatsEnabled) {
    diskMetrics = new DataNodeDiskMetrics(this,
        dnConf.outliersReportIntervalMs);
  }
}

//BlockPoolManager抽象了datanode提供的数据块存储服务。BlockPoolManager按照 namespace(nameservice)、namenode结构组织。
//除了初始化过程主动调用，还可以由namespace通过datanode心跳过程下达刷新命令
void refreshNamenodes(Configuration conf)
    throws IOException {
  LOG.info("Refresh request received for nameservices: " + conf.get
          (DFSConfigKeys.DFS_NAMESERVICES));

  Map<String, Map<String, InetSocketAddress>> newAddressMap = DFSUtil
          .getNNServiceRpcAddressesForCluster(conf);
  Map<String, Map<String, InetSocketAddress>> newLifelineAddressMap = DFSUtil
          .getNNLifelineRpcAddressesForCluster(conf);

synchronized (refreshNamenodesLock) {
    doRefreshNamenodes(newAddressMap, newLifelineAddressMap);
  }
}

private void doRefreshNamenodes(
    Map<String, Map<String, InetSocketAddress>> addrMap,
    Map<String, Map<String, InetSocketAddress>> lifelineAddrMap)
    throws IOException {
assert Thread.holdsLock(refreshNamenodesLock);

  Set<String> toRefresh = Sets.newLinkedHashSet();
  Set<String> toAdd = Sets.newLinkedHashSet();
  Set<String> toRemove;

synchronized (this) {
    // Step 1. For each of the new nameservices, figure out whether
    // it's an update of the set of NNs for an existing NS,
    // or an entirely new nameservice.
    for (String nameserviceId : addrMap.keySet()) {
      if (bpByNameserviceId.containsKey(nameserviceId)) {
        toRefresh.add(nameserviceId);
      } else {
        toAdd.add(nameserviceId);
      }
    }

    // Step 2. Any nameservices we currently have but are no longer present
    // need to be removed.
    toRemove = Sets.newHashSet(Sets.difference(
        bpByNameserviceId.keySet(), addrMap.keySet()));

    assert toRefresh.size() + toAdd.size() ==
      addrMap.size() :
        "toAdd: " + Joiner.on(",").useForNull("<default>").join(toAdd) +
        "  toRemove: " + Joiner.on(",").useForNull("<default>").join(toRemove) +
        "  toRefresh: " + Joiner.on(",").useForNull("<default>").join(toRefresh);


    // Step 3. Start new nameservices
    if (!toAdd.isEmpty()) {
      LOG.info("Starting BPOfferServices for nameservices: " +
          Joiner.on(",").useForNull("<default>").join(toAdd));

      for (String nsToAdd : toAdd) {
        Map<String, InetSocketAddress> nnIdToAddr = addrMap.get(nsToAdd);
        Map<String, InetSocketAddress> nnIdToLifelineAddr =
            lifelineAddrMap.get(nsToAdd);
        ArrayList<InetSocketAddress> addrs =
            Lists.newArrayListWithCapacity(nnIdToAddr.size());
        ArrayList<InetSocketAddress> lifelineAddrs =
            Lists.newArrayListWithCapacity(nnIdToAddr.size());
        for (String nnId : nnIdToAddr.keySet()) {
          addrs.add(nnIdToAddr.get(nnId));
          lifelineAddrs.add(nnIdToLifelineAddr != null ?
              nnIdToLifelineAddr.get(nnId) : null);
        }
        // 为每个namespace创建对应的BPOfferService
        BPOfferService bpos = createBPOS(nsToAdd, addrs, lifelineAddrs);
        bpByNameserviceId.put(nsToAdd, bpos);
        offerServices.add(bpos);
      }
    }
    // 然后通过startAll启动所有BPOfferService
    startAll();
  }

// Step 4. Shut down old nameservices. This happens outside
// of the synchronized(this) lock since they need to call
// back to .remove() from another thread
if (!toRemove.isEmpty()) {
    LOG.info("Stopping BPOfferServices for nameservices: " +
        Joiner.on(",").useForNull("<default>").join(toRemove));

    for (String nsToRemove : toRemove) {
      BPOfferService bpos = bpByNameserviceId.get(nsToRemove);
      bpos.stop();
      bpos.join();
      // they will call remove on their own
    }
  }

// Step 5. Update nameservices whose NN list has changed
if (!toRefresh.isEmpty()) {
    LOG.info("Refreshing list of NNs for nameservices: " +
        Joiner.on(",").useForNull("<default>").join(toRefresh));

    for (String nsToRefresh : toRefresh) {
      final BPOfferService bpos = bpByNameserviceId.get(nsToRefresh);
      Map<String, InetSocketAddress> nnIdToAddr = addrMap.get(nsToRefresh);
      Map<String, InetSocketAddress> nnIdToLifelineAddr =
          lifelineAddrMap.get(nsToRefresh);
      final ArrayList<InetSocketAddress> addrs =
          Lists.newArrayListWithCapacity(nnIdToAddr.size());
      final ArrayList<InetSocketAddress> lifelineAddrs =
          Lists.newArrayListWithCapacity(nnIdToAddr.size());
      for (String nnId : nnIdToAddr.keySet()) {
        addrs.add(nnIdToAddr.get(nnId));
        lifelineAddrs.add(nnIdToLifelineAddr != null ?
            nnIdToLifelineAddr.get(nnId) : null);
      }
      try {
        UserGroupInformation.getLoginUser()
            .doAs(new PrivilegedExceptionAction<Object>() {
              @Override
              public Object run() throws Exception {
                bpos.refreshNNList(addrs, lifelineAddrs);
                returnnull;
              }
            });
      } catch (InterruptedException ex) {
        IOException ioe = new IOException();
        ioe.initCause(ex.getCause());
        throw ioe;
      }
    }
  }
}

protected BPOfferService createBPOS(
    final String nameserviceId,
    List<InetSocketAddress> nnAddrs,
    List<InetSocketAddress> lifelineNnAddrs) {
  return new BPOfferService(nameserviceId, nnAddrs, lifelineNnAddrs, dn);
}

BPOfferService(
    final String nameserviceId,
    List<InetSocketAddress> nnAddrs,
    List<InetSocketAddress> lifelineNnAddrs,
    DataNode dn) {
  Preconditions.checkArgument(!nnAddrs.isEmpty(),
      "Must pass at least one NN.");
  Preconditions.checkArgument(nnAddrs.size() == lifelineNnAddrs.size(),
      "Must pass same number of NN addresses and lifeline addresses.");
this.nameserviceId = nameserviceId;
this.dn = dn;

for (int i = 0; i < nnAddrs.size(); ++i) {
    this.bpServices.add(new BPServiceActor(nnAddrs.get(i),
        lifelineNnAddrs.get(i), this));
  }
}

//BlockPoolManager#startAll()启动所有BPOfferService(实际是启动所有 BPServiceActor)。
synchronized void startAll() throws IOException {
try {
    UserGroupInformation.getLoginUser().doAs(
        new PrivilegedExceptionAction<Object>() {
          @Override
          public Object run() throws Exception {
            for (BPOfferService bpos : offerServices) {
              bpos.start();
            }
            returnnull;
          }
        });
  } catch (InterruptedException ex) {
    IOException ioe = new IOException();
    ioe.initCause(ex.getCause());
    throw ioe;
  }
}

void initBlockPool(BPOfferService bpos) throws IOException {
  NamespaceInfo nsInfo = bpos.getNamespaceInfo();
if (nsInfo == null) {
    thrownew IOException("NamespaceInfo not found: Block pool " + bpos
        + " should have retrieved namespace info before initBlockPool.");
  }

  setClusterId(nsInfo.clusterID, nsInfo.getBlockPoolID());

// Register the new block pool with the BP manager.
// 将blockpool注册到BlockPoolManager
  blockPoolManager.addBlockPool(bpos);

// In the case that this is the first block pool to connect, initialize
// the dataset, block scanners, etc.
// 初步初始化存储结构
  initStorage(nsInfo);

// Exclude failed disks before initializing the block pools to avoid startup
// failures.
// 检查磁盘损坏
  checkDiskError();

// 将blockpool添加到FsDatasetIpml，并继续初始化存储结构
  data.addBlockPool(nsInfo.getBlockPoolID(), getConf());
  blockScanner.enableBlockPoolId(bpos.getBlockPoolId());
// 启动扫描器
  initDirectoryScanner(getConf());
}

void logEdit(final FSEditLogOp op) {
//是否同步的标识
boolean needsSync = false;
synchronized (this) {
    assert isOpenForWrite() :
      "bad state: " + state;

    // wait if an automatic sync is scheduled
    // 如果当前操作被其它线程调度，则等待1s钟
    waitIfAutoSyncScheduled();

    // check if it is time to schedule an automatic sync
    needsSync = doEditTransaction(op);
    if (needsSync) {

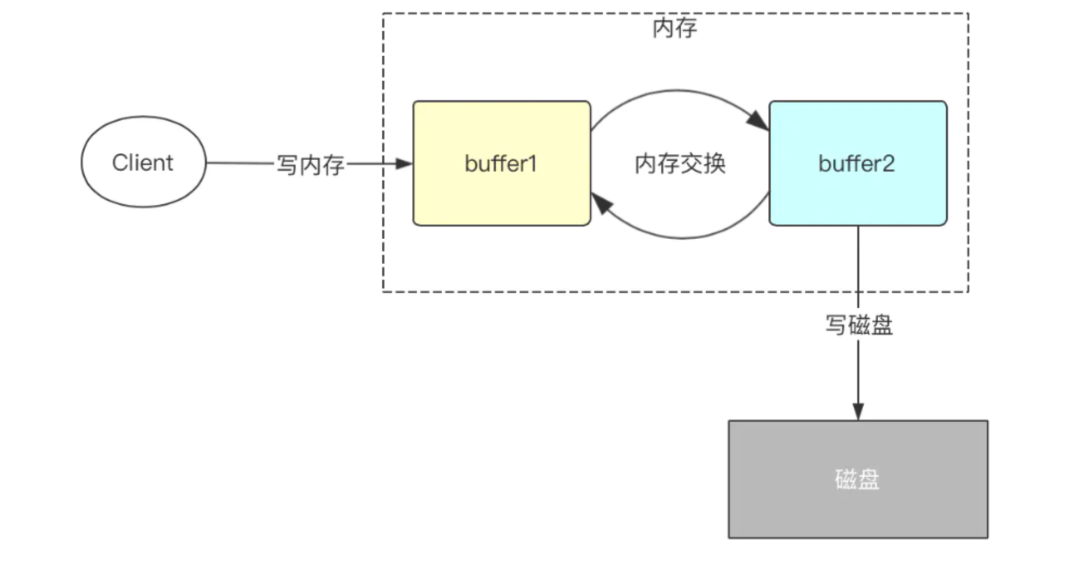

      // 标识bufCurrent满了，进行双缓冲刷写
      isAutoSyncScheduled = true;
    }
  }

// Sync the log if an automatic sync is required.
if (needsSync) {
    // 将缓冲区数据刷写到磁盘
    logSync();
  }
}
