现代我们经常使用的域就是时域和频域,那就出现了两个技术流派,它们都能让 ADC 获得“更高带宽 / 采样速率”,但原理完全相反“时间交织 (Time Interleaving)”“频谱分片 (Spectral Slicing)” 这两种完全不同的架构理念

传统电子 ADC:时域拼接(Time-Domain Interleaving)

时间轴切成许多小片,每个子 ADC 轮流采样不同的时间点。

例如:4 个 ADC,每个采样率 2 GS/s,时序错开 90°,→ 总体等效采样率 = 8 GS/s。

每个子通道在不同时间点采样;最后再把各自的采样点按时间顺序拼接回完整时域波形;所以这是 “时域拼接”。主要问题是时间偏差(skew),增益、带宽不匹配→ 高频时会出现“交织杂散 spur”。

光电混合 ADC(例如那篇 Kerr 微梳 ADC):频域拼接(Frequency-Domain Slicing)

频谱分成多个频段,每个频段用一个光载波“并行采样”,最后在频域合成。

也就是:同一时间段内,信号被“分频”送入不同子系统采集,各通道采的不是时间片,而是频率片

输入信号 → 调制到光载波上;通过 光学滤波器 (ISP1) 分成多个相邻频带;每个频带由独立的 IQ 相干接收机 检测;每个接收机输出低速电子信号;最后经 数字频谱拼接 (Spectral Stitching) 合成完整 0–320 GHz 波形。其中所有通道同时采样同一时间段;各通道分到不同频率子带;在数字域把频谱再拼接回一条完整频带;所以这是 “频域拼接”

很明显不受电子采样时钟抖动限制;可同时覆盖数百 GHz 带宽;频域拼接可以精确标定重叠区域,相位锁定精度高。

展示如何频域拼接

代码语言:javascript
复制
S_in(f) ──► H_eo(f) ──► 分片窗 slice_i(f)
                     └─► 各片 ×(未知复系数 c_i) + 噪声
                             └─► 通过 overlap 区比对恢复 c_i
                                     └─► Σ_i slice_i × ĉ_i / Σ_i window_i  → 拼接谱
                                             └─► ×H_eo⁻¹(f) (数字补偿)
                                                     └─► IFFT 得到 y(t)

用 Python 仿真该系统的频率响应与谱片拼接过程(spectral-sliced ADC 重建),展示 320 GHz 等效带宽 ADC 的概念,代码我也给出来。

代码语言:javascript
复制
Fs = 640.0 GSa/s, N = 32768, df = 19.531 MHz, f_Nyquist = 320.0 GHz

True per-slice complex factors vs. estimated (relative):
Slice 0: true= 1.000 ∠ 0.0° | est= 1.000 ∠ 0.0°
Slice 1: true= 0.941 ∠ 37.5° | est= 0.730 ∠ -83.1°
Slice 2: true= 0.923 ∠ 157.0° | est= 1.483 ∠ -170.7°
Slice 3: true= 1.142 ∠ -7.6° | est= 1.196 ∠ -5.6°
MZM EO 传递函数(幅频)
MZM EO 传递函数(幅频)

MZM EO 传递函数(幅频)

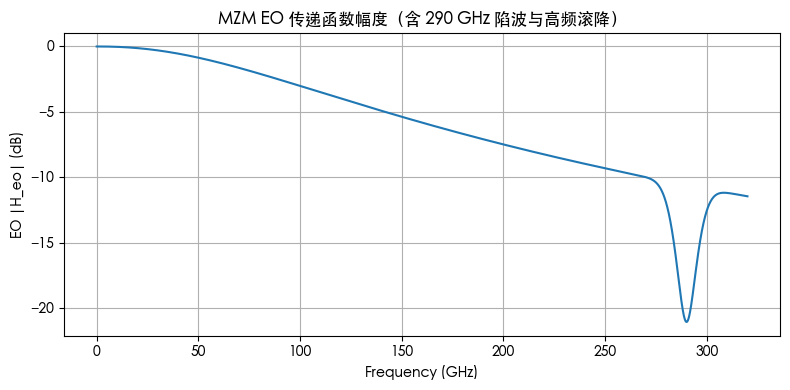

低频 ~0 dB,100 GHz 起平滑滚降(3 dB@100 GHz 的量级),290 GHz 处有明显“陷波”(模拟论文里提到的 dip), → 这决定了未经补偿的系统在高频与 290 GHz 附近会被抑制。

image-20251025095455775
image-20251025095455775
image-20251025095503707
image-20251025095503707
image-20251025095522357
image-20251025095522357

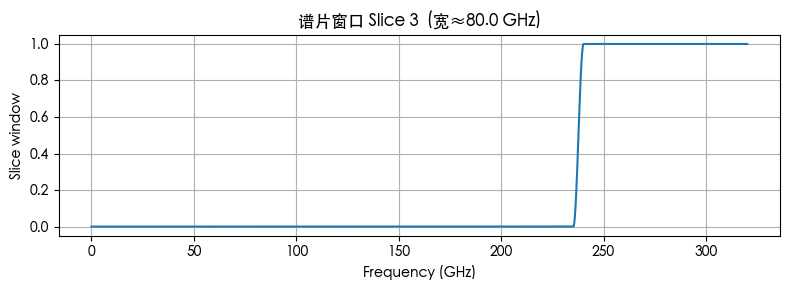

image-20251025095529790
image-20251025095529790

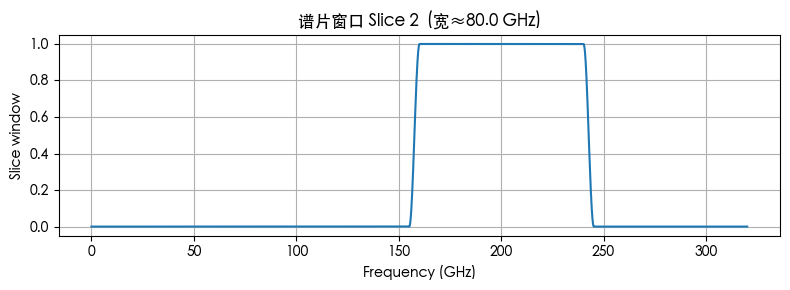

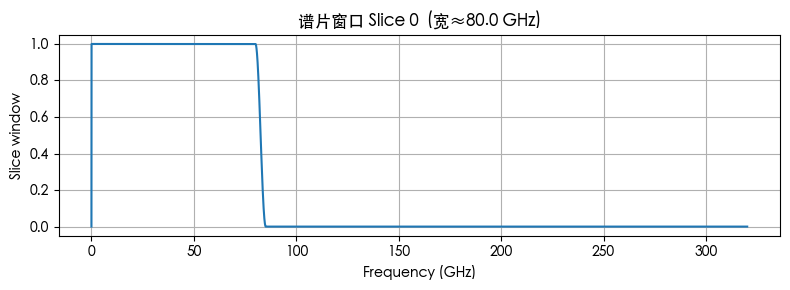

每个谱片宽约 2×FSR≈80 GHz,相邻谱片用 ≈5 GHz 余量 做余弦过渡,出现小重叠区,用于后续幅相对齐谱片拼接

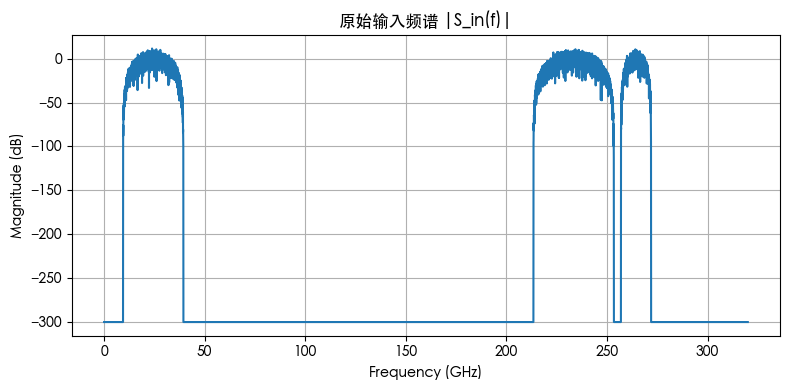

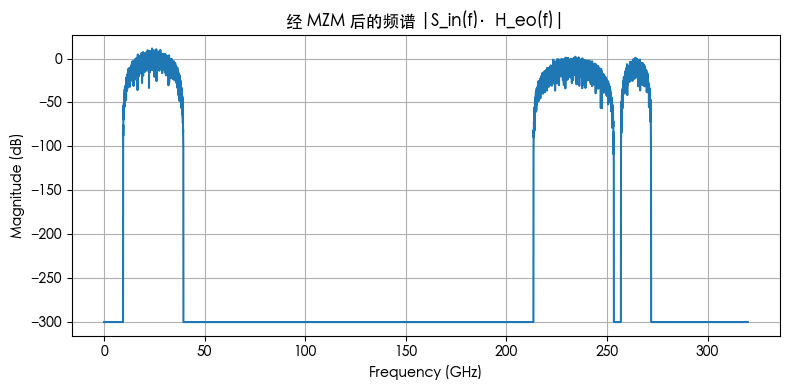

原始输入频谱 vs 经过 MZM 的频谱

image-20251025095538747
image-20251025095538747
image-20251025095549912
image-20251025095549912

构造了三段带通信号:24.4 GHz(位于 0–80 GHz 范围)、233.4 GHz(位于 160–240 GHz)、264.4 GHz(位于 240–320 GHz);经过 MZM 后,高频端被压低,290 GHz 附近凹陷明显。

image-20251025095558212
image-20251025095558212
image-20251025095607045
image-20251025095607045
image-20251025095616029
image-20251025095616029

image-20251025095616029

image-20251025095623160
image-20251025095623160

image-20251025095623160

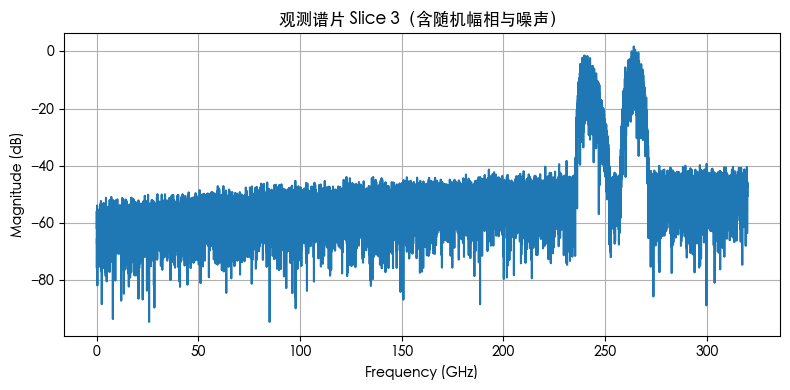

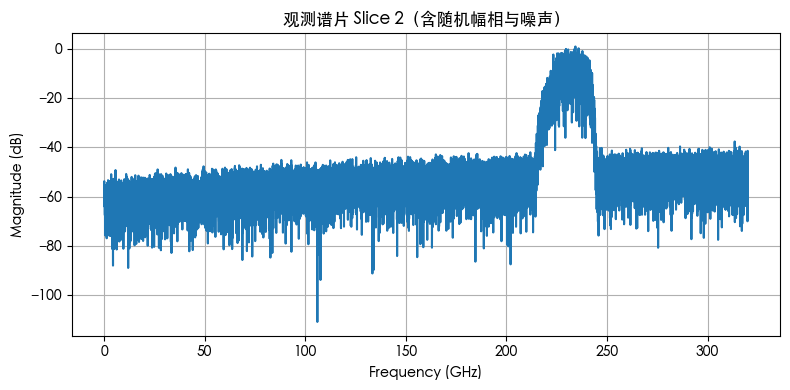

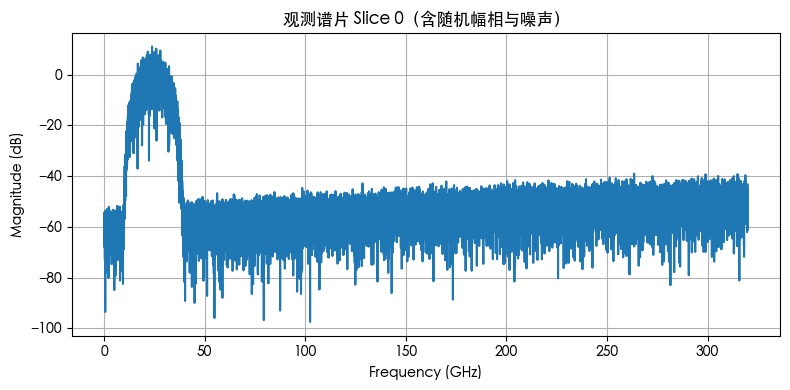

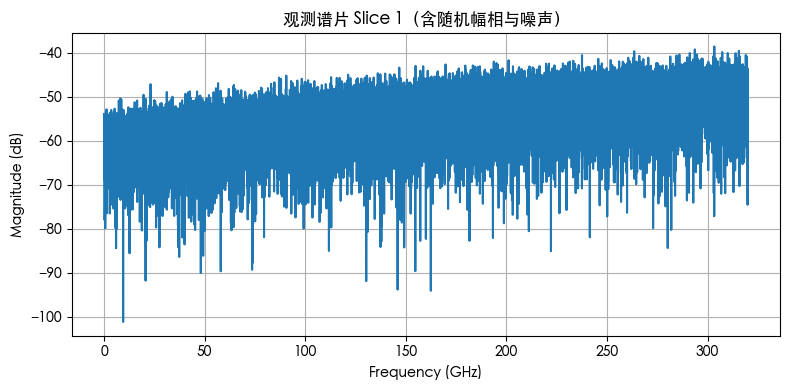

观测到的各谱片频谱(含噪)

image-20251025095631811
image-20251025095631811

image-20251025095631811

image-20251025095641435
image-20251025095641435

image-20251025095641435

对每片引入了未知复数增益/相位(模拟 LO 漂移/光纤相位),并叠加了随频率上升的噪声(模拟 OCNR/ASE);这些“未知量”随后通过重叠区比对(中值估计)自动恢复。

image-20251025095656225
image-20251025095656225

image-20251025095656225

image-20251025095704299
image-20251025095704299

image-20251025095704299

image-20251025095713632
image-20251025095713632

image-20251025095713632

代码语言:javascript
复制

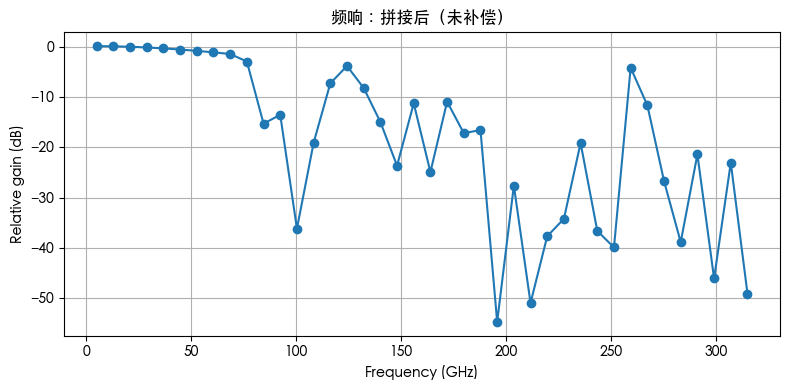

频响平坦度(未补偿):范围 54.89 dB
频响平坦度(补偿后):范围 52.58 dB

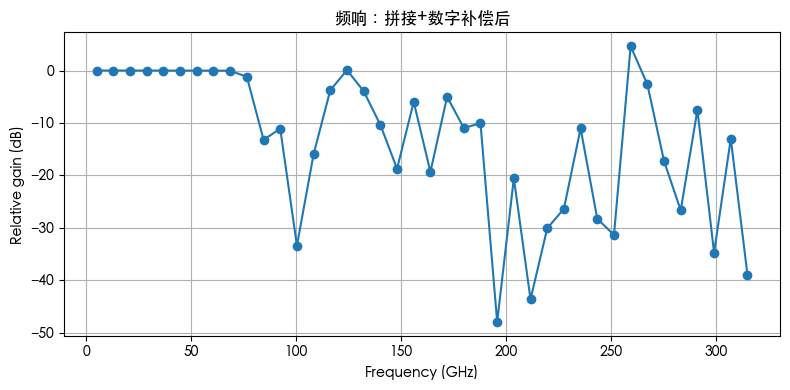

image-20251025095737322
image-20251025095737322

image-20251025095737322

image-20251025095744916
image-20251025095744916

image-20251025095744916

代码语言:javascript
复制
SINAD / ENOB 估计(未补偿):
Tone @ 2.0 GHz: SINAD = -47.6 dB, ENOB = -8.20 bits
Tone @ 56.0 GHz: SINAD = -80.6 dB, ENOB = -13.68 bits
Tone @ 280.0 GHz: SINAD = -199.8 dB, ENOB = -33.48 bits
Tone @ 308.0 GHz: SINAD = -87.7 dB, ENOB = -14.86 bits

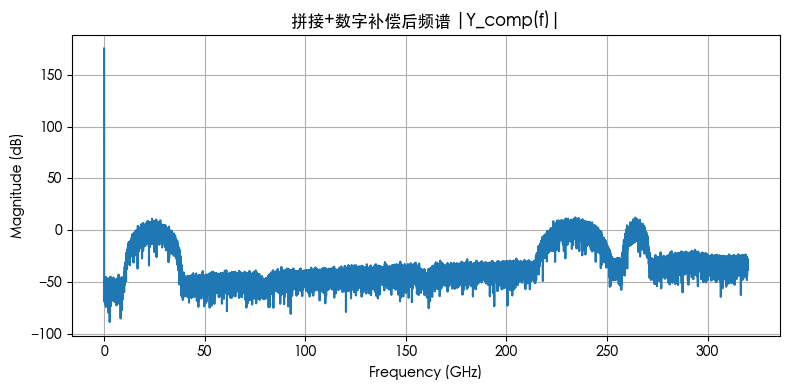

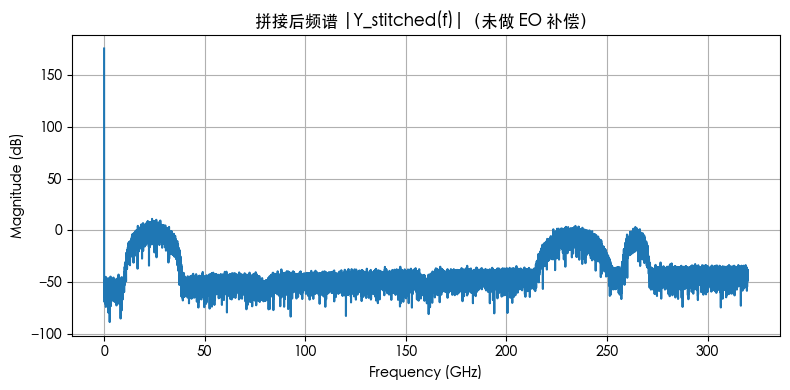

拼接 + 数字补偿后频谱

对拼接结果乘以 H_eo 的正则化逆(含小正则项防放大噪声过头);观感上整体更平,但陷波附近的噪声底会被抬升(符合论文中“数字补偿会把噪声一起放大”的现象)。

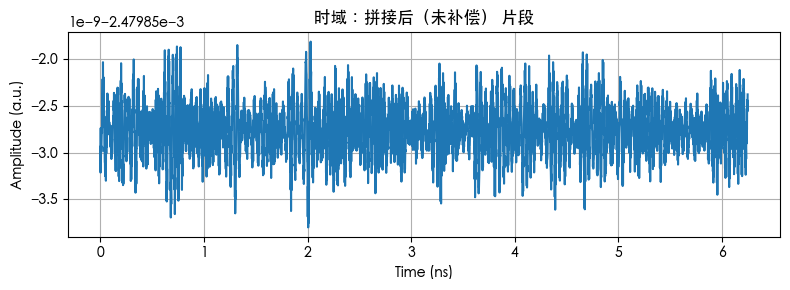

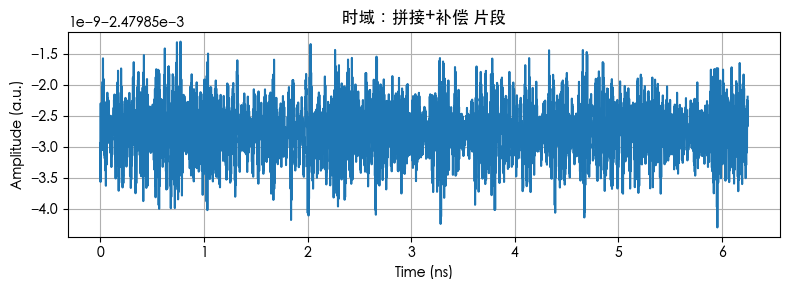

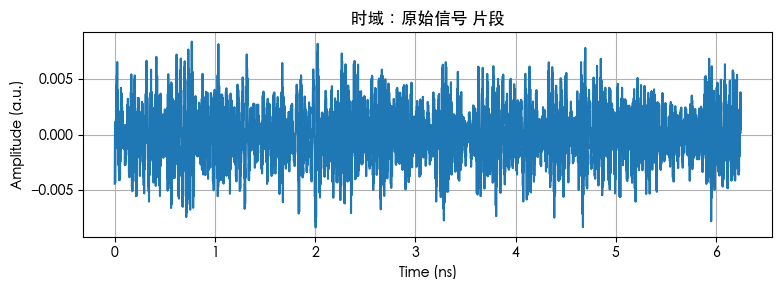

时域片段(原始 vs 拼接(未补偿) vs 拼接+补偿)

未补偿版本的包络被高频抑制;补偿后回到更接近原始,这对应“通过频域补偿拉平频响 → 时域恢复波形细节”。

对比

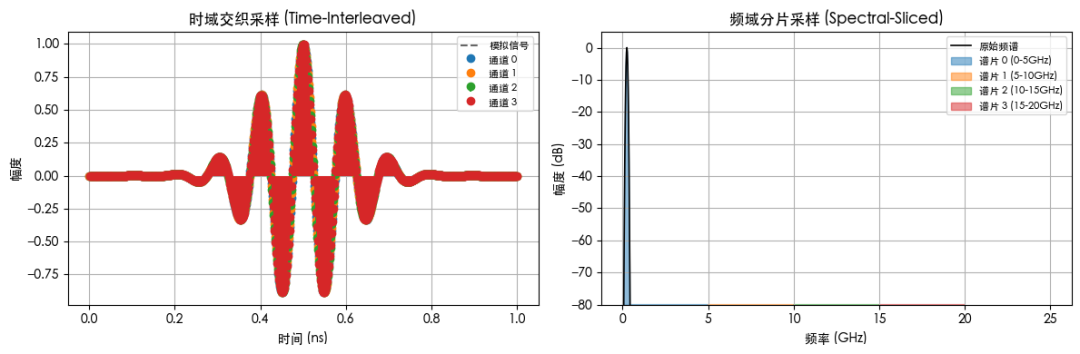

时域交织 vs 频域分片”直观对比图
时域交织 vs 频域分片”直观对比图

时域交织 vs 频域分片”直观对比图

左图:时域交织采样(Time-Interleaved Sampling)

黑虚线:原始模拟信号(一个高频包络脉冲)。

彩色圆点:4 个子通道在不同时间相位错开的采样点。

各通道轮流采样时间轴,再拼接成完整波形,表示时间分时采样,能直接观测瞬态信号变化

右图:频域分片采样(Spectral Slicing & Stitching)

黑线:信号的真实频谱。

彩色带:不同通道负责的频率子带(谱片 0–3)。

每个通道独立测量该频带内容,最后再数字拼接(Stitching),表示频率并行采样,主要获取稳态频谱信息,时域波形需要通过 IFFT 后处理重建,不能实时观察瞬态。

两者互为傅里叶对偶,正好体现了采样定理的时间–频率对称性。

操作

对应傅里叶关系

物理含义

时域采样

时间离散 → 频谱复制

频域采样

频率离散 → 时间卷积展宽

代码

代码语言:javascript
复制
# -*- coding: utf-8 -*-
"""
Spectrally-sliced photonic-electronic ADC concept demo
- 320 GHz acquisition bandwidth (effective Fs = 640 GSa/s)
- Frequency slicing, overlap stitching, and optional EO transfer compensation
Notes:
- Uses frequency-domain synthesis with random complex content in 3 bands
- Simulates per-slice unknown complex gains/phases and recovers them via overlap stitching
- Demonstrates MZM roll-off and a notch near 290 GHz, and optional digital compensation
"""
import numpy as np
import matplotlib.pyplot as plt

# ----------------------------
# 1) Global simulation params
# ----------------------------
Fs = 640e9                 # effective sampling rate (Hz) -> Nyquist 320 GHz
N  = 2**15                 # FFT size (~1e4 pts); adjust for speed vs resolution
df = Fs/N
f = np.fft.rfftfreq(N, d=1/Fs)       # one-sided frequency grid (0..Fs/2)
fmax = f[-1]

# Sanity
print("Fs = %.1f GSa/s, N = %d, df = %.3f MHz, f_Nyquist = %.1f GHz" % (Fs/1e9, N, df/1e6, fmax/1e9))

# ----------------------------
# 2) Define input spectrum: 3 bandlimited regions (like paper)
# ----------------------------
rng = np.random.default_rng(42)

S_in = np.zeros_like(f, dtype=complex)

def add_band(center_GHz, baud_GBd, span_GHz, amp=1.0):
    # Fill |f-center| <= span/2 with random complex values shaped by raised-cosine like window
    center = center_GHz*1e9
    span = span_GHz*1e9
    idx = np.where(np.abs(f-center) <= span/2)[0]
    if len(idx)==0:
        return
    # random complex payload
    x = rng.standard_normal(len(idx)) + 1j*rng.standard_normal(len(idx))
    # smooth edges with cosine roll-off
    xw = x.copy()
    edges = np.linspace(-1, 1, len(idx))
    win = 0.5*(1+np.cos(np.pi*edges))  # raised cosine across the band to avoid sharp edges
    xw *= win
    S_in[idx] += amp * xw

# Three example signals (roughly mirroring the paper’s bands)
add_band(center_GHz=24.4,  baud_GBd=30, span_GHz=30)    # around 0-80 GHz band
add_band(center_GHz=233.4, baud_GBd=40, span_GHz=40)    # in 160-240 GHz band
add_band(center_GHz=264.4, baud_GBd=10, span_GHz=15)    # in 240-320 GHz band

# ----------------------------
# 3) EO modulator transfer function (magnitude-only model)
#    - gentle LP roll-off (3 dB @ 100 GHz, ~10 dB @ 300 GHz)
#    - notch near 290 GHz
# ----------------------------
def H_eo_mag(f_Hz):
    fG = f_Hz/1e9
    # base low-pass envelope (smooth knee around 100 GHz)
    lp = 1.0/np.sqrt(1 + (fG/100.0)**2.2)   # phenomenological slope
    # notch near 290 GHz (Gaussian)
    notch = 1 - 0.7*np.exp(-0.5*((fG-290)/6.0)**2)  # ~ -10 dB dip at center
    return lp*notch

H_eo = H_eo_mag(f)

# apply EO response to the optical modulation (here equivalent in our RF spectral surrogate)
S_after_eo = S_in * H_eo

# ----------------------------
# 4) Define spectral slices (M=4), each ~80 GHz wide, slight overlaps
# ----------------------------
FSR = 40.025e9
slice_bw = 2*FSR                # ~80.05 GHz per slice
M = 4

# Slice edges with ~5 GHz cosine overlaps
overlap = 5e9
slice_edges = [(k*slice_bw, (k+1)*slice_bw) for k in range(M)]
slice_windows = []

def cosine_ramp(x, x0, x1):
    # returns 0..1..0 raised-cosine style window across [x0,x1], 0 outside
    w = np.zeros_like(x, dtype=float)
    band = (x>=x0) & (x<=x1)
    if not np.any(band):
        return w
    xx = (x[band]-x0)/(x1-x0)  # 0..1
    w[band] = 0.5*(1 - np.cos(2*np.pi*xx))
    return w

# Build overlapping windows with flat center and cosine tapers of 'overlap' on both sides
for (f0, f1) in slice_edges:
    # extended edges for overlap
    a = max(0.0, f0 - overlap)
    b = min(Fs/2, f1 + overlap)
    # construct trapezoid with cosine skirts: 0->cosine->1(flat)->cosine->0
    w = np.zeros_like(f, dtype=float)
    # rise edge
    rise_end = f0
    rise_start = a
    rise = (f>=rise_start) & (f<=rise_end)
    if np.any(rise) and rise_end>rise_start:
        xx = (f[rise]-rise_start)/(rise_end-rise_start)  # 0..1
        w[rise] = 0.5*(1 - np.cos(np.pi*xx))
    # flat
    flat = (f>f0) & (f<f1)
    w[flat] = 1.0
    # fall edge
    fall_start = f1
    fall_end = b
    fall = (f>=fall_start) & (f<=fall_end)
    if np.any(fall) and fall_end>fall_start:
        xx = (f[fall]-fall_start)/(fall_end-fall_start)  # 0..1
        w[fall] = 0.5*(1 + np.cos(np.pi*xx))
    slice_windows.append(w)

# ----------------------------
# 5) Simulate unknown per-slice complex gains/phases (e.g., LO drift, fiber phase)
# ----------------------------
true_slice_cplx = []
for k in range(M):
    gain = 0.8 + 0.4*rng.random()               # 0.8..1.2
    phase = rng.uniform(-np.pi, np.pi)
    true_slice_cplx.append(gain*np.exp(1j*phase))
true_slice_cplx = np.array(true_slice_cplx, dtype=complex)

# Per-slice observed spectra (with EO response and slice windows + unknown complex factor)
Y_slices = []
for k in range(M):
    Yk = S_after_eo * slice_windows[k] * true_slice_cplx[k]
    # add AWGN to emulate ASE/OCNR; larger at higher f (simple model)
    noise_mag = 1e-3 * (1 + (f/1e11))   # grows with frequency
    noise = (rng.standard_normal(len(f)) + 1j*rng.standard_normal(len(f))) * noise_mag / np.sqrt(2)
    Yk = Yk + noise
    Y_slices.append(Yk)

# ----------------------------
# 6) "Measure" OE transfer per slice (here we assume known slice windows; unknown complex scalar only)
#    Recover per-slice complex factors via overlap stitching (relative to slice 0)
# ----------------------------
# Find overlaps between consecutive slices and compute complex scale that best matches in LS sense
est_slice_cplx = np.ones(M, dtype=complex)
for k in range(1, M):
    # overlapping region between slice k-1 and k: where both windows > threshold
    ov = (slice_windows[k-1] > 0.2) & (slice_windows[k] > 0.2)
    # To avoid divide-by-zero, select bins with sufficient power
    mask = ov & (np.abs(Y_slices[k])>1e-6) & (np.abs(Y_slices[k-1])>1e-6)
    if np.sum(mask) < 10:
        est_slice_cplx[k] = 1.0 + 0j
    else:
        # Estimate ratio that makes Y_{k} align to Y_{k-1}
        r = Y_slices[k-1][mask] / Y_slices[k][mask]
        # robust estimate: median in complex plane (use mean of normalized ratios)
        est = np.median(r)
        est_slice_cplx[k] = est * est_slice_cplx[k-1]  # chain relative to slice 0

# Normalize so that slice 0 factor = 1
est_slice_cplx = est_slice_cplx / est_slice_cplx[0]

print("\nTrue per-slice complex factors vs. estimated (relative):")
for k in range(M):
    print("Slice %d: true= %.3f ∠ %.1f° | est= %.3f ∠ %.1f°" % (
        k, np.abs(true_slice_cplx[k])/np.abs(true_slice_cplx[0]),
        (np.angle(true_slice_cplx[k])-np.angle(true_slice_cplx[0]))*180/np.pi,
        np.abs(est_slice_cplx[k]), np.angle(est_slice_cplx[k])*180/np.pi))

# ----------------------------
# 7) Stitch: apply estimated factors and overlap-add (sum of weighted slices)
# ----------------------------
Y_corr = []
for k in range(M):
    Y_corr.append(Y_slices[k] * est_slice_cplx[k])

# Weighted sum with window-power normalization to avoid gain bumps in overlaps
Wsum = np.sum(slice_windows, axis=0) + 1e-12
Y_stitched = np.sum(Y_corr, axis=0) / Wsum

# Optional: digital compensation for EO roll-off (regularized inverse)
reg = 1e-2
H_inv = np.conj(H_eo) / (H_eo**2 + reg)
Y_comp = Y_stitched * H_inv

# ----------------------------
# 8) Compare spectra (magnitude)
# ----------------------------
def plot_mag_spectrum(freq, X, title):
    plt.figure(figsize=(8,4))
    plt.plot(freq/1e9, 20*np.log10(np.abs(X)+1e-15))
    plt.xlabel("Frequency (GHz)")
    plt.ylabel("Magnitude (dB)")
    plt.title(title)
    plt.grid(True)
    plt.tight_layout()
    plt.show()

# Plot EO transfer
plt.figure(figsize=(8,4))
plt.plot(f/1e9, 20*np.log10(H_eo+1e-15))
plt.xlabel("Frequency (GHz)")
plt.ylabel("EO |H_eo| (dB)")
plt.title("MZM EO 传递函数幅度(含 290 GHz 陷波与高频滚降)")
plt.grid(True)
plt.tight_layout()
plt.show()

# Plot slice windows
for k in range(M):
    plt.figure(figsize=(8,3))
    plt.plot(f/1e9, slice_windows[k])
    plt.xlabel("Frequency (GHz)")
    plt.ylabel("Slice window")
    plt.title(f"谱片窗口 Slice {k}  (宽≈{slice_bw/1e9:.1f} GHz)")
    plt.grid(True)
    plt.tight_layout()
    plt.show()

# Original vs after EO
plot_mag_spectrum(f, S_in, "原始输入频谱 |S_in(f)|")
plot_mag_spectrum(f, S_after_eo, "经 MZM 后的频谱 |S_in(f)·H_eo(f)|")

# Per-slice observed (magnitude)
for k in range(M):
    plot_mag_spectrum(f, Y_slices[k], f"观测谱片 Slice {k}(含随机幅相与噪声)")

# Stitched spectra
plot_mag_spectrum(f, Y_stitched, "拼接后频谱 |Y_stitched(f)|(未做 EO 补偿)")
plot_mag_spectrum(f, Y_comp, "拼接+数字补偿后频谱 |Y_comp(f)|")

# ----------------------------
# 9) Time-domain reconstruction and quick SINAD test with single tone sweep
# ----------------------------
# Build time-domain from stitched (without and with compensation)
# Complete Hermitian spectrum for IFFT: we used rfft frequencies, so use irfft
y_time = np.fft.irfft(Y_stitched, n=N)
y_comp_time = np.fft.irfft(Y_comp, n=N)
x_time = np.fft.irfft(S_in, n=N)  # ideal reference (pre-EO)

# Simple alignment (normalize power)
def rms(a): return np.sqrt(np.mean(np.abs(a)**2))
scale = rms(x_time)/max(rms(y_time),1e-12)
scale_c = rms(x_time)/max(rms(y_comp_time),1e-12)

# Plot short time segments
def plot_time(t_ns, sig, title):
    plt.figure(figsize=(8,3))
    plt.plot(t_ns, sig)
    plt.xlabel("Time (ns)")
    plt.ylabel("Amplitude (a.u.)")
    plt.title(title)
    plt.grid(True)
    plt.tight_layout()
    plt.show()

t = np.arange(N)/Fs
sel = slice(0, 4000)  # first 4000 samples for visibility
plot_time(t[sel]*1e9, x_time[sel], "时域:原始信号 片段")
plot_time(t[sel]*1e9, (scale*y_time)[sel], "时域:拼接后(未补偿) 片段")
plot_time(t[sel]*1e9, (scale_c*y_comp_time)[sel], "时域:拼接+补偿 片段")

# ----------------------------
# 10) Frequency response via single-tone sweep (measure amplitude error)
# ----------------------------
tones_GHz = np.linspace(5, 315, 40)  # 40 tones spanning band
meas_gain_no_comp = []
meas_gain_comp = []

for ft in tones_GHz*1e9:
    S_t = np.zeros_like(f, dtype=complex)
    # narrow tone represented by a small bin (nearest bin)
    kbin = np.argmin(np.abs(f-ft))
    S_t[kbin] = 1.0
    # EO + slicing + unknown slice factors + stitching + optional comp
    Yt_slices = []
    for k in range(M):
        Yk = S_t * H_eo * slice_windows[k] * true_slice_cplx[k]
        # add small noise
        noise = (rng.standard_normal(len(f)) + 1j*rng.standard_normal(len(f))) * 1e-4 / np.sqrt(2)
        Yk = Yk + noise
        Yt_slices.append(Yk)
    # estimate factors using same overlap estimator as above (recompute for fairness)
    est_c = np.ones(M, dtype=complex)
    for k in range(1, M):
        ov = (slice_windows[k-1] > 0.2) & (slice_windows[k] > 0.2)
        mask = ov & (np.abs(Yt_slices[k])>1e-9) & (np.abs(Yt_slices[k-1])>1e-9)
        if np.sum(mask) < 1:
            est = 1+0j
        else:
            r = Yt_slices[k-1][mask] / Yt_slices[k][mask]
            est = np.median(r)
        est_c[k] = est * est_c[k-1]
    est_c = est_c/est_c[0]

    Wsum = np.sum(slice_windows, axis=0) + 1e-12
    Yt_st = np.sum([Yt_slices[k]*est_c[k] for k in range(M)], axis=0)/Wsum
    mag_no = np.abs(Yt_st[kbin])
    # compensation
    Yt_comp = Yt_st * H_inv
    mag_co = np.abs(Yt_comp[kbin])
    meas_gain_no_comp.append(mag_no)
    meas_gain_comp.append(mag_co)

meas_gain_no_comp = np.array(meas_gain_no_comp)
meas_gain_comp = np.array(meas_gain_comp)

# Normalize to low-frequency median to see flatness
g0 = np.median(meas_gain_no_comp[0:5])
g0c = np.median(meas_gain_comp[0:5])
flat_no = 20*np.log10(meas_gain_no_comp/g0 + 1e-15)
flat_co = 20*np.log10(meas_gain_comp/g0c + 1e-15)

# Print quick flatness stats
print("\n频响平坦度(未补偿):范围 %.2f dB" % (np.max(flat_no)-np.min(flat_no)))
print("频响平坦度(补偿后):范围 %.2f dB" % (np.max(flat_co)-np.min(flat_co)))

# Plot frequency response curves
plt.figure(figsize=(8,4))
plt.plot(tones_GHz, flat_no, marker='o')
plt.xlabel("Frequency (GHz)")
plt.ylabel("Relative gain (dB)")
plt.title("频响:拼接后(未补偿)")
plt.grid(True)
plt.tight_layout()
plt.show()

plt.figure(figsize=(8,4))
plt.plot(tones_GHz, flat_co, marker='o')
plt.xlabel("Frequency (GHz)")
plt.ylabel("Relative gain (dB)")
plt.title("频响:拼接+数字补偿后")
plt.grid(True)
plt.tight_layout()
plt.show()

# ----------------------------
# 11) Quick SINAD/ENOB at a few tones (post-stitched, no-comp)
# ----------------------------
def measure_sinad(ftone_Hz, snr_noise=1e-4):
    # synthesize tone in freq domain, run through pipeline, back to time, compute SINAD
    S_t = np.zeros_like(f, dtype=complex)
    kbin = np.argmin(np.abs(f-ftone_Hz))
    S_t[kbin] = 1.0
    Yt_slices = []
    for k in range(M):
        Yk = S_t * H_eo * slice_windows[k] * true_slice_cplx[k]
        noise = (rng.standard_normal(len(f)) + 1j*rng.standard_normal(len(f))) * snr_noise/np.sqrt(2)
        Yk = Yk + noise
        Yt_slices.append(Yk)
    # stitch with estimated factors
    est_c = np.ones(M, dtype=complex)
    for k in range(1, M):
        ov = (slice_windows[k-1] > 0.2) & (slice_windows[k] > 0.2)
        mask = ov & (np.abs(Yt_slices[k])>1e-9) & (np.abs(Yt_slices[k-1])>1e-9)
        if np.sum(mask) < 1:
            est = 1+0j
        else:
            r = Yt_slices[k-1][mask] / Yt_slices[k][mask]
            est = np.median(r)
        est_c[k] = est * est_c[k-1]
    est_c = est_c/est_c[0]
    Wsum = np.sum(slice_windows, axis=0) + 1e-12
    Yst = np.sum([Yt_slices[k]*est_c[k] for k in range(M)], axis=0)/Wsum
    y = np.fft.irfft(Yst, n=N)
    # compute SINAD in time domain: tone bin power / rest power
    # estimate tone amplitude by projecting onto sin/cos at ftone
    t = np.arange(N)/Fs
    s = np.sin(2*np.pi*ftone_Hz*t); c = np.cos(2*np.pi*ftone_Hz*t)
    A_s = 2*np.mean(y*s); A_c = 2*np.mean(y*c)
    tone_power = 0.5*(A_s**2 + A_c**2)
    total_power = np.mean(y**2)
    noise_dist_power = max(total_power - tone_power, 1e-20)
    sinad = tone_power/noise_dist_power
    sinad_db = 10*np.log10(sinad+1e-20)
    enob = (sinad_db - 1.76)/6.02
    return sinad_db, enob

test_tones = [2e9, 56e9, 280e9, 308e9]
print("\nSINAD / ENOB 估计(未补偿):")
for ft in test_tones:
    sdb, eb = measure_sinad(ft)
    print("Tone @ %.1f GHz: SINAD = %.1f dB, ENOB = %.2f bits" % (ft/1e9, sdb, eb))
本文参与 腾讯云自媒体同步曝光计划,分享自微信公众号。
原始发表:2025-10-25,如有侵权请联系 cloudcommunity@tencent.com 删除

本文分享自 云深之无迹 微信公众号,前往查看

如有侵权,请联系 cloudcommunity@tencent.com 删除。

本文参与 腾讯云自媒体同步曝光计划  ,欢迎热爱写作的你一起参与!

评论
登录后参与评论
0 条评论
热度
最新
推荐阅读
目录
  • 传统电子 ADC:时域拼接(Time-Domain Interleaving)
  • 光电混合 ADC(例如那篇 Kerr 微梳 ADC):频域拼接(Frequency-Domain Slicing)
  • 展示如何频域拼接
    • 原始输入频谱 vs 经过 MZM 的频谱
    • 观测到的各谱片频谱(含噪)
  • 对比
    • 左图:时域交织采样(Time-Interleaved Sampling)
    • 右图:频域分片采样(Spectral Slicing & Stitching)
  • 代码
领券
问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
