本文将介绍如何快速完成 TUICallKit 组件的接入,您将在10分钟内完成以下几个关键步骤,并最终得到一个包含完备 UI 界面的视频通话功能。

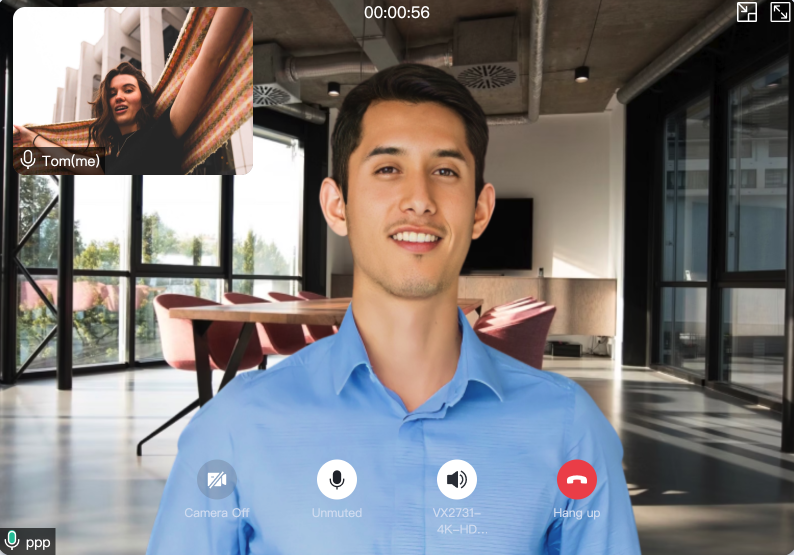

桌面端

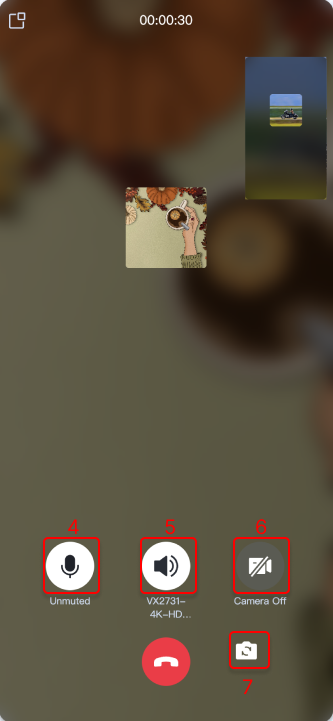

移动端

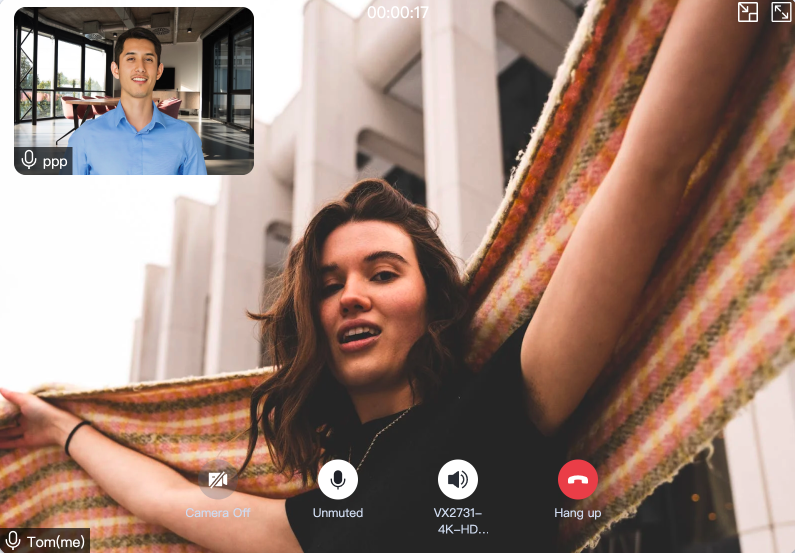

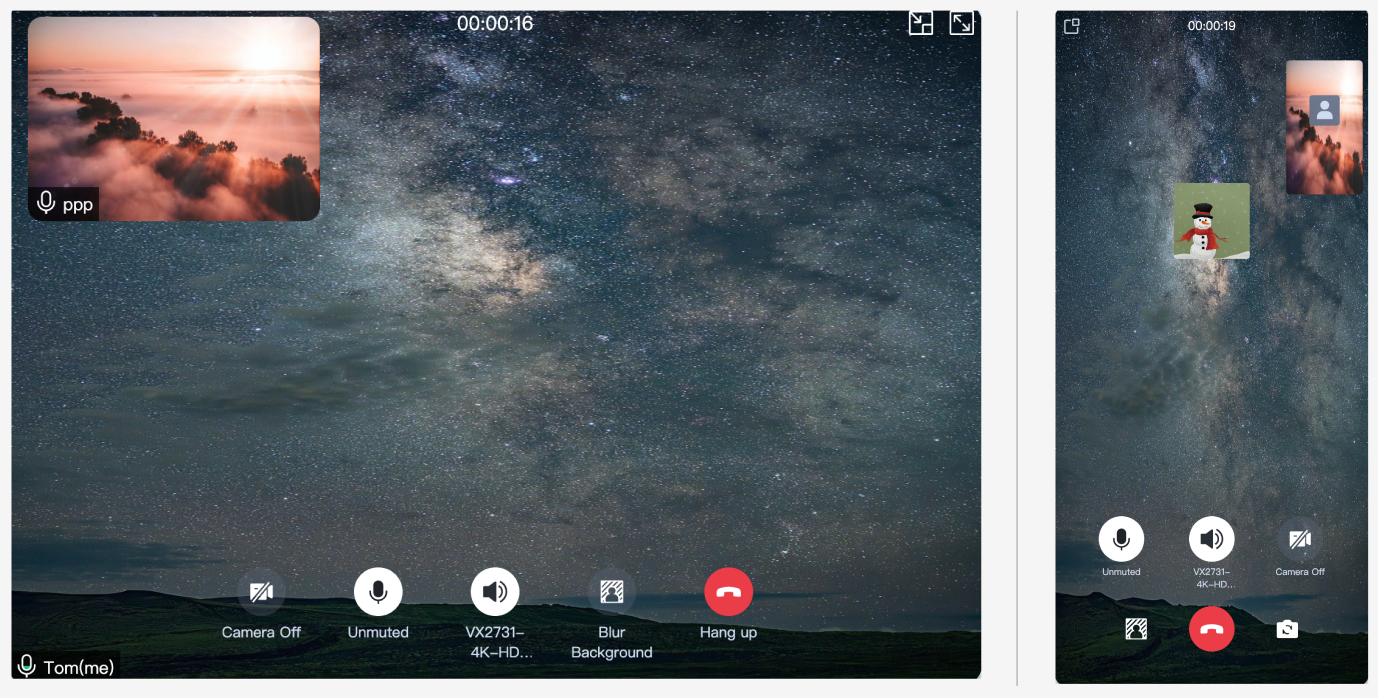

视频通话

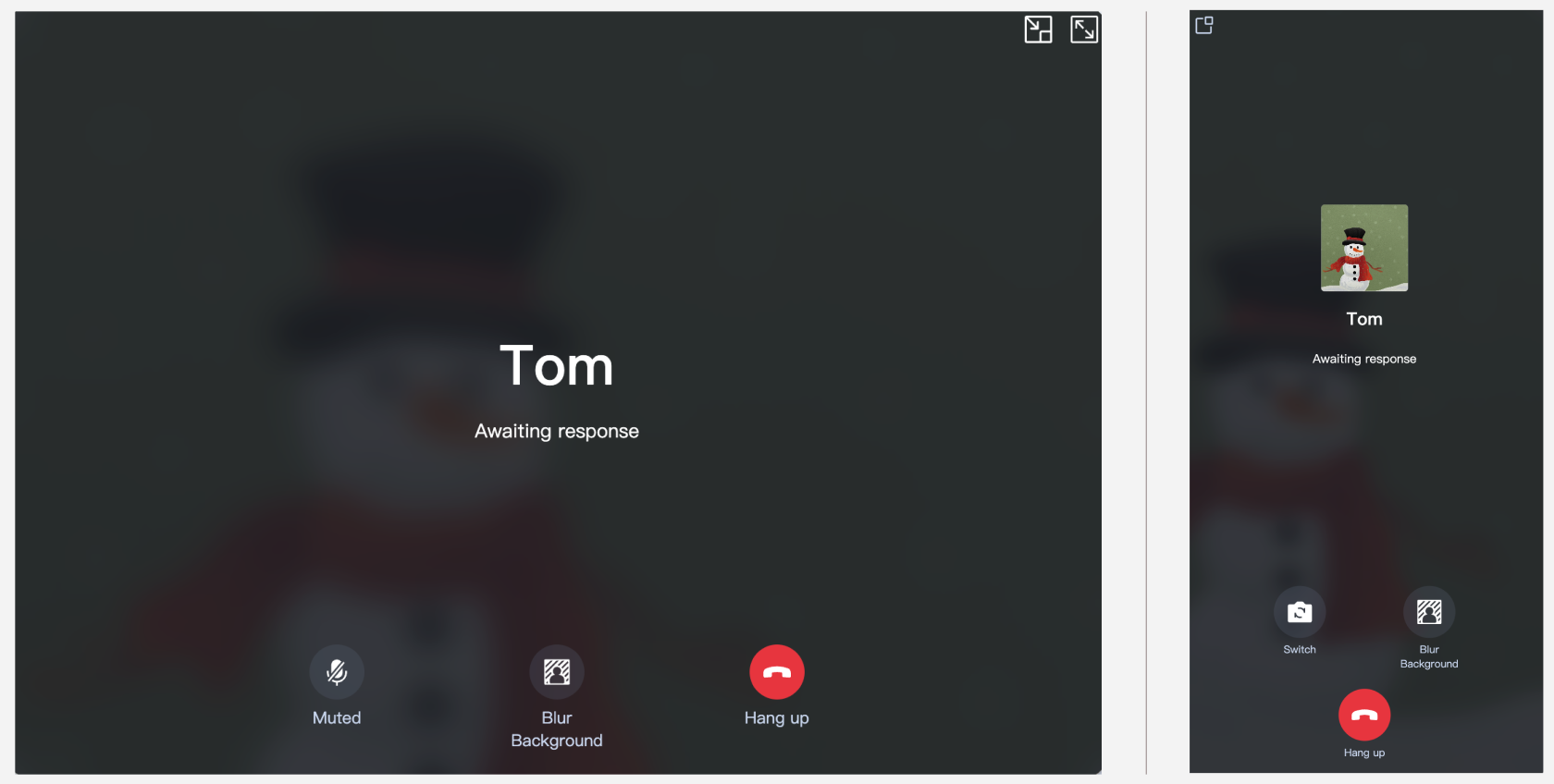

语音通话

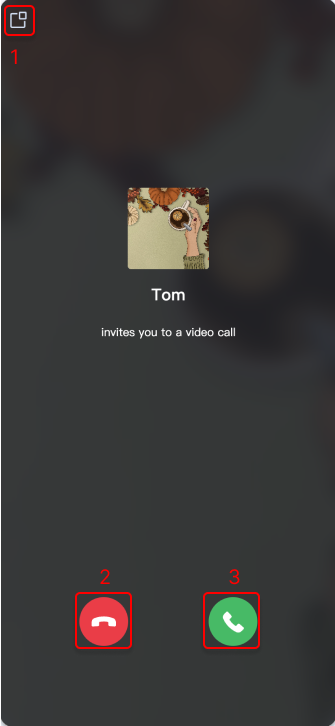

单人通话

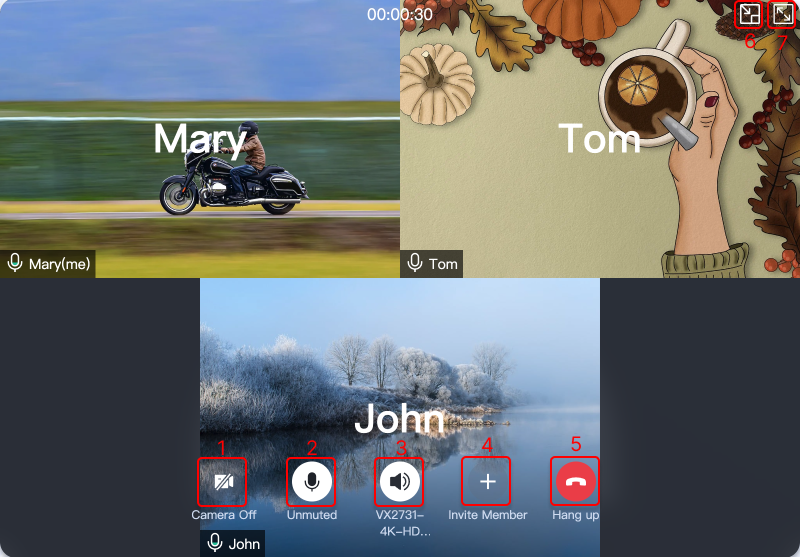

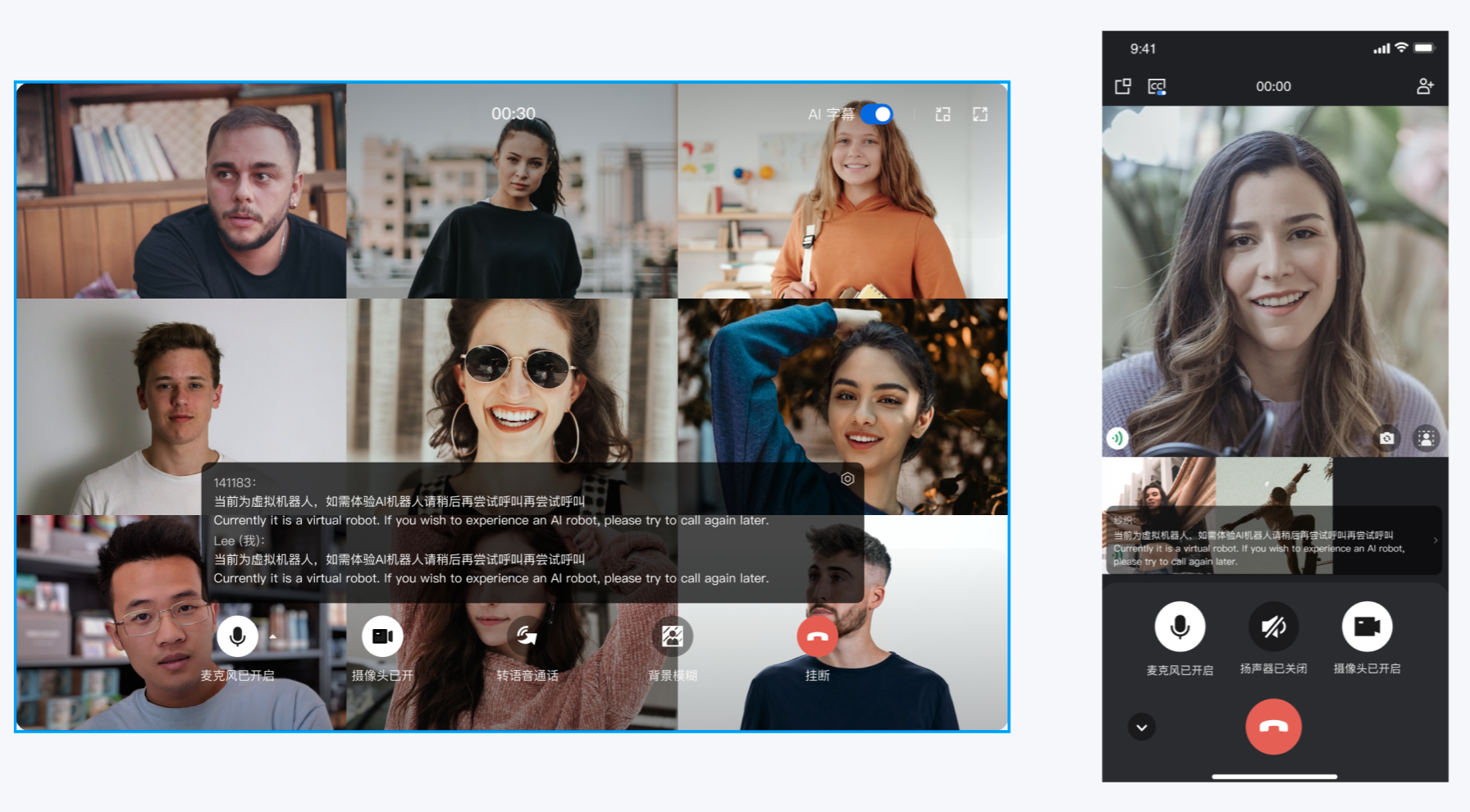

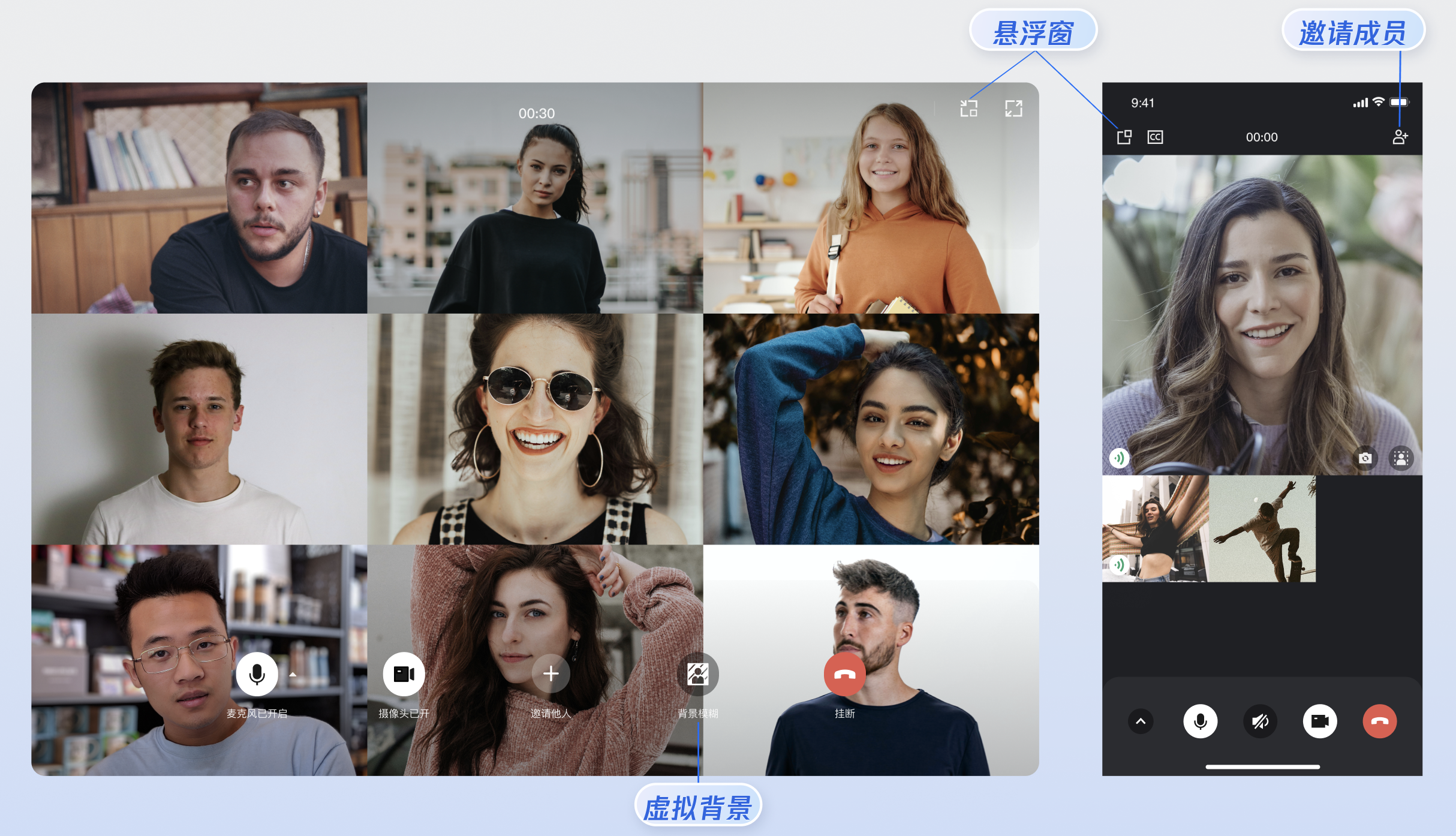

群组通话







TUICallKit Demo 体验

如果您想要直接体验音视频通话,进入 Demo 体验页面
如果您想要直接跑通一个新工程,请直接阅读 Web Demo 快速跑通

开发环境要求

React ≥ v18.0。
Node.js 版本:Node.js ≥ 12.13.0(推荐使用官方 LTS 版本,npm 版本请与 node 版本匹配)。
Modern browser, supporting WebRTC APIs.

步骤一:开通服务

在使用腾讯云提供的音视频服务前,您需要前往控制台,为应用开通音视频服务。具体步骤请参见 开通服务。

步骤二:创建项目

1. 如果您尚未安装 create-react-app ,可以在 terminal 或 cmd 中采用如下方式进行安装:
npm install -g create-react-app
2. 创建一个新的 React 项目,您可自行选择是否需要使用 ts 模板。
npx create-react-app tuicallkit-demo --template typescript
3. 创建项目完成后,切换到项目所在目录。
cd tuicallkit-demo

步骤三:下载 TUICallKit 组件

1. 通过 npm 方式下载 @tencentcloud/call-uikit-react组件并在项目中使用。
npm install @tencentcloud/call-uikit-react
2. 将 debug 目录复制到您的项目目录 tuicallkit-demo/src。
MacOS
Windows
cp -r node_modules/@tencentcloud/call-uikit-react/debug ./src
xcopy node_modules\\@tencentcloud\\call-uikit-react\\debug .\\src\\debug /i /e

步骤四:引入 TUICallKit 组件

1. 如下代码示例中的 SDKAppID、SecretKey 、userID、callUserID 四个参数。
SDKAppID:在腾讯云创建的音视频应用 SDKAppID,参见 开通服务
SecretKey:用户签名,参见 开通服务
userID:主叫的 userID,字符串类型,只允许包含英文字母(a-z 和 A-Z)、数字(0-9)、连词符(-)和下划线(_)。
callUserID:被叫的 userID,需要已初始化存在。(demo 中的 callUserID,当有被叫时输入,无被叫可以不输入)。
2. tuicallkit-demo/src/App.tsx 中引入下面代码。
import React, { useState, useMemo } from "react";
// @ts-ignore
import { TUICallKit, TUICallKitServer, TUIGlobal } from "@tencentcloud/call-uikit-react";
import * as GenerateTestUserSig from "./debug/GenerateTestUserSig-es";

function App() {
const [userData, setUserData] = useState({
userID: "",
callUserID: "",
SDKAppID: 0, // Replace with your SDKAppID
SecretKey: "", // Replace with your SecretKey
isLogin: false,
});
const init = async () => {
const { SDKAppID, SecretKey, userID } = userData;
if (SDKAppID && SecretKey && userID) {
try {
await login(SDKAppID, SecretKey, userID);
setUserData((prevState) => ({
...prevState,
isLogin: true as boolean,
}));
alert("[TUICallKit] login success.");
} catch (error) {
console.error(error);
}
} else {
alert("[TUICallKit] Please fill in the SDKAppID, userID and SecretKey.");
}
};
const login = async (SDKAppID: any, SecretKey: any, userId: any) => {
const { userSig } = GenerateTestUserSig.genTestUserSig({
userID: userId,
SDKAppID: Number(SDKAppID),
SecretKey: SecretKey,
});
await TUICallKitServer.init({ //【1】Initialize the TUICallKit component
userID: userId,
userSig,
SDKAppID: Number(SDKAppID),
});
};
const call = async () => {
await TUICallKitServer.call({ userID: userData.callUserID, type: 2 }); //【2】Make a 1v1 video call
};
const callKitStyle = useMemo(() => {
if (TUIGlobal.isPC) {
return { width: '960px', height: '630px', margin: '0 auto' };
}
return { width: '100%', height: window.innerHeight };
}, [TUIGlobal.isPC]);

return (
<>
<TUICallKit style={callKitStyle}></TUICallKit>
<div style={{ width: 350, margin: '0 auto' }}>
<h4> {userData.isLogin ? "Call Panel" : "Login Panel"} </h4>
<input
value={userData.isLogin ? userData.callUserID : userData.userID}
onChange={(value) => {
const key = userData.isLogin ? "callUserID" : "userID";
setUserData((prevState) => ({
...prevState,
[key]: value.target.value,
}));
}}
style={{ width: 230, margin: '0 auto' }}
placeholder={
userData.isLogin ? "Please enter callee's userID" : "Please enter your userID"
}
/>
<button onClick={userData.isLogin ? call : init}> {userData.isLogin ? "call" : "login"} </button>
<p style={{margin: '10'}}> {userData.isLogin ? `Your userID: ${userData.userID}` : ""} </p>
</div>
</>
);
}

export default App;

步骤五:拨打您的第一通电话

1. 在终端输 npm run start 运行 tuicallkit-demo。
警告:本地环境请在 localhost 协议下访问,具体参见 网络访问协议说明
2. 输入登录的 userID,点击 login 按钮,弹出 login success 表示初始化成功。



3. 输入被叫的 userID,点击 call 按钮,发起 1v1 视频通话。




更多特性

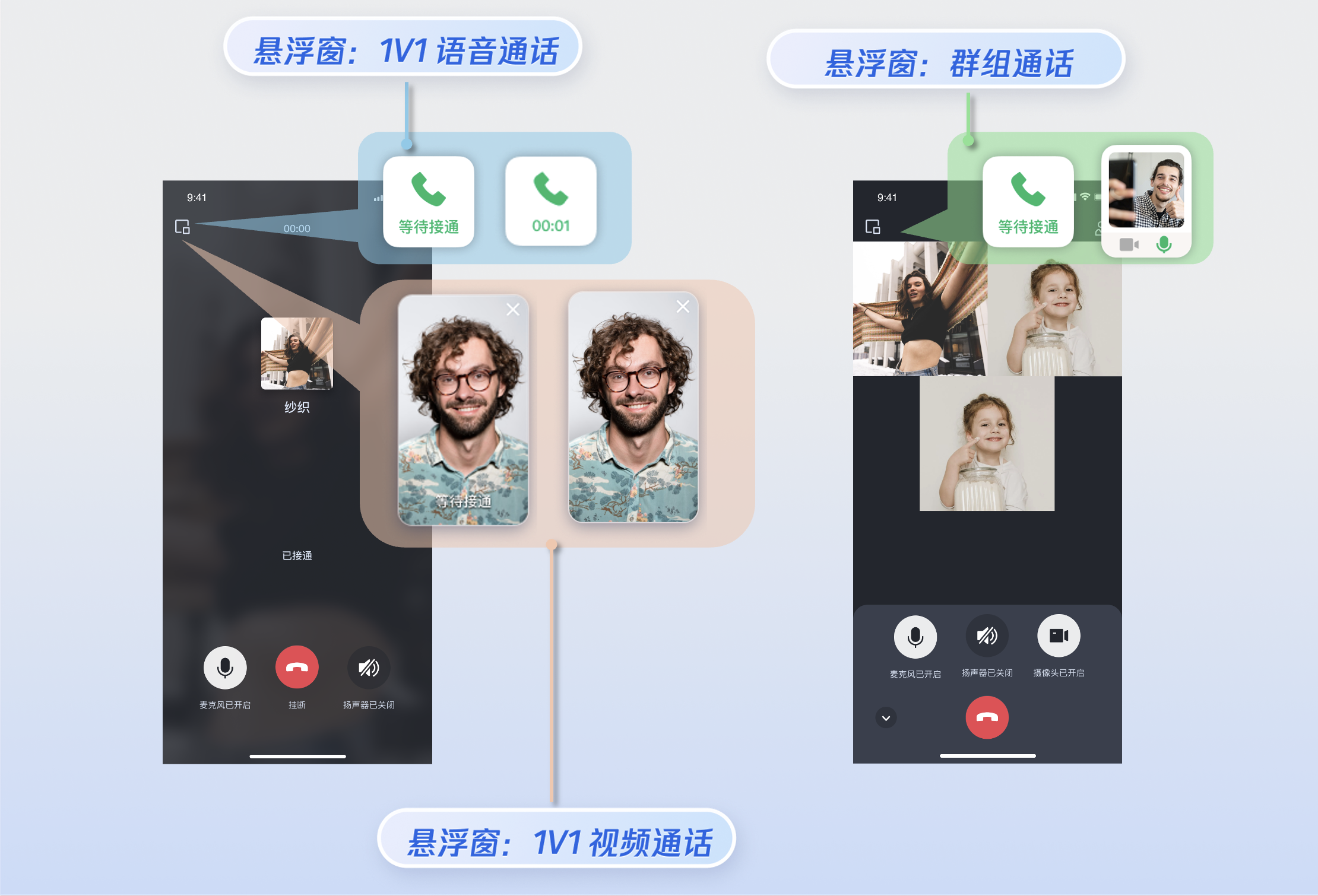

悬浮窗

常见问题

如果您的接入和使用中遇到问题,请参见 常见问题
