带有疾病进展的多分组差异结果如何展示？

生信技能树

发布于 2025-01-02 14:32:04

21400

代码可运行

文章被收录于专栏：生信技能树生信技能树

运行总次数：0

代码可运行

新的一年，大家元旦快乐呀！技能树新开了一个专辑《绘图小技巧2025》，欢迎关注，这是今年这个专辑的第一篇稿子~

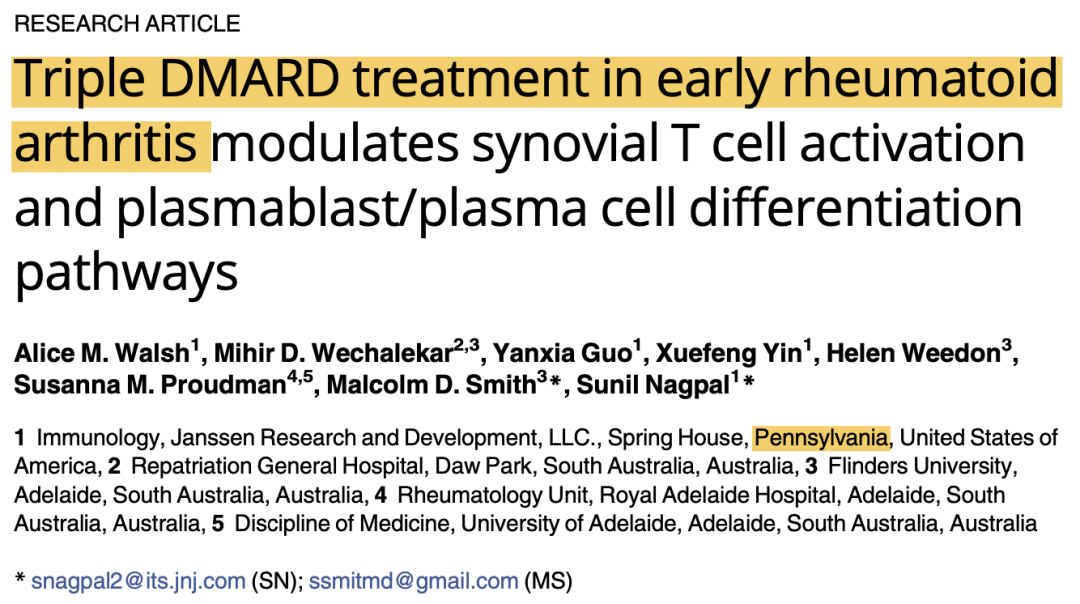

此次给绘制的图来自文献《Triple DMARD treatment in early rheumatoid arthritis modulates synovial T cell activation and plasmablast/plasma cell differentiation pathways》，是2017发表的，使用了他们团队自己2016发表的转录组测序数据，所以其实是有两个转录组测序数据集。

文章中数据情况如下：

Data are available publicly through NCBI GEO database (Healthy samples are under acces sion number GSE89408. RA samples are under accession number GSE97165)

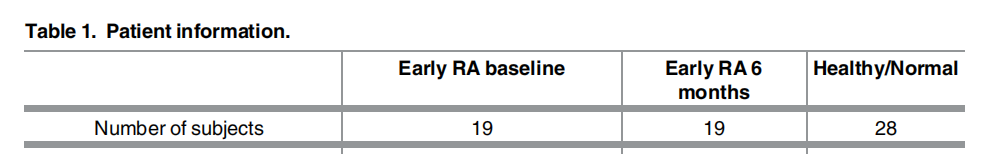

GSE89408：有28个正常样本，GSE97165 有19个 RA 治疗前与 19个RA治疗后的样本。

复现的图：

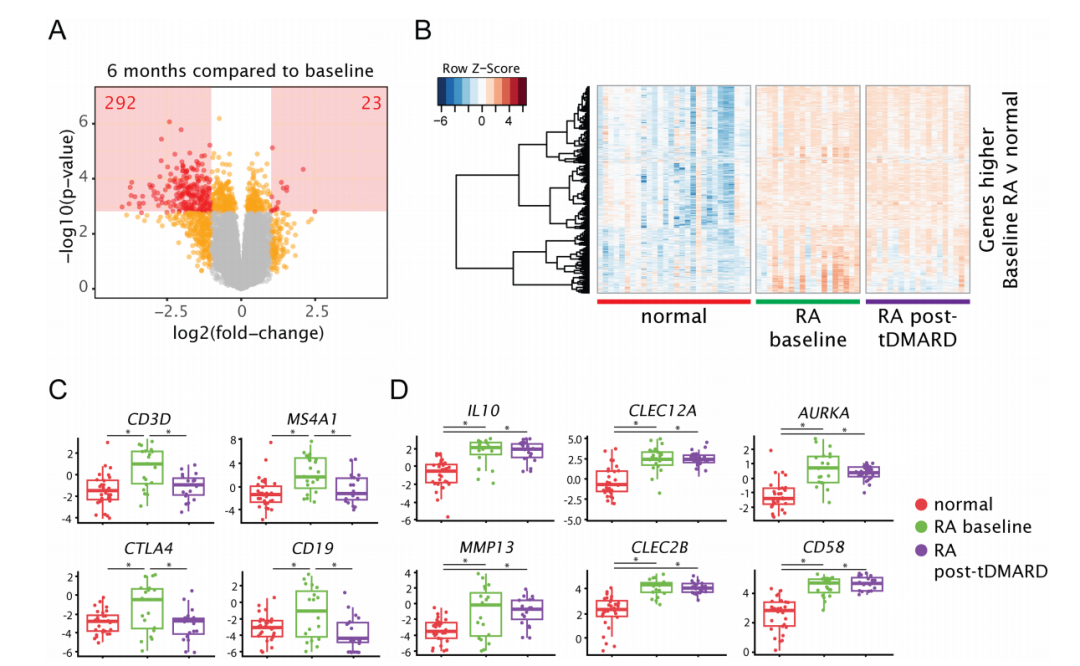

这个图主要展示了 A：治疗后与治疗前的差异火山图，B：治疗前与正常对照差异基因在三组样本中的表达热图，以及 C&D：一些 marker 基因在三个组别中的箱线图+抖动散点+显著性比较。

Fig 2. Genes selectively expressed by lymphocytes are decreased after 6 months of tDMARD treatment, while other genes remain elevated compared to normal joints

首先，整理差异分析所需要的数据

这里的两个数据集中的count数据作者使用的同一套流程与参数进行分析，这里直接合并在一起进行后续分析。（两个数据集都是同一个科研团队的，所以理论上可以先不考虑里面的批次效应哈）

如果实在不放心，可以选择下载fq数据放在一起定量，拿到表达矩阵走后面的分析。

rm(list = ls())#清空当前的工作环境
options(stringsAsFactors = F)#不以因子变量读取
options(scipen = 20)#不以科学计数法显示
library(data.table)
library(tinyarray)

####################### 读取 正常样本：PRJNA352076、GSE89408
acc <- "GSE89408"
data1 <- data.table::fread("GSE89408_GEO_count_matrix_rename.txt.gz", data.table = F)
data1 <- data1[!duplicated(data1$V1), ]

####################### RA样本：PRJNA380832、GSE97165
acc <- "GSE97165"
data2 <- data.table::fread("GSE97165_GEO_count_matrix.txt.gz", data.table = F)
data2 <- data2[!duplicated(data2$V1), ]

mat <- merge(data1, data2, by="V1")
colnames(mat)
symbol_matrix <- mat[,c(grep("normal",colnames(mat)),grep("RA_pre",colnames(mat)),grep("RA_post",colnames(mat))) ]
colnames(symbol_matrix)
rownames(symbol_matrix) <- mat[,1]
symbol_matrix <- floor(symbol_matrix)
symbol_matrix[1:4,1:4]

#过滤低表达
keep_feature <- rowSums (symbol_matrix > 0) > 0.5*ncol(symbol_matrix) ;table(keep_feature)
symbol_matrix <- symbol_matrix[keep_feature, ]
symbol_matrix[1:4,1:4]

group_list <- stringr::str_split(colnames(symbol_matrix), pattern = "_[1-9]", n = 2, simplify = T)[,1]
group_list <- gsub("_tissue", "", group_list)
group_list <- gsub("RA_pre", "RApre", group_list)
group_list <- gsub("RA_post", "RApost", group_list)
group_list
table(group_list)

# group_list
# normal  RApre RApost
#     28     19     19

colnames(symbol_matrix)
group_list
table(group_list)
#dat <- log10(edgeR::cpm(symbol_matrix)+1)
dat <- log2(edgeR::cpm(symbol_matrix)+1)
save(dat, symbol_matrix,group_list,file = 'step1-output.Rdata')

然后是两次差异分析

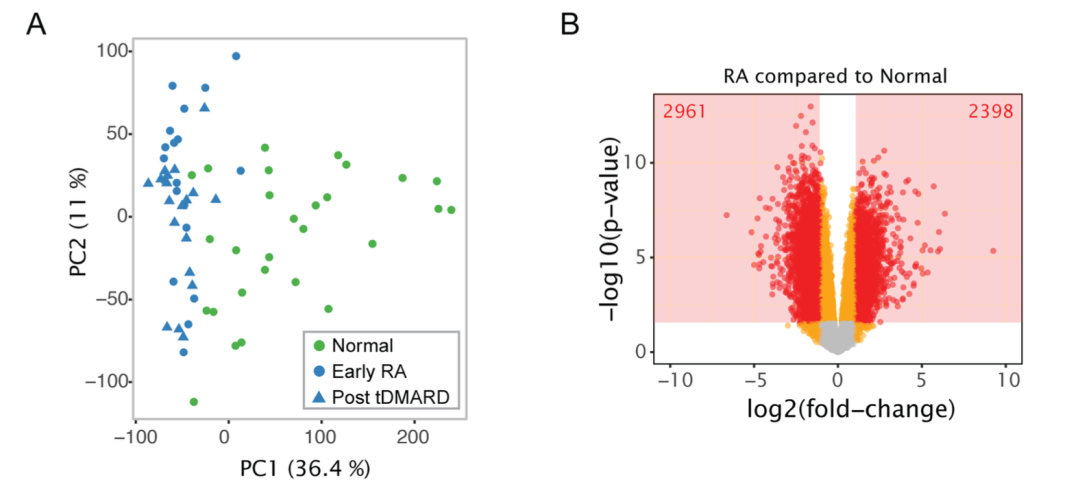

文献中使用的是 limma 算法，我们也尽量复现同样的哈，其中，疾病和对照肯定是差异巨大，但是治疗前后就很难说了因为从文献里面的pca来看本来就是分组内的差异并没有显著的小于组间差异！

（1）RA 治疗前 vs 正常对照

rm(list = ls())  ## 魔幻操作，一键清空~
options(stringsAsFactors = F)
library(AnnoProbe)
library(GEOquery)
library(ggplot2)
library(ggstatsplot)
library(patchwork)
library(reshape2)
library(stringr)
getOption('timeout')
options(timeout=10000)
load('./step1-output.Rdata')
symbol_matrix[1:4,1:4]
group_list
table(group_list)

gse_number <- 'RA_vs_Normal'
gse_number
dir.create(gse_number)
setwd( gse_number )
getwd()

kp <- group_list %in% c('normal','RApre');table(kp)
symbol_matrix <- symbol_matrix[,kp]
group_list <- group_list[kp]
table(group_list)
group_list <- factor(group_list,levels = c('normal','RApre' ))
group_list
save(symbol_matrix,group_list,file = 'symbol_matrix.Rdata')

# 运行
source('../scripts/step3-deg-limma-voom.R')

（2）RA 治疗后 vs RA 治疗前

rm(list = ls())  ## 魔幻操作，一键清空~
options(stringsAsFactors = F)
library(AnnoProbe)
library(GEOquery)
library(ggplot2)
library(ggstatsplot)
library(patchwork)
library(reshape2)
library(stringr)
getOption('timeout')
options(timeout=10000)
load('./step1-output.Rdata')
symbol_matrix[1:4,1:4]
group_list
table(group_list)

gse_number <- 'RApost_vs_RApre'
gse_number
dir.create(gse_number)
setwd( gse_number )
getwd()

kp=group_list %in% c('RApre','RApost');table(kp)
symbol_matrix=symbol_matrix[,kp]
group_list=group_list[kp]
table(group_list)
group_list = factor(group_list,levels = c('RApre','RApost'))
group_list
save(symbol_matrix,group_list,file = 'symbol_matrix.Rdata')

# 运行
source('../scripts/step3-deg-limma-voom.R')

source的 step3-deg-limma-voom.R 代码：

rm(list = ls())
options(stringsAsFactors = F)
library(ggplot2)
library(ggstatsplot)
library(ggsci)
library(RColorBrewer)
library(patchwork)
library(ggplotify)
library(limma)
library(edgeR)
library(DESeq2)

load(file = 'symbol_matrix.Rdata')
symbol_matrix[1:4,1:4]
exprSet = symbol_matrix

design <- model.matrix(~0+factor(group_list))
colnames(design)=levels(factor(group_list))
rownames(design)=colnames(exprSet)
design

dge <- DGEList(counts=exprSet)
dge <- calcNormFactors(dge)
logCPM <- cpm(dge, log=TRUE, prior.count=3)
v <- voom(dge,design,plot=TRUE, normalize="quantile")

fit <- lmFit(v, design)
group_list
g1=levels(group_list)[1]
g2=levels(group_list)[2]
con=paste0(g2,'-',g1)
cat(con)
cont.matrix=makeContrasts(contrasts=c(con),levels = design)
fit2=contrasts.fit(fit,cont.matrix)
fit2=eBayes(fit2)

tempOutput = topTable(fit2, coef=con, n=Inf)
DEG_limma_voom = na.omit(tempOutput)
head(DEG_limma_voom)

save(DEG_limma_voom, file =  'DEG_limma_voom.Rdata' )

绘制图2A：治疗后与治疗前的差异火山图

load( file =  'DEG_limma_voom.Rdata' )
colnames(DEG_limma_voom)
head(DEG_limma_voom)

nrDEG=DEG_limma_voom[,c("logFC", "P.Value"  )]
head(nrDEG)

df=nrDEG
logFC_t <- 1
pvalue_t <- 0.05
df$g=ifelse(df$P.Value > pvalue_t,'stable', #if 判断：如果这一基因的P.Value>0.01，则为stable基因
          ifelse( df$logFC > logFC_t,'up', #接上句else 否则：接下来开始判断那些P.Value<0.01的基因，再if 判断：如果logFC >1.5,则为up（上调）基因
                  ifelse( df$logFC < -logFC_t,'down','stable') )#接上句else 否则：接下来开始判断那些logFC <1.5 的基因，再if 判断：如果logFC <1.5，则为down（下调）基因，否则为stable基因
)
table(df$g)
df$name=rownames(df)
head(df)

this_tile <- paste0('Threshold of logFC is ',round(logFC_t,3),
                  '\nThe number of up gene is ',nrow(df[df$g == 'up',]) ,
                  '\nThe number of down gene is ',nrow(df[df$g == 'down',]) )

this_tile

#～～～火山图p5～～～
target_gene= c('MS4A1')
for_label <-  df %>%
dplyr::filter(df$name %in% target_gene)
head(for_label)

p5 <- ggplot(data = df, aes(x = logFC, y = -log10(P.Value))) +
    geom_point(alpha=0.6, size=1.5, aes(color=g)) +
    geom_point(size = 3, shape = 1, data = for_label) +
    ggrepel::geom_label_repel(aes(label = name),data = for_label,
                              max.overlaps = getOption("ggrepel.max.overlaps", default = 20),
                              color="black") +
    ylab("-log10(Pvalue)")+
    scale_color_manual(values=c("#34bfb5", "#828586","#ff6633"))+
    geom_vline(xintercept=c(-logFC_t,logFC_t),lty=4,col="grey",lwd=0.8) +
    geom_hline(yintercept = -log10(pvalue_t),lty=4,col="grey",lwd=0.8) +
    #coord_flip()+
    #xlim(-5, 5)+
    theme_bw()+
    ggtitle(this_tile )+
    theme(panel.grid = element_blank(),
          plot.title = element_text(size=8,hjust = 0.5),
          legend.title = element_blank(),
          legend.text = element_text(size=8))
p5

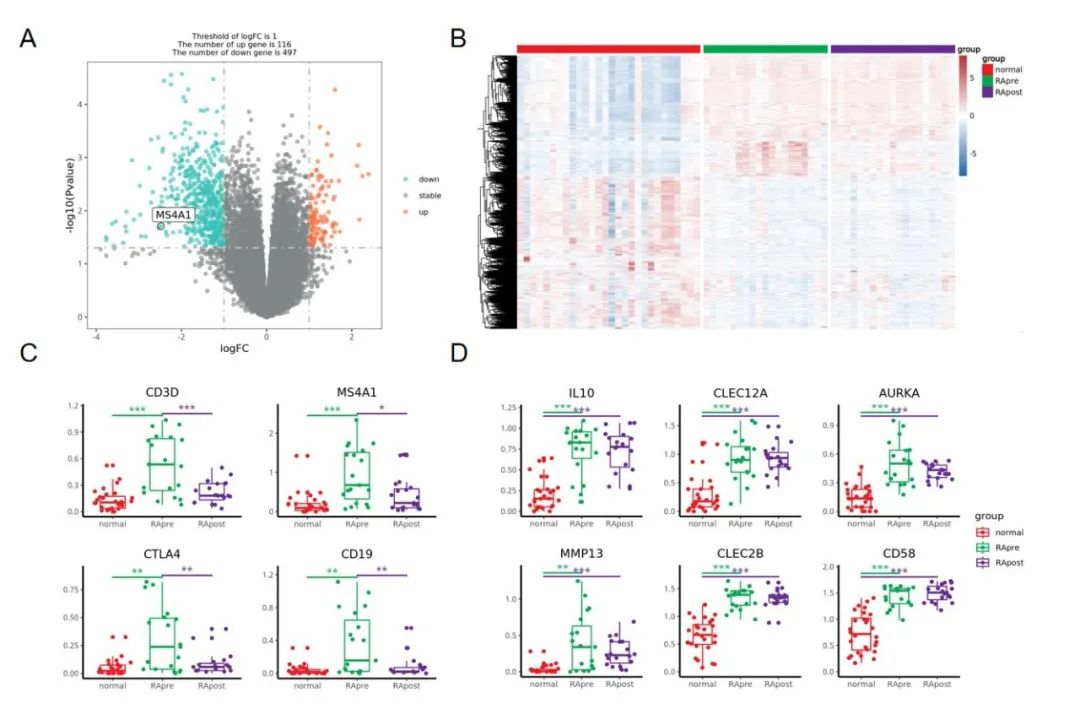

结果如下：比文献中那个火山图好看，就用我们这个进行后续的拼图好了。

绘制图2B：治疗前与正常对照的差异基因热图

rm(list = ls())  ## 魔幻操作，一键清空~
options(stringsAsFactors = F)
library(ggplot2)
library(ggstatsplot)
library(patchwork)
library(reshape2)
library(stringr)
library(ggsignif)
getOption('timeout')
options(timeout=10000)

setwd("RA_vs_Normal/")

# 读取差异结果
load("DEG_limma_voom.Rdata")
head(DEG_limma_voom)

# 读取所有样本表达矩阵
load("../step1-output.Rdata")
ls()

###################################### Fig2.B 热图
# 提取所有差异基因的表达矩阵
DEG_limma_voom$name <- rownames(DEG_limma_voom)
DEG_limma_voom$g <- "stable"
DEG_limma_voom$g[ DEG_limma_voom$logFC >1 & DEG_limma_voom$adj.P.Val < 0.05 ] <- "up"
DEG_limma_voom$g[ DEG_limma_voom$logFC < -1 & DEG_limma_voom$adj.P.Val < 0.05 ] <- "down"
table(DEG_limma_voom$g)
head(DEG_limma_voom)

diff <- DEG_limma_voom[DEG_limma_voom$g!="stable", "name"]
head(diff)
length(diff)

library(pheatmap)
dat_plot <- dat[diff,]
head(dat_plot)

anno <- data.frame(group=group_list)
rownames(anno) <- colnames(dat)
head(anno)

ann_color <- list(group =  c(normal="#ed1a22",RApre="#00a651",RApost="#652b90"))

library(RColorBrewer)
color <- colorRampPalette(c('#1f67ad','white','#bb2f34'))(100)
pheatmap(dat_plot, scale = "row",show_rownames = F,show_colnames = F,
         color = color,annotation_col = anno, annotation_colors = ann_color,
         cluster_cols = F,
         border_color = "black",gaps_col=c(28,47))

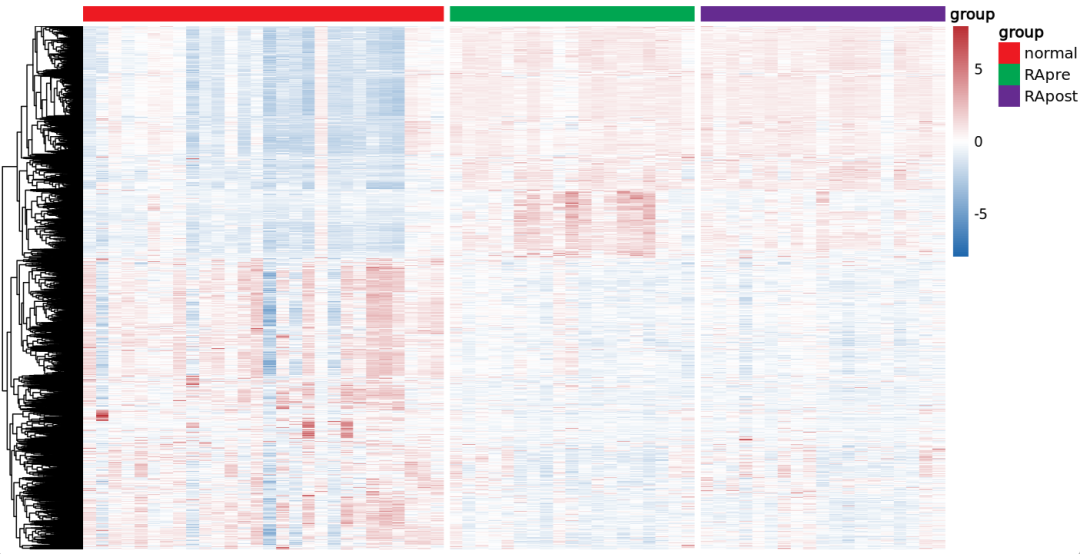

结果如下：文献中那个图感觉只放了上调基因？

绘制图2C与D：marker 基因箱线图

首先，让kimi（https://kimi.moonshot.cn/）帮我拿到图片中的基因并整理成一个R语言向量，再也不用一个个手动从文献里面抠出来了：

图C 的比较组别为：list(c("RApre", "normal"), c("RApost", "RApre"))

###################################### Fig2.C 热图
# 提取所有差异基因的表达矩阵
genes1 <- c("CD3D", "MS4A1", "CTLA4", "CD19")
group_list <- factor(group_list,levels = c("normal","RApre","RApost"))

fig2c <- list()
for(i in 1:length(genes1)) {
  #i <- 4
  box_dat <- data.frame(exp=dat[genes1[i],], group=group_list)
  head(box_dat)
  max_pos <- max(box_dat$exp)

  # 绘制小提琴图和显著性标记
  B <- ggplot(data=box_dat,aes(x=group,y=exp,colour = group)) +
    geom_boxplot(mapping=aes(x=group,y=exp,colour=group), size=0.6, width = 0.5) + # 箱线图
    geom_jitter(mapping=aes(x=group,y=exp,colour = group),size=1.5) +  # 散点
    scale_color_manual(limits=c("normal","RApre","RApost"), values =c( "#ed1a22","#00a651","#652b90") ) + # 颜色
    geom_signif(mapping=aes(x=group,y=exp), # 不同组别的显著性
                comparisons = list(c("RApre", "normal"), c("RApost", "RApre")),
                map_signif_level=T, # T显示显著性，F显示p value
                tip_length=c(0,0,0,0,0,0,0,0,0,0,0,0), # 修改显著性线两端的长短
                y_position = c(max_pos, max_pos*1.02), # 设置显著性线的位置高度
                size=0.8, # 修改线的粗细
                textsize = 4, # 修改显著性标记的大小
                test = "t.test") + # 检验的类型,可以更改
    ylim(c(0,max_pos*1.12)) +
    theme_classic() + #设置白色背景
    labs(x="",y="")  + # 添加标题，x轴，y轴标签
    ggtitle(label = genes1[i]) +
    theme(plot.title = element_text(hjust = 0.5),
          axis.line=element_line(linetype=1,color="black",size=0.9))

  B

  fig2c[[i]] <- B

}

p_c <- wrap_plots(fig2c,guides="collect")
p_c

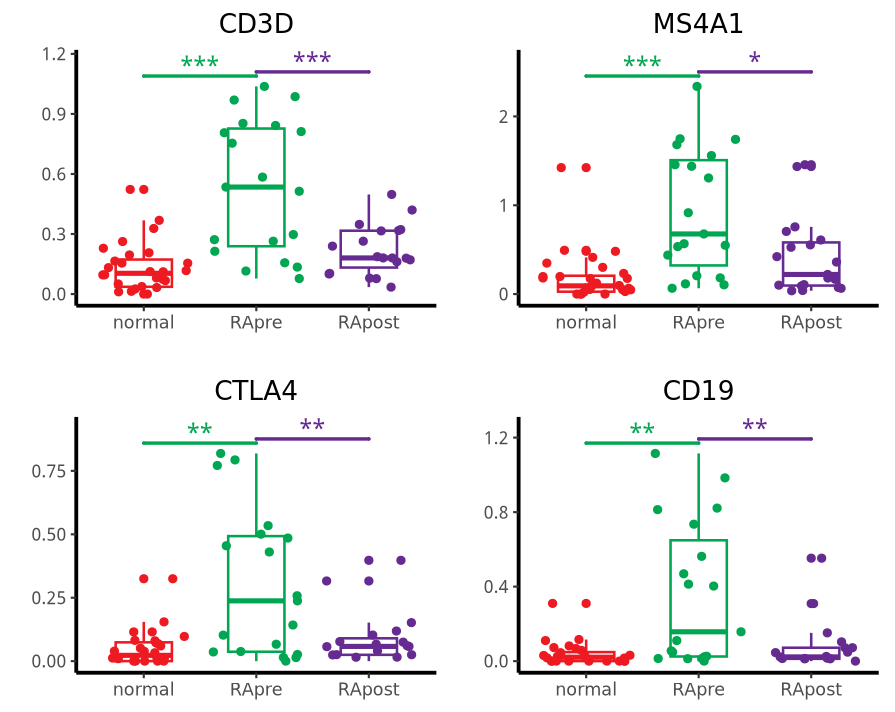

结果如下：

图D的比较组别为：list(c("RApre", "normal"), c("RApost", "normal"))

##########################################################################
genes2 <- c("IL10", "CLEC12A", "AURKA", "MMP13","CLEC2B", "CD58")

fig2d <- list()
for(i in 1:length(genes2)) {
  #i <- 4
  box_dat <- data.frame(exp=dat[genes2[i],], group=group_list)
  head(box_dat)
  max_pos <- max(box_dat$exp)

  # 绘制小提琴图和显著性标记
  B <- ggplot(data=box_dat,aes(x=group,y=exp,colour = group)) +
    geom_boxplot(mapping=aes(x=group,y=exp,colour=group), size=0.6, width = 0.5) + # 箱线图
    geom_jitter(mapping=aes(x=group,y=exp,colour = group),size=1.5) +  # 散点
    scale_color_manual(limits=c("normal","RApre","RApost"), values =c( "#ed1a22","#00a651","#652b90") ) + # 颜色
    geom_signif(mapping=aes(x=group,y=exp), # 不同组别的显著性
                comparisons = list(c("RApre", "normal"), c("RApost", "normal")),
                map_signif_level=T, # T显示显著性，F显示p value
                tip_length=c(0,0,0,0,0,0,0,0,0,0,0,0), # 修改显著性线两端的长短
                y_position = c(max_pos*1.04,max_pos), # 设置显著性线的位置高度
                size=0.8, # 修改线的粗细
                textsize = 4, # 修改显著性标记的大小
                test = "t.test") + # 检验的类型,可以更改
    ylim(c(0,max_pos*1.12)) +
    theme_classic() + #设置白色背景
    labs(x="",y="")  + # 添加标题，x轴，y轴标签
    ggtitle(label = genes2[i]) +
    theme(plot.title = element_text(hjust = 0.5),
          axis.line=element_line(linetype=1,color="black",size=0.9))

  B

  fig2d[[i]] <- B

}

p_d <- wrap_plots(fig2d,guides="collect"，ncol=3)
p_d

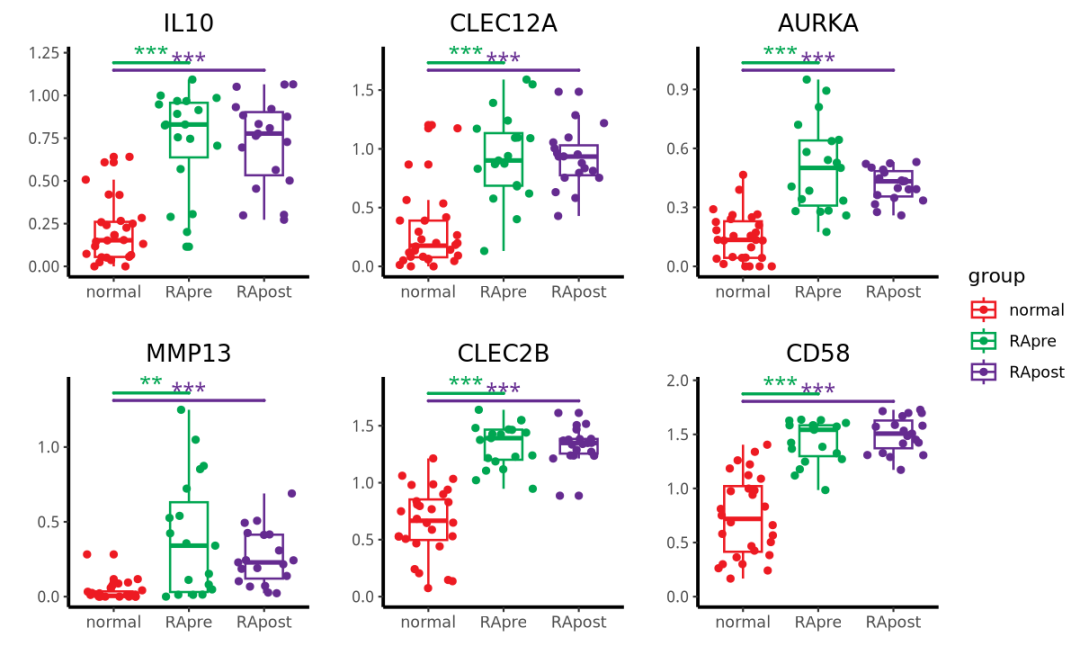

结果如下：
