【SpringBoot（三）】从请求到响应再到视图解析与模板引擎，本文带你领悟SpringBoot请求接收全流程！

spring:
  mvc:
    hiddenmethod:
      filter:
        enabled: true

@Bean
@ConditionalOnMissingBean({HiddenHttpMethodFilter.class})
@ConditionalOnProperty(
    prefix = "spring.mvc.hiddenmethod.filter",
    name = {"enabled"}
    // 属性默认 false，表示未开启
)
public OrderedHiddenHttpMethodFilter hiddenHttpMethodFilter() {
    return new OrderedHiddenHttpMethodFilter();
}

# 选择性开启，页面提交可以用，客户端直接发送 PUT 请求不需要配置 filter
spring:
    mvc:
        hiddenmethod:
          filter:
            enabled: true

//################ HiddenHttpMethodFilter 类的内部 对请求的定义 ##########

private static final List<String> ALLOWED_METHODS;
public static final String DEFAULT_METHOD_PARAM = "_method";
private String methodParam = "_method";


protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
    HttpServletRequest requestToUse = request;
    if ("POST".equals(request.getMethod()) && request.getAttribute("javax.servlet.error.exception") == null) {
        String paramValue = request.getParameter(this.methodParam);
        if (StringUtils.hasLength(paramValue)) {
            // PUT 和 DELETE 经过 toUpperCase 方法转换，大小写都可以
            String method = paramValue.toUpperCase(Locale.ENGLISH);
            if (ALLOWED_METHODS.contains(method)) {
                requestToUse = new HiddenHttpMethodFilter.HttpMethodRequestWrapper(request, method);
            }
        }
    }

    filterChain.doFilter((ServletRequest)requestToUse, response);
}

// ############## 错误写法 ########### \\
<form action="/user" method="delete">
    <input value="REST-DELETE 提交" type="submit">
</form>

// ############## 正确写法 ########### \\
<form action="/user" method="post">
    <input type="hidden" name="_method" value="PUT">
    <input value="REST-PUT 提交" type="submit">
</form>

// 处理 Get 请求
@GetMapping("/user")
public  String getUser(){
    return "GET-张三";
}

// 处理 Post 请求
@PostMapping("/user")
public  String saveUser(){
    return "POST-张三";
}

// 处理 Put 请求
@PutMapping("/user")
public  String putUser(){
    return "PUT-张三";
}

// 处理 Delete 请求
@DeleteMapping("/user")
public  String deleteUser(){
    return "DELETE-张三";
}

// 处理 Patch 请求
@PatchMapping("/user")
public  String pacthUser(){
    return "Pacth-张三";
}

/**
 * 该类配置 Web 各种属性
 *  - proxyBeanMethods = false - 表示该类没有任何依赖
 */
@Configuration(proxyBeanMethods = false)
public class WebConfig {
    /**
     * 覆盖原有的 hiddenHttpMethodFilter 类
     * @return
     */
    @Bean
    public HiddenHttpMethodFilter hiddenHttpMethodFilter(){
        HiddenHttpMethodFilter methodFilter = new HiddenHttpMethodFilter();
        // 设置默认携带参数
        methodFilter.setMethodParam("_m");
        return methodFilter;
    }
}

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    HandlerExecutionChain mappedHandler = null;
    boolean multipartRequestParsed = false;
    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

    try {
        ModelAndView mv = null;
        Object dispatchException = null;

        try {
            processedRequest = this.checkMultipart(request);
            multipartRequestParsed = processedRequest != request;

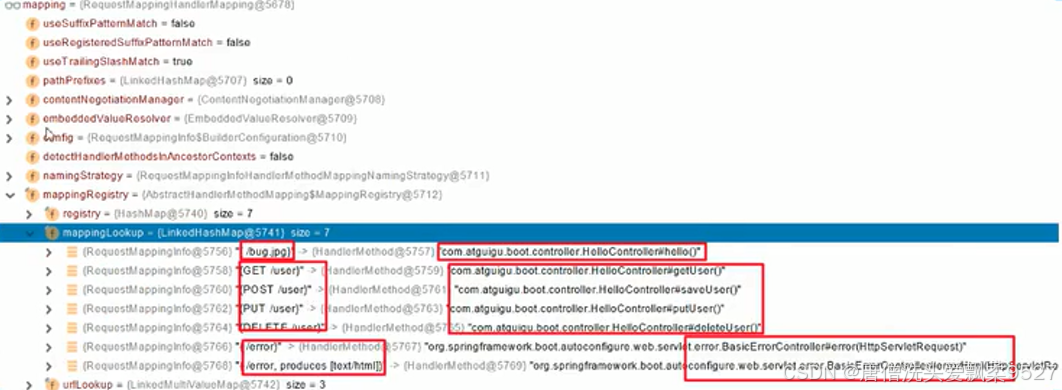

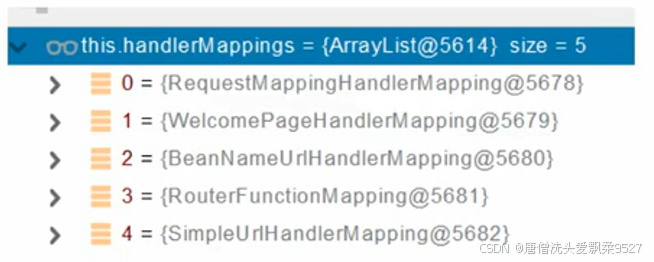

            // 下列一行代码获得到了该使用哪个 handler 处理这次请求的请求方式
            mappedHandler = this.getHandler(processedRequest);
            if (mappedHandler == null) {
                this.noHandlerFound(processedRequest, response);
                return;
            }

@GetMapping("/car/{id}/owner/{name}")
public Map<String, Object> getCar(@PathVariable("id") Integer id,
                                  @PathVariable("name") String name,
                                  @PathVariable Map<String, String> pv){
    Map<String, Object> map = new HashMap<>();
    map.put("id", id);
    map.put("name", name);
    map.put("pv", pv);
    return map;
    // 返回结果 {"pv":{"name":"zhangsan","id":"2"},"name":"zhangsan","id":2}
}

// 请求地址：http://localhost:8080/getHeader
@GetMapping("/getHeader")
public Map<String, Object> getRequsetHeader(@RequestHeader("User-Agent") String userAgent,
                                            @RequestHeader Map<String, String> header){
    Map<String, Object> map = new HashMap<>();
    map.put("userAgent", userAgent);
    map.put("header", header);
    return map;
    // 返回结果：一大串内容，包括了全部的请求头数据
}

// 发送请求：http://localhost:8080/getParam?age=18&inters=football&inters=basketball
@GetMapping("/getParam")
public Map<String, Object> getRequsetParam(@RequestParam("inters") List<String> inters,
                                           @RequestParam Map<String, String> params,
                                           @RequestParam("age") Integer age){
    Map<String, Object> map = new HashMap<>();
    map.put("inters", inters);
    map.put("params", params);
    map.put("age", age);

    return map;
    // 返回结果：{"inters":["football","basketball"],"params":{"age":"18","inters":"football"},"age":18}
}

// 请求地址：http://localhost:8080/getCookie
@GetMapping("/getCookie")
public Map<String, Object> getCookieValue(@CookieValue("_ga") String _ga,
                                          @CookieValue Cookie cookie){
    Map<String, Object> map = new HashMap<>();
    map.put("_ga", _ga);
    map.put("cookie", cookie);

    return map;
}

 // 请求地址：http://localhost:8080/save
@PostMapping("/save")
public Map<String, Object> getRequestBody(@RequestBody String content){
    Map<String, Object> map = new HashMap<>();
    map.put("content", content);
    return map;
}

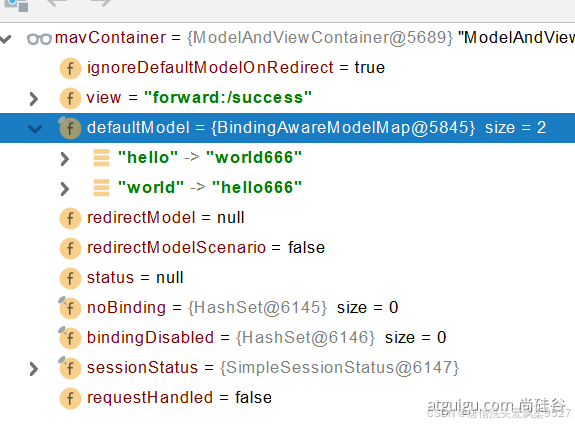

// 发送请求：http://localhost:8080/goto
@GetMapping("/goto")
public String goToPage(HttpServletRequest request){
    request.setAttribute("msg","成功");
    request.setAttribute("code",200);

    return "forward:/success";// 转发至 /success 请求
}

@ResponseBody
@GetMapping("/success")
public Map<String, Object> success(@RequestAttribute("msg") String msg,
                                   @RequestAttribute("code") Integer code,
                                   // 因为传过来的是原生的 request，
                                   // 所以也可以使用原生 request 来接收参数
                                   HttpServletRequest request){
    String msg1 = (String) request.getAttribute("msg");

    Map<String, Object> map = new HashMap<>();
    map.put("code",code);
    map.put("msg",msg1);
    map.put("data",msg);
    return map;
    // 请求结果：{"msg":"成功","code":200,"data":"成功"}
}

@Bean
public WebMvcConfigurer webMvcConfigurer(){
    return new WebMvcConfigurer() {
        @Override
        public void configurePathMatch(PathMatchConfigurer configurer) {
            UrlPathHelper urlPathHelper = new UrlPathHelper();
            // 设置 removeSemicolonContent 属性为 false
            urlPathHelper.setRemoveSemicolonContent(false);
            // 重新设置 configurer 对象
            configurer.setUrlPathHelper(urlPathHelper);
        }
    };
}

// 请求地址: http://localhost:8080/cars/sell;low=34;brand=byd,audi,yd
@GetMapping("/cars/{path}")
public Map<String, Object> carsSell(@MatrixVariable("low") Integer low,
                                    @MatrixVariable("brand") List<String> brand){
    HashMap<String, Object> map = new HashMap<>();
    map.put("low", low);
    map.put("brand", brand);
    return map;
    // 请求结果：{"low":34,"brand":["byd","audi","yd"]}
}

// 请求地址: http://localhost:8080/boss/1;age=20/2;age=30
@GetMapping("/boss/{bossId}/{empId}")
public Map<String, Object> boss(@MatrixVariable(value = "age",pathVar = "bossId") Integer bossAge,
                                @MatrixVariable(value = "age",pathVar = "empId") Integer empAge){
    HashMap<String, Object> map = new HashMap<>();
    map.put("bossId", bossAge);
    map.put("empId", empAge);
    return map;
    // 请求结果：{"empId":30,"bossId":20}
}

// DispatcherServler -- doDispatch

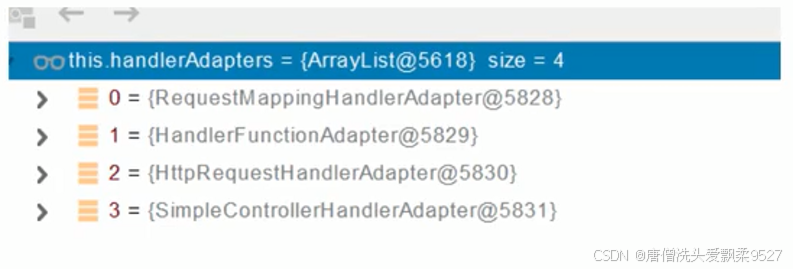

mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

// 调用映射后的 Handler 的方法
protected ModelAndView handleInternal(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
    this.checkRequest(request);
    ModelAndView mav;
    if (this.synchronizeOnSession) {
        HttpSession session = request.getSession(false);
        if (session != null) {
            Object mutex = WebUtils.getSessionMutex(session);
            synchronized(mutex) {
                mav = this.invokeHandlerMethod(request, response, handlerMethod);
            }
        } else {
            mav = this.invokeHandlerMethod(request, response, handlerMethod);
        }
    } else {
        mav = this.invokeHandlerMethod(request, response, handlerMethod);
    }

    if (!response.containsHeader("Cache-Control")) {
        if (this.getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
            this.applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
        } else {
            this.prepareResponse(response);
        }
    }

    return mav;
}

==========================InvocableHandlerMethod==========================
protected Object[] getMethodArgumentValues(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,Object... providedArgs) throws Exception {

    MethodParameter[] parameters = getMethodParameters();
    if (ObjectUtils.isEmpty(parameters)) {
        return EMPTY_ARGS;
    }

    Object[] args = new Object[parameters.length];
    for (int i = 0; i < parameters.length; i++) {
        MethodParameter parameter = parameters[i];
        parameter.initParameterNameDiscovery(this.parameterNameDiscoverer);
        args[i] = findProvidedArgument(parameter, providedArgs);
        if (args[i] != null) {
            continue;
        }
        if (!this.resolvers.supportsParameter(parameter)) {
            throw new IllegalStateException(formatArgumentError(parameter, "No suitable resolver"));
        }
        try {
            args[i] = this.resolvers.resolveArgument(parameter, mavContainer, request, this.dataBinderFactory);
        }
        catch (Exception ex) {
            // Leave stack trace for later, exception may actually be resolved and handled...
            if (logger.isDebugEnabled()) {
                String exMsg = ex.getMessage();
                if (exMsg != null && !exMsg.contains(parameter.getExecutable().toGenericString())) {
                    logger.debug(formatArgumentError(parameter, exMsg));
                }
            }
            throw ex;
        }
    }
    return args;
}

@Nullable

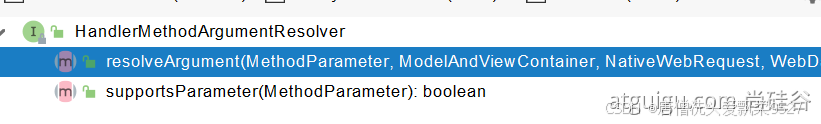

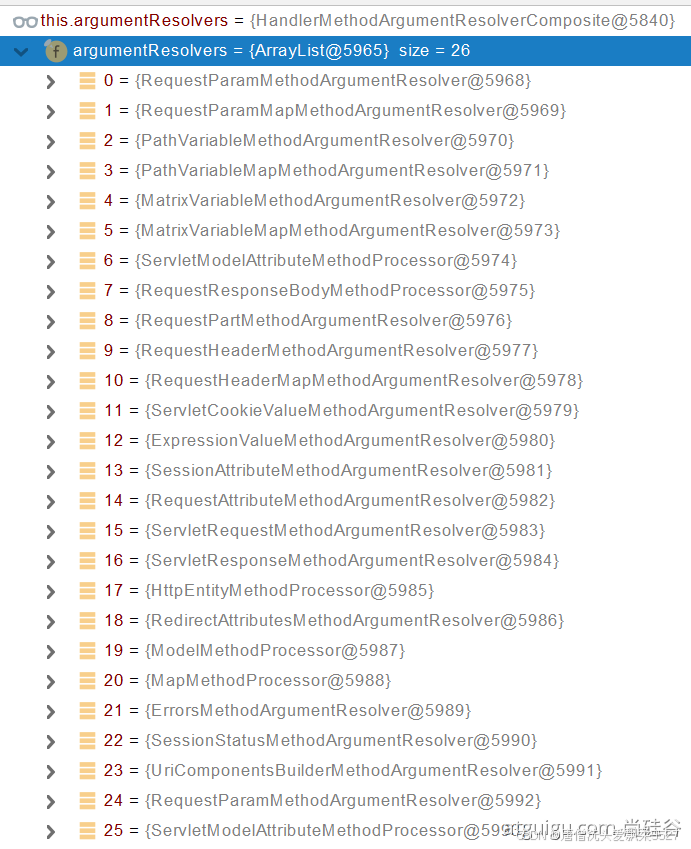

private HandlerMethodArgumentResolver getArgumentResolver(MethodParameter parameter) {
    HandlerMethodArgumentResolver result = this.argumentResolverCache.get(parameter);
    if (result == null) {
        for (HandlerMethodArgumentResolver resolver : this.argumentResolvers) {
            if (resolver.supportsParameter(parameter)) {
                result = resolver;
                this.argumentResolverCache.put(parameter, result);
                break;
            }
        }
    }
    return result;
}

public static boolean isSimpleValueType(Class<?> type) {
    return (Void.class != type && void.class != type &&
            (ClassUtils.isPrimitiveOrWrapper(type) ||
             Enum.class.isAssignableFrom(type) ||
             CharSequence.class.isAssignableFrom(type) ||
             Number.class.isAssignableFrom(type) ||
             Date.class.isAssignableFrom(type) ||
             Temporal.class.isAssignableFrom(type) ||
             URI.class == type ||
             URL.class == type ||
             Locale.class == type ||
             Class.class == type));
}

@Override
	@Nullable
	public final Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {
	Assert.state(mavContainer != null, "ModelAttributeMethodProcessor requires ModelAndViewContainer");
	Assert.state(binderFactory != null, "ModelAttributeMethodProcessor requires WebDataBinderFactory");

	String name = ModelFactory.getNameForParameter(parameter);
	ModelAttribute ann = parameter.getParameterAnnotation(ModelAttribute.class);
	if (ann != null) {
		mavContainer.setBinding(name, ann.binding());
	}

	Object attribute = null;
	BindingResult bindingResult = null;

	if (mavContainer.containsAttribute(name)) {
		attribute = mavContainer.getModel().get(name);
	}
	else {
		// Create attribute instance
		try {
			attribute = createAttribute(name, parameter, binderFactory, webRequest);
		}
		catch (BindException ex) {
			if (isBindExceptionRequired(parameter)) {
				// No BindingResult parameter -> fail with BindException
				throw ex;
			}
			// Otherwise, expose null/empty value and associated BindingResult
			if (parameter.getParameterType() == Optional.class) {
				attribute = Optional.empty();
			}
			bindingResult = ex.getBindingResult();
		}
	}

	if (bindingResult == null) {
		// Bean property binding and validation;
		// skipped in case of binding failure on construction.
		WebDataBinder binder = binderFactory.createBinder(webRequest, attribute, name);
		if (binder.getTarget() != null) {
			if (!mavContainer.isBindingDisabled(name)) {
				bindRequestParameters(binder, webRequest);
			}
			validateIfApplicable(binder, parameter);
			if (binder.getBindingResult().hasErrors() && isBindExceptionRequired(binder, parameter)) {
				throw new BindException(binder.getBindingResult());
			}
		}
		// Value type adaptation, also covering java.util.Optional
		if (!parameter.getParameterType().isInstance(attribute)) {
			attribute = binder.convertIfNecessary(binder.getTarget(), parameter.getParameterType(), parameter);
		}
		bindingResult = binder.getBindingResult();
	}

	// Add resolved attribute and BindingResult at the end of the model
	Map<String, Object> bindingResultModel = bindingResult.getModel();
	mavContainer.removeAttributes(bindingResultModel);
	mavContainer.addAllAttributes(bindingResultModel);

	return attribute;
}

InternalResourceView：
@Override
    protected void renderMergedOutputModel(
    Map<String, Object> model, HttpServletRequest request, HttpServletResponse response) throws Exception {

    // Expose the model object as request attributes.
    exposeModelAsRequestAttributes(model, request);

    // Expose helpers as request attributes, if any.
    exposeHelpers(request);

    // Determine the path for the request dispatcher.
    String dispatcherPath = prepareForRendering(request, response);

    // Obtain a RequestDispatcher for the target resource (typically a JSP).
    RequestDispatcher rd = getRequestDispatcher(request, dispatcherPath);
    if (rd == null) {
        throw new ServletException("Could not get RequestDispatcher for [" + getUrl() +
                                   "]: Check that the corresponding file exists within your web application archive!");
    }

    // If already included or response already committed, perform include, else forward.
    if (useInclude(request, response)) {
        response.setContentType(getContentType());
        if (logger.isDebugEnabled()) {
            logger.debug("Including [" + getUrl() + "]");
        }
        rd.include(request, response);
    }

    else {
        // Note: The forwarded resource is supposed to determine the content type itself.
        if (logger.isDebugEnabled()) {
            logger.debug("Forwarding to [" + getUrl() + "]");
        }
        rd.forward(request, response);
    }
}

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- web 场景自动引入了json场景-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-json</artifactId>
    <version>2.7.1</version>
    <scope>compile</scope>
</dependency>

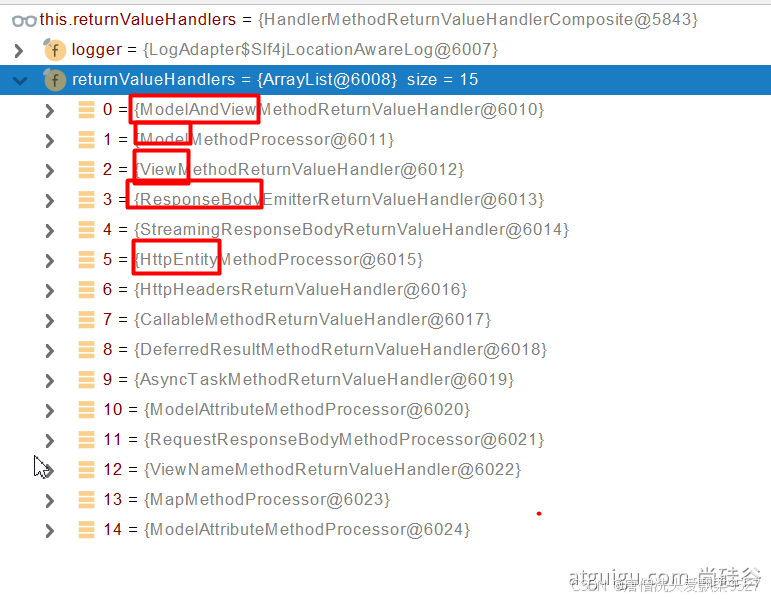

ModelAndView;
Model;
View;
ResponseEntity;
ResponseBodyEmitter;
StreamingResponseBody;
HttpEntity;
HttpHeaders;
Collable;
DeferredResult;
ListenableFutre;
WebAsyncTask;
@ModelAttribute;

// 当标注 ResponseBody 注解，boot 底层就会使用 RequestResponseBodyMethodProcossor 来解析
@ResponseBody注解 --> RequestResponseBodyMethodProcossor

<dependency>
    <groupId>com.fasterxml.jackson.dataformat</groupId>
    <artifactId>jackson-dataformat-xml</artifactId>
</dependency>

# 开启参数模式-内容协商
spring:
	contentnegotiation:
      favor-parameter: true

package com.renexdemo.converter;

import com.renexdemo.bean.Person;
import org.springframework.http.HttpInputMessage;
import org.springframework.http.HttpOutputMessage;
import org.springframework.http.MediaType;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.HttpMessageNotReadableException;
import org.springframework.http.converter.HttpMessageNotWritableException;

import java.io.IOException;
import java.io.OutputStream;
import java.util.List;

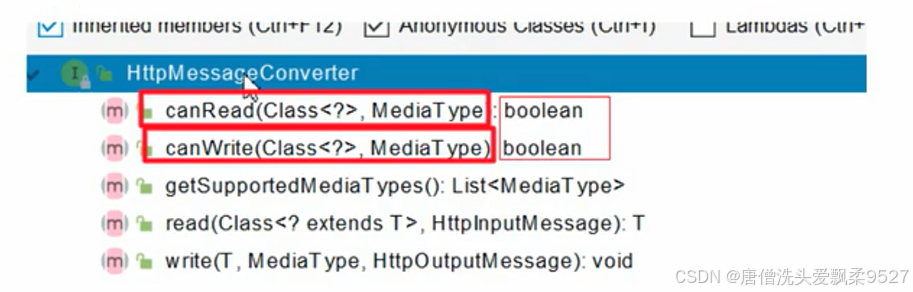

public class RixMessageConverter implements HttpMessageConverter<Person> {
    /**
     * 能读
     * @param clazz
     * @param mediaType
     * @return
     */
    @Override
    public boolean canRead(Class<?> clazz, MediaType mediaType) {
        return false;
    }

    /**
     * 能写
     * @param clazz
     * @param mediaType
     * @return
     */
    @Override
    public boolean canWrite(Class<?> clazz, MediaType mediaType) {
        // 能写的类型设置为可通过类型，示例：Person.class
        return clazz.isAssignableFrom(Person.class);
    }

    /**

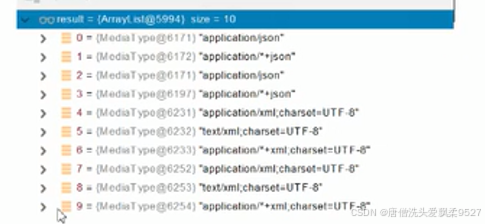

     * 获得所有媒体类型
     * 服务器需要统计所有MessageConverter都能写出哪些内柔类型
     *
     * applkicatoin/x-rix
     * @return
     */
    @Override
    public List<MediaType> getSupportedMediaTypes() {
        // 设置转换的自定义类型
        return MediaType.parseMediaTypes("application/x-rix");
    }

    /**
     * 获得指定类型的媒体类型
     * @param clazz
     * @return
     */
    @Override
    public List<MediaType> getSupportedMediaTypes(Class<?> clazz) {
        return null;
    }

    /**
     * 读取 Person 类型的媒体类型
     * @param clazz
     * @param inputMessage
     * @return
     * @throws IOException
     * @throws HttpMessageNotReadableException
     */
    @Override
    public Person read(Class<? extends Person> clazz, HttpInputMessage inputMessage) throws IOException, HttpMessageNotReadableException {
        return null;
    }

    /**
     * 写
     * @param person
     * @param contentType
     * @param outputMessage
     * @throws IOException
     * @throws HttpMessageNotWritableException
     */
    @Override

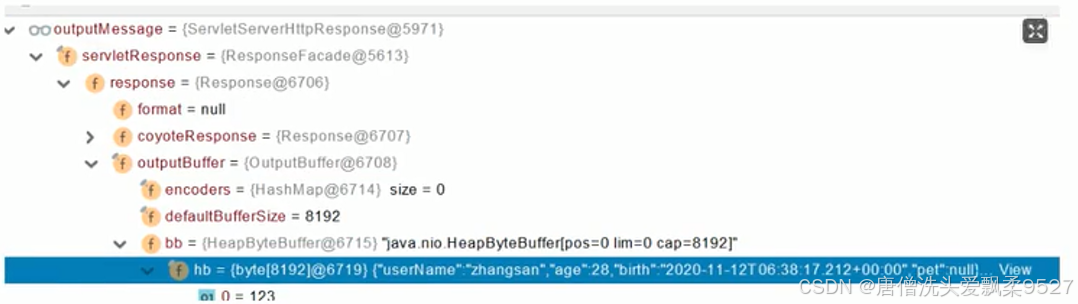

    public void write(Person person, MediaType contentType, HttpOutputMessage outputMessage) throws IOException, HttpMessageNotWritableException {
        // 自定义协议数据的写出
        String data = person.getName()+";"+person.getAge()+";"+person.getBirth();

        // 写出
        OutputStream body = outputMessage.getBody();
        body.write(data.getBytes());
    }
}

/**

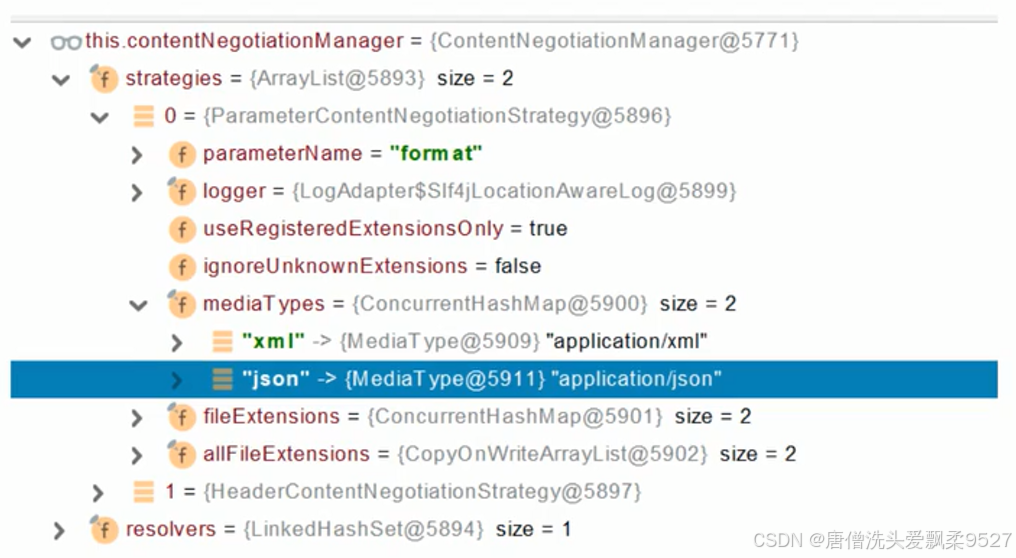

 * 自定义内容协商策略
 * @param configurer
 */
@Override
public void configureContentNegotiation(ContentNegotiationConfigurer configurer) {
    // 接收所有的媒体类型
    Map<String, MediaType> mediaTypes = new HashMap<>();
    mediaTypes.put("json",MediaType.APPLICATION_JSON);
    mediaTypes.put("xml",MediaType.APPLICATION_XML);
    mediaTypes.put("rix",MediaType.parseMediaType("application/x-rix"));
    // 指定支持解析哪些参数对应的哪些媒体类型
    // 基于参数
    ParameterContentNegotiationStrategy parameterStrategy = new ParameterContentNegotiationStrategy(mediaTypes);
    parameterStrategy.setParameterName("ff");// 修改默认参数名（默认format）

    // 基于请求头

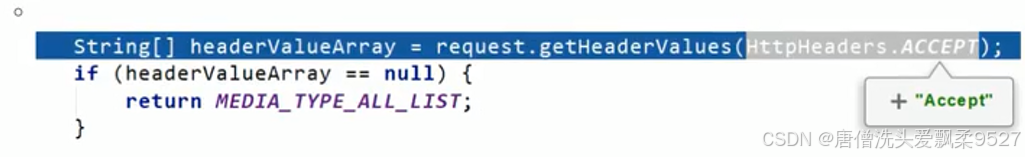

    HeaderContentNegotiationStrategy headerStrategy = new HeaderContentNegotiationStrategy();
    configurer.strategies(Arrays.asList(parameterStrategy, headerStrategy));
}

@Override
public void extendMessageConverters(List<HttpMessageConverter<?>> converters) {
    // 添加自定义 信息转换器
    converters.add(new RixMessageConverter());
}

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <title>Index Page</title>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
</head>
<body>
    <p th:text="${message}">Welcome to BeiJing!</p>
</body>
</html>

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>

@AutoConfiguration(
    after = {WebMvcAutoConfiguration.class, WebFluxAutoConfiguration.class}
)
@EnableConfigurationProperties({ThymeleafProperties.class})
@ConditionalOnClass({TemplateMode.class, SpringTemplateEngine.class})
@Import({ReactiveTemplateEngineConfiguration.class, DefaultTemplateEngineConfiguration.class})

    public static final String DEFAULT_PREFIX = "classpath:/templates/";
    public static final String DEFAULT_SUFFIX = ".html";

<!DOCTYPE html>
<!--xmlns:th="http://www.thymeleaf.org" 页面前言，可以出现 thymeleaf 提示-->
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>thymeleaf_test</title>
</head>
<body>
    <h1 th:text="${msg}">hhhhhh</h1>
    <a th:href="${link}" href="www.baidu.com" >去百度</a>
    <a th:href="@{link}" href="www.baidu.com" >去百度2</a>
</body>
</html>

/**

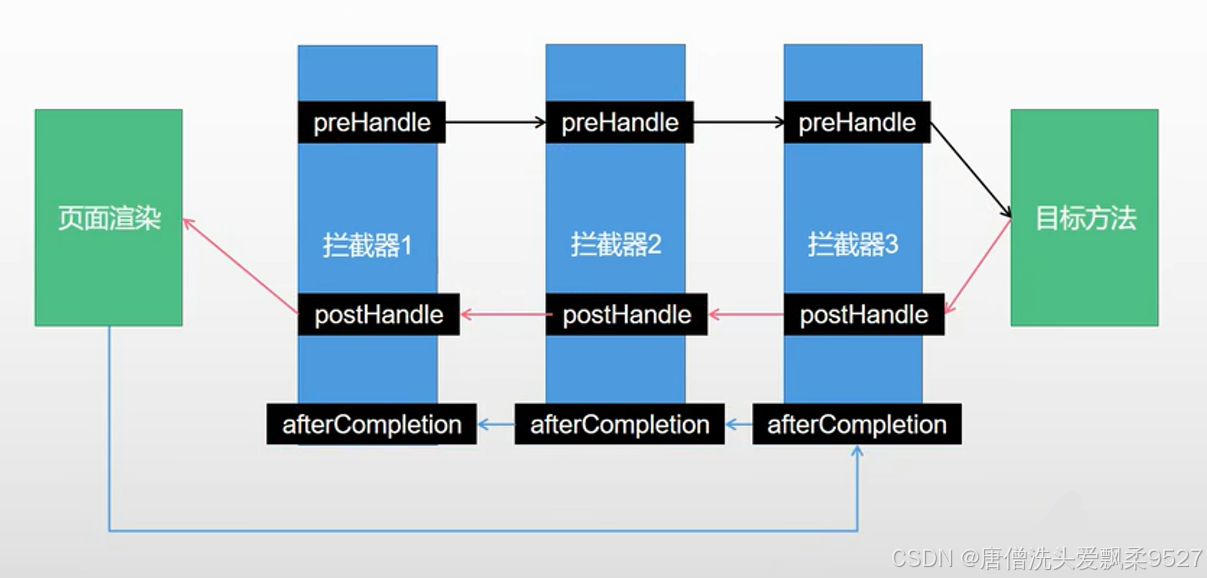

     * 目标方法执行完成前
     * @param request
     * @param response
     * @param handler
     * @return
     * @throws Exception
     */
@Override
public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
    return false;
}

/**
     * 目标方法执行完成后
     * @param request
     * @param response
     * @param handler
     * @param modelAndView
     * @throws Exception
     */
@Override
public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {

}

/**
     * 页面渲染后
     * @param request
     * @param response
     * @param handler
     * @param ex
     * @throws Exception
     */
@Override
public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {

}

@Configuration
public class AdminConfig implements WebMvcConfigurer {
    @Override
    public void addInterceptors(InterceptorRegistry registry) {

    }
}

registry.addInterceptor(new LoginInterceptor())
    /* 所有请求都会被拦截，包括静态资源 */
    .addPathPatterns("/**")
    .excludePathPatterns("/","/login","/css/**","/fonts/**","/images/**","/js/**");
