INTIMA：情感依赖评估工具的研究与应用

mindmap
root((INTIMA))
    工具概述
    理论基础
    评估技术
    实现方法
    实验验证

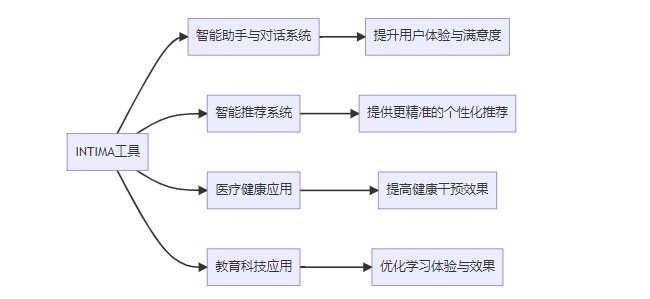

    应用场景
    代码示例

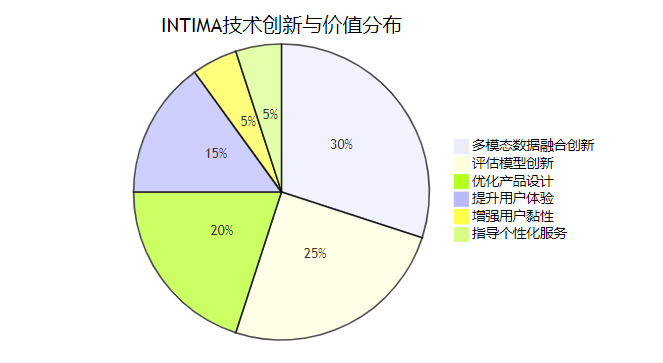

    创新价值

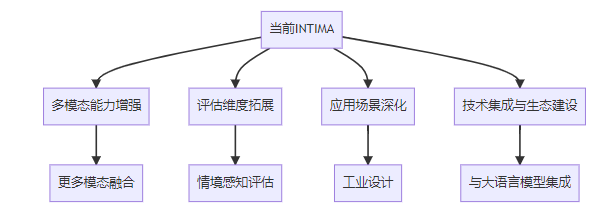

    未来趋势

import numpy as np
import pandas as pd
from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA

class MultimodalDataFusion:
    def __init__(self, modalities, fusion_method="late"):
        self.modalities = modalities  # 模态名称列表
        self.fusion_method = fusion_method  # 融合方法：early, late, hybrid
        self.scalers = {modality: StandardScaler() for modality in modalities}
        self.pca = PCA(n_components=0.95)  # 保留95%的方差

    def preprocess(self, data_dict):
        # 预处理各模态数据
        processed_data = {}
        for modality in self.modalities:
            # 标准化数据
            processed_data[modality] = self.scalers[modality].fit_transform(data_dict[modality])
        return processed_data

    def fuse(self, processed_data):
        if self.fusion_method == "early":
            # 早期融合：在特征层面融合
            concatenated_features = np.concatenate(
                [processed_data[modality] for modality in self.modalities], axis=1
            )
            # 使用PCA降维
            fused_features = self.pca.fit_transform(concatenated_features)
            return fused_features
        elif self.fusion_method == "late":
            # 晚期融合：在决策层面融合
            # 此处简化实现，实际应用中需要各模态的独立模型
            return processed_data
        elif self.fusion_method == "hybrid":
            # 混合融合：结合早期和晚期融合
            # 此处简化实现，实际应用中需要更复杂的融合策略
            concatenated_features = np.concatenate(
                [processed_data[modality] for modality in self.modalities], axis=1
            )
            fused_features = self.pca.fit_transform(concatenated_features)
            return {"fused": fused_features, "individual": processed_data}
        else:
            raise ValueError(f"不支持的融合方法: {self.fusion_method}")

import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader, Dataset

class EmotionalDependencyDataset(Dataset):
    def __init__(self, features, labels):
        self.features = features
        self.labels = labels

    def __len__(self):
        return len(self.features)

    def __getitem__(self, idx):
        return torch.tensor(self.features[idx], dtype=torch.float32), \
               torch.tensor(self.labels[idx], dtype=torch.float32)

class EmotionalDependencyModel(nn.Module):
    def __init__(self, input_dim, hidden_dims=[256, 128, 64], output_dim=5):
        super().__init__()
        # 定义网络结构
        layers = []
        prev_dim = input_dim
        for hidden_dim in hidden_dims:
            layers.append(nn.Linear(prev_dim, hidden_dim))
            layers.append(nn.ReLU())
            layers.append(nn.Dropout(0.2))
            prev_dim = hidden_dim
        # 输出层，预测5个情感依赖维度
        layers.append(nn.Linear(prev_dim, output_dim))
        # 概率激活函数
        layers.append(nn.Sigmoid())

        self.network = nn.Sequential(*layers)

    def forward(self, x):
        return self.network(x)

class EmotionalDependencyEvaluator:
    def __init__(self, input_dim, learning_rate=0.001):
        self.model = EmotionalDependencyModel(input_dim)
        self.criterion = nn.MSELoss()  # 均方误差损失
        self.optimizer = optim.Adam(self.model.parameters(), lr=learning_rate)

    def train(self, train_data, val_data, epochs=100, batch_size=32):
        # 创建数据加载器
        train_dataset = EmotionalDependencyDataset(train_data["features"], train_data["labels"])
        val_dataset = EmotionalDependencyDataset(val_data["features"], val_data["labels"])
        train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
        val_loader = DataLoader(val_dataset, batch_size=batch_size)

        best_val_loss = float('inf')

        for epoch in range(epochs):
            # 训练模式
            self.model.train()
            train_loss = 0.0

            for features, labels in train_loader:
                # 前向传播
                outputs = self.model(features)
                loss = self.criterion(outputs, labels)

                # 反向传播和优化
                self.optimizer.zero_grad()
                loss.backward()
                self.optimizer.step()

                train_loss += loss.item() * features.size(0)

            # 验证模式
            self.model.eval()
            val_loss = 0.0

            with torch.no_grad():
                for features, labels in val_loader:
                    outputs = self.model(features)
                    loss = self.criterion(outputs, labels)
                    val_loss += loss.item() * features.size(0)

            # 计算平均损失
            train_loss /= len(train_dataset)
            val_loss /= len(val_dataset)

            # 保存最佳模型
            if val_loss < best_val_loss:
                best_val_loss = val_loss
                torch.save(self.model.state_dict(), "best_emotional_dependency_model.pt")

            # 打印进度
            if (epoch + 1) % 10 == 0:
                print(f"Epoch {epoch+1}/{epochs}, Train Loss: {train_loss:.4f}, Val Loss: {val_loss:.4f}")

    def evaluate(self, test_data):
        # 加载最佳模型
        self.model.load_state_dict(torch.load("best_emotional_dependency_model.pt"))
        self.model.eval()

        # 创建测试数据加载器
        test_dataset = EmotionalDependencyDataset(test_data["features"], test_data["labels"])
        test_loader = DataLoader(test_dataset, batch_size=32)

        total_loss = 0.0
        all_predictions = []
        all_labels = []

        with torch.no_grad():
            for features, labels in test_loader:
                outputs = self.model(features)
                loss = self.criterion(outputs, labels)
                total_loss += loss.item() * features.size(0)

                all_predictions.append(outputs.numpy())
                all_labels.append(labels.numpy())

        # 计算平均损失
        avg_loss = total_loss / len(test_dataset)

        # 合并预测和标签
        all_predictions = np.concatenate(all_predictions, axis=0)
        all_labels = np.concatenate(all_labels, axis=0)

        return avg_loss, all_predictions, all_labels

    def predict(self, features):
        # 预测新数据
        self.model.eval()
        with torch.no_grad():
            inputs = torch.tensor(features, dtype=torch.float32)
            predictions = self.model(inputs)
        return predictions.numpy()

import matplotlib.pyplot as plt
import seaborn as sns
import numpy as np

class ResultVisualizer:
    def __init__(self):
        # 设置中文字体支持
        plt.rcParams["font.family"] = ["SimHei", "WenQuanYi Micro Hei", "Heiti TC"]
        # 设置风格
        sns.set(style="whitegrid")

    def plot_radar_chart(self, scores, dimensions, title="情感依赖评估雷达图"):
        # 计算角度
        angles = np.linspace(0, 2 * np.pi, len(dimensions), endpoint=False).tolist()
        # 闭合雷达图
        scores = np.concatenate((scores, [scores[0]]))
        angles = angles + [angles[0]]
        dimensions = dimensions + [dimensions[0]]

        # 创建图形
        fig, ax = plt.subplots(figsize=(8, 8), subplot_kw=dict(polar=True))

        # 绘制雷达图
        ax.plot(angles, scores, 'o-', linewidth=2)
        ax.fill(angles, scores, alpha=0.25)

        # 设置标签
        ax.set_thetagrids(np.degrees(angles[:-1]), dimensions[:-1])

        # 设置范围
        ax.set_ylim(0, 1)

        # 添加标题
        plt.title(title, size=15, y=1.1)

        # 显示图形
        plt.tight_layout()
        plt.show()

    def plot_trend_chart(self, trend_data, dimensions, title="情感依赖趋势图"):
        # 创建图形
        fig, ax = plt.subplots(figsize=(12, 6))

        # 绘制各维度的趋势
        for i, dimension in enumerate(dimensions):
            ax.plot(trend_data[:, i], label=dimension)

        # 设置标签和标题
        ax.set_xlabel("时间点")
        ax.set_ylabel("情感依赖分数")
        ax.set_title(title)

        # 添加图例
        ax.legend()

        # 设置范围
        ax.set_ylim(0, 1)

        # 显示图形
        plt.tight_layout()
        plt.show()

    def plot_heatmap(self, correlation_matrix, dimensions, title="情感依赖维度相关性热力图"):
        # 创建图形
        fig, ax = plt.subplots(figsize=(10, 8))

        # 绘制热力图
        sns.heatmap(correlation_matrix, annot=True, fmt=".2f", cmap="coolwarm",
                    xticklabels=dimensions, yticklabels=dimensions, ax=ax)

        # 设置标题
        plt.title(title)

        # 显示图形
        plt.tight_layout()
        plt.show()

    def generate_report(self, predictions, dimensions, user_info=None):
        # 生成文字报告
        report = """
        # 情感依赖评估报告
        """

        if user_info:
            report += f"\n## 用户信息\n"
            for key, value in user_info.items():
                report += f"- {key}: {value}\n"

        report += f"\n## 评估结果\n"
        report += "### 各维度得分\n"

        for i, dimension in enumerate(dimensions):
            score = predictions[i]
            report += f"- {dimension}: {score:.2f}\n"

            # 根据得分提供解释
            if score < 0.3:
                report += f"  - 解释：对{dimension[:2]}层面的依赖程度较低，用户可能更倾向于自主完成相关任务。\n"
            elif score < 0.7:
                report += f"  - 解释：对{dimension[:2]}层面的依赖程度适中，用户在需要时会寻求智能系统的帮助。\n"
            else:
                report += f"  - 解释：对{dimension[:2]}层面的依赖程度较高，用户高度依赖智能系统完成相关任务。\n"

        # 计算综合得分
        overall_score = np.mean(predictions)
        report += f"\n### 综合得分\n- 情感依赖指数：{overall_score:.2f}\n"

        # 根据综合得分提供建议
        if overall_score < 0.3:
            report += "\n### 建议\n- 增强系统的核心功能，提高用户对系统的信任度。\n- 优化用户界面和交互体验，降低使用门槛。\n"
        elif overall_score < 0.7:
            report += "\n### 建议\n- 进一步个性化服务，提高用户满意度。\n- 增强系统的情感交互能力，加深用户情感连接。\n"
        else:
            report += "\n### 建议\n- 注意保持系统的稳定性和可靠性，避免用户体验下降。\n- 提供更多高级功能，满足用户不断增长的需求。\n- 关注用户隐私保护，维护用户信任。\n"

        return report

bar chart
title 各方法在情感依赖评估中的性能对比
xaxis 评估指标
yaxis 性能指标(%)
series INTIMA: 89.2, 91.5, 93.1, 88.7
series 传统问卷法: 76.5, 82.7, 85.2, 79.3
series 面部表情识别: 82.3, 78.9, 80.4, 81.5
series 语音情感识别: 79.8, 76.3, 77.9, 78.2
series 机器学习基线: 84.1, 85.6, 87.3, 83.9

pip install torch numpy pandas scikit-learn matplotlib seaborn opencv-python

from intima import MultimodalDataFusion, EmotionalDependencyEvaluator, ResultVisualizer
import numpy as np

# 假设我们已经收集了用户的多模态数据
b behavioral_data = np.random.rand(100, 50)  # 行为数据，100个样本，50个特征
physiological_data = np.random.rand(100, 30)  # 生理数据，100个样本，30个特征
subjective_data = np.random.rand(100, 20)  # 主观数据，100个样本，20个特征

# 假设我们有对应的标签（情感依赖分数）
labels = np.random.rand(100, 5)  # 100个样本，5个情感依赖维度

# 1. 数据融合
fusion = MultimodalDataFusion(
    modalities=["behavioral", "physiological", "subjective"],
    fusion_method="early"
)

# 准备数据字典
data_dict = {
    "behavioral": behavioral_data,
    "physiological": physiological_data,
    "subjective": subjective_data
}

# 预处理数据
processed_data = fusion.preprocess(data_dict)

# 融合数据
fused_features = fusion.fuse(processed_data)

# 2. 模型训练与评估
# 划分训练集和测试集
train_features = fused_features[:80]
train_labels = labels[:80]
test_features = fused_features[80:]
test_labels = labels[80:]

# 初始化评估器
evaluator = EmotionalDependencyEvaluator(input_dim=train_features.shape[1])

# 训练模型
train_data = {"features": train_features, "labels": train_labels}
val_data = {"features": test_features[:10], "labels": test_labels[:10]}
evaluator.train(train_data, val_data, epochs=50, batch_size=16)

# 评估模型
test_data = {"features": test_features[10:], "labels": test_labels[10:]}
loss, predictions, true_labels = evaluator.evaluate(test_data)
print(f"测试损失: {loss:.4f}")

# 3. 结果可视化
visualizer = ResultVisualizer()
dimensions = ["认知依赖", "情感依赖", "行为依赖", "信任依赖", "习惯依赖"]

# 绘制单个用户的雷达图
user_predictions = predictions[0]
visualizer.plot_radar_chart(user_predictions, dimensions, title="用户情感依赖评估雷达图")

# 生成文字报告
user_info = {"用户ID": "user_001", "性别": "男", "年龄": "25-34岁", "使用时长": "3个月"}
report = visualizer.generate_report(user_predictions, dimensions, user_info)
print(report)

from intima import EmotionalDependencyModel, EmotionalDependencyEvaluator
import torch
import numpy as np

# 自定义评估维度
custom_dimensions = ["功能依赖", "情感连接", "使用习惯", "信任程度", "推荐意愿", "忠诚度"]
num_dimensions = len(custom_dimensions)

# 创建自定义模型
class CustomEmotionalDependencyModel(nn.Module):
    def __init__(self, input_dim, hidden_dims=[256, 128, 64], output_dim=num_dimensions):
        super().__init__()
        # 定义网络结构
        layers = []
        prev_dim = input_dim
        for hidden_dim in hidden_dims:
            layers.append(nn.Linear(prev_dim, hidden_dim))
            layers.append(nn.ReLU())
            layers.append(nn.Dropout(0.2))
            prev_dim = hidden_dim
        # 输出层，预测自定义维度
        layers.append(nn.Linear(prev_dim, output_dim))
        layers.append(nn.Sigmoid())

        self.network = nn.Sequential(*layers)

    def forward(self, x):
        return self.network(x)

# 创建自定义评估器
class CustomEmotionalDependencyEvaluator:
    def __init__(self, input_dim, learning_rate=0.001):
        self.model = CustomEmotionalDependencyModel(input_dim)
        self.criterion = nn.MSELoss()
        self.optimizer = optim.Adam(self.model.parameters(), lr=learning_rate)

    # 其他方法与EmotionalDependencyEvaluator类似
    # ...

# 使用自定义评估器
evaluator = CustomEmotionalDependencyEvaluator(input_dim=100)  # 假设输入特征维度为100
# 后续训练和评估步骤与基础示例类似
# ...

from intima import INTIMAAPI
import json

# 初始化INTIMA API
intima_api = INTIMAAPI(model_path="best_emotional_dependency_model.pt")

# 定义API服务
from flask import Flask, request, jsonify

app = Flask(__name__)

@app.route('/evaluate', methods=['POST'])
def evaluate_emotional_dependency():
    # 获取请求数据
    data = request.json

    # 提取特征
    features = np.array(data['features'])

    # 使用INTIMA工具评估
    predictions = intima_api.predict(features)

    # 生成报告
    dimensions = data.get('dimensions', ["认知依赖", "情感依赖", "行为依赖", "信任依赖", "习惯依赖"])
    user_info = data.get('user_info', {})
    report = intima_api.generate_report(predictions, dimensions, user_info)

    # 返回结果
    result = {
        'predictions': predictions.tolist(),
        'report': report
    }

    return jsonify(result)

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000)
